2015 JEEP CHEROKEE headlamp

CavityBlade FuseCartridge FuseDescription
F87A20 Amp Yellow–HID Headlamp Left - If
Equipped with Stop/Start En-
gine Option
F8815 Amp Blue–Collision Mitigation Module
(CMM) / Electrochromatic Mir-
ror / Smart Camera Module -
If Equipped
F8910 Amp Red–Headlamp Leveling - If
Equipped
F90––Not Used
F9120 Amp Yellow–Power Outlet Rear
F92––Not Used
F93–40 Amp GreenBrake System Module (BSM) -
Pump Motor
F94–30 Amp PinkElectric Park Brake (EPB) -
Right
7
MAINTAINING YOUR VEHICLE 717

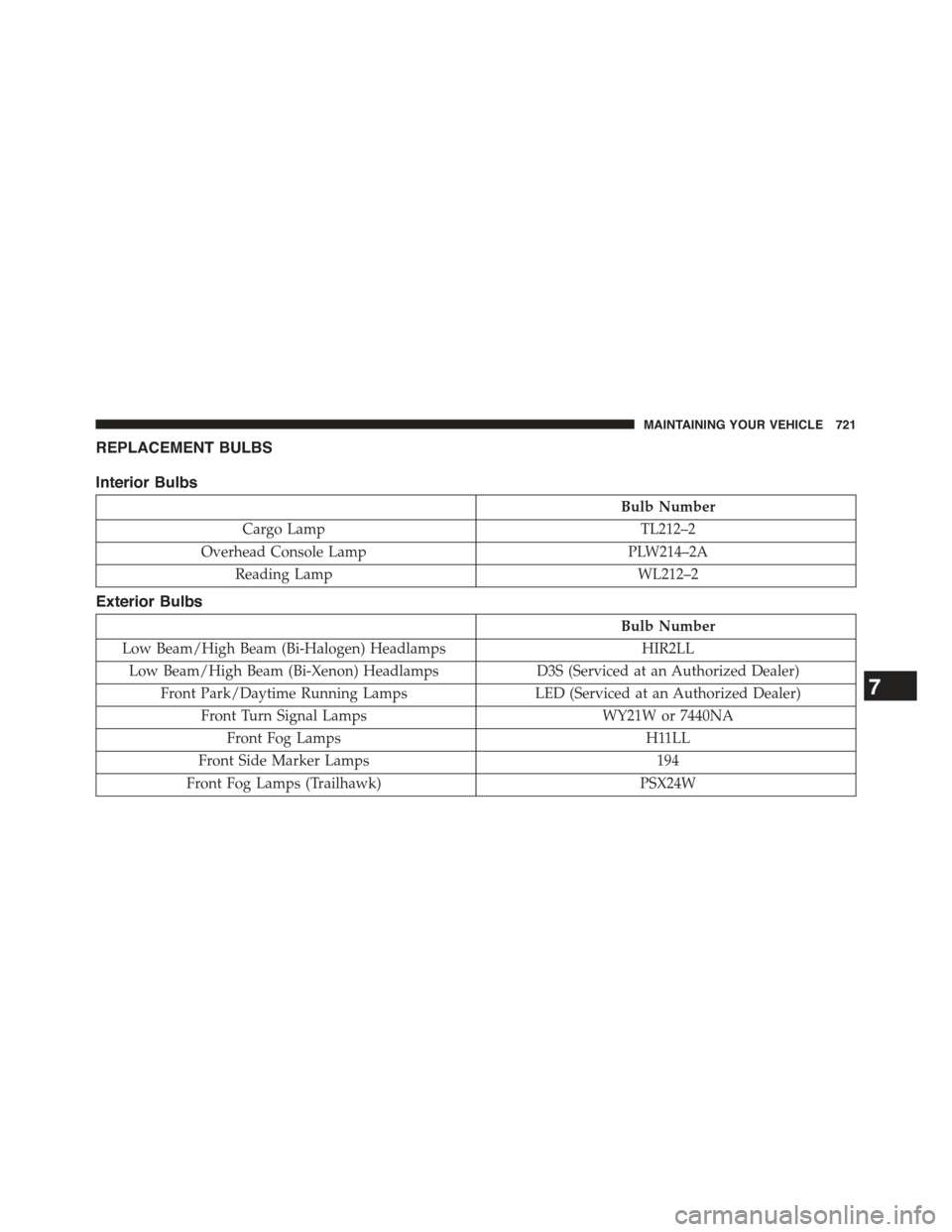

REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Cargo LampTL212–2
Overhead Console LampPLW214–2A
Reading LampWL212–2
Exterior Bulbs
Bulb Number
Low Beam/High Beam (Bi-Halogen) HeadlampsHIR2LL
Low Beam/High Beam (Bi-Xenon) HeadlampsD3S (Serviced at an Authorized Dealer)
Front Park/Daytime Running LampsLED (Serviced at an Authorized Dealer)
Front Turn Signal LampsWY21W or 7440NA
Front Fog LampsH11LL
Front Side Marker Lamps194
Front Fog Lamps (Trailhawk)PSX24W
7
MAINTAINING YOUR VEHICLE 721

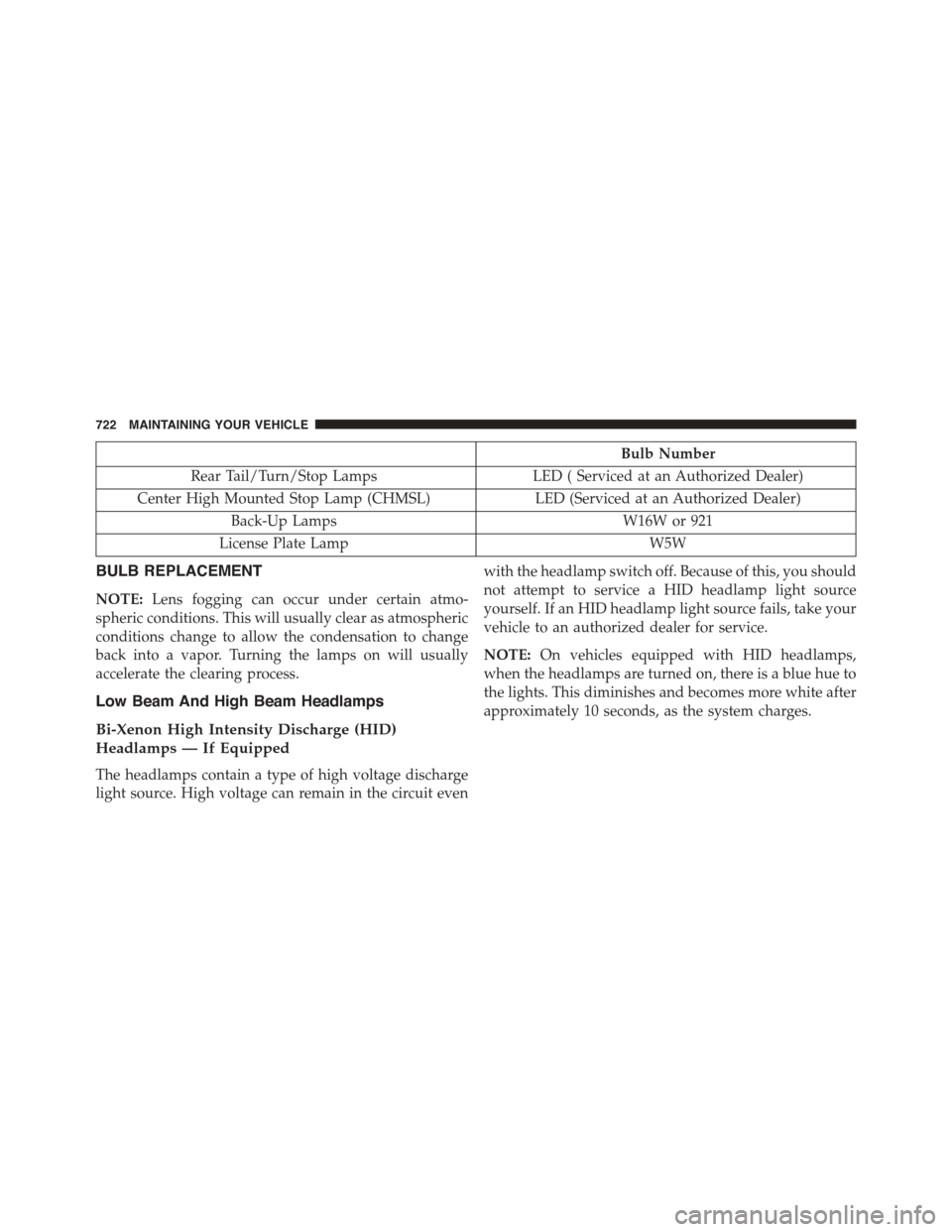

Bulb Number
Rear Tail/Turn/Stop LampsLED ( Serviced at an Authorized Dealer)
Center High Mounted Stop Lamp (CHMSL)LED (Serviced at an Authorized Dealer)
Back-Up LampsW16W or 921
License Plate LampW5W
BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Low Beam And High Beam Headlamps
Bi-Xenon High Intensity Discharge (HID)
Headlamps — If Equipped
The headlamps contain a type of high voltage discharge
light source. High voltage can remain in the circuit even
with the headlamp switch off. Because of this, you should
not attempt to service a HID headlamp light source
yourself. If an HID headlamp light source fails, take your
vehicle to an authorized dealer for service.
NOTE:On vehicles equipped with HID headlamps,
when the headlamps are turned on, there is a blue hue to
the lights. This diminishes and becomes more white after
approximately 10 seconds, as the system charges.
722 MAINTAINING YOUR VEHICLE

WARNING!
A transient high voltage occurs at the bulb sockets of
HID headlamps when the headlamp switch is turned
ON. It may cause serious electrical shock or electro-
cution if not serviced properly. See your authorized
dealer for service.
Bi-Halogen Headlamps
1. Remove the 3 hex head screws from the wheel liner.
2. Pull the exterior edge of the liner towards the tire to
gain access to the headlamp bulb cap.
3. Firmly grasp the cap and rotate it counterclockwise to
unlock it.
4. Firmly grasp the bulb and connector assembly and
rotate counterclockwise to remove from the housing.
5. Disconnect the bulb from the electrical connector and
then connect the replacement bulb.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
6. Install the bulb and connector assembly into the
headlamp housing and rotate clockwise to lock it in
place.
7. Install the bulb cap in the headlamp housing and
rotate clockwise to lock it in place.
8. Install the 3 hex head screws into the wheel liner.
7
