2015 INFINITI QX60 width

When the shift lever is shifted into the R (Re-
verse) position, the monitor display shows a rear-
ward view from the vehicle.
WARNING
●The system is designed as an aid to the
driver in situations such as slot parking
or parallel parking.
● The RearView Monitor is a convenience
but not a substitute for proper backing
procedures. Always turn to check what
is behind you before backing up.
● The RearView Monitor cannot com-
pletely eliminate blind spots or warn of
moving objects.
● The driver is always responsible for
safety during parking and other
maneuvers.
● Objects viewed in the RearView Moni-
tor differ from actual distance because
a wide-angle lens is used.
● Make sure that the liftgate is securely
closed when backing up.
● Underneath the bumper and the corner
areas of the bumper cannot be viewed
on the RearView Monitor because of its
monitoring range limitation. ●
Do not put anything on the rear view
camera. The rear view camera is in-
stalled above the license plate.
● When washing the vehicle with high-
pressure water, be sure not to spray it
around the camera. Otherwise, water
may enter the camera unit causing wa-
ter condensation on the lens, a mal-
function, fire or an electric shock.
● Do not strike the camera. It is a preci-
sion instrument. Otherwise, it may mal-
function or cause damage resulting in a
fire or an electric shock.
● Objects in the rearview will appear visu-
ally opposite than when viewed in the
rearview and outside mirrors.
CAUTION
Do not scratch the camera lens when
cleaning dirt or snow from the lens.
HOW TO READ THE DISPLAYED
LINES
Guiding lines which indicate the vehicle width
and distances to objects with reference to the
vehicle body line
Aare displayed on the monitor.
Distance guide lines:
Indicate distances from the vehicle body. ● Red line
1: approx. 1.5 ft (0.5 m)
● Yellow line
2: approx. 3 ft (1 m)
● Green line
3: approx. 7 ft (2 m)
● Green line
4: approx. 10 ft (3 m)
LHA1196
REARVIEW MONITOR (if so
equipped)
Monitor, climate, audio, phone and voice recognition systems4-21

Vehicle width guide lines5:
Indicate the vehicle width when backing up.
Predicted course lines
6:
Indicate the predicted course when backing up.
The predicted course lines will be displayed on
the monitor when the shift selector is in the R
(Reverse) position and the steering wheel is
turned. The predicted course lines will move de-
pending on how much the steering wheel is
turned and will not be displayed while the steer-
ing wheel is in the neutral position.
The vehicle width guide lines and the width of the
predicted course lines are wider than the actual
width and course.
WARNING
● Always turn and check that it is safe to
do so before backing up. Always back
up slowly.
● If the tires are replaced with different
sized tires, the predicted course lines
may be displayed incorrectly.
● On a snow-covered or slippery road,
there may be a difference between the
predicted course line and the actual
course line. ●
The distance guide line and the vehicle
width line and predicted course lines
should be used as a reference only
when the vehicle is on a level paved
surface. The distance viewed on the
monitor is for reference only and may
be different than the actual distance
between the vehicle and displayed
objects.
● When backing up the vehicle up a hill,
objects viewed in the monitor are fur-
ther than they appear. When backing up
the vehicle down a hill, objects viewed
in the monitor are closer than they ap-
pear. Use the inside mirror or glance
over your shoulder to properly judge
distances to other objects.
HOW TO PARK WITH PREDICTED
COURSE LINES
1. Visually check that the parking space is safe
before parking your vehicle.
LHA1197
4-22Monitor, climate, audio, phone and voice recognition systems

2. The rear view of the vehicle is displayed onthe screen
Awhen the shift lever is moved
to the R (Reverse) position.
3. Slowly back up the vehicle adjusting thesteering wheel so that the predicted course
lines
Benter the parking spaceC. 4. When the back of the vehicle enters the
parking space
C, maneuver the steering
wheel to make the vehicle width guide lines
Dparallel to the parking spacesC.
5. When the vehicle is parked in the space completely, move the shift lever to the P
(Park) position and apply the parking brake.
DIFFERENCE BETWEEN
PREDICTIVE AND ACTUAL
DISTANCES
The distance guide line and the vehicle width
guide line should be used as a reference only
when the vehicle is on a level, paved surface. The
distance viewed on the monitor is for reference
only and may be different than the actual distance
between the vehicle and displayed objects.
LHA1198
Monitor, climate, audio, phone and voice recognition systems4-23

Backing up on a steep uphill
When backing up the vehicle up a hill, the dis-
tance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
For example, the display shows 3 ft (1.0 m) to the
place
A, but the actual 3 ft (1.0 m) distance onthe hill is the place
B. Note that any object on
the hill is further than it appears on the monitor.
Backing up on a steep downhill
When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown farther than the actual distance.
For example, the display shows 3 ft (1.0 m) to the
place
A, but the actual 3 ft (1.0 m) distance on
LHA3145LHA3146
4-24Monitor, climate, audio, phone and voice recognition systems

●When washing the vehicle with high-
pressure water, be sure not to spray it
around the cameras. Otherwise, water
may enter the camera unit causing wa-
ter condensation on the lens, a mal-
function, fire or an electric shock.
● Do not strike the cameras. They are
precision instruments. Doing so could
cause a malfunction or cause damage
resulting in a fire or an electric shock.
CAUTION
Do not scratch the camera lens when
cleaning dirt or snow from the front of the
camera.
AVAILABLE VIEWS
WARNING
●The distance guide line and the vehicle
width line should be used as a reference
only when the vehicle is on a paved,
level surface. The distance viewed on
the monitor may be different than the
actual distance between the vehicle and
displayed objects. ●
The distance between objects viewed in
the rearview differs from the actual dis-
tance because a wide-angle lens is
used.
● Use the displayed lines and the bird’s-
eye view as a reference. The lines and
the bird’s-eye view are greatly affected
by the number of occupants, fuel level,
vehicle position, road condition and
road grade.
● If the tires are replaced with different
sized tires, the predictive course lines
and the bird’s-eye view may be dis-
played incorrectly.
● When driving the vehicle up a hill, ob-
jects viewed in the monitor are further
than they appear. When driving the ve-
hicle down a hill, objects viewed in the
monitor are closer than they appear.
Use the mirrors or actually look to prop-
erly judge distances to other objects.
● Objects in the monitor will appear visu-
ally opposite than when viewed in the
rearview and outside mirrors.
● On a snow-covered or slippery road,
there may be a difference between the
predictive course lines and the actual
course line. ●
The displayed lines on the rearview will
appear slightly off to the right because
the rearview camera is not installed in
the rear center of the vehicle.
● The vehicle width and predictive course
lines are wider than the actual width
and course.
4-28Monitor, climate, audio, phone and voice recognition systems

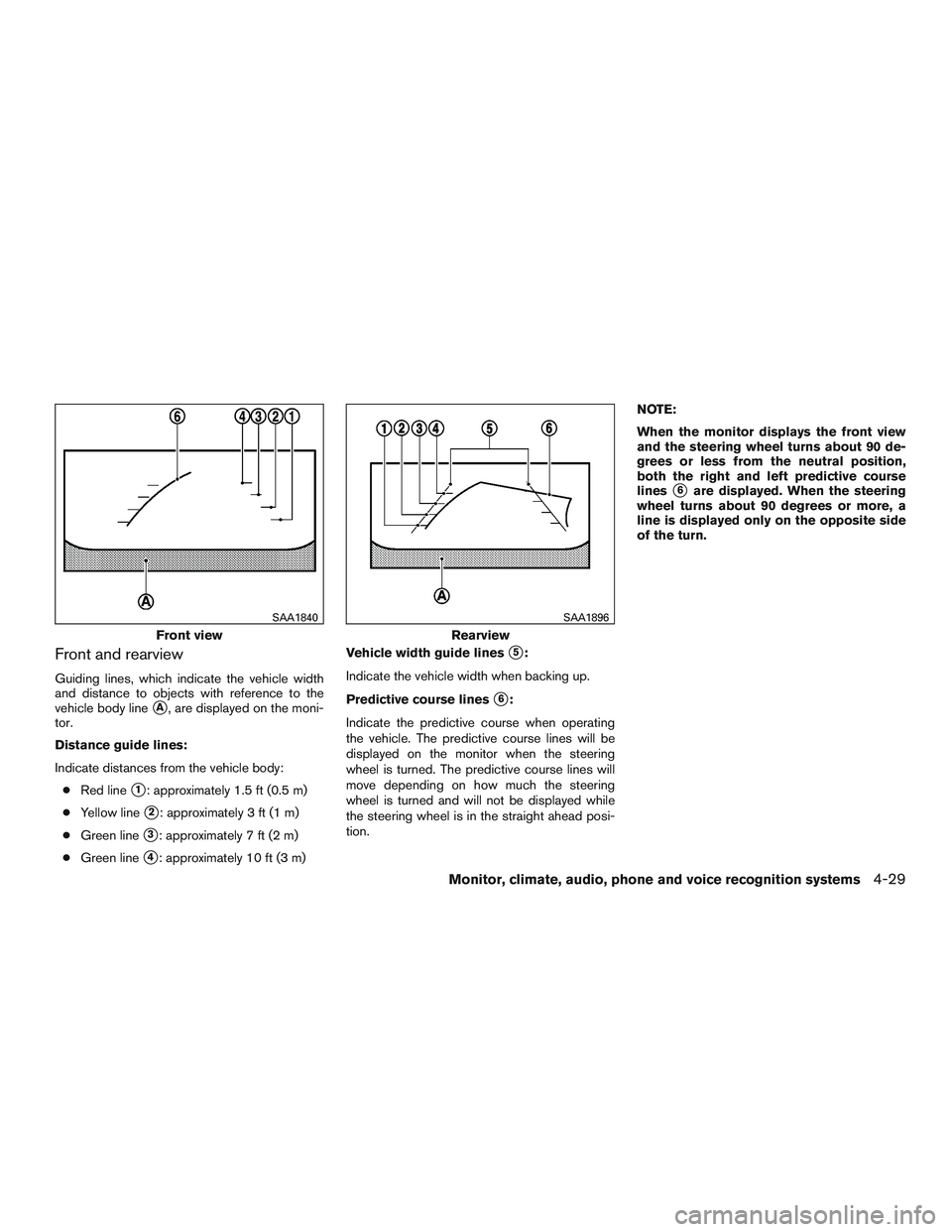

Front and rearview
Guiding lines, which indicate the vehicle width
and distance to objects with reference to the
vehicle body line
A, are displayed on the moni-
tor.
Distance guide lines:
Indicate distances from the vehicle body:
● Red line
1: approximately 1.5 ft (0.5 m)
● Yellow line
2: approximately 3 ft (1 m)
● Green line
3: approximately 7 ft (2 m)
● Green line
4: approximately 10 ft (3 m) Vehicle width guide lines
5:
Indicate the vehicle width when backing up.
Predictive course lines
6:
Indicate the predictive course when operating
the vehicle. The predictive course lines will be
displayed on the monitor when the steering
wheel is turned. The predictive course lines will
move depending on how much the steering
wheel is turned and will not be displayed while
the steering wheel is in the straight ahead posi-
tion. NOTE:
When the monitor displays the front view
and the steering wheel turns about 90 de-
grees or less from the neutral position,
both the right and left predictive course
lines
6are displayed. When the steering
wheel turns about 90 degrees or more, a
line is displayed only on the opposite side
of the turn.
Front view
SAA1840
Rearview
SAA1896
Monitor, climate, audio, phone and voice recognition systems4-29

Front-side view
Guiding lines
Guiding lines that indicate the width and the front
end of the vehicle are displayed on the monitor.
The front-of-vehicle line
1shows the front part
of the vehicle.
The side-of-vehicle line
2shows the vehicle
width including the outside mirrors.
The extensions
3of both the front1and side
2lines are shown with a green dotted line.
The corner sonar indicator
4will appear when a
corner of the vehicle moves closer to an object. The corner sonar indicator
4can be turned off.
For additional information, refer to “Around
View® Monitor” in this section.
CAUTION
The turn signal light may look like the
side-of-vehicle line. This is not a
malfunction.
Front-wide and rear-wide view
The front-wide and rear-wide view shows a wider
area on the entire screen and allows the checking
of the blind corners on right and left sides. The
rear-wide view displays an approximately 180-
degree area while the front-view and rearview
display an approximately 150-degree area. The
predictive course lines are not displayed when
using the front-wide and rear-wide view.
SAA1842
Front-wide view
LHA2318
Monitor, climate, audio, phone and voice recognition systems4-31

Distance guide lines:
Indicates distances from the vehicle body:● Red line
1: approximately 1.5 ft (0.5 m)
● Yellow line
2: approximately 3 ft (1 m)
● Green line
3: approximately 7 ft (2 m)
● Green line
4: approximately 10 ft (3 m)
Vehicle width guide lines
5:
Indicate the vehicle width when backing up.
The corner sonar indicator
6will appear when a
corner of the vehicle moves closer to an object.
DIFFERENCE BETWEEN
PREDICTIVE AND ACTUAL
DISTANCES
The distance guide line and the vehicle width
guide line should be used as a reference only
when the vehicle is on a level, paved surface. The
distance viewed on the monitor is for reference
only and may be different than the actual distance
between the vehicle and displayed objects.
Backing up on a steep uphill
When backing up the vehicle up a hill, the dis-
tance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
For example, the display shows 1.0 m (3 ft) to the
place
A, but the actual 1.0 m (3 ft) distance on
Rear-wide view
SAA2629
LHA3145
4-32Monitor, climate, audio, phone and voice recognition systems
