2015 INFINITI QX60 bluetooth

IMPORTANT INFORMATION ABOUT
THIS MANUAL
You will see various symbols in this manual. They
are used in the following ways:
WARNING
This is used to indicate the presence of a
hazard that could cause death or serious
personal injury. To avoid or reduce the
risk, the procedures must be followed
precisely.
CAUTION
This is used to indicate the presence of a
hazard that could cause minor or moder-
ate personal injury or damage to your ve-
hicle. To avoid or reduce the risk, the pro-
cedures must be followed carefully.If you see this symbol, it means
“Do not do this”
or “Do not let this happen.”
If you see a symbol similar to these in an illustra-
tion, it means the arrow points to the front of the
vehicle.
Arrows in an illustration that are similar to these
indicate movement or action.
Arrows in an illustration that are similar to these
call attention to an item in the illustration.
CALIFORNIA PROPOSITION 65
WARNING
WARNING
Engine exhaust, some of its constituents,
and certain vehicle components contain or
emit chemicals known to the State of
California to cause cancer and birth de-
fects or other reproductive harm. In addi-
tion, certain fluids contained in vehicles
and certain products of component wear
contain or emit chemicals known to the
State of California to cause cancer and
birth defects or other reproductive harm.
CALIFORNIA PERCHLORATE
ADVISORY
Some vehicle parts, such as lithium batter-
ies, may contain perchlorate material. The
following advisory is provided: “Perchlorate
Material – special handling may apply, See
www.dtsc.ca.gov/hazardouswaste/perchlorate/”.
BLUETOOTH® is a
trademark owned by
Bluetooth SIG, Inc.
and licensed to
Visteon and Clarion.
APD1005

22. Hazard warning flasher switch (P. 6-2)
23. Push-button ignition switch (P. 5-12)
24. Cruise control main/set switches andIntelligent cruise control main/set
switches (if so equipped) (P. 5-51,
P.5-52)
25. Dynamic Driver Assistance switch
(if so equipped) (P. 5-72)
26. Tilt steering wheel control (P. 3-29)
27. Bluetooth® Hands-Free Phone System
(P. 4-109, 4-123)
28. Steering wheel switch for audio control
(P. 4-95)
29. Hood release (P. 3-22)
30. Vehicle Dynamic Control (VDC) OFF
switch (P. 2-43)
Heated steering wheel switch
(if so equipped) (P. 2-41)
Headlight aiming control (P. 2-31)
Warning System switch
(if so equipped) (P. 6-2)
Power inverter switch (if so equipped)
(P. 2-44)
Liftgate opener switch (P. 3-23)
Power liftgate main switch (P. 3-23)
31. Control panel and Vehicle Information
Display switches (P. 4-4, 2-16)*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
Refer to the page number indicated in pa-
rentheses for operating details.
Illustrated table of contents0-7

22. Hazard warning flasher switch (P. 6-2)
23. Push-button ignition switch (P. 5-12)
24. Cruise control main/set switches andIntelligent cruise control main/set
switches (if so equipped) (P. 5-51,
P.5-52)
25. Dynamic Driver Assistance switch
(if so equipped) (P. 5-72)
26. Tilt steering wheel control (P. 3-29)
27. Bluetooth® Hands-Free Phone System
(P. 4-109, 4-123)
28. Steering wheel switch for audio control
(P. 4-95)
29. Hood release (P. 3-22)
30. Vehicle Dynamic Control (VDC) OFF
switch (P. 2-43)
Heated steering wheel switch
(if so equipped) (P. 2-41)
Headlight aiming control (P. 2-31)
Warning System switch
(if so equipped) (P. 6-2)
Power inverter switch (if so equipped)
(P. 2-44)
Liftgate opener switch (P. 3-23)
Power liftgate main switch (P. 3-23)
31. Control panel and Vehicle Information
Display switches (P. 4-4, 2-16)*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
Refer to the page number indicated in pa-
rentheses for operating details.
Instruments and controls2-3

Audio system.................................... 4-53
Radio ........................................ 4-53
FM radio reception ............................ 4-53
AM radio reception ............................ 4-54
Satellite radio reception ........................ 4-54
Audio operation precautions ....................4-54
FM/AM/SAT radio with compact disc (CD)
player ........................................ 4-68
Digital Versatile Disc (DVD) Player
Operation (models with Navigation System) ......4-76
USB (Universal Serial Bus) Connection Port
(models without Navigation System)
(if so equipped) ............................... 4-80
USB (Universal Serial Bus) Connection Port
(models with Navigation System)
(if so equipped) ............................... 4-81
iPod®* player operation without Navigation
System (if so equipped) ........................ 4-85
iPod®* player operation with Navigation
System (if so equipped) ........................ 4-87
Bluetooth® streaming audio (if so equipped) .....4-91
CD care and cleaning .......................... 4-94
Steering wheel switch for audio control ..........4-95
Antenna ...................................... 4-97Dual head restraint/headrest DVD system
(if so equipped)
.................................. 4-97
System components ........................... 4-97
Before operating dual head restraint/
headrest DVD system ......................... 4-102
Playing a DVD (Digital Versatile Disc) ...........4-103
Operating tips ................................ 4-108
Care and maintenance ........................ 4-108
Car phone or CB radio ........................... 4-109
Bluetooth® Hands-Free Phone System without
Navigation System (if so equipped) ................4-109
Regulatory Information ........................ 4-111
Using the system ............................. 4-111
Control buttons .............................. 4-113
Getting started ............................... 4-114
List of voice commands ....................... 4-115
Voice Adaptation (VA) mode ...................4-120
Manual control . . ............................. 4-121
T roubleshooting

guide ........................ 4-121
Bluetooth® Hands-Free Phone System with
Navigation System (if so equipped) ................4-123
Regulatory Information ........................ 4-124
Voice commands ............................. 4-125
Connecting procedure ........................ 4-125

Vehicle Phonebook........................... 4-127
Handset phonebook .......................... 4-129
Making a call ................................. 4-130
Receiving a call .............................. 4-131
During a call ................................. 4-132
Ending a call ................................. 4-132
Phone settings ............................... 4-133
Bluetooth® settings .......................... 4-134
Call volume . . ................................ 4-135
INFINITI Voice Recognition System
(if so equipped) ................................. 4-136INFINITI Voice Recognition Standard Mode
......4-136
Using the system ............................. 4-139
Before starting . . ............................. 4-139
Giving voice commands ....................... 4-139
INFINITI Voice Recognition Alternate
Command Mode ............................. 4-144
Using the system ............................. 4-149
Speaker Adaptation function ...................4-151
Troubleshooting guide ........................ 4-152

HOW TO USE THE SETTING
BUTTON
Press the SETTING button. This screen displays
and adjusts various settings and functions that
are available for your vehicle. When the amber
indicator next to an item is illuminated, the feature
is enabled.
Menu ItemResult
Navigation For additional information, refer to the separate Navigation System Owner’s Manual.
Audio For additional information, refer to “Audio system” in this section.
Phone For additional information, refer to “Bluetooth® Hands-Free Phone System with Navigation System”.
Bluetooth For additional information, refer to “Bluetooth® Hands-Free Phone System with Navigation System”.
Volume & Beeps Adjusts the volume and beep settings.
Navigation volume For additional information, refer to the separate Navigation System Owner’s Manual.
Phone Volume For additional information, refer to “Bluetooth® Hands-Free Phone System with Navigation System” in this section.
Infiniti Connection Volume For additional information, refer to the separate Navigation System Owner’s Manual.
Switch Beeps Toggles ON or OFF the beep sound that is heard when a control panel button is pressed.
Display Adjusts the settings for the display screen.
Rear display (if so equipped) Adjusts the settings for the rear display screens.
LHA2152
4-16Monitor, climate, audio, phone and voice recognition systems

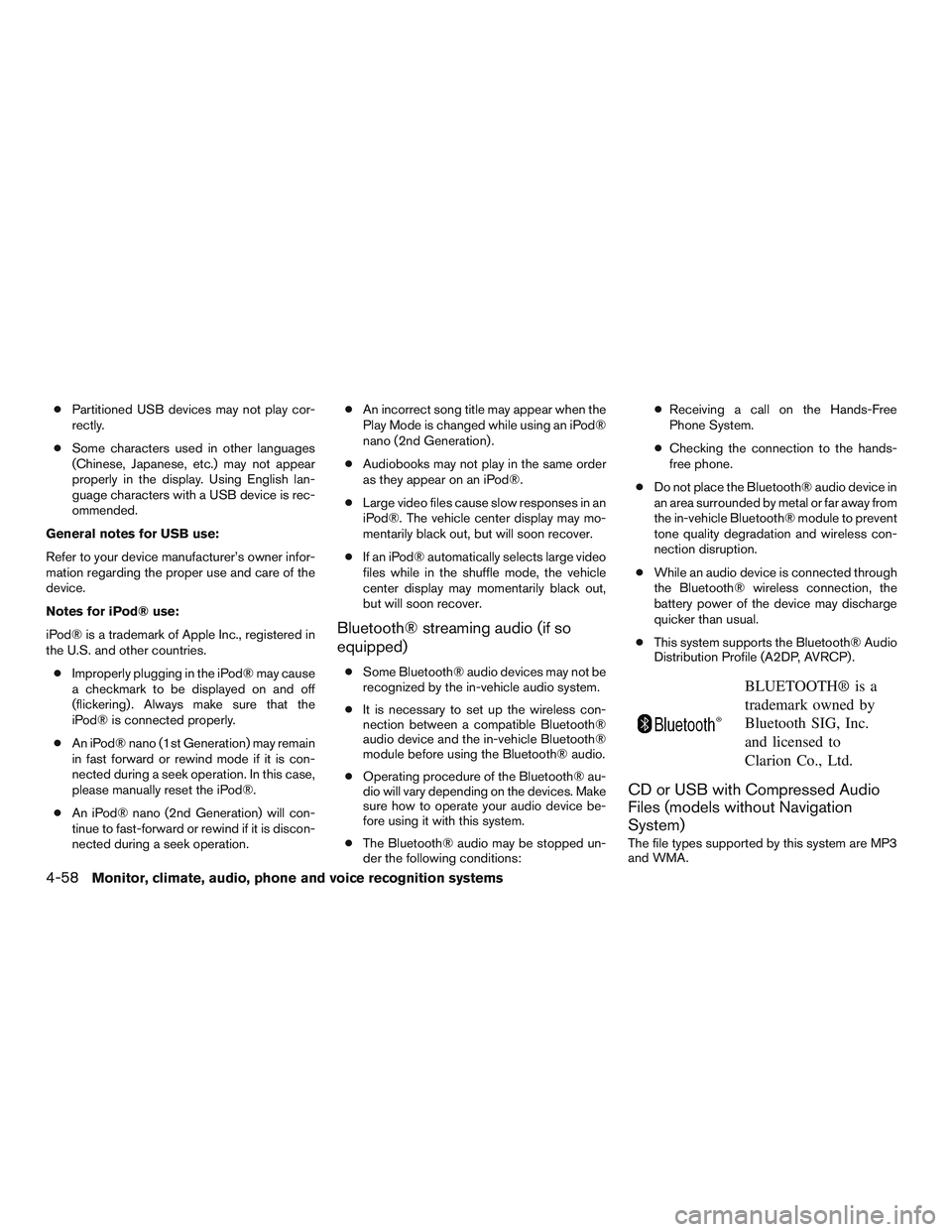

●Partitioned USB devices may not play cor-
rectly.
● Some characters used in other languages
(Chinese, Japanese, etc.) may not appear
properly in the display. Using English lan-
guage characters with a USB device is rec-
ommended.
General notes for USB use:
Refer to your device manufacturer’s owner infor-
mation regarding the proper use and care of the
device.
Notes for iPod® use:
iPod® is a trademark of Apple Inc., registered in
the U.S. and other countries. ● Improperly plugging in the iPod® may cause
a checkmark to be displayed on and off
(flickering) . Always make sure that the
iPod® is connected properly.
● An iPod® nano (1st Generation) may remain
in fast forward or rewind mode if it is con-
nected during a seek operation. In this case,
please manually reset the iPod®.
● An iPod® nano (2nd Generation) will con-
tinue to fast-forward or rewind if it is discon-
nected during a seek operation. ●
An incorrect song title may appear when the
Play Mode is changed while using an iPod®
nano (2nd Generation) .
● Audiobooks may not play in the same order
as they appear on an iPod®.
● Large video files cause slow responses in an
iPod®. The vehicle center display may mo-
mentarily black out, but will soon recover.
● If an iPod® automatically selects large video
files while in the shuffle mode, the vehicle
center display may momentarily black out,
but will soon recover.
Bluetooth® streaming audio (if so
equipped)
●Some Bluetooth® audio devices may not be
recognized by the in-vehicle audio system.
● It is necessary to set up the wireless con-
nection between a compatible Bluetooth®
audio device and the in-vehicle Bluetooth®
module before using the Bluetooth® audio.
● Operating procedure of the Bluetooth® au-
dio will vary depending on the devices. Make
sure how to operate your audio device be-
fore using it with this system.
● The Bluetooth® audio may be stopped un-
der the following conditions: ●
Receiving a call on the Hands-Free
Phone System.
● Checking the connection to the hands-
free phone.
● Do not place the Bluetooth® audio device in
an area surrounded by metal or far away from
the in-vehicle Bluetooth® module to prevent
tone quality degradation and wireless con-
nection disruption.
● While an audio device is connected through
the Bluetooth® wireless connection, the
battery power of the device may discharge
quicker than usual.
● This system supports the Bluetooth® Audio
Distribution Profile (A2DP, AVRCP) .BLUETOOTH® is a
trademark owned by
Bluetooth SIG, Inc.
and licensed to
Clarion Co., Ltd.
CD or USB with Compressed Audio
Files (models without Navigation
System)
The file types supported by this system are MP3
and WMA.
4-58Monitor, climate, audio, phone and voice recognition systems

Once you have adjusted the sound quality to the
desired level, press the AUDIO control knob re-
peatedly until the radio or CD display reappears.
If the control knob is not pressed for approxi-
mately 10 seconds, the radio or CD display will
automatically reappear.
BOSE® Centerpoint® (if so equipped)
When this item is turned to ON, an exciting
surround sound effect is generated from a tradi-
tional stereo recording.
Surround Effect (models with Navigation
System)
To adjust the surround sound volume, select
“Surround Effect” key and adjust it with the
INFINITI controller.
Speed Sensitive Vol.
The audio system’s volume is increased with the
vehicle speed. Select the “Speed Sensitive Vol.”
key and adjust the effect level with the INFINITI
controller. The Speed Sensitive Volume function
is turned off when the level is set to OFF. Increas-
ing the value will cause the volume to increase
faster with vehicle speed.
DivX® Registration Code (models with
Navigation System)
The registration code for a device that is used to
download DivX® files will be displayed on thescreen. If a disc is loaded or a USB memory is
connected to the audio system, this function will
not be activated.
Display Album Cover Art (models with
Navigation System)
When this item is turned to ON, the album cover
image is displayed when playing iPod® or MP3
music files through a CD, DVD or USB memory
device. The image will not be displayed when the
image is not properly embedded in the file or
device.
Switching the display
Press the DISC·AUX button to switch the dis-
plays as follows:
● Models without Navigation System
iPod®/USB →CD →iPod®/USB
● Models with Navigation System
iPod®/USB →CD/DVD →Bluetooth® Audio →
iPod®/USB
Linking Intelligent Key (models with Navi-
gation System)
The audio settings can be memorized for each
Intelligent Key. For additional information, refer to
“Setting memory function” in the “Pre-driving
checks and adjustments” section of this manual.FM/AM/SAT radio operation
FM/AM band select
Pressing the FM·AM button will change the band
as follows:
AM →FM1 →FM2 →AM
When the FM·AM button is pressed while the
ignition switch is in the ACC or ON position, the
radio will come on at the station last played.
The last station played will also come on when
the VOL/ON·OFF control knob is pressed ON.
If a compact disc is playing when the FM·AM
button is pressed, the compact disc will auto-
matically be turned off and the last radio station
played will come on.
The FM stereo indicator STEREO will illuminate
during FM stereo reception. When the stereo
broadcast signal is weak, the radio will automati-
cally change from stereo to monaural reception.
XM band select
Pressing the XM button will change the band as
follows:
XM1* →XM2* →XM3* →XM1
When the XM button is pressed while the ignition
switch is in the ACC or ON position, the radio will
come on at the station last played.
4-70Monitor, climate, audio, phone and voice recognition systems
