LDP system operation
The LDP system operates above approximately
45 MPH (70 km/h). When the vehicle ap-
proaches either the left or the right side of the
traveling lane, a warning chime will sound and the
LDW indicator light (orange) on the instrument
panel will blink to alert the driver. Then, the LDP
system will automatically apply the brakes for a
short period of time to help assist the driver to
return the vehicle to the center of the traveling
lane.The warning and assist functions will stop when
the vehicle returns to a position inside of the lane
marker.
To turn on the LDP system, push the dynamic
driver assistance switch on the steering wheel
after starting the engine. The LDW indicator light
(green) on the instrument panel will illuminate.
Push the dynamic driver assistance switch again
to turn off the LDP system. The LDP/Warning
indicator light will turn off.How to enable/disable the LDP system
Perform the following steps to enable or disable
the LDP system.
1. Press the
button until “Settings” dis-
plays in the vehicle information display. Use
the
button to select “Driver Assis-
tance”. Then press the ENTER button.
2. Select “Driver Aids”, and press the ENTER button.
3. To set the LDP system to on or off, use the
buttons to navigate in the menu
and use the ENTER button to select or
change an item:
● Select “Lane” and press the ENTER but-
ton.
– To turn on the warning, use the ENTER button to check box for Warning (LDW)”
– To turn on the assistance system, use the ENTER button to check box for “Assis-
tance (LDP)”
LDP ON indicator light/Warning light (orange)
LSD2770
Dynamic driver assistance switch
LSD2039
5-30Starting and driving

The BSI system turns on when the dynamic driver
assistance switch on the steering wheel is
pushed when the “Blind Spot Intervention” is
enabled in the settings menu on the vehicle infor-
mation display. The BSI ON indicator light on the
instrument panel illuminates when the BSI sys-
tem is turned on.
The BSI system provides a chime and turns on or
flashes the Blind Spot Warning indicator light
even if the BSW system is off.
How to enable/disable the BSI system
Perform the following steps to enable or disable
the BSI system.1. Press the
button until “Settings” dis-
plays in the vehicle information display. Use
the
button to select “Driver Assis-
tance”. Then press the ENTER button.
2. Select “Driver Aids”, and press the ENTER button.
3. To set the BSI system to on or off, use the
buttons to navigate in the menu
and use the ENTER button to select or
change an item:
● Select “Blind Spot” and press the ENTER
button.
– To turn on the warning, use the ENTER button to check box for “Warning (BSW)”
– To turn on the assistance system, use the ENTER button to check box for “Assis-
tance (BSI)”
– Use the ENTER button to toggle through the brightness choices —
“Bright/STD/Dark”
BSI temporarily not available
When any of the following messages appear on
the vehicle information display, a chime will sound
and the BSI system will be turned off automati-
cally. ●
“Unavailable Road is slippery” :
When the VDC system (except traction con-
trol system function) or ABS operates.
● “Unavailable VDC OFF” :
When the VDC system is turned off.
● “Unavailable Snow mode active” :
When the drive mode select switch is turned
to the SNOW mode.
● “Unavailable High Cabin Temp. ” :
When the camera detects that the interior
temperature is high (over approximately
104°F (40°C)) .
● “Unavailable Side Radar Obstruction” :
When side radar blockage is detected.
Turn off the BSI system and turn it on again when
the above conditions no longer exist.
BSI malfunction
When the BSI system malfunctions, it will be
turned off automatically, a chime will sound and
the BSI system warning light (orange) will illumi-
nate.
Action to take:
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the engine off
and restart the engine. If the warning light (or-
ange) continues to illuminate, have the system
checked by an INFINITI retailer.
SSD0938
Starting and driving5-37

The BCI system automatically turns on every time
the engine is started.
The BCI system can be turned off temporarily by
pushing the BCI switch. The BCI OFF display
appears on the vehicle information display. When
the shift lever is placed into the R (Reverse)
position again the BCI system is turned on.
The BCI system can be turned off permanently by
setting in the vehicle information display.1. Press the
button until “Settings” dis-
plays in the vehicle information display. Use
the
to select “Driver Assistance”.
Then press the ENTER button. 2. Select “Back-up Collision Interv.”, and press
the ENTER button.
3. To set the BCI system to on or off, use the buttons to navigate in the menu and use the
ENTER button to select or change an item.
BCI temporarily not available
If the following messages appear on the vehicle
information display, a chime will sound and the
BCI system will be turned off automatically. ●
“Unavailable High Accelerator Temp. ” :
If the vehicle is parked in direct sunlight
under high temperature conditions (over ap-
proximately 104°F (40°C) and then started,
the BCI system may be deactivated auto-
matically and the “Unavailable High Accel-
erator Temp” message will appear in the
vehicle information display for a period of
time.
When the interior temperature is reduced,
turn off the BCI system and turn it on again.
● “Unavailable Side Radar Obstruction” :
When side radar blockage is detected.
When the blockage is removed, turn off the
BCI system and turn it on again.
BCI malfunction
If the BCI system malfunctions, it will turn off
automatically, a chime will sound and the BCI
system warning light (orange) will illuminate.
Action to take:
Stop the vehicle in a safe location, turn the engine
off and restart the engine. If the warning light
(orange) continues to illuminate, have the system
checked by an INFINITI retailer.
LSD2030LSD2046
Starting and driving5-49

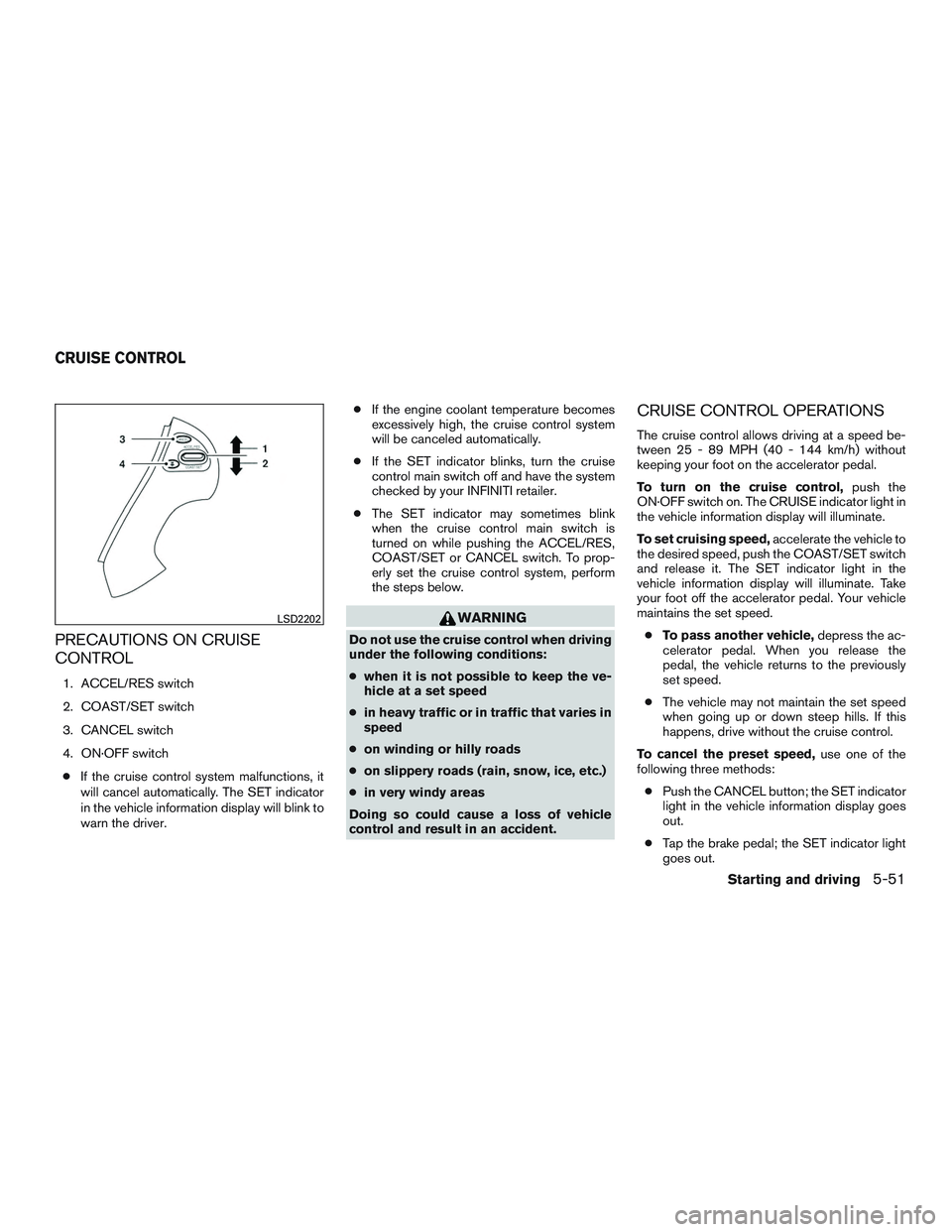

PRECAUTIONS ON CRUISE
CONTROL
1. ACCEL/RES switch
2. COAST/SET switch
3. CANCEL switch
4. ON·OFF switch● If the cruise control system malfunctions, it
will cancel automatically. The SET indicator
in the vehicle information display will blink to
warn the driver. ●
If the engine coolant temperature becomes
excessively high, the cruise control system
will be canceled automatically.
● If the SET indicator blinks, turn the cruise
control main switch off and have the system
checked by your INFINITI retailer.
● The SET indicator may sometimes blink
when the cruise control main switch is
turned on while pushing the ACCEL/RES,
COAST/SET or CANCEL switch. To prop-
erly set the cruise control system, perform
the steps below.
WARNING
Do not use the cruise control when driving
under the following conditions:
● when it is not possible to keep the ve-
hicle at a set speed
● in heavy traffic or in traffic that varies in
speed
● on winding or hilly roads
● on slippery roads (rain, snow, ice, etc.)
● in very windy areas
Doing so could cause a loss of vehicle
control and result in an accident.
CRUISE CONTROL OPERATIONS
The cruise control allows driving at a speed be-
tween 25 - 89 MPH (40 - 144 km/h) without
keeping your foot on the accelerator pedal.
To turn on the cruise control, push the
ON·OFF switch on. The CRUISE indicator light in
the vehicle information display will illuminate.
To set cruising speed, accelerate the vehicle to
the desired speed, push the COAST/SET switch
and release it. The SET indicator light in the
vehicle information display will illuminate. Take
your foot off the accelerator pedal. Your vehicle
maintains the set speed.
● To pass another vehicle, depress the ac-
celerator pedal. When you release the
pedal, the vehicle returns to the previously
set speed.
● The vehicle may not maintain the set speed
when going up or down steep hills. If this
happens, drive without the cruise control.
To cancel the preset speed, use one of the
following three methods:
● Push the CANCEL button; the SET indicator
light in the vehicle information display goes
out.
● Tap the brake pedal; the SET indicator light
goes out.
LSD2202
CRUISE CONTROL
Starting and driving5-51

Action to take:
When the conditions listed above are no longer
present, turn the system off using the ICC
CRUISE ON/OFF switch. Turn the ICC system
back on to use the system.
Condition B:
When the sensor area of the front bumper is dirty
making it impossible to detect a vehicle ahead,
the ICC system is automatically canceled.
The chime sounds and the system warning light
(orange) will come on and the “Sensor Blocked”
indicator will appear.Action to take:
If the warning light comes on, park the vehicle in a
safe place, turn the engine off. When the radar
signal is temporarily interrupted, clean the sensor
area of the front bumper and perform the settings
again.
Condition C:
When the ICC system is not operating properly,
the chime sounds and the system warning light
(orange) will come on.Action to take:
If the warning light comes on, park the vehicle in a
safe place. Turn the engine off, restart the engine,
resume driving and set the ICC system again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the
system is malfunctioning. Although the ve-
hicle is still driveable under normal condi-
tions, have the vehicle checked at an
INFINITI retailer.
LSD2174LSD2175
Starting and driving5-67

Warning light
When the system is not operating properly, the
chime sounds and the system warning light (or-
ange) will come on.
Action to take:
If the warning light comes on, park the vehicle in a
safe place. Turn the engine off, restart the engine,
resume driving and then perform the setting
again.If it is not possible to set or the indicator
stays on, it may indicate that the system is
malfunctioning. Although the vehicle is still
driveable under normal conditions, have
the vehicle checked at an INFINITI retailer.
PREVIEW FUNCTION (for ICC
system equipped models)
The ICC system with the Preview Function iden-
tifies the need to apply emergency braking by
sensing the vehicle ahead in the same lane and
the distance to the vehicle ahead and relative
speed from it. It applies the brake pre-pressure
before the driver depresses the brake pedal and
helps improve brake response by reducing pedal
free play.
For additional information, refer to “Brake assist”
in this section.
The (DCA) system brakes and moves the accel-
erator pedal upward according to the distance
from and the relative speed of the vehicle ahead
to help assist the driver to maintain a following
distance.
WARNING
●
DCA helps maintain a distance to the
vehicle in front under certain condi-
tions. It is not a collision avoidance sys-
tem. Failure to apply the brakes could
result in an accident.
● Always drive carefully and attentively
when using the DCA system. Read and
understand the Owner’s Manual thor-
oughly before using the DCA system.
Do not use the DCA system except in
appropriate road and traffic conditions.
● If the vehicle ahead comes to a stop, the
vehicle decelerates to a standstill
within the limitations of the system. The
system will cancel once it judges that
the vehicle has come to a standstill with
a warning chime. To prevent the vehicle
from moving, the driver must depress
the brake pedal.
● The DCA system will not apply brake
control while the driver’s foot is on the
accelerator pedal.
LSD2067
DISTANCE CONTROL ASSIST (DCA)
SYSTEM (if so equipped)
5-72Starting and driving

To turn on the DCA system, push the dynamic
driver assistance switch
1on the steering wheel
after starting the engine. The DCA system switch
indicator light
2in the vehicle information dis-
play will illuminate. Push the dynamic driver as-
sistance switch again to turn off the DCA system.
The DCA system switch indicator light will turn
off.
The system will start to operate after the vehicle
speed becomes above approximately 3 MPH
(5 km/h).
The dynamic driver assistance switch is used for
the LDP, DCA and BCI systems. When the dy-
namic driver assistance switch is pushed, the LDP system will also turn on or off simultaneously.
The DCA system can be individually set to on or
off on the display. If the system is set to off, the
system will not turn on even if the dynamic driver
assistance switch is pushed to on. To set the
system to on or off on the display, refer to “Setting
DCA system to ON/OFF” in this section.
Setting DCA system to ON/OFF:
The DCA can be turned on/off in the vehicle
information display using the buttons on the
steering wheel.
1. Press the
button, and select the “Set-
tings” using the
button. Then press
the ENTER button. 2. Select the “Driver Aids”, and press the EN-
TER button.
3. Select “Forward”, and press the ENTER but- ton.
4. To turn on the “Assistance (DCA)” check the box using the ENTER button.
If the LDP, BSI and DCA systems are set to off on
the information display and the dynamic driver
assistance switch is pushed, the LDP ON indica-
tor light, BSI ON indicator light, and the DCA
system switch indicator light will blink for approxi-
mately 2 seconds.
For additional information on LDP and BSI, refer
to “Lane Departure Warning (LDW) system/Lane
Departure Prevention (LDP) system (if so
equipped)” and “Blind Spot Warning
(BSW)/Blind Spot Intervention® (BSI) systems”
in this section.
Under the following conditions, the DCA system
will not operate and the DCA cancellation mes-
sage will pop up: ● When the SNOW mode switch is ON (To
use the DCA system, turn off the SNOW
mode switch, then turn on the dynamic driver
assistance switch.)
LIC2889LSD2069
Starting and driving5-77

Condition B:
When the sensor area of the front bumper is dirty,
making it impossible to detect a vehicle ahead,
the DCA system is automatically canceled.
The chime sounds and the system warning light
(orange) will come on and the “Sensor Blocked”
indicator will appear.
Action to take:
If the warning light comes on, park the vehicle in a
safe place, turn the engine off. Clean the sensor
area of the bumper and then perform the settings
again.Condition C:
When the DCA system is not operating properly,
the chime sounds and the system warning light
(“DCA” orange) will come on.
Action to take:
If the warning light comes on, park the vehicle in a
safe place. Turn the engine off, restart the engine,
and turn on the DCA system again.If it is not possible to set the system or the
indicator stays on, it may indicate that the
system is malfunctioning. Although the ve-
hicle is still driveable under normal condi-
tions, have the vehicle checked at an
INFINITI retailer.
Sensor maintenance
How to handle the sensor:
The sensor for the DCA system is common with
ICC and is located behind the front bumper.
For additional information, refer to “Intelligent
Cruise Control (ICC) system (Full speed range)”
in this section.
DCA warning light (orange)
LSD2081
Starting and driving5-81
