2015 INFINITI QX60-HYBRID headrest

1. Folding 3rd row bench (P. 1-9)
2. Folding 2nd row bench (P. 1-5)
3. Roof-mounted curtain side-impact androllover supplemental air bag (P. 1-48)
4. Seat belts (P. 1-15)
5. Head restraints/headrests (P. 1-10)
6. Supplemental front-impact air bags
(P. 1-48)
7. Seats (front seats) (P. 1-2)
8. Occupant classification sensor
(weight sensor) (P. 1-55)
9. Seat belt with pretensioner (P. 1-65)
10. Front seat-mounted side-impact
supplemental air bag (P. 1-48)
11. LATCH (Lower Anchors and Tethers for
CHildren) (P. 1-27)
12. 2nd row seat top tether strap anchor
(located on bottom of seatback)
(P. 1-25)
13. 3rd row bench seat top tether strap
anchor (located on bottom of seatback)
(P. 1-25)
See the page number indicated in paren-
theses for operating details.
LII2032
AIR BAGS, SEAT BELTS AND CHILD
RESTRAINTS
0-2Illustrated table of contents

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................1-2
Front power seat adjustment .....................1-3
2nd row bench seat adjustment ..................1-5
3rd row bench seat adjustment ..................1-7
Armrests ......................................1-8
Flexible seating .................................1-8
Head restraints/Headrests ......................... 1-10
Adjustable head restraint/headrest
components .................................. 1-11
Non-adjustable head restraint/headrest
components .................................. 1-11
Remove ...................................... 1-11
Removable (without Dual head restraint/
headrest DVD system only) .....................1-12
Install ........................................ 1-12
Adjust ........................................ 1-13
Folding head restraint/headrest .................1-14
Seat belts ....................................... 1-15
Precautions on seat belt usage ..................1-15
Seat belt warning light ......................... 1-18
Pregnant women .............................. 1-18
Injured persons ................................ 1-18
Pre-crash seat belts with comfort function
(front seats) (if so equipped) ....................1-18Three-point type seat belt with retractor
..........1-19
Seat belt extenders ............................ 1-22
Seat belt maintenance ......................... 1-23
Child safety ...................................... 1-23
Infants ........................................ 1-24
Small children ................................. 1-24
Larger children ................................ 1-24
Child restraints ................................... 1-25
Precautions on child restraints ..................1-25
LATCH (Lower Anchors and Tethers for
CHildren) System ............................. 1-27
Rear-facing child restraint installation using
LATCH....................................... 1-30
Rear-facing child restraint installation using
the seat belts ................................. 1-32
Forward-facing child restraint installation
using LATCH .................................. 1-35
Forward-facing child restraint installation
using the seat belts ............................ 1-39
Booster seats................................. 1-45
Supplemental restraint

system (SRS) . ..............1-48
Precautions on SRS ........................... 1-48
Supplemental air bag warning labels .............1-66
Supplemental air bag warning light ..............1-66

ARMRESTS
The 2nd row bench seat comes equipped with an
armrest. Pull the armrest down until it rests on the
seat cushion.
FLEXIBLE SEATING
WARNING
●Never allow anyone to ride in the cargo
area or on the rear seats when they are
in the fold-down position. In a collision,
people riding in these areas without
proper restraints are more likely to be
seriously injured or killed. ●
Do not allow people to ride in any area
of your vehicle that is not equipped with
seats and seat belts. Be sure everyone
in your vehicle is in a seat and using a
seat belt properly.
● Do not allow more than one person to
use the same seat belt.
● Do not fold down the rear seats when
occupants are in the rear seat area or
any luggage is on the rear seats.
– Make sure that the seat path is clear before moving the seat.
– Be careful not to allow hands or feet to get caught or pinched in the seat.
● Head restraints/headrests should be
adjusted properly as they may provide
significant protection against injury in
an accident. Always replace and adjust
them properly if they have been re-
moved for any reason.
● If the head restraints/headrests are re-
moved for any reason, they should be
securely stored to prevent them from
causing injury to passengers or damage
to the vehicle in case of sudden braking
or an accident. ●
When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched posi-
tion. If they are not completely secured,
passengers may be injured in an acci-
dent or sudden stop.
● Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seatbacks.
In a sudden stop or collision, unsecured
cargo could cause personal injury.
WRS0167
1-8Safety—Seats, seat belts and supplemental restraint system

Folding the 2nd row bench seat
To fold the 2nd row bench seat flat for maximum
cargo hauling:1. Make sure that the head restraints/headrests are lowered.
2. Stow the 2nd row seat belts in the seat belt hooks found on the sides of the vehicle.
3. Lift up on the recline lever on the side of the outboard seats to fold the seatbacks flat.
4. To return the 2nd row bench seats to a seating position, push up on the seatback
until it latches in place.
3rd row manual folding seats
To fold the 3rd row seats flat for maximum cargo
capacity:
1. Pull the strap
1to release the head
restraint/headrest forward.
2. Stow the 3rd row seat belts in the seat belt hooks
4found on the sides of the cargo
area.
3. Pull up on the latch
2located in the upper
corner of each seatback and lower the seat-
back forward over the seat base. To return the 3rd row seats to a seating position:
1. Use the pull straps
3to raise each seat-
back. Pull back until the seatback latches
into position. Make sure to properly raise
each seatback to an upright and se-
cured position.
2. Do not use the pull strap to return the head restraint/headrest to the upright position.
Pull back on the head restraint/headrest until
it latches in the upright position.
WARNING
When the seat is returned to the normal
seating position, the head
restraints/headrests must be returned to
the upright position to properly protect
vehicle occupants.LRS2144LRS2145
Safety—Seats, seat belts and supplemental restraint system1-9

WARNING
Head restraints/headrests supplement
the other vehicle safety systems. They may
provide additional protection against in-
jury in certain rear end collisions. Adjust-
able head restraints/headrests must be
adjusted properly, as specified in this sec-
tion. Check the adjustment after someone
else uses the seat. Do not attach anything
to the head restraint/headrest stalks or
remove the head restraint/headrest. Do
not use the seat if the head
restraint/headrest has been removed. If
the head restraint/headrest was removed,
reinstall and properly adjust the head
restraint/headrest before an occupant
uses the seating position. Failure to fol-
low these instructions can reduce the ef-
fectiveness of the head
restraints/headrests. This may increase
the risk of serious injury or death in a
collision.The illustration shows the seating positions
equipped with head restraints/headrests.

Indicates the seating position is equipped with
a head restraint.
 Indicates the seating position is equipped with
a headrest.
+ Indicates the seating position is not equipped
with a head restraint or headrest (if applicable) .
● Your vehicle is equipped with a head
restraint/headrest that may be integrated,
adjustable or non-adjustable. ●
Adjustable head restraints/headrests have
multiple notches along the stalk(s) to lock
them in a desired adjustment position.
● The non-adjustable head
restraints/headrests have a single locking
notch to secure them to the seat frame.
● Proper Adjustment:
– For the adjustable type, align the head restraint/headrest so the center of your
ear is approximately level with the center
of the head restraint/headrest.
– If your ear position is still higher than the recommended alignment, place the head
restraint/headrest at the highest position.
● If the head restraint/headrest has been re-
moved, ensure that it is reinstalled and
locked in place before riding in that desig-
nated seating position.
LRS2308
HEAD RESTRAINTS/HEADRESTS
1-10Safety—Seats, seat belts and supplemental restraint system

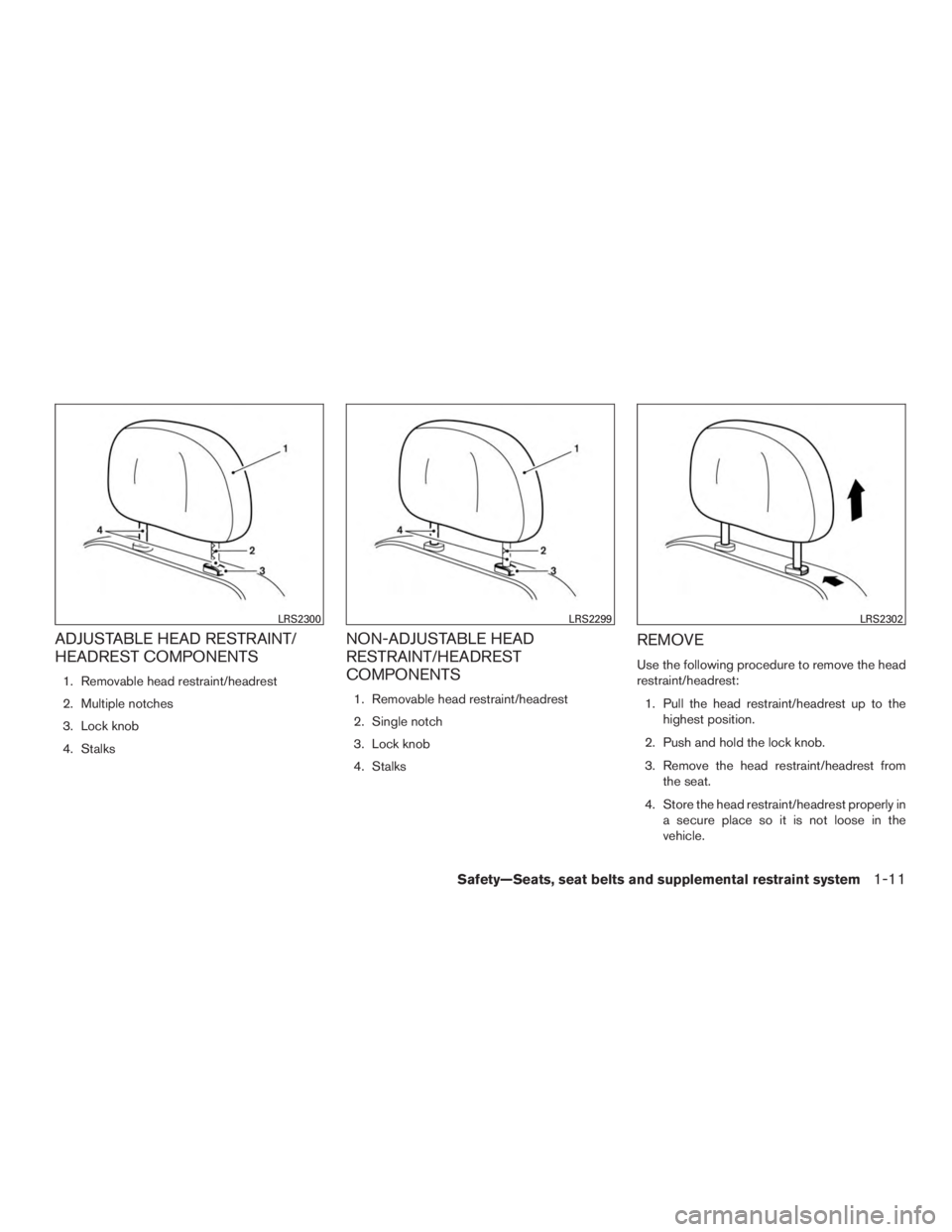

ADJUSTABLE HEAD RESTRAINT/
HEADREST COMPONENTS
1. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks
NON-ADJUSTABLE HEAD
RESTRAINT/HEADREST
COMPONENTS
1. Removable head restraint/headrest
2. Single notch
3. Lock knob
4. Stalks
REMOVE
Use the following procedure to remove the head
restraint/headrest:1. Pull the head restraint/headrest up to the highest position.
2. Push and hold the lock knob.
3. Remove the head restraint/headrest from the seat.
4. Store the head restraint/headrest properly in a secure place so it is not loose in the
vehicle.
LRS2300LRS2299LRS2302
Safety—Seats, seat belts and supplemental restraint system1-11

5. Reinstall and properly adjust the headrestraint/headrest before an occupant uses
the seating position.
REMOVABLE (without Dual head
restraint/headrest DVD system only)
CAUTION
Do not remove head restraint/headrest
from vehicles equipped with Dual head
restraint/headrest DVD system. Removal
may damage the system wiring.
INSTALL
1. Align the head restraint/headrest stalks withthe holes in the seat. Make sure that the
head restraint/headrest is facing the correct
direction. The stalk with the notch (notches)
1must be installed in the hole with the lock
knob
2.
2. Push and hold the lock knob and push the head restraint/headrest down.
3. Properly adjust the head restraint/headrest before an occupant uses the seating posi-
tion.
LRS2302LRS2303
1-12Safety—Seats, seat belts and supplemental restraint system

ADJUST
For adjustable head restraint/headrest
Adjust the head restraint/headrest so the center
is level with the center of your ears. If your ear
position is still higher than the recommended
alignment, place the head restraint/headrest at
the highest position.For non-adjustable head restraint/headrest
Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.
Raise
To raise the head restraint/headrest, pull it up.
Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.
WRS0134LRS2351LRS2305
Safety—Seats, seat belts and supplemental restraint system1-13
