SRS Air Bag System Components Location
Avoid cutting air bag system parts. However, the vehicle can be cut (except inflators) under the following conditions:• The front, side and curtain air bags have deployed.
• At least three (3) minutes have passed after the 12-volt battery negative (-) cable has beendisconnected and the high voltage system has been shut down.
= Inflators(Peel back plastic trim parts prior to cutting operation to confirm exact inflator location.)
= Sensors
AAYIA0188ZZ
FRG–32

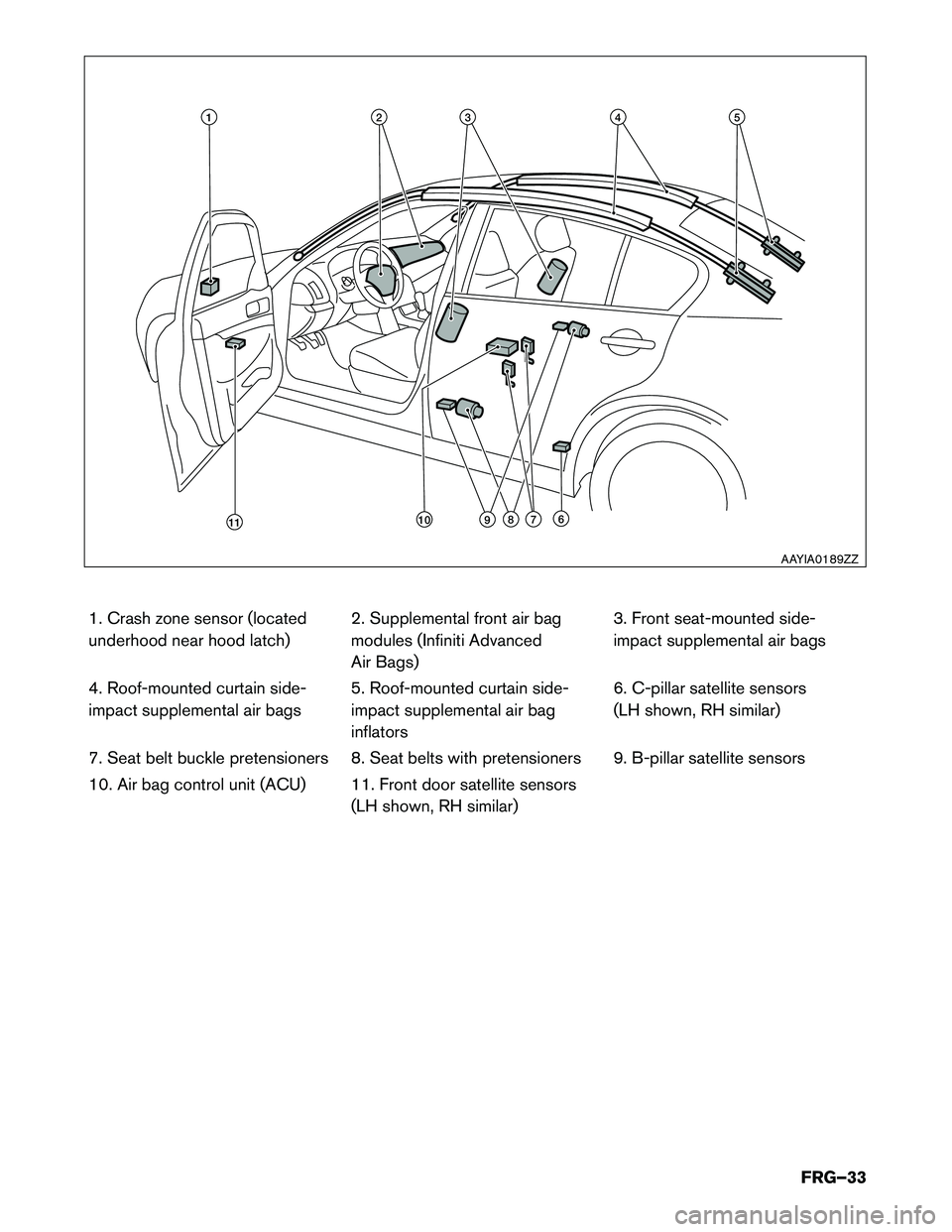

1. Crash zone sensor (located
underhood near hood latch)2. Supplemental front air bag
modules (Infiniti Advanced
Air Bags)3. Front seat-mounted side-
impact supplemental air bags
4. Roof-mounted curtain side-
impact supplemental air bags 5. Roof-mounted curtain side-
impact supplemental air baginflators6. C-pillar satellite sensors
(LH shown, RH similar)
7. Seat belt buckle pretensioners 8. Seat belts with pretensioners 9. B-pillar satellite sensors
10. Air bag control unit (ACU) 11. Front door satellite sensors (LH shown, RH similar)
21
10
453
876911
AAYIA0189ZZ
FRG–33
