Introduction
4 1
Other fuels
Using fuels such as;
- Silicone (Si) contained fuel,
- MMT (Manganese, Mn) contained
fuel,
- Ferrocene (Fe) contained fuel, and
- Other metalic additives contained
fuels,
may cause vehicle and engine dam-
age or cause plugging, misfiring,
poor acceleration, engine stalling,
catalyst melting, abnormal corrosion,
life cycle reduction, etc.
Also, the Malfunction Indicator Lamp
(MIL) may illuminate.
✽NOTICE
Damage to the fuel system or per-
formance problem caused by the use
of these fuels may not be covered by
your New Vehicle Limited Warranty.
Use of MTBE
HYUNDAI recommends avoiding
fuels containing MTBE (Methyl
Tertiary Butyl Ether) over 15.0% vol.
(Oxygen Content 2.7% weight) in
your vehicle.
Fuel containing MTBE over 15.0%
vol. (Oxygen Content 2.7% weight)
may reduce vehicle performance and
produce vapour lock or hard starting.CAUTION
Never use gasohol which con-
tains methanol. Discontinue use
of any gasohol product which
impairs drivability.
CAUTION
Your New Vehicle Limited
Warranty may not cover damage
to the fuel system and any per-
formance problems that are
caused by the use of fuels con-
taining methanol or fuels con-
taining MTBE (Methyl Tertiary
Butyl Ether) over 15.0% vol.
(Oxygen Content 2.7% weight.)

Your vehicle at a glance
2 2
EXTERIOR OVERVIEW
1. Towing hook ........................................... 6-38
2. Front windscreen wiper blades ...............7-29
3. Outside rearview mirror ..........................4-62
4. Door locks...............................................4-20
5. Headlamp ...............................................7-65
6. Front fog light ........................................4-139
7. Bonnet ....................................................4-42
8. Tyres and wheels.............................7-35, 8-4
9. Panorama sunroof ..................................4-47
ODMEIN2001R
■Front view
❈The actual shape may differ from the illustration.

Your vehicle at a glance
4 2
INTERIOR OVERVIEW (I)
1. Driver position memory system
button ..................................................3-8
2. Inside door handle ............................4-21
3. Outside rearview mirror folding ........4-64
4. Outside rearview mirror control ........4-63
5. Power window lock button ................4-40
6. Central door lock switch ....................4-22
7. Power window switch ........................4-39
8. Fuel-filler lid opener ..........................4-44
9. Instrument panel illumination
control knob ......................................4-68
10. DBC button ......................................5-58
11. ESC OFF button ..............................5-51
12. Headlight levelling device ..............4-141
13. Active ECO button ..........................5-74
14. LDWS button ..................................5-70
15. AC inverter button..........................4-194
16. 4WD LOCK button ..........................5-29
17. Steering wheel ................................4-52
18. Tilt and telescopic steering
control lever ....................................4-53
19. Inner panel fuse panel.................... 7-48
20. Bonnet release lever........................4-42
21. Seat ..................................................3-2
ODMEIN2003R❈The actual shape may differ from the illustration.

33
Safety features of your vehicle
WARNING - Uprighting
seat
When you return the seatback
to its upright position, hold the
seatback and return it slowly
and be sure there are no other
occupants around the seat. If
the seatback is returned with-
out being held and controlled,
the back of the seat could
spring forward resulting in acci-
dental injury to a person struck
by the seatback.
WARNING- Loose
objects
Loose objects in the driver’s
foot area could interfere with
the operation of the foot pedals,
possibly causing an accident.
Do not place anything under the
front seats.WARNING- Driver
responsibility for front seat
passenger
Riding in a vehicle with a front
seatback reclined could lead to
serious or fatal injury in an acci-
dent. If a front seat is reclined
during an accident, the occu-
pant’s hips may slide under the
lap portion of the seat belt, apply-
ing great force to the unprotected
abdomen. Serious or fatal inter-
nal injuries could result. The driv-
er must advise the front passen-
ger to keep the seatback in an
upright position whenever the
vehicle is in motion.
WARNING
Do not use a cushion or other
object that reduces friction
between the seat and person sitting
in the seat. The persons hips may
slide under the lap portion of the
seat belt during an accident or a
sudden stop. Serious or fatal inter-
nal injuries could result because
the seat belt can't operate normally.
WARNING- Driver’s seat
• Never attempt to adjust seat
whilst the vehicle is moving.
This could result in loss of
control, and an accident caus-
ing death, serious injury, or
property damage.
• Do not allow anything to inter-
fere with the normal position
of the seatback. Storing items
against a seatback or in any
other way interfering with
proper locking of a seatback
could result in serious or fatal
injury in a sudden stop or col-
lision.
• Always drive and ride with your
seatback upright and the lap
portion of the seat belt snug
and low across the hips. This
is the best position to protect
you in case of an accident.
(Continued)

Safety features of your vehicle
4 3
Front seat adjustment - Manual
(if equipped)
Forward and backward
To move the seat forward or back-
ward:
1. Pull the seat slide adjustment lever
under the front edge of the seat
cushion up and hold it.
2. Slide the seat to the position you
desire.
3. Release the lever and make sure
the seat is locked in place.
Adjust the seat before driving, and
make sure the seat is locked securely
by trying to move forward and back-
ward without using the lever. If the
seat moves, it is not locked properly.
WARNING
After adjusting the seat, always
check that it is securely locked
into place by attempting to
move the seat forward or
reverse without using the lock
release lever. Sudden or unex-
pected movement of the dri-
ver's seat could cause you to
lose control of the vehicle
resulting in an accident.
(Continued)
• In order to avoid unnecessary
and perhaps severe air bag
injuries, always sit as far back
as possible from the steering
wheel whilst maintaining
comfortable control of the
vehicle. It is recommended
that your chest is at least 250
mm (10 inches) away from the
steering wheel.WARNING
• Use extreme caution so that
hands or other objects are not
caught in the seat mecha-
nisms whilst the seat is mov-
ing.
• Do not put a cigarette lighter
on the floor or seat. When you
operate the seat, gas may
gush out of the lighter and
cause fire.
• If there are occupants in the
rear seats, be careful whilst
adjusting the front seat posi-
tion.
• Use extreme caution when
picking small objects trapped
under the seats or between
the seat and the centre con-
sole. Your hands might be cut
or injured by the sharp edges
of the seats mechanism.
ODM032002/H

35
Safety features of your vehicle
Seatback angle
To recline the seatback:
1. Lean forward slightly and lift up on
the seatback recline lever located
on the outside of the seat at the
rear.
2. Carefully lean back on the seat
and adjust the seatback of the
seat to the position you desire.
3. Release the lever and make sure
the seatback is locked in place.
(The lever MUST return to its orig-
inal position for the seatback to
lock.)
Seat cushion height
(for driver’s seat, if equipped)
To change the height of the seat
cushion, push the lever that is locat-
ed on the outside of the seat cushion
upwards or downwards.
• To lower the seat cushion, push
down the lever several times.
• To raise the seat cushion, pull up
the lever several times.
Lumbar support
(for driver’s seat, if equipped)
The lumbar support can be adjusted
by pressing the lumbar support
switch on the side of the seat.
1. Press the front portion of the
switch to increase support, or the
rear portion of the switch, to
decrease support.
2. Release the switch once it reach-
es the desired position.
ODM032003/HODM032004/HODM032005/H

Safety features of your vehicle
12 3
3. Adjust the head restraint to the

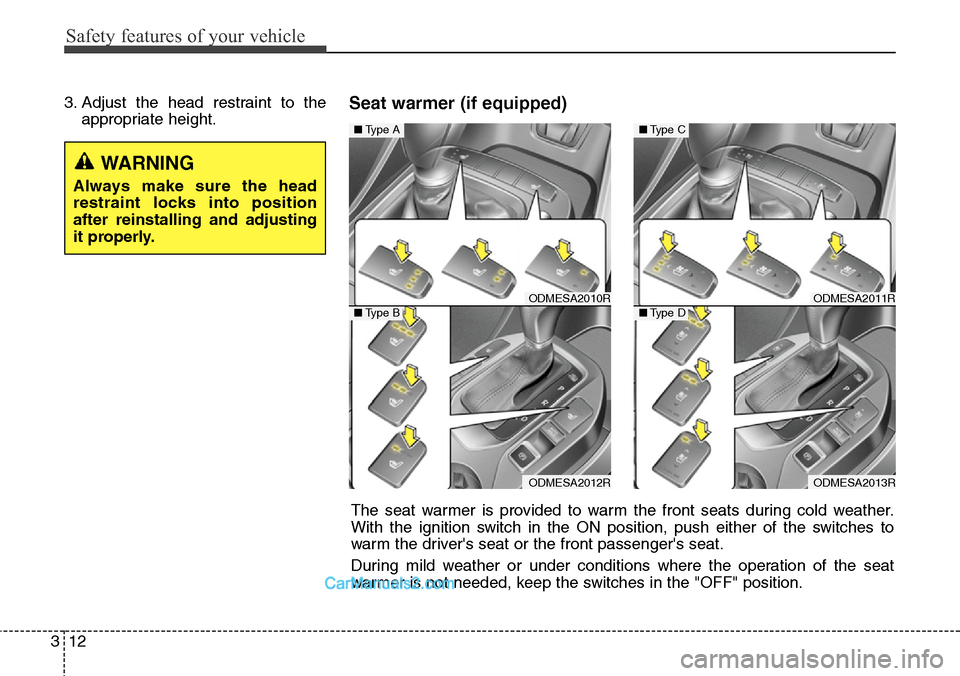

appropriate height.Seat warmer (if equipped)
ODMESA2010R
ODMESA2012R
■Type A
■Type BODMESA2011R
ODMESA2013R
■Type C
■Type D
The seat warmer is provided to warm the front seats during cold weather.
With the ignition switch in the ON position, push either of the switches to
warm the driver's seat or the front passenger's seat.
During mild weather or under conditions where the operation of the seat
warmer is not needed, keep the switches in the "OFF" position.
WARNING
Always make sure the head
restraint locks into position
after reinstalling and adjusting
it properly.

315
Safety system of your vehicle

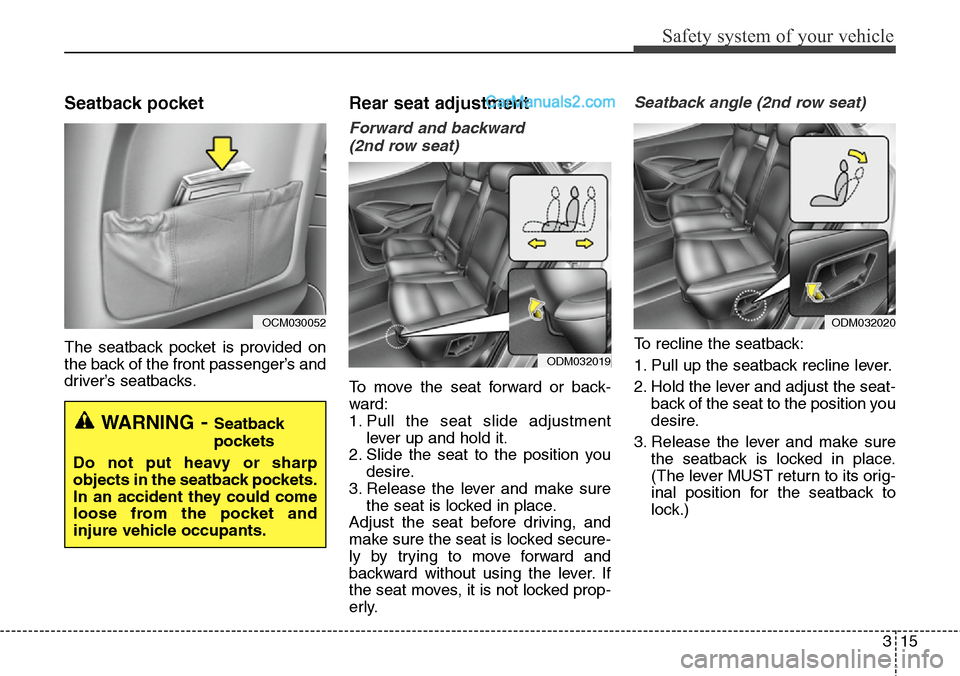

Seatback pocket
The seatback pocket is provided on
the back of the front passenger’s and
driver’s seatbacks.
Rear seat adjustment
Forward and backward
(2nd row seat)
To move the seat forward or back-
ward:
1. Pull the seat slide adjustment
lever up and hold it.
2. Slide the seat to the position you
desire.
3. Release the lever and make sure
the seat is locked in place.
Adjust the seat before driving, and
make sure the seat is locked secure-
ly by trying to move forward and
backward without using the lever. If
the seat moves, it is not locked prop-
erly.
Seatback angle (2nd row seat)
To recline the seatback:
1. Pull up the seatback recline lever.
2. Hold the lever and adjust the seat-
back of the seat to the position you
desire.
3. Release the lever and make sure
the seatback is locked in place.
(The lever MUST return to its orig-
inal position for the seatback to
lock.)
ODM032019
ODM032020OCM030052
WARNING- Seatback
pockets
Do not put heavy or sharp
objects in the seatback pockets.
In an accident they could come
loose from the pocket and
injure vehicle occupants.
