Safety features of your vehicle
In addition, do not place front-facing
child restraints in the front passen-
ger’s seat either. If the front passen-
ger air bag inflates, it would cause
serious or fatal injuries to the child.
If your vehicle is equipped with the
passenger’s front air bag ON/OFF
switch, you can activate or deactivate
the front passenger’s air bag when
necessary.Air bag warning and indicator
Air bag warning light
The purpose of the air bag warning
light in your instrument panel is to
alert you of a potential problem with
your air bag - Supplemental Restraint
System (SRS).
WARNING
• NEVER use a rearward facing
child restraint on a seat pro-
tected by an ACTIVE AIRBAG
in front of it, DEATH or SERI-
OUS INJURY to the CHILD can
occur.
• Never put a child restraint in
the front passenger’s seat. If
the front passenger air bag
inflates, it would cause serious
or fatal injuries.
• When children are seated in
the rear outboard seats of
vehicle equipped with side
and/or curtain air bags, be
sure to install the child
restraint system as far away
from the door side as possible,
and securely lock the child
restraint system in position.
Inflation of side and/or curtain
air bags could cause serious
injury or death to an infant or
child.
W7-147

Safety features of your vehicle
70 3
They are designed to help protect
the heads of the front seat occupants
and the rear outboard seat occupants
in certain side impact collisions.
The curtain air bags are designed to
deploy during certain side impact col-
lisions, depending on the crash sever-
ity, angle, speed and point of impact.
The curtain air bags do not only
deploy on the side of the impact but
also on the opposite side.
✽NOTICE - if equipped with
rollover sensor
Also, both sides of the side impact
air bags and curtain air bags deploy
in certain rollover situations.
• The curtain air bags are not
designed to deploy in all side
impacts.
(Continued)
• Do not allow the passengers
to lean their heads or bodies
onto doors, put their arms on
the doors, stretch their arms
out of the window, or place
objects between the doors
and passengers when they are
seated on seats equipped with
side and/or curtain air bags.
• Never try to open or repair any
components of the side cur-
tain air bag system. We rec-
ommend that the system be
serviced by an authorized
HYUNDAI dealer.
Failure to follow the above men-
tioned instructions can result in
injury or death to the vehicle
occupants in an accident.WARNING
• In order for side impact and
curtain air bags to provide the
best protection, both front
seat occupants and both out-
board rear occupants should
sit in an upright position with
the seat belts properly fas-
tened.
Importantly, children should
sit in a proper child restraint
system in the rear seat.
• When children are seated in
the rear outboard seats, they
must be seated in the proper
child restraint system.
Make sure to put the child
restraint system as far away
from the door side as possible,
and secure the child restraint
system in a locked position.
(Continued)

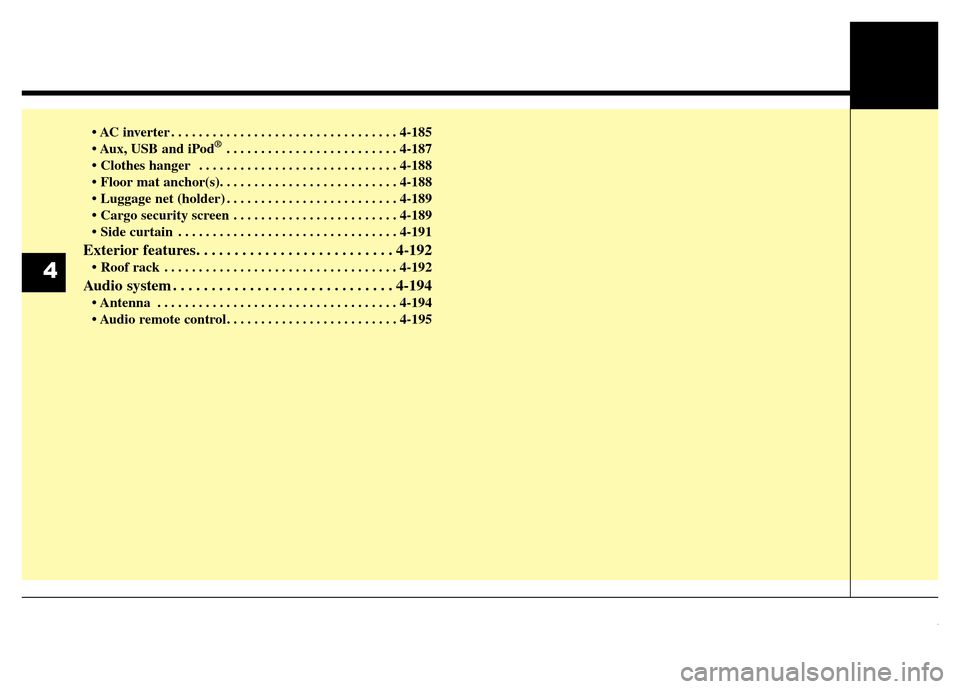

• AC inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-185
• Aux, USB and iPod®. . . . . . . . . . . . . . . . . . . . . . . . . 4-187
• Clothes hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-188
• Floor mat anchor(s). . . . . . . . . . . . . . . . . . . . . . . . . . 4-188
• Luggage net (holder) . . . . . . . . . . . . . . . . . . . . . . . . . 4-189
• Cargo security screen . . . . . . . . . . . . . . . . . . . . . . . . 4-189
• Side curtain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-191
Exterior features. . . . . . . . . . . . . . . . . . . . . . . . . . 4-192
• Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-192
Audio system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-194
• Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-194
• Audio remote control. . . . . . . . . . . . . . . . . . . . . . . . . 4-195
4

415
Features of your vehicle

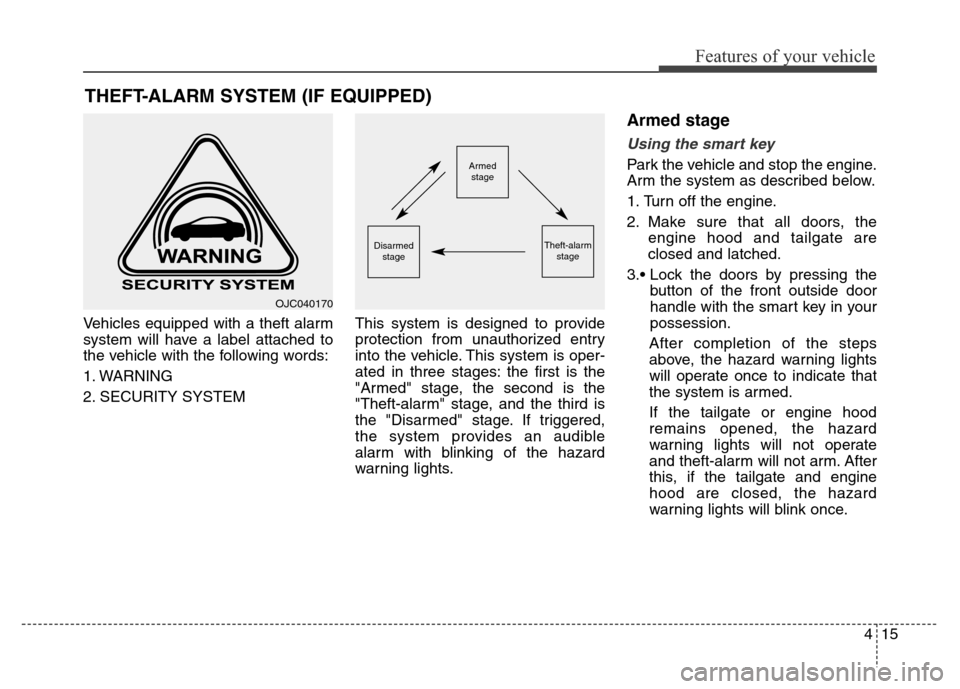

Vehicles equipped with a theft alarm
system will have a label attached to
the vehicle with the following words:
1. WARNING
2. SECURITY SYSTEMThis system is designed to provide
protection from unauthorized entry
into the vehicle. This system is oper-
ated in three stages: the first is the
"Armed" stage, the second is the
"Theft-alarm" stage, and the third is
the "Disarmed" stage. If triggered,
the system provides an audible
alarm with blinking of the hazard
warning lights.
Armed stage
Using the smart key
Park the vehicle and stop the engine.
Arm the system as described below.
1. Turn off the engine.
2. Make sure that all doors, the
engine hood and tailgate are
closed and latched.
3.• Lock the doors by pressing the
button of the front outside door
handle with the smart key in your
possession.
After completion of the steps
above, the hazard warning lights
will operate once to indicate that
the system is armed.
If the tailgate or engine hood
remains opened, the hazard
warning lights will not operate
and theft-alarm will not arm. After
this, if the tailgate and engine
hood are closed, the hazard
warning lights will blink once.
THEFT-ALARM SYSTEM (IF EQUIPPED)
Armed
stage
Theft-alarm
stageDisarmed
stage
OJC040170

Features of your vehicle
18 4

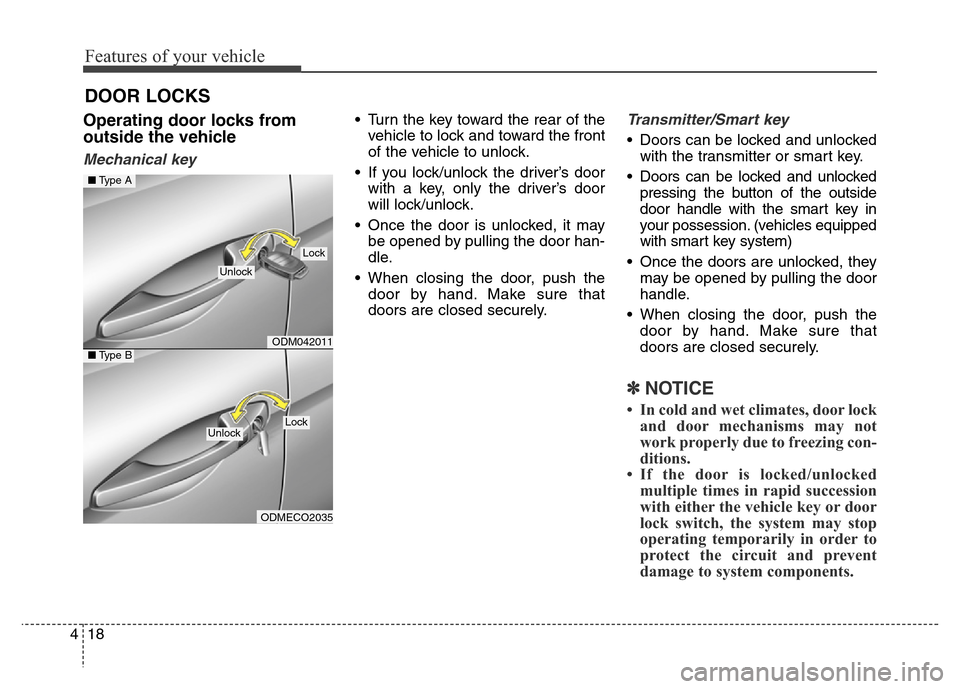

Operating door locks from
outside the vehicle
Mechanical key
• Turn the key toward the rear of the
vehicle to lock and toward the front
of the vehicle to unlock.
• If you lock/unlock the driver’s door
with a key, only the driver’s door
will lock/unlock.
• Once the door is unlocked, it may
be opened by pulling the door han-
dle.
• When closing the door, push the
door by hand. Make sure that
doors are closed securely.Transmitter/Smart key
• Doors can be locked and unlocked
with the transmitter or smart key.
• Doors can be locked and unlocked
pressing the button of the outside
door handle with the smart key in
your possession. (vehicles equipped
with smart key system)
• Once the doors are unlocked, they
may be opened by pulling the door
handle.
• When closing the door, push the
door by hand. Make sure that
doors are closed securely.
✽NOTICE
• In cold and wet climates, door lock
and door mechanisms may not
work properly due to freezing con-
ditions.
• If the door is locked/unlocked
multiple times in rapid succession
with either the vehicle key or door
lock switch, the system may stop
operating temporarily in order to
protect the circuit and prevent
damage to system components.
DOOR LOCKS
ODM042011
ODMECO2035
■Type A
■Type B
Lock
Unlock
LockUnlock

419
Features of your vehicle

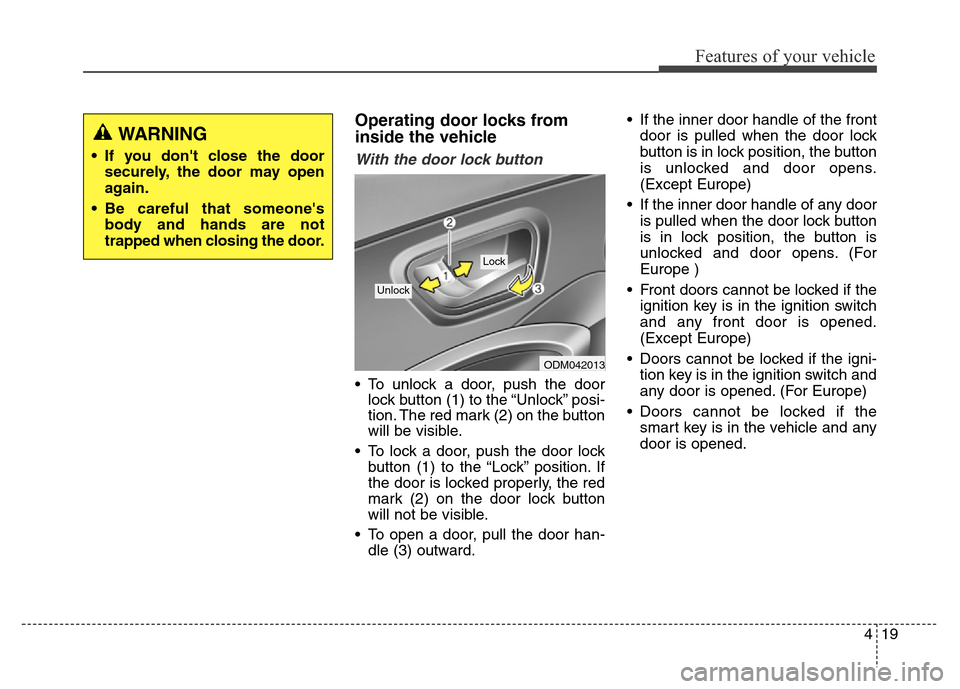

Operating door locks from
inside the vehicle
With the door lock button
• To unlock a door, push the door
lock button (1) to the “Unlock” posi-
tion. The red mark (2) on the button
will be visible.
• To lock a door, push the door lock
button (1) to the “Lock” position. If
the door is locked properly, the red
mark (2) on the door lock button
will not be visible.
• To open a door, pull the door han-
dle (3) outward.• If the inner door handle of the front
door is pulled when the door lock
button is in lock position, the button
is unlocked and door opens.
(Except Europe)
• If the inner door handle of any door
is pulled when the door lock button
is in lock position, the button is
unlocked and door opens. (For
Europe )
• Front doors cannot be locked if the
ignition key is in the ignition switch
and any front door is opened.
(Except Europe)
• Doors cannot be locked if the igni-
tion key is in the ignition switch and
any door is opened. (For Europe)
• Doors cannot be locked if the
smart key is in the vehicle and any
door is opened.
ODM042013
Lock
Unlock
WARNING
• If you don't close the door
securely, the door may open
again.
• Be careful that someone's
body and hands are not
trapped when closing the door.

Features of your vehicle
24 4

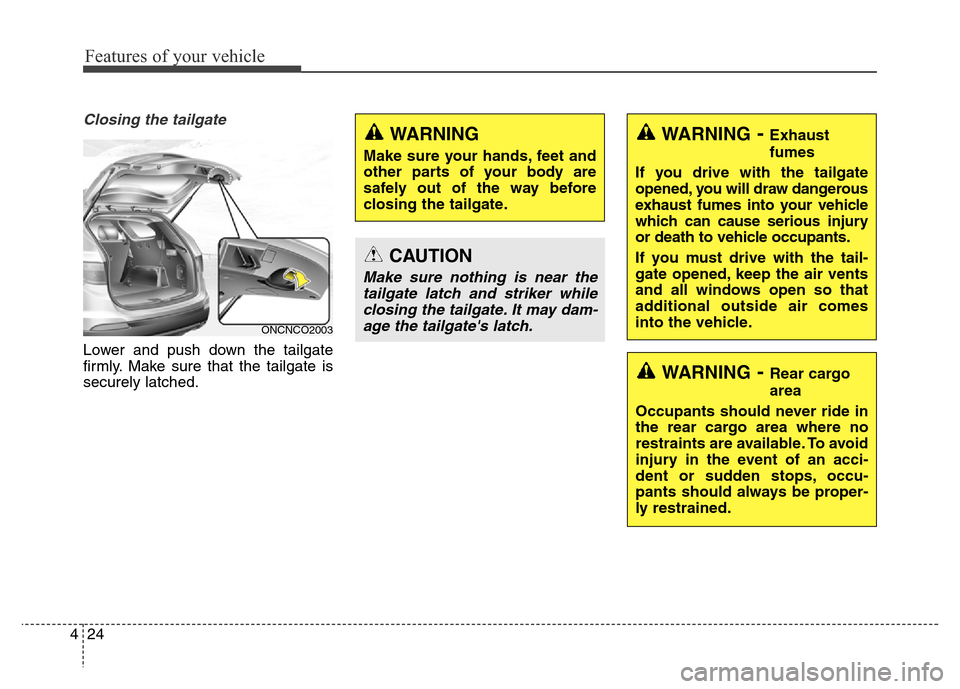

Closing the tailgate
Lower and push down the tailgate
firmly. Make sure that the tailgate is
securely latched.
WARNING- Exhaust
fumes
If you drive with the tailgate
opened, you will draw dangerous
exhaust fumes into your vehicle
which can cause serious injury
or death to vehicle occupants.
If you must drive with the tail-
gate opened, keep the air vents
and all windows open so that
additional outside air comes
into the vehicle.
WARNING- Rear cargo
area
Occupants should never ride in
the rear cargo area where no
restraints are available. To avoid
injury in the event of an acci-
dent or sudden stops, occu-
pants should always be proper-
ly restrained.
WARNING
Make sure your hands, feet and
other parts of your body are
safely out of the way before
closing the tailgate.
CAUTION
Make sure nothing is near the
tailgate latch and striker while
closing the tailgate. It may dam-
age the tailgate's latch.
ONCNCO2003

427
Features of your vehicle

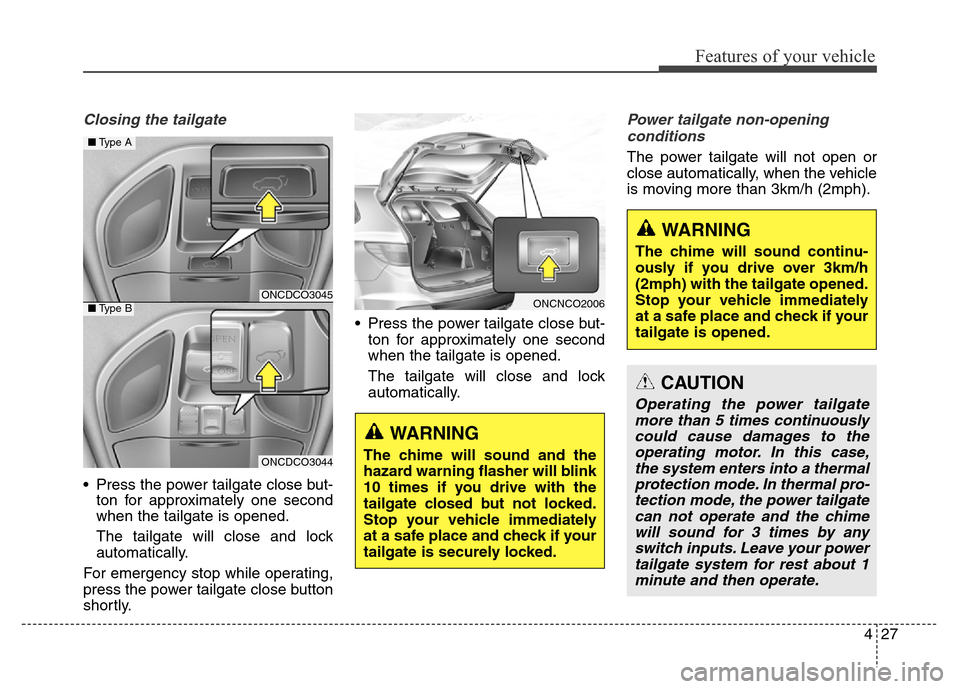

Closing the tailgate
• Press the power tailgate close but-
ton for approximately one second
when the tailgate is opened.
The tailgate will close and lock
automatically.
For emergency stop while operating,
press the power tailgate close button
shortly.• Press the power tailgate close but-
ton for approximately one second
when the tailgate is opened.
The tailgate will close and lock
automatically.
Power tailgate non-opening
conditions
The power tailgate will not open or
close automatically, when the vehicle
is moving more than 3km/h (2mph).
WARNING
The chime will sound and the
hazard warning flasher will blink
10 times if you drive with the
tailgate closed but not locked.
Stop your vehicle immediately
at a safe place and check if your
tailgate is securely locked.
WARNING
The chime will sound continu-
ously if you drive over 3km/h
(2mph) with the tailgate opened.
Stop your vehicle immediately
at a safe place and check if your
tailgate is opened.
ONCDCO3045
ONCDCO3044
■Type A
■Type BONCNCO2006
CAUTION
Operating the power tailgate
more than 5 times continuously
could cause damages to the
operating motor. In this case,
the system enters into a thermal
protection mode. In thermal pro-
tection mode, the power tailgate
can not operate and the chime
will sound for 3 times by any
switch inputs. Leave your power
tailgate system for rest about 1
minute and then operate.
