2015 Hyundai Genesis key

7-67
7
Maintenance
Instrument panel fuse panel
Fuse NameFuse ratingCircuit Protected
P/HANDLE 15A Steering Tilt & Telescopic Module
3MEMORY10A Passenger Power Outside Mirror
CLUSTER 10A Instrument Cluster, Head-Up Display
GATEWAY 10A Gateway (IG1 (MCU))
A/BAG IND 10A Instrument Cluster, A/C Control Module
3 SMART KEY10A Smart Key Control Module
3 MODULE10A BCM, Sport Mode Switch, Stop Lamp Switch, Driver/Passenger Door Module, Rear Door Module LH/RH
S/HEATER PASS 20A Passenger CCS Module, Passenger Seat Warmer Control Module
2MEMORY 10A Driver Power Outside Mirror
1MULTI MEDIA20A Fuse - MULTIMEDIA 2, A/V & Navigation Head Unit
B/A HORN 10A Burglar Alarm Horn Relay
9MODULE10A Multifunction Switch
4MODULE 10A
Steering Tilt & Telescopic Module, Blind Spot Detection Radar LH/RH Crash Pad Switch, Tire Pressure
Monitoring Module, Console Switch Console Switch LH/RH, Front Parking Assist Sensor LH/RH Front
Parking Assist Sensor (Center) LH/RH, ECS Unit Electric Parking Brake Switch, Rear Parking Assist
Sensor LH/RH Rear Parking Assist Sensor (Center) LH/RH, LKAS Module
5MODULE 10A Multipurpose Check Connector, A/V & Navigation Head Unit, Electro Chromic Mirror, A/C Control Module,
I-Box, AMP Driver/Passenger CCS Module, Driver Power Seat Switch Driver/Passenger Seat Warmer
Control Module Rear Seat Warmer Control Module LH/RH, Driver IMS Control Module

7-68
Maintenance
Fuse NameFuse ratingCircuit Protected
10MODULE10A BCM
2MULTI MEDIA 10A Keyboard, I-Box, Front Monitor
1MEMORY10A Steering Tilt & Telescopic Module, External Buzzer, BCM, Analog Clock A/C Control Module, Tire
Pressure Monitoring Module, Security Indicator Head-Up Display, Instrument Cluster, Driver/Passenger
Door Module Rear Door Module LH/RH, Power Trunk Lid Control Module
1 SMART KEY10A Start/Stop Button Switch
8MODULE10A BCM, Smart Key Control Module
A/CON 10A Metal Core Block (PCB #1 - Blower Relay), Ionizer Co2 Sensor, A/C Control Module
P/DOOR PASS 15A Passenger Door Latch
DOOR LAMP 10A Driver/Passenger Door Module, Rear Door Module LH/RH
7MODULE 10A Parking Guide Unit, Head-Up Display Sunroof, Passenger Lumbar Support Unit Clock Spring (Steering
Wheel Remote Control Switch)
PRESAFETY
SEAT BELT 10A Pre-Safe Seat Belt Module
3POWER OUTLET 20A Not Used
STOP LAMP 15A Stop Signal Electronic Module
1MODULE10A Gateway (B+ (MCU)), Rain Sensor, Hazard Switch Trunk Lid Main Switch, Electric Parking Brake Switch
A/BAG 15A SRS Control Module
1P/SEAT PASS 30A Passenger Power Seat Relay Box
INTERIOR LAMP 10A Room Lamp, Room Lamp LH/RH, Overhead Console Lamp, Glove Box Front Vanity Lamp LH/RH,
Driver/Passenger Foot Lamp, Trunk Room Lamp LH/RH

7-69
7
Maintenance
Fuse NameFuse ratingCircuit Protected
2SMART KEY15A Smart Key Control Module
1 POWER OUTLET 20A Front Power Outlet & Cigarette Lighter
6MODULE 15A Head Lamp LH/RH, Auto Hold & Drive Mode Switch Auto Head Lamp Leveling Device Module, A/T Shift
Lever IND.
P/WDW LH 30A Driver Power Window Module, Rear Door Module LH Rear Power Window Module LH
SUNROOF 25A Sunroof Motor
BRAKE SWITCH 10A Stop Lamp Switch, Smart Key Control Module
2POWER OUTLET 20A Front Power Outlet & Cigarette Lighter
HTD STRG 15A Clock Spring (Steering Wheel Heated Module)
1P/SEAT DRV 30A Driver IMS Control Module, Driver Power Seat Relay Box
P/DOOR DRV 15A Driver Door Latch
2MODULE10A BCM, Smart Key Control Module, Overhead Console Lamp Analog Clock, A/V & Navigation Head Unit,
Keyboard I-Box, Front Monitor, Parking Guide Unit

7-71
7
Maintenance
Engine compartment main fuse panel
Fuse NameFuse ratingCircuit Protected
ALT200AAlternator, Multifuse (BATT) - B+2/ B+5/ MDPS 1/ C/FAN, Fuse - P/SEAT DRV 2/ P/SEAT RR/ SEAT
LUMBAR/ ESC 1/ ESC 2
1 B+ 60A IGPM (Fuse - BRAKE SWITCH, Leak Current Autocut Device (Fuse - INTERIOR LAMP/ MULTI MEDIA 1/
MEMORY 1/ MEMORY 2/ MEMORY 3), IPS 1)
3B+ 60A IGPM (Fuse - SMART KEY 1/ SMART KEY 2/ MODULE 1/ B/A HORN, IPS 2/IPS 3/IPS 5/IPS 7)
4B+60A IGPM (Fuse - DOOR LAMP/ STOP LAMP, IPS 4/IPS 6)
6B+60A Metal Core Block (PCB #1 Fuse - ECU 3/ IG2/ MODULE 1)
7B+80A Metal Core Block (PCB #2 Fuse - HORN/ ACC/ EPB 1/ EPB 2)
2 B+ 60A IGPM (Fuse - P/HANDLE/ P/WDW LH/ P/SEAT PASS 1/ S/HEATER PASS/ MODULE 10/ SUNROOF/
P/DOOR DRV/ P/DOOR PASS)
C/FAN 70A RLY. 1 (C/Fan Relay)
5 B+ 80A Metal Core Block (PCB #1 Fuse - BLOWER/ DEICER/ H/LAMP WASHER)
MDPS 1 125A MDPS Unit
B/UP LAMP 10A TCM, Transmission Range Switch, Rear Combination Lamp (IN) LH/RH, Electro Chromic Mirror, A/V &
Navigation Head Unit
P/SEAT RR 30A Not Used
1 ESC40A ESC Module, Multipurpose Check Connector
2 ESC40A ESC Module, Multipurpose Check Connector

7-79
7
Maintenance
L LI
IG
GH
HT
T
B
BU
UL
LB
BS
S
Consult an authorized HYUNDAI
dealer to replace most vehicle light
bulbs. It is difficult to replace vehicle
light bulbs because other parts of the
vehicle must be removed before you
can get to the bulb. This is especially
true for removing the headlamp
assembly to get to the bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.
✽ ✽
NOTICE
After heavy driving, rain or wash-
ing, headlamp and trunk lenses
could appear frosty. This condition
is caused by the temperature differ-
ence between the lamp inside and
the outside temperature. This is sim-
ilar to the condensation on your win-
dows inside your vehicle during the
rain and doesn’t indicate a problem
with your vehicle. If the water leaks
into the lamp bulb circuitry, have
your vehicle checked by an author-
ized HYUNDAI dealer.
Headlamp, position lamp, turn
signal lamp, side marker and
front fog lamp bulb replace-
ment
Type A
(1) Turn signal lamp/Position lamp
(2) Headlamp (High)/
Daytime running lights
(3) Headlamp (Low)
(4) Side marker
(5) Fog lamp
Prior to replacing a lamp,
depress the foot brake, move
the shift lever into P (Park)
apply the parking brake, press
the Engine Start/Stop button
to the OFF position, and take
the key with you when leaving
the vehicle to avoid sudden
movement of the vehicle and
to prevent possible electric
shock.
Be aware the bulbs may be
hot and may burn your fin-
gers.
WARNING
ODH073039 ■Type A

7-98
Maintenance
C CA
AL
LI
IF
FO
OR
RN
NI
IA
A
P
PE
ER
RC
CH
HL
LO
OR
RA
AT
TE
E
N
NO
OT
TI
IC
CE
E

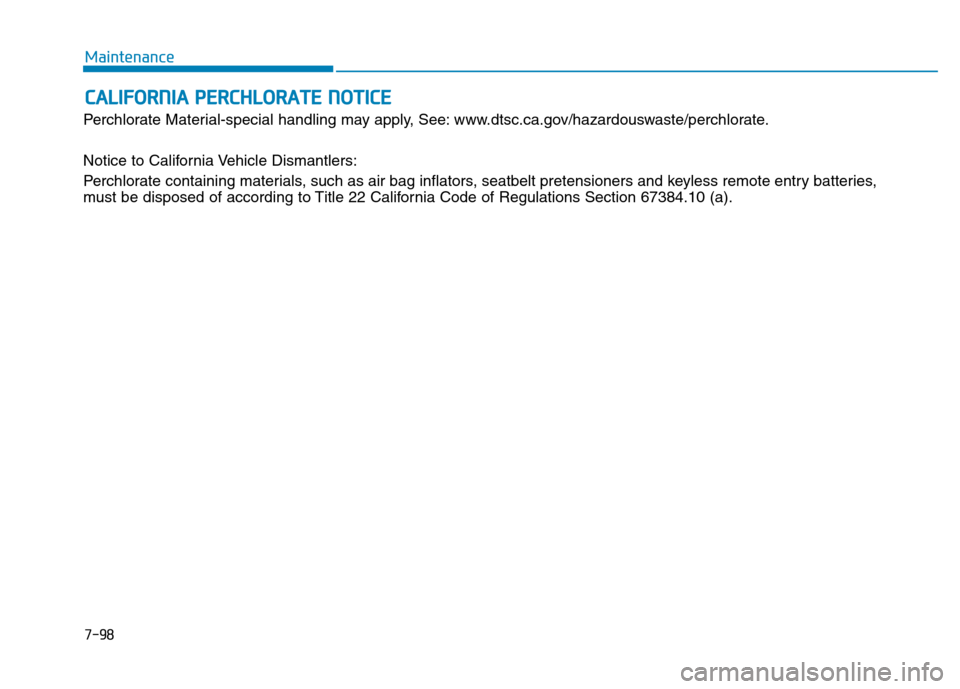

Perchlorate Material-special handling may apply, See: www.dtsc.ca.gov/hazardouswaste/perchlorate.
Notice to California Vehicle Dismantlers:
Perchlorate containing materials, such as air bag inflators, seatbelt pretensioners and keyless remote entry batteries,
must be disposed of according to Title 22 California Code of Regulations Section 67384.10 (a).

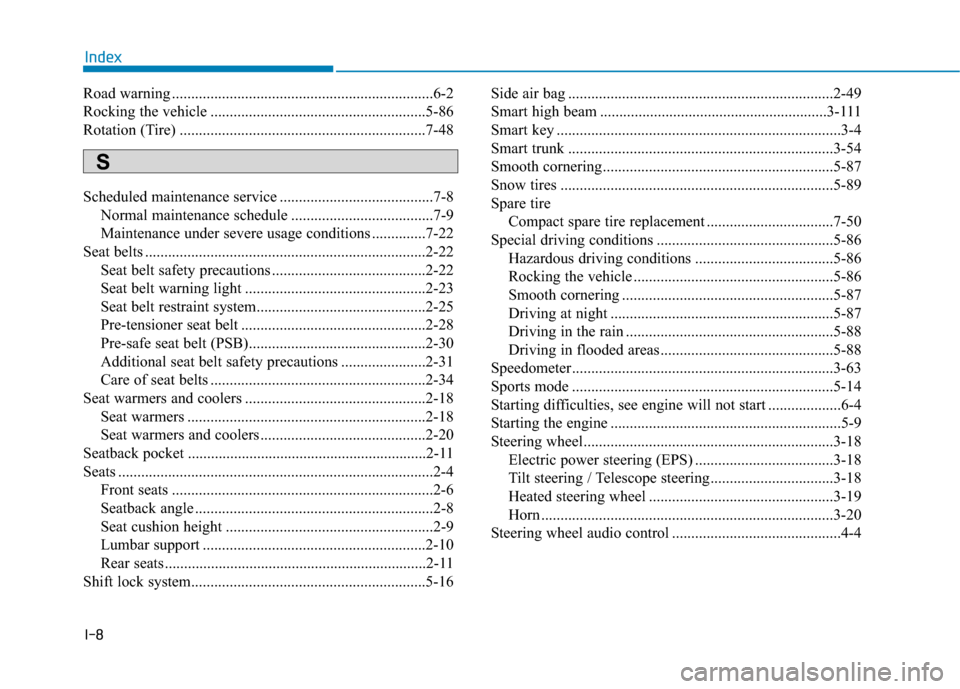

I-8
Road warning ....................................................................6-2
Rocking the vehicle ........................................................5-86
Rotation (Tire) ................................................................7-48
Scheduled maintenance service ........................................7-8
Normal maintenance schedule .....................................7-9
Maintenance under severe usage conditions ..............7-22
Seat belts .........................................................................2-22
Seat belt safety precautions ........................................2-22
Seat belt warning light ...............................................2-23
Seat belt restraint system............................................2-25
Pre-tensioner seat belt ................................................2-28
Pre-safe seat belt (PSB)..............................................2-30
Additional seat belt safety precautions ......................2-31
Care of seat belts ........................................................2-34
Seat warmers and coolers ...............................................2-18
Seat warmers ..............................................................2-18
Seat warmers and coolers ...........................................2-20
Seatback pocket ..............................................................2-11
Seats ..................................................................................2-4
Front seats ....................................................................2-6
Seatback angle ..............................................................2-8
Seat cushion height ......................................................2-9
Lumbar support ..........................................................2-10
Rear seats ....................................................................2-11
Shift lock system.............................................................5-16Side air bag .....................................................................2-49
Smart high beam ...........................................................3-111
Smart key ..........................................................................3-4
Smart trunk .....................................................................3-54
Smooth cornering............................................................5-87
Snow tires .......................................................................5-89
Spare tire
Compact spare tire replacement .................................7-50
Special driving conditions ..............................................5-86
Hazardous driving conditions ....................................5-86
Rocking the vehicle ....................................................5-86
Smooth cornering .......................................................5-87
Driving at night ..........................................................5-87
Driving in the rain ......................................................5-88
Driving in flooded areas .............................................5-88
Speedometer....................................................................3-63
Sports mode ....................................................................5-14
Starting difficulties, see engine will not start ...................6-4
Starting the engine ............................................................5-9
Steering wheel.................................................................3-18
Electric power steering (EPS) ....................................3-18
Tilt steering / Telescope steering................................3-18
Heated steering wheel ................................................3-19
Horn ............................................................................3-20
Steering wheel audio control ............................................4-4
Index
S
