2015 HONDA FIT CD player

219
Features

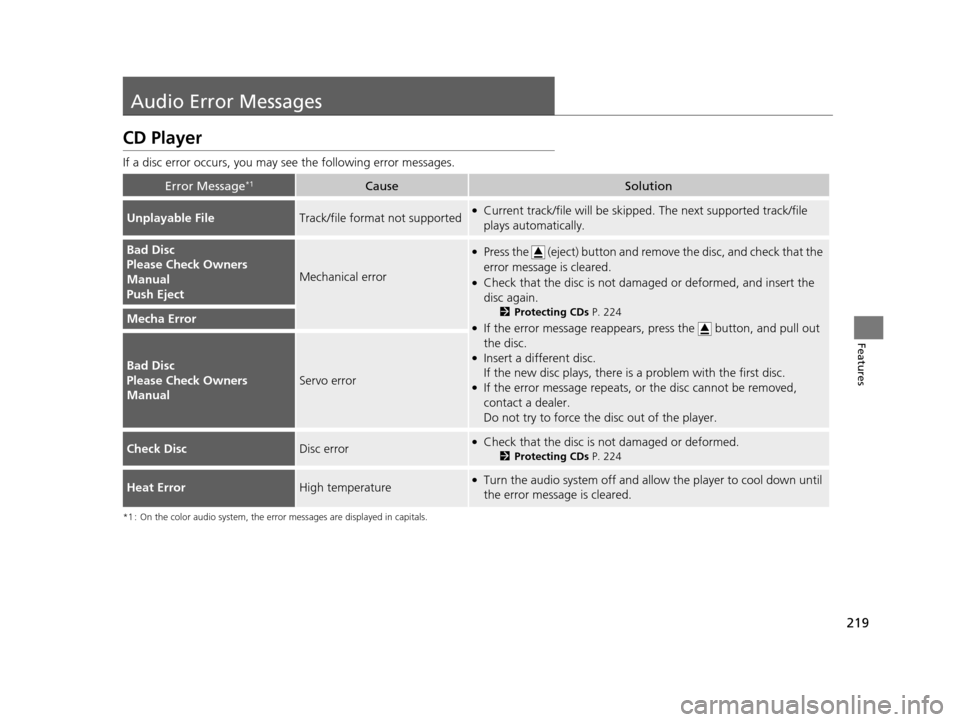

Audio Error Messages
CD Player
If a disc error occurs, you may see the following error messages.
*1 : On the color audio system, the error messages are displayed in capitals.
Error Message*1CauseSolution
Unplayable FileTrack/file format not supported●Current track/file will be skipped. The next supported track/file
plays automatically.
Bad Disc
Please Check Owners
Manual
Push Eject
Mechanical error
●Press the (eject) button and remo ve the disc, and check that the
error message is cleared.
●Check that the disc is not dama ged or deformed, and insert the
disc again.
2 Protecting CDs P. 224
●If the error message reappears, press the button, and pull out
the disc.
●Insert a different disc.
If the new disc plays, there is a problem with the first disc.
●If the error message repeats, or the disc cannot be removed,
contact a dealer.
Do not try to force the disc out of the player.
Mecha Error
Bad Disc
Please Check Owners
Manual
Servo error
Check DiscDisc error●Check that the disc is not damaged or deformed.
2Protecting CDs P. 224
Heat ErrorHigh temperature●Turn the audio system off and allo w the player to cool down until
the error message is cleared.
15 US FIT-31T5A6000.book 219 ページ ２０１４年３月６日　木曜日　午後７時５分

uuGeneral Information on the Audio System uRecommended CDs
224
Features

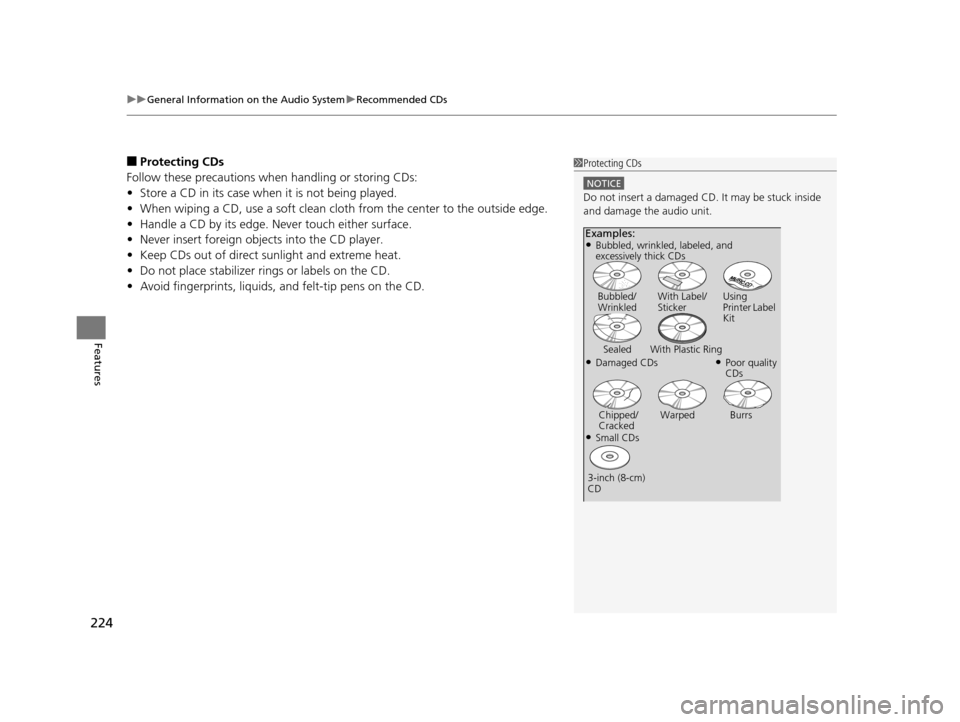

■Protecting CDs
Follow these precautions when handling or storing CDs:
• Store a CD in its case when it is not being played.
• When wiping a CD, use a soft clean clot h from the center to the outside edge.
• Handle a CD by its edge. Never touch either surface.
• Never insert foreign objects into the CD player.
• Keep CDs out of direct sunlight and extreme heat.
• Do not place stabilizer ri ngs or labels on the CD.
• Avoid fingerprints, liquids, and felt-tip pens on the CD.1Protecting CDs
NOTICE
Do not insert a damaged CD. It may be stuck inside
and damage the audio unit.
Examples:
●Damaged CDs Bubbled/
Wrinkled
With Label/
Sticker Using
Printer Label
Kit
Sealed With Plastic Ring●Poor quality
CDs
Chipped/
Cracked Warped Burrs
●Small CDs
3-inch (8-cm)
CD
●Bubbled, wrinkled, labeled, and
excessively thick CDs
15 US FIT-31T5A6000.book 224 ページ ２０１４年３月６日　木曜日　午後７時５分

225
uuGeneral Information on the Audio System uCompatible iPod, iPhone, and USB Flash Drives
Features

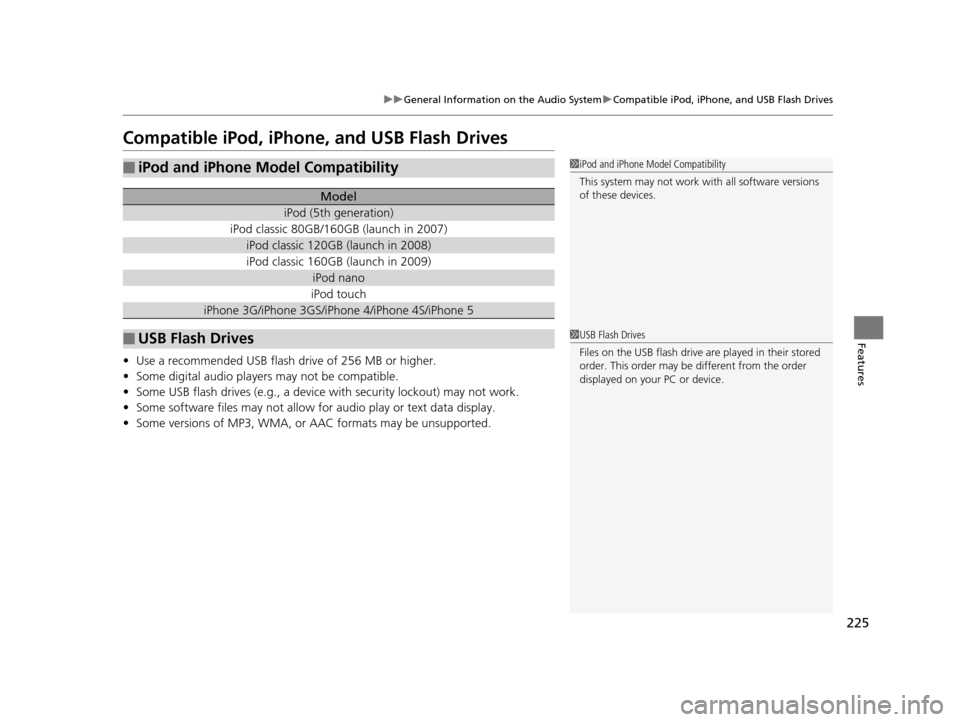

Compatible iPod, iPhone , and USB Flash Drives
•Use a recommended USB flash drive of 256 MB or higher.
• Some digital audio players may not be compatible.
• Some USB flash drives (e.g., a device with security lockout) may not work.
• Some software files may not allow for audio play or text data display.
• Some versions of MP3, WMA, or AAC formats may be unsupported.
■iPod and iPhone Model Compatibility
Model
iPod (5th generation)
iPod classic 80GB/160GB (launch in 2007)
iPod classic 120GB (launch in 2008)
iPod classic 160GB (launch in 2009)
iPod nano
iPod touch
iPhone 3G/iPhone 3GS/iPhone 4/iPhone 4S/iPhone 5
■USB Flash Drives
1iPod and iPhone Model Compatibility
This system may not work with all software versions
of these devices.
1USB Flash Drives
Files on the USB flash drive are played in their stored
order. This order may be different from the order
displayed on your PC or device.
15 US FIT-31T5A6000.book 225 ページ ２０１４年３月６日　木曜日　午後７時５分

446
Index
Indicator ............................................ 70, 421
Parking Brake .......................................... 340
Brake System Indicator ............................... 70
Brightness Control (Instrument Panel) .... 128
Bulb Replacement ..................................... 373
Back-Up Light and Rear Turn Signal
Lights..................................................... 377
Brake/Tail/Rear Side Marker Lights ........... 378
Fog Lights ................................................ 375
Headlights ............................................... 373
High-Mount Brake Light .......................... 378
Rear License Plate Light............................ 379
Side Turn Signal, Emergency Indicator Lights..................................................... 376
Bulb Specifications .................................... 432
C
Carbon Monoxide Gas ................................ 66
Cargo Area Cover ..................................... 152
Cargo Floor Box ........................................ 148
Carrying Cargo .................................. 303, 305
CD Player ................................................... 179
Certification Label .................................... 434
Changing Bulbs ......................................... 373
Charging System Indicator ................. 71, 419
Child Safety ................................................. 54
Childproof Door Locks ............................. 102
Child Seat .................................................... 54
Booster Seats ............................................. 65
Child Seat for Infants ................................. 56 Child Seat for Small Children ..................... 57
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 61
Larger Children ......................................... 64
Rear-facing Child Seat ............................... 56
Selecting a Child Seat ................................ 58
Childproof Door Locks ............................. 102
Cleaning the Exterior ............................... 400
Cleaning the Interior ................................ 398
Climate Control System ............................ 157
Clock ............................................................ 88
Coat Hook ................................................. 150
Compact Spare Tire .......................... 405, 433
Controls ....................................................... 87
Coolant (Engine) ...................................... 368
Adding to the Radiator ............................ 369
Adding to the Reserve Tank..................... 368
High Temperature Indicator ....................... 74
Low Temperature Indicator........................ 74
Overheating ............................................ 417
Creeping (Automatic Transmission) ........ 318
Cruise Control ........................................... 329
Indicator.................................................... 79
Cup Holders .............................................. 147
Customer Service Information ................. 442
D
Daytime Running Lights.......................... 125
Dead Battery ............................................ 414
Defrosting the Windshield and Windows ................................................. 156
Devices that Emit Radio Waves ............... 435
Dimming Headlights .............................................. 121
Rearview Mirror ...................................... 131
Dipstick (Engine Oil) ................................ 364
Directional Signals (Turn Signal) ............. 121
Display Setup .................................... 176, 198
Door Mirrors ............................................. 131
Doors .......................................................... 90
Auto Door Locking.................................. 103
Auto Door Unlocking .............................. 103
Door and Tailgate Open Indicator ....... 31, 75
Keys.......................................................... 90
Locking/Unlocking the Doors from the Inside ................................................ 99
Locking/Unlocking the Doors from the Outside ............................................. 93
Lockout Prevention System ....................... 98
DOT Tire Quality Grading ........................ 387
Driving ...................................................... 301
Automatic Transmission .......................... 318
Braking ................................................... 340
Cruise Control ........................................ 329
Shifting Gear .......................... 319, 321, 325
Starting the Engine ......................... 311, 313
Dust and Pollen Filter .............................. 397
15 US FIT-31T5A6000.book 446 ページ ２０１４年３月６日　木曜日　午後７時５分
