Continued111
uuSecurity System uSecurity System Alarm*
Controls
■To deactivate the security system alarm
Unlock the vehicle using the remote transmi tter or smart entry remote, or turn the
ignition switch to ON
(w*1. The system, along with the horn and flashing lights, is
deactivated.
■Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met:
• The ignition switch is in LOCK
(0*1, and the key has been removed from the
ignition switch.
• The hood is closed.
• All doors and the tailgate are locked from outside with the key, remote
transmitter, or smart entry system.
■When the security system alarm sets
The security system alarm indicator in the instrument panel blinks. When the
blinking interval changes after about 15 se conds, the security system alarm is set.
■To cancel the security system alarm
The security system alarm is canceled when the vehicle is unlocked using the remote
transmitter or smart entry system, or th e ignition switch is turned to ON
(w*1. The
security system alarm indicato r goes off at the same time.
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
1Security System Alarm*
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when:
•Unlocking the door with the lock tab.•Opening the hood with the hood release handle.
•Moving the shift lever out of ( P.
If the battery goes dead after you have set the
security system alarm, the security alarm may go off
once the battery is re charged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the ke y, remote transmitter,
or smart entry system.
Do not attempt to alter th is system or add another
device to it.
Automatic transmission (CVT) models
* Not available on all models
15 US FIT-31T5A6000.book 111 ページ ２０１４年３月６日　木曜日　午後７時５分

144
Controls
Interior Lights/Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the doors are open or closed.
■Door activated
The interior lights come on in the following
situations:
• When any of the doors are opened.
• You unlock the driver’s door.
• You remove the key from the ignition
switch.
• When the power mode is set to VEHICLE
OFF (LOCK).
Only the cargo area light comes on when the
tailgate is opened
■OFF
The interior lights remain off regardless of
whether the doors are open or closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade
out and go off about 30 se conds after the doors are
closed.
The lights go off after 30 seconds in the following
situations:
•When you unlock the driver’s door but do not open it.
•When you remove the key from the ignition switch
but do not open a door.
•When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.
The interior lights go off i mmediately in the following
situations:
•When you lock the driver’s door.
•When you turn the ignition switch to ON ( w*1.
•When you close the driver’s door with the key in
the ignition switch.
•When you close the driver’s door in ACCESSORY
mode.
If you leave any of the doors open in VEHICLE OFF
(LOCK) mode, or without the key in the ignition
switch, the interior li ghts go off after about 15
minutes.
*1: Models with the sma rt entry system have an ENGINE
START/STOP button instead of an ignition switch.
Models without smart entry system
Models with smart entry system
Models without smart entry system
Models with smart entry system
On
Off
Door Activated Position
Front*
Rear
Door Activated Position
Off
Models without smart entry system
Models with smart entry system
* Not available on all models
15 US FIT-31T5A6000.book 144 ページ ２０１４年３月６日　木曜日　午後７時５分

145
uuInterior Lights/Interior Convenience Items uInterior Lights
Controls
The map lights can be turned on and off by
pressing the lenses.
The light comes on when you open the
tailgate.
■Map Lights1Map Lights
When the interior light swit ch is in the door activated
position and any door is open, the map light will not
go off when you press the lens.
Models with moonroof
Models with moonroof
Models without moonroof
■Cargo Area Light
15 US FIT-31T5A6000.book 145 ページ ２０１４年３月６日　木曜日　午後７時５分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
152
Controls

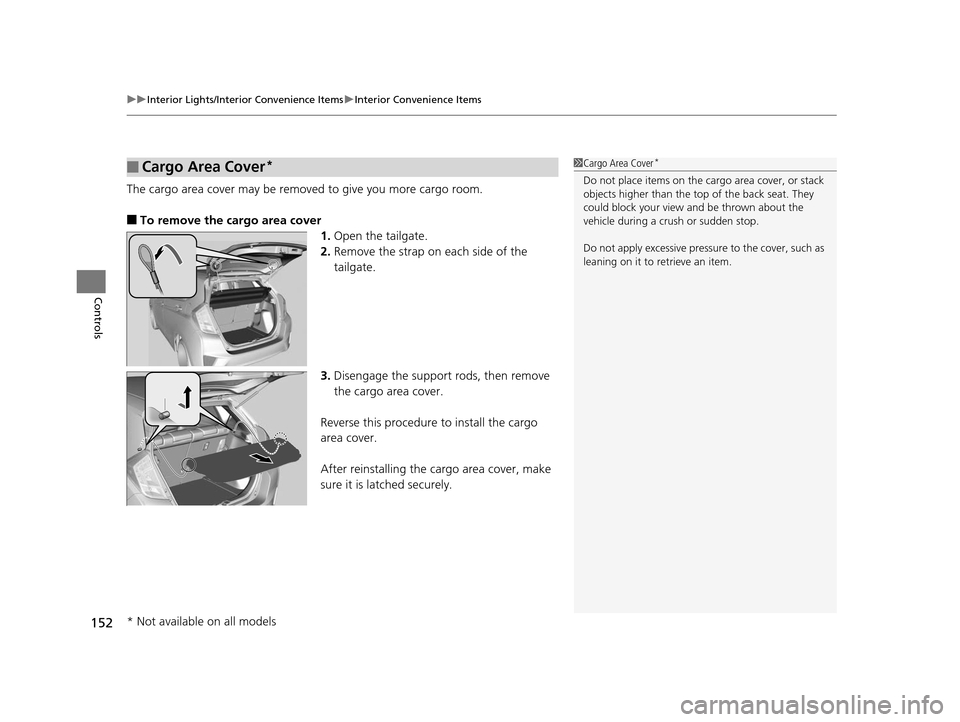

The cargo area cover may be removed to give you more cargo room.
■To remove the cargo area cover
1.Open the tailgate.
2. Remove the strap on each side of the
tailgate.
3. Disengage the support rods, then remove
the cargo area cover.
Reverse this procedure to install the cargo
area cover.
After reinstalling the cargo area cover, make
sure it is latched securely.
■Cargo Area Cover*1 Cargo Area Cover*
Do not place items on the cargo area cover, or stack
objects higher than the top of the back seat. They
could block your view and be thrown about the
vehicle during a crush or sudden stop.
Do not apply excessive pressure to the cover, such as
leaning on it to retrieve an item.
* Not available on all models
15 US FIT-31T5A6000.book 152 ページ ２０１４年３月６日　木曜日　午後７時５分

446
Index
Indicator ............................................ 70, 421
Parking Brake .......................................... 340
Brake System Indicator ............................... 70
Brightness Control (Instrument Panel) .... 128
Bulb Replacement ..................................... 373
Back-Up Light and Rear Turn Signal
Lights..................................................... 377
Brake/Tail/Rear Side Marker Lights ........... 378
Fog Lights ................................................ 375
Headlights ............................................... 373
High-Mount Brake Light .......................... 378
Rear License Plate Light............................ 379
Side Turn Signal, Emergency Indicator Lights..................................................... 376
Bulb Specifications .................................... 432
C
Carbon Monoxide Gas ................................ 66
Cargo Area Cover ..................................... 152
Cargo Floor Box ........................................ 148
Carrying Cargo .................................. 303, 305
CD Player ................................................... 179
Certification Label .................................... 434
Changing Bulbs ......................................... 373
Charging System Indicator ................. 71, 419
Child Safety ................................................. 54
Childproof Door Locks ............................. 102
Child Seat .................................................... 54
Booster Seats ............................................. 65
Child Seat for Infants ................................. 56 Child Seat for Small Children ..................... 57
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 61
Larger Children ......................................... 64
Rear-facing Child Seat ............................... 56
Selecting a Child Seat ................................ 58
Childproof Door Locks ............................. 102
Cleaning the Exterior ............................... 400
Cleaning the Interior ................................ 398
Climate Control System ............................ 157
Clock ............................................................ 88
Coat Hook ................................................. 150
Compact Spare Tire .......................... 405, 433
Controls ....................................................... 87
Coolant (Engine) ...................................... 368
Adding to the Radiator ............................ 369
Adding to the Reserve Tank..................... 368
High Temperature Indicator ....................... 74
Low Temperature Indicator........................ 74
Overheating ............................................ 417
Creeping (Automatic Transmission) ........ 318
Cruise Control ........................................... 329
Indicator.................................................... 79
Cup Holders .............................................. 147
Customer Service Information ................. 442
D
Daytime Running Lights.......................... 125
Dead Battery ............................................ 414
Defrosting the Windshield and Windows ................................................. 156
Devices that Emit Radio Waves ............... 435
Dimming Headlights .............................................. 121
Rearview Mirror ...................................... 131
Dipstick (Engine Oil) ................................ 364
Directional Signals (Turn Signal) ............. 121
Display Setup .................................... 176, 198
Door Mirrors ............................................. 131
Doors .......................................................... 90
Auto Door Locking.................................. 103
Auto Door Unlocking .............................. 103
Door and Tailgate Open Indicator ....... 31, 75
Keys.......................................................... 90
Locking/Unlocking the Doors from the Inside ................................................ 99
Locking/Unlocking the Doors from the Outside ............................................. 93
Lockout Prevention System ....................... 98
DOT Tire Quality Grading ........................ 387
Driving ...................................................... 301
Automatic Transmission .......................... 318
Braking ................................................... 340
Cruise Control ........................................ 329
Shifting Gear .......................... 319, 321, 325
Starting the Engine ......................... 311, 313
Dust and Pollen Filter .............................. 397
15 US FIT-31T5A6000.book 446 ページ ２０１４年３月６日　木曜日　午後７時５分

448
Index
Headlights................................................. 121
Aiming .................................................... 373
Dimming ......................................... 121, 125
Operating ................................................ 121
Heated Door Mirrors ................................ 129
Heating and Cooling System .................... 154
Cooling ................................................... 156
Defrosting the Windshield and
Windows ............................................... 156
Dust and Pollen Filter ............................... 397
Heating ................................................... 155
HFL (HandsFreeLink ®)............................... 248
High-Beam Indicator .................................. 77
I
Identification Numbers ............................ 434
Engine and Transmission.......................... 434
Vehicle Identification ............................... 434
Ignition Switch .......................................... 116
Illumination Control ................................. 128
Knob ....................................................... 128
Immobilizer System .................................. 110
Indicator .................................................... 78
Indicators ..................................................... 70
ABS (Anti-lock Brake System) ..................... 73
Brake System ............................................. 70
Charging System ............................... 71, 419
CRUISE CONTROL .............................. 79, 330
CRUISE MAIN .................................... 79, 329
Door and Tailgate Open....................... 31, 75 ECON Mode .............................................. 78
EPS (Electric Power Steering)
System ............................................ 75, 421
Fog Light ................................................... 77
High Temperature ..................................... 74
High-Beam ................................................ 77
Immobilizer System ................................... 78
Lights On .................................................. 77
Low Fuel ................................................... 73
Low Oil Pressure ................................ 71, 419
Low Temperature ...................................... 74
Low Tire Pressure .............................. 76, 336
Maintenance Minder
TM...................... 79, 357
Malfunction Indicator Lamp............... 71, 420
Parking Brake and Brake System ........ 70, 421
Seat Belt Reminder .............................. 33, 72
Security System Alarm ............................... 79
Shift Position ............................................. 72
Starter System ........................................... 77
Supplemental Restraint System ............ 51, 73
TPMS ........................................................ 76
Transmission ............................................. 72
Turn Signal ................................................ 77
VSA ® (Vehicle Stability Assist)
System ............................................ 74, 332
VSA ® OFF .......................................... 74, 333
Washer Level ............................................. 79
Information .............................................. 431
Information Display ................................... 83
Instrument Panel ........................................ 69
Brightness Control................................... 128 Interior Lights
........................................... 144
Interior Rearview Mirror ......................... 131
Internet Radio .................................. 208, 209
J
Jack (Wheel Nut Wrench) ................ 404, 408
Jump Starting ........................................... 414
K
Keyless Lockout Prevention ....................... 98
Keys ............................................................. 90
Lockout Prevention ................................... 98
Rear Door Won’t Open ........................... 102
Remote Transmitter .................................. 93
Types and Functions.................................. 90
Won’t Turn ............................................... 24
Kickdown (Automatic Transmission) ...... 318
15 US FIT-31T5A6000.book 448 ページ ２０１４年３月６日　木曜日　午後７時５分

449
Index
L
LaneWatchTM............................................ 334
LATCH (Child Seats) ................................... 59
Lights ................................................ 121, 373
Bulb Replacement ................................... 373
Daytime Running Lights .......................... 125
Fog Lights ............................................... 124
High-Beam Indicator ................................. 77
Interior.................................................... 144
Light Switches......................................... 121
Lights On Indicator.................................... 77
Turn Signals ............................................ 121
Load Limits ............................................... 305
Locking/Unlocking ..................................... 90
Auto Door Locking/Unlocking ................. 103
Childproof Door Locks ............................ 102
From Inside ............................................... 99
From Outside ............................................ 93
Keys.......................................................... 90
Lockout Prevention System ....................... 98
Using a Key............................................... 97
Lockout Prevention System ....................... 98
Low Battery Charge ................................. 419
Low Fuel Indicator ..................................... 73
Low Oil Pressure Indicator ................. 71, 419
Lower Anchors ........................................... 59
Lubricant Specifications Chart ................ 433
Luggage (Maximum Load Limit) ............. 305
M
Maintenance............................................. 353
Battery .................................................... 393
Brake Fluid .............................................. 371
Cleaning .................................................. 398
Coolant ................................................... 368
Heating and Cooling System .................... 397
Maintenance Minder
TM............................ 357
Oil ........................................................... 364
Precautions .............................................. 355
Radiator .................................................. 369
Remote Transmitter ................................. 395
Replacing Light Bulbs ............................... 373
Safety ...................................................... 355
Service Items ........................................... 359
Tires ........................................................ 384
Transmission Fluid ................................... 370
Under the Hood ...................................... 361
Malfunction Indicator Lamp .............. 71, 420
Manual Transmission ................................ 325
Reverse Lockout ...................................... 327
Map Lights ................................................ 145
Maximum Load Limit ............................... 305
Meters, Gauges ........................................... 82
Mirrors ....................................................... 131
Adjusting ................................................. 131
Door ........................................................ 131
Exterior .................................................... 131
Interior Rearview ..................................... 131
Modifications (and Accessories) .............. 351
MP3 ........................................... 179, 185, 210 Multi-View Rear Camera
.......................... 345
N
Numbers (Identification).......................... 434
O
Odometer................................................... 84
Oil (Engine) ............................................... 363
Adding .................................................... 365
Checking................................................. 364
Displaying Oil Life .................................... 357
Low Oil Pressure Indicator ................. 71, 419
Recommended Engine Oil ....................... 363
Viscosity .................................................. 363
Opening and Closing the Moonroof ....... 115
Opening/Closing Hood....................................................... 362
Power Windows ...................................... 113
Tailgate ................................................... 107
Overheating .............................................. 417
15 US FIT-31T5A6000.book 449 ページ ２０１４年３月６日　木曜日　午後７時５分
