2015 HONDA FIT audio

400

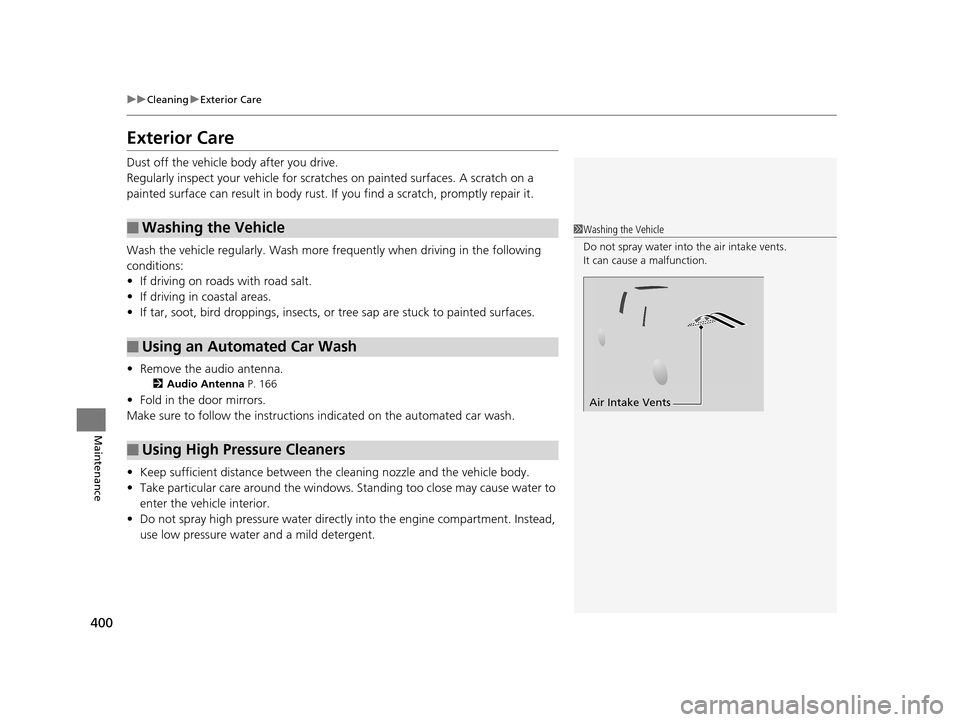

uuCleaning uExterior Care
Maintenance
Exterior Care
Dust off the vehicle body after you drive.
Regularly inspect your vehi cle for scratches on painted surfaces. A scratch on a
painted surface can result in body rust. If you find a scratch, promptly repair it.
Wash the vehicle regularly. Wash more frequently when driving in the following
conditions:
• If driving on roads with road salt.
• If driving in coastal areas.
• If tar, soot, bird droppings, insects, or tree sap are stuck to painted surfaces.
• Remove the audio antenna.
2 Audio Antenna P. 166
•Fold in the door mirrors.
Make sure to follow the instructions indicated on the automated car wash.
• Keep sufficient distance between the cleaning nozzl e and the vehicle body.
• Take particular care around the windows. Standing too close may cause water to
enter the vehicle interior.
• Do not spray high pressure water directly into the engine compartment. Instead,
use low pressure water and a mild detergent.
■Washing the Vehicle
■Using an Automated Car Wash
■Using High Pressure Cleaners
1 Washing the Vehicle
Do not spray water into the air intake vents.
It can cause a malfunction.
Air Intake Vents
15 US FIT-31T5A6000.book 400 ページ ２０１４年３月６日　木曜日　午後７時５分

414
Handling the Unexpected
Jump Starting
Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood. 1.Connect the first jump er cable to your
vehicle’s battery + terminal.
u Remove the cover from the under-hood
fuse box.
2 Engine Compartment Fuse Box P. 423
2.Connect the other end of the first jumper
cable to the booster battery + terminal.
u Use a 12-volt booster battery only.
u Connect when using the automotive
battery charger to boost your 12-volt
battery, select a lo wer charging voltage
than 15-volt. Check the charger manual
for the proper setting.
3. Connect the second jumper cable to the
booster battery - terminal.
4. Connect the other end of the second
jumper cable to the stud bolt as shown. Do
not connect this jumper cable to any other
part.
5. If your vehicle is connected to another
vehicle, start the assi sting vehicle’s engine
and increase its rpm slightly.
6. Attempt to start your vehicle’s engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
■Jump Starting Procedure1Jump Starting
Securely attach the jumper cables clips so that they
do not come off when the e ngine vibrates. Also be
careful not to tangle the ju mper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
Battery performance degrades in cold conditions and
may prevent the engi ne from starting.
3WARNING
A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the battery.
Booster
Battery
15 US FIT-31T5A6000.book 414 ページ ２０１４年３月６日　木曜日　午後７時５分

435
Information
Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in
operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with Industry Canada Standard RSS-Gen/210/310.
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Audio System
Bluetooth ® Audio
Bluetooth® HandsFreeLink ®
Immobilizer System
Smart Entry System
Remote Transmitter
15 US FIT-31T5A6000.book 435 ページ ２０１４年３月６日　木曜日　午後７時５分

443
uuCustomer Service Information u
Information
Requirements to access Pandora®
• Latest version of the Pandora application
installed on your mobile device. (Visit the
Apple iTunes ® store or Google Play
Marketplace to download the latest
version.)
• Registered Pandora account (you can
create a free account at
www.pandora.com www.pandora.com/ > or on your
smartphone)
• Connection to the in ternet via WiFi or
cellular data network.
• Android devices must be connected to
the vehicle via Bluetooth, iPhone® devices
may be connected via Bluetooth or USB.
■Disclaimer of Pandora ®*Limitations
•Access to Pandora requires an active
internet connection
• Ability to access Pandora through this
system is subject to change without
notice
• Certain functionality of Pandora service is
not available when accessing the service
through this system including, but not
limited to, creating new stations, deleting
stations, emailing current stations,
buying songs, viewing additional text
information, logging in to Pandora, and
adjusting Cell Network Audio Quality.
Pandora internet radio is a music service
not affiliated with HONDA. More
information is available at http://
www.pandora.com www.pandora.com/ >. Pandora, the
Pandora logo, and the Pandora trade
dress are trademarks or registered
trademarks of Pandora Media, Inc., used
with permission.
• Mobile access requires a smartphone
with an active data plan. Standard data
rates may apply.
• Pandora is only avai lable in the United
States.
* Not available on all models
15 US FIT-31T5A6000.book 443 ページ ２０１４年３月６日　木曜日　午後７時５分

Index
445
Index
Index
Numbers
7-Speed Manual Shift Mode................... 323
A
ABS (Anti-lock Brake System) .................. 342
Accessories and Modifications ................ 351
Accessory Power Socket ........................... 149
Additives Coolant .................................................. 368
Engine Oil ............................................... 363
Washer ................................................... 372
Additives, Engine Oil ............................... 363
Adjusting Armrest .................................................. 143
Front Seats.............................................. 133
Head Restraints ....................................... 135
Headlights .............................................. 373
Mirrors.................................................... 131
Rear Seats ............................................... 140
Steering Wheel ....................................... 130
Adjusting the Sound ................................ 197
Air Conditioning System Climate Control System .......................... 157
Defrosting the Windshield and Windows ...................................... 156, 158
Dust and Pollen Filter .............................. 397
Heating and Cooling System ................... 154
Air Conditioning System (Heating and Cooling System)
Cooling................................................... 156 Heating ................................................... 155
Air Pressure ....................................... 385, 433
Airbags ........................................................ 41
Advanced Airbags ..................................... 47
Airbag Care ............................................... 53
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 44
Indicator .............................................. 51, 73
Passenger Airbag Off Indicator .................. 52
Sensors ...................................................... 41
Side Airbags .............................................. 48
Side Curtain Airbags .................................. 50
Anti-lock Brake System (ABS) .................. 342
Indicator .................................................... 73
Armrest ..................................................... 143
Audio Remote Controls ............................ 168
Audio System ............................................ 162
Adjusting the Sound ................................ 175
Auxiliary Input Jack .................................. 165
Error Messages ........................................ 219
General Information ................................ 223
MP3/WMA/AAC .............................. 185, 210
Recommended CDs ................................. 223
Recommended Devices ............................ 225
Remote Controls ................................. 5, 168
Security Code .......................................... 167
Theft Protection ....................................... 167
USB Flash Drives ...................................... 225
USB Port(s) .............................................. 163
Audio/Information Screen ............... 171, 192
Authorized Manuals ................................. 441 Auto Door Locking/Unlocking
................. 103
Customize ............................................... 104
Automatic Climate Control Sensors ........ 160
Automatic Transmission ........................... 318
7-Speed Manual Shift Mode .................... 323
Creeping ................................................. 318
Kickdown ................................................ 318
Operating the Shift Lever........... 20, 320, 322
Shift Lever Does Not Move ...................... 416
Shifting ........................................... 319, 321
Automatic Transmission (CVT)
Fluid ........................................................ 370
Auxiliary Input Jack .................................. 165
Average Fuel Economy .............................. 84
B
Battery...................................................... 393
Charging System Indicator................. 71, 419
Jump Starting .......................................... 414
Maintenance (Checki ng the Battery) ........ 393
Maintenance (Replacing) ......................... 395
Belts (Seat) .................................................. 32
Beverage Holders ..................................... 147
Bluetooth ® HandsFreeLink ®..................... 248
Booster Seats (For Children) ...................... 65
Brake System ............................................ 340
Anti-lock Brake System (ABS)................... 342
Brake Assist System ................................. 343
Fluid ........................................................ 371
Foot Brake............................................... 341
15 US FIT-31T5A6000.book 445 ページ ２０１４年３月６日　木曜日　午後７時５分

450
Index
P
Paddle Shifters (7-Speed Manual Shift Mode) ........................................ 20, 323, 324
Pandora® ................................................... 209
Panic Mode ............................................... 112
Parking ...................................................... 344
Parking Brake ............................................ 340
Parking Brake and Brake System
Indicator ............................................ 70, 421
Passenger Airbag Off Indicator ................. 52
Passing Indicators ..................................... 121
Playing Bluetooth ® Audio ................ 188, 213
Precautions While Driving ........................ 317
Rain ......................................................... 317
Pregnant Women ....................................... 39
Puncture (Tire) .......................................... 405
R
Radiator.................................................... 369
Radio (FM/AM) ......................................... 177
Radio Data System (RDS) ................. 178, 200
RDS (Radio Data System) ......................... 178
Readiness Codes (Emissions Testing) ....... 437
Rear Defogger/Heated Door Mirror Button ..................................................... 129
Rear Seats (Folding Down) ...................... 141
Rearview Mirror ....................................... 131
Refueling .................................................. 347
Fuel Gauge................................................ 85
Gasoline .......................................... 347, 432
Low Fuel Indicator ..................................... 73
Regulations ............................... 338, 387, 435
Remote Transmitter ................................... 93
Replacement
Battery .................................................... 395
Bulbs ....................................................... 373
Fuses ............................................... 423, 425
Tires ........................................................ 390
Wiper Blade Rubber ........................ 380, 382
Reporting Safety Defects ......................... 436
Resetting a Trip Meter ............................... 84
S
Safe Driving................................................ 27
Safety Check ............................................... 31
Safety Labels .............................................. 67
Safety Message ............................................ 1
Seat Belts .................................................... 32
Adjusting the Shoulder Anchor ................. 37
Automatic Seat Belt Tensioners ................. 34
Checking .................................................. 40
Detachable Anchor ................................... 38
Fastening .................................................. 35
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 61
Pregnant Women...................................... 39
Reminder .................................................. 33
Warning Indicator ............................... 33, 72
Seat Heaters ............................................. 153
Seats .......................................................... 133
Adjusting ................................................ 133
Front Seats.............................................. 133
Rear Seats ............................................... 140
Security System ........................................ 110
Immobilizer System Indicator ..................... 78
Security System Alarm Indicator ................ 79
Select Lever ................................ 20, 319, 325
Operation ......................... 20, 320, 321, 322
Releasing ................................................ 416
Won’t Move ........................................... 416
Select/Reset Knob ...................................... 83
Selecting a Child Seat ................................ 58
Selector Knob (Audio) ............................. 170
15 US FIT-31T5A6000.book 450 ページ ２０１４年３月６日　木曜日　午後７時５分
