2015 HONDA FIT cruise control

5
Quick Reference Guide
❙Wipers/Washers (P126)
❙Paddle Shifter (Shift Up)* (P324)
❙ (Select/Reset) Knob (P83)
❙Brightness Control (P128)
❙ Display Button* (P192)
❙Paddle Shifter (Shift Down)* (P 324)
❙Headlights/Turn Signals (P121)
❙Fog Lights* (P124)
❙LaneWatchTM* (P334)
❙Audio Remote Control Buttons* (P168)
❙Horn (Press an area around .)
❙Cruise Control Buttons* (P329)
❙Bluetooth® HandsFreeLink ® System
(P248, 271)
❙Voice Control Buttons (P248, 271)
❙Navigation System Voice Control Buttons*
() See the Navigation System Manual
* Not available on all models
15 US FIT-31T5A6000.book 5 ページ ２０１４年３月６日　木曜日　午後７時５分

11
Quick Reference Guide
Instrument Panel (P69)
Lights Indicators
Malfunction
Indicator Lamp
Low Oil Pressure
IndicatorAnti-lock Brake
System (ABS)
Indicator
Vehicle Stability
Assist (VSA ®) System
Indicator
VSA ® OFF Indicator
Electric Power
Steering (EPS) System
Indicator Lights On Indicator High Beam Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
CRUISE MAIN
Indicator*
Supplemental
Restraint System
Indicator Starter System
Indicator
*
Door and Tailgate
Open Indicator
Tachometer
Speedometer
Fuel Gauge
Security System
Alarm Indicator*
Shift Lever Position Indicator*
Low Fuel Indicator
Gauges (P82)/Information Display (P83)/System Indicators (P70)
Turn Signal and
Hazard Warning
Indicators
High Temperature
Indicator (Red)
Low Temperature
Indicator (Blue)
System Indicators
System Indicators
Low Tire Pressure/
TPMS Indicator
U.S. models only
Parking Brake
and Brake System
Indicator (Red)
CRUISE CONTROL
Indicator*
System Indicators
Charging System
Indicator
U.S. U.S.
Canada
Smart Entry System
Indicator*
Washer Level
Indicator*
ECON Mode
Indicator*
Maintenance
Minder Indicator
Fog Light Indicator
*
Canada
Brake System
Indicator (Amber)
Canada
U.S.
M
(7-speed manual shift mode)
Indicator/Shift Indicator*
Information Display
* Not available on all models
15 US FIT-31T5A6000.book 11 ページ ２０１４年３月６日　木曜日　午後７時５分

21
Quick Reference Guide
VSA® OFF Button (P333)
● The vehicle stability assist (VSA ®) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To turn VSA ® on or off, press and hold
the button until you hear a beep.
Cruise Control* (P329)
● Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
● To use cruise control, press the CRUISE
button, then press the -/ SET button once
you have achieved the desired speed
(above 25 mph or 40 km/h).
Tire Pressure Monitoring
System (TPMS)
(P336)
● Detects a change in tire conditions and
overall dimensions due to decrease in tire
pressures.
● TPMS is turned on automatically every
time you start the engine.
● A calibration procedure must be
performed when certain conditions arise.
U.S. models only
Refueling (P347)
Fuel recommendation: Unleaded gasoline with a pump octane number 87 or
higher required
Fuel tank capacity: 10.6 US gal (40 L)
aPull the fuel fill door
release handle.
bTurn the fuel fill cap
slowly to remove the
cap.
cPlace the cap in the
holder on the fuel fill
door.
dAfter refueling, screw
the cap back on until it
clicks at least once.
* Not available on all models
15 US FIT-31T5A6000.book 21 ページ ２０１４年３月６日　木曜日　午後７時５分

79
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Security System
Alarm Indicator*
●Blinks when the security system alarm
has been set.
2Security System Alarm* P. 110
CRUISE MAIN
Indicator*
●Comes on when you press the CRUISE
button.2 Cruise Control* P. 329
CRUISE CONTROL
Indicator*
●Comes on if you have set a speed for
cruise control.2 Cruise Control* P. 329
Washer Level
Indicator*●Comes on when the washer fluid is low.
●Refill washer fluid.
2Refilling Window Washer Fluid P. 372
Maintenance
Minder Indicator●Comes on when the scheduled
maintenance is due soon.2Maintenance MinderTM P. 357
Indicator
* Not available on all models
15 US FIT-31T5A6000.book 79 ページ ２０１４年３月６日　木曜日　午後７時５分

301
Driving
This chapter discusses driving, refueling, and information on items such as accessories.
Before Driving
Driving Preparation .............................. 302
Maximum Load Limit............................ 305
Towing a Trailer Towing Your Vehicle ............................ 308
When Driving
Starting the Engine .............................. 311
Starting the Engine .............................. 313
Precautions While Driving..................... 317
Automatic Transmission (CVT)
*............ 318
Shifting ................................................ 319
Models without smart entry system
Models with smart entry system
Automatic transmission (CVT) models
without paddle shifters
Shifting................................................ 321
Shifting................................................ 325
ECON Button
*..................................... 328
Cruise Control*................................... 329Vehicle Stability Assist (VSA®), aka Electronic
Stability Control (ESC), System ............... 332
LaneWatchTM*...................................... 334
Tire Pressure Monitoring System (TPMS) .. 336
Tire Pressure Monitoring System (TPMS) -
Required Federal Explanation ............. 338
Automatic transmission (CVT) models
with paddle shifters
Manual transmission models
Braking Brake System ........................................ 340
Anti-lock Brake System (ABS) ................ 342
Brake Assist System .............................. 343
Parking Your Vehicle When Stopped ..................................... 344
Multi-View Rear Camera ....................... 345
Refueling Fuel Information ................................... 347
How to Refuel ...................................... 348
Fuel Economy ......................................... 350
Improving Fuel Economy....................... 350
Accessories and Modifications Accessories ........................................... 351
Modifications ....................................... 351
* Not available on all models
15 US FIT-31T5A6000.book 301 ページ ２０１４年３月６日　木曜日　午後７時５分

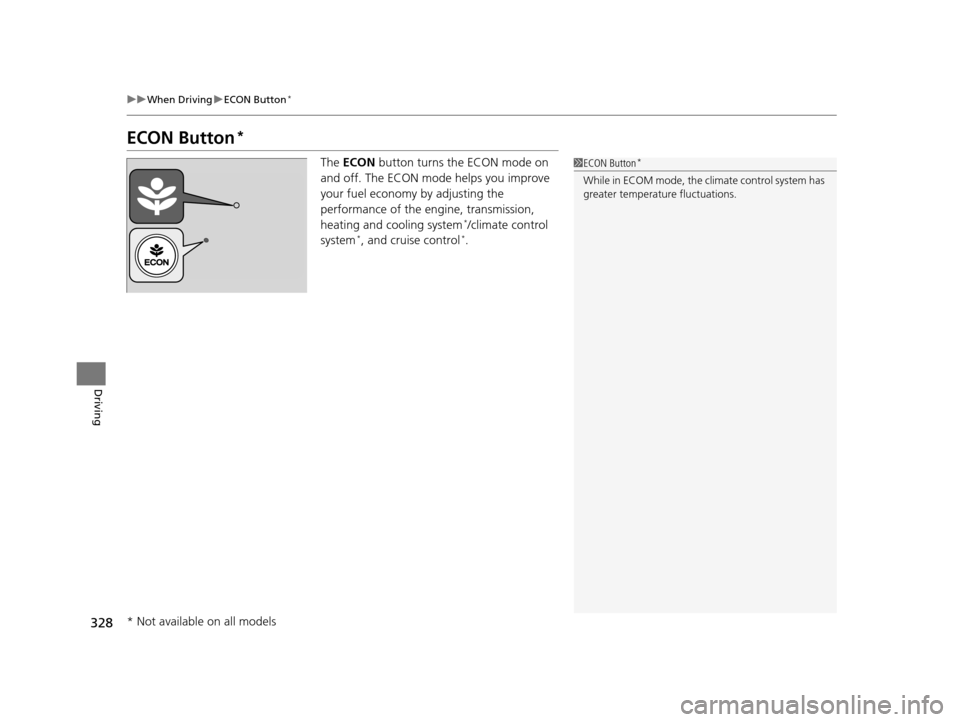

328
uuWhen Driving uECON Button*
Driving
ECON Button*
The ECON button turns the ECON mode on
and off. The ECON mode helps you improve
your fuel economy by adjusting the
performance of the engine, transmission,
heating and cooling system
*/climate control
system*, and cruise control*.
1 ECON Button*
While in ECOM mode, the climate control system has
greater temperature fluctuations.
* Not available on all models
15 US FIT-31T5A6000.book 328 ページ ２０１４年３月６日　木曜日　午後７時５分

329
uuWhen Driving uCruise Control*
Continued
Driving
Cruise Control*
Maintains a constant vehicle speed without having to keep your foot on the
accelerator. Use cruise control on freeways or open road s where you can travel at a
constant speed with little ac celeration or deceleration.1Cruise Control*
It may not be possible to maintain a constant speed
when driving uphill or downhill.
When not using cruise control:
Turn off cruise control by pressing the CRUISE
button.
While in ECON mode, it may take relatively more time
to accelerate to maintain the set speed.
When the engine speed slows down, try to
downshift.
You can maintain the set sp eed if you change gear
within five seconds.
3WARNING
Improper use of the cruise control can lead
to a crash.
Use the cruise control only when traveling
on open highways in good weather.
Automatic transmission (CVT) models
Manual transmission models
■Shift positions for cruise control:
In ( D or (S
When to use
Always keep sufficient distance
between you and the vehicle in
front of you.
Automatic transmission (CVT) models
■Vehicle speed for cruise control:
Desired speed in a range above
roughly 25 mph (40 km/h) ~
How to use CRUISE MAIN is on in the
instrument panel.
Cruise control is ready to use.
■Press the CRUISE
button on the
steering wheel.
* Not available on all models
15 US FIT-31T5A6000.book 329 ページ ２０１４年３月６日　木曜日　午後７時５分

330
uuWhen Driving uCruise Control*
DrivingTake your foot off the pedal and press the -/ SET button when you reach the desired
speed.
The moment you release the -/SET button, the set speed is fixed, and cruise control
begins. The CRUISE CONTROL indicator comes on.
■To Set the Vehicle Speed
-/SET Button
On when cruise control begins
Press and release
On
On
