2015 HONDA CROSSTOUR wipers

5
Quick Reference Guide
❙Wipers/Washers (P 123)
❙Navigation System Voice Control Buttons*
(P224) See the Navigation System Manual
❙(+ / (- / / Buttons (P 168)
❙SOURCE Button (P 168)
❙ (Display) Button* (P 186, 218)
❙Headlights/Turn Signals (P 119)
❙Fog Lights (P 122)
❙Paddle Shifter (Shift down)* (P 431)
❙Paddle Shifter (Shift up)* (P 431)
❙Lane WatchTM * (P 444)
❙Horn (Press an area around .)
❙Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P 319, 331, 366)
❙ (Select/Reset) Knob (P 84)
❙Brightness Control (P 125)
❙Cruise Control Buttons (P 432)
* Not available on all models
15 CROSSTOUR-31TP66500.book 5 ページ ２０１４年７月３１日　木曜日　午後３時２３分

Visual Index
8
Quick Reference Guide
❙Windshield Wipers (P 123, 493)
❙Maintenance Under the Hood (P 469)
❙Fog Lights (P 122, 486)
❙Front Turn Signal/Parking Lights (P 119, 489)
❙Side Marker Lights (P 119, 488)
❙Tires (P 497, 517)
❙How to Refuel (P 457)
❙Opening/Closing the Tailgate (P 105)
❙Rear Wiper (P 124, 495)
❙Back-Up Lights (P 490)
❙Brake/Taillights (P 490)
❙Rear Turn Signal Lights (P 490)
❙Rear Side Marker Lights (P 490)
❙Multi-View Rear Camera (P 455)
❙Rearview Camera (P 454)
❙Rear License Plate Lights (P 492)
❙Headlights (P 119, 484)
❙Power Door Mirrors (P 131)
❙Door Lock/Unlock Control (P 94)
❙High-Mount Brake Light (P 492)
❙Tailgate Release Button (P 106)
15 CROSSTOUR-31TP66500.book 8 ページ ２０１４年７月３１日　木曜日　午後３時２３分

12
Quick Reference Guide
ENGINE START/STOP
Button
* (P115 )
Turn Signals (P119)
Turn Signal Control Lever
Right
Left
Lights (P119)
Wipers and Washers
(P123)
Light Control Switches
Low Beam High Beam
Flashing
Wiper/Washer Control Lever Adjustment Ring: Long Delay
: Short Delay
MIST
OFF
INT : Low speed with intermittent
LO : Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
Steering Wheel (P129)
● To adjust, push the adjustment lever
down, adjust to the de sired position, then
lock the lever back in place.
Unlocking the Front
Doors from the Inside
(P99)
● Pull either front door inner handle to
unlock and open it in one motion.
15 CROSSTOUR-31TP66500.book 12 ページ ２０１４年７月３１日　木曜日　午後３時２３分

87
Controls
This chapter explains how to operate the various controls necessary for driving.
Setting the Clock................................ 88
Locking and Unlocking the Doors Key Types and Functions .................... 91
Low Smart Entry Remote Signal Strength*.. 93Locking/Unlocking the Doors from the Outside ............................................ 94
Locking/Unlocking the Doors from the
Inside ............................................... 99
Childproof Door Locks ..................... 100
Auto Door Locking/Unlocking .......... 101
Opening and Closing the Tailgate ... 105
Security System ................................ 107
Immobilizer System .......................... 107
Security System Alarm ...................... 107
Opening and Closing the Windows ..... 110
Opening and Closing the Moonroof.. 113Operating the Switches Around the
Steering Wheel
Ignition Switch
*............................... 114
ENGINE START/STOP Button*........... 115
Ignition Switch and Power Mode Comparison ................................... 118
Turn Signals ..................................... 119
Light Switches.................................. 119
Fog Lights ........................................ 122
Daytime Running Lights ................... 122
Wipers and Washers ........................ 123
Brightness Control ........................... 125
Rear Defogger/Heated Door Mirror Button.. 126Driving Position Memory System*.... 127 Adjusting the Steering Wheel .......... 129
Adjusting the Mirrors ....................... 130
Interior Rearview Mirror ................... 130
Power Door Mirrors ......................... 131
Adjusting the Seats .......................... 133
Adjusting the Seat Positions ............. 133
Interior Lights/Interior Convenience Items ................................................ 142
Interior Lights .................................. 142
Interior Convenience Items .............. 144
Heating and Cooling System
*......... 154
Using Vents, Heating and A/C.......... 154
Climate Control System
*.................. 157
Using Automatic Climate Control .... 157
Automatic Climate Control Sensors ... 162
* Not available on all models
15 CROSSTOUR-31TP66500.book 87 ページ ２０１４年７月３１日　木曜日　午後３時２３分

123
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Continued
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the ignition switch is in ON
(w*1.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, INT, LO, HI)
Change the wiper switch setting according to
the amount of rain.
■Adjusting the delay
Turn the adjustment ring to adjust the wiper
delay.
■Washer
Sprays while you pull the lever toward you.
When you release the lever, the wipers make
two or three more sweeps before stopping.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Front Wiper/Washer1 Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
NOTICE
In cold weather, the blades may freeze to the
windshield, becoming stuck.
Operating the wipers in th is condition may damage
the wipers. Use the defroster to warm the
windshield, then turn the wipers on.
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens. When the vehicle starts moving, the
wipers make a single sweep.
When the vehicle speeds up, the wiper operation’s
shortest delay setting ( ) and the LO setting become
the same.
Intermittent Time
Adjustment Ring Pull to
use
washer.
MIST
INT: Low speed with
intermittent OFF
LO
: Low speed wipe
HI: High speed wipe
Long delay
Short delay
15 CROSSTOUR-31TP66500.book 123 ページ ２０１４年７月３１日　木曜日　午後３時２３分

uuOperating the Switches Around the Steering Wheel uWipers and Washers
124
Controls

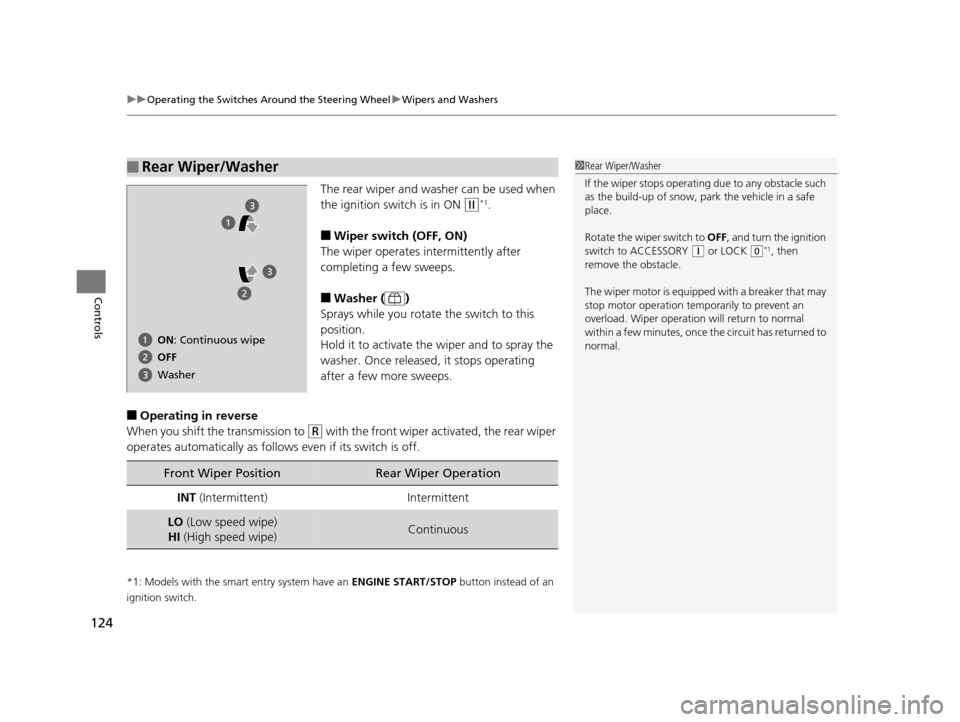

The rear wiper and washer can be used when
the ignition switch is in ON
(w*1.
■Wiper switch (OFF, ON)
The wiper operates intermittently after
completing a few sweeps.
■Washer ( )
Sprays while you rotate the switch to this
position.
Hold it to activate the wiper and to spray the
washer. Once released, it stops operating
after a few more sweeps.
■Operating in reverse
When you shift the transmission to
(R with the front wiper activated, the rear wiper
operates automatically as follow s even if its switch is off.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Rear Wiper/Washer1 Rear Wiper/Washer
If the wiper stops operating due to any obstacle such
as the build-up of snow, pa rk the vehicle in a safe
place.
Rotate the wiper switch to OFF, and turn the ignition
switch to ACCESSORY
( q or LOCK (0*1, then
remove the obstacle.
The wiper motor is equipped with a breaker that may
stop motor operation temp orarily to prevent an
overload. Wiper operation will return to normal
within a few minutes, once the circuit has returned to
normal.
OFF ON : Continuous wipe
Washer
Front Wiper PositionRear Wiper Operation
INT (Intermittent)Intermittent
LO (Low speed wipe)
HI (High speed wipe)Continuous
15 CROSSTOUR-31TP66500.book 124 ページ ２０１４年７月３１日　木曜日　午後３時２３分

471
uuMaintenance Under the Hood uOpening the Hood
Maintenance

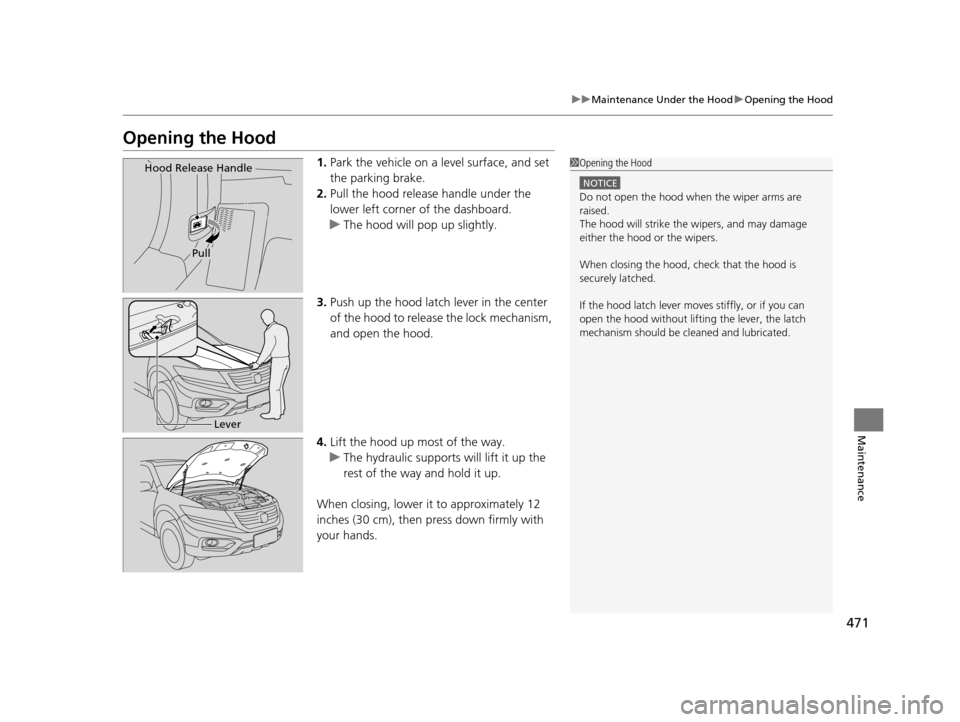

Opening the Hood
1. Park the vehicle on a level surface, and set
the parking brake.
2. Pull the hood release handle under the
lower left corner of the dashboard.
u The hood will pop up slightly.
3. Push up the hood latch lever in the center
of the hood to release the lock mechanism,
and open the hood.
4. Lift the hood up most of the way.
u The hydraulic supports will lift it up the
rest of the way and hold it up.
When closing, lower it to approximately 12
inches (30 cm), then pr ess down firmly with
your hands.1 Opening the Hood
NOTICE
Do not open the hood when the wiper arms are
raised.
The hood will strike the wipers, and may damage
either the hood or the wipers.
When closing the hood, check that the hood is
securely latched.
If the hood latch lever moves stiffly, or if you can
open the hood without lifti ng the lever, the latch
mechanism should be cl eaned and lubricated.
Hood Release Handle
Pull
Lever
15 CROSSTOUR-31TP66500.book 471 ページ ２０１４年７月３１日　木曜日　午後３時２３分

569
Index
Select Lever Won’t Move ........................ 531
Warning Indicators.................................... 70
Turn Signals .............................................. 119
Indicators (Instrume nt Panel) ..................... 78
U
Unlocking the Doors .................................. 94
USB Adapter Cable .......................... 164, 165
USB Flash Drives ....................................... 279
Using the Smart Entr y with Push Button
Start System .............................................. 96
V
Valet Key.................................................... 92
Vanity Mirrors .............................................. 7
Vehicle Identification Number ................ 550
Vehicle Stability Assist (VSA ®) ................. 442
Off Button .............................................. 443
Off Indicator ............................................. 73
System Indicator ....................................... 73
Ventilation ............................................... 158
Viscosity (Oil) ............................ 472, 547, 549
VSA ® (Vehicle Stability Assist) ................. 442
W
Warning and Information Messages ........ 82
Warning Indicator On/Blinking ............... 534
Warning Labels .......................................... 67 Warranties (Warranty Manual provided
separately) ............................................... 555
Watts ................................................. 546, 548
Wear Indicators (Tire) ............................... 502
Wheel Nut Wrench (Jack Handle) ........... 521
Window Washers ...................................... 123
Adding/Refilling Fluid ............................... 483
Switch ..................................................... 123
Windows (Opening and Closing) ............. 110
Windshield ................................................ 123
Cleaning .................................................. 513
Defrosting/Defogging ...................... 156, 159
Washer Fluid ........................................... 483
Wiper Blades ........................................... 493
Wipers and Washers ................................ 123
Winter Tires .............................................. 505
Snow Tires ............................................... 505
Tire Chains .............................................. 505
Wipers and Washers ................................. 123
Checking and Replacing Wiper Blades ..... 493
Front ....................................................... 123
Rear ........................................................ 124
WMA ................. 173, 179, 200, 210, 239, 263
Worn Tires ................................................. 497
X
XM® Radio ......................................... 197, 236
15 CROSSTOUR-31TP66500.book 569 ページ ２０１４年７月３１日　木曜日　午後３時２３分
