2015 HONDA CROSSTOUR display

46
GuidanceNext Maneuver Pop up
System Setup
Next Maneuver Pop up
HSETTINGS button  Navi Settings  Guidance  Next Maneuver Pop up
The navigation system temporarily interrupts the screen display to view the guidance
screen as you approach a guidance point.
Rotate i to select an item. Press u .
The following item s are available:
• LaneWatch : Sets whether to view the guidanc e screen while displaying the
LaneWatch screen.
On (factory default): The guidance scre en interrupts the LaneWatch screen.
Off : Disables the feature.
• Non-map Screens : Sets whether to view the guid ance screen while displaying
other mode (e.g., audio, phone, etc.) screen.
On : The guidance screen interrupts other mode screens (except the rear view
mode).
Off (factory default): Disables the feature.

47
GuidanceGuidance Point
System Setup
Guidance Point
HSETTINGS button  Navi Settings  Guidance  Guidance Point
Set the guidance point to display on the map screen. Rotate i to select an option. Press
u .
The following options are available:
• Destination (factory default): Displays the remaining/arrival time and distance to
the destination.
• Next Point : Displays the remaining/arrival time and distance to the next
waypoint.

48
GuidanceEstimated Time
System Setup
Estimated Time
HSETTINGS button  Navi Settings  Guidance  Estimated Time
Select the estimated time to display on the screen.
Rotate i to select an option. Press
u .
The following options are available:
• Arrival : Displays the arrival time to the destination or the next waypoint.
• Remaining (factory default): Displays the rema ining time to the destination or the
next waypoint.

49
System Setup
Map
HSETTINGS button  Navi Settings  Map
Select the landmark icons to display on the map, change the orientation of the map,
display your current location, and learn the meaning of the icons, colors, and
symbols displayed on the map.
Rotate i to select an item. Press u.
The following items are available:
• Show Icon on Map : Selects the icons to display on the map.
2Showing Icons on Map P. 51
• Color (Day) : Selects the color of the map for the Day mode.
2Color P. 53
• Color (Night) : Selects the color of the map for the Night mode.
2Color P. 53
• View : Selects the map orientation (No rth-up, Heading-up, or 3D map).
2View (Map Orientation) P. 56
• 3D Angle Adjustment : Adjusts the viewing angle for the 3D map.
23D Angle Adjustment P. 57
• Straight Line Guide : Sets whether to display a straight guideline to the
destination or waypoint.
2 Straight Line Guide P. 57
Continued

50
MapEstimated Time
System Setup
•Current Location : Displays and saves your current location.
2Current Location P. 58
• Map Legend : Displays an overview of the map features.
2Map Legend P. 59
• Display Tracking : Sets whether to display the tracking dots on the map.
2Display Tracking P. 63
• Delete Tracking : Deletes the tracking dots on the map.
2Deleting Tracking Dots P. 63
• Correct Vehicle Position : Adjusts the position of the vehicle on the map.
2Correct Vehicle Position P. 64
• System Device Information : Views database, software, device, and vehicle
identification information.
2 System Device Information P. 65
• Map Data Update : Checks the map data update status when updating the map
database.
2 Map Data Update P. 65

51
MapShowing Icons on Map
System Setup
Showing Icons on Map
HSETTINGS button  Navi Settings  Map  Show Icon on Map
Select the icons that are displayed on the map. 1.Rotate i to select an item. Press
u .
2. Rotate i to select an option.
Press u.
Repeat step1 and 2 as
necessary.
3. Move r to select OK. Press u.
The following options are available:
• All On : Displays the landmark icons.
2Map Screen Legend P. 8
• Customize : Fine-tunes the icon display.
2Fine-tuning the Icons P. 52
• Off : Hides the landmark icons.
1Showing Icons on Map
You can display or hide the icons using voice
commands on the Voice Portal screen (e.g., say
d “Display hospital” ).
2 Map Display Commands P. 140
Continued

52
MapShowing Icons on Map
System SetupIcons in some categories can be fine-tuned to display or hide.1.Rotate i to select the icons to
display on the map. Press u.
Pressing u toggles the icon
display on or off.
Repeat the procedure as
necessary.
2. Move r and rotate i to select
OK . Press u.
■Fine-tuning the Icons

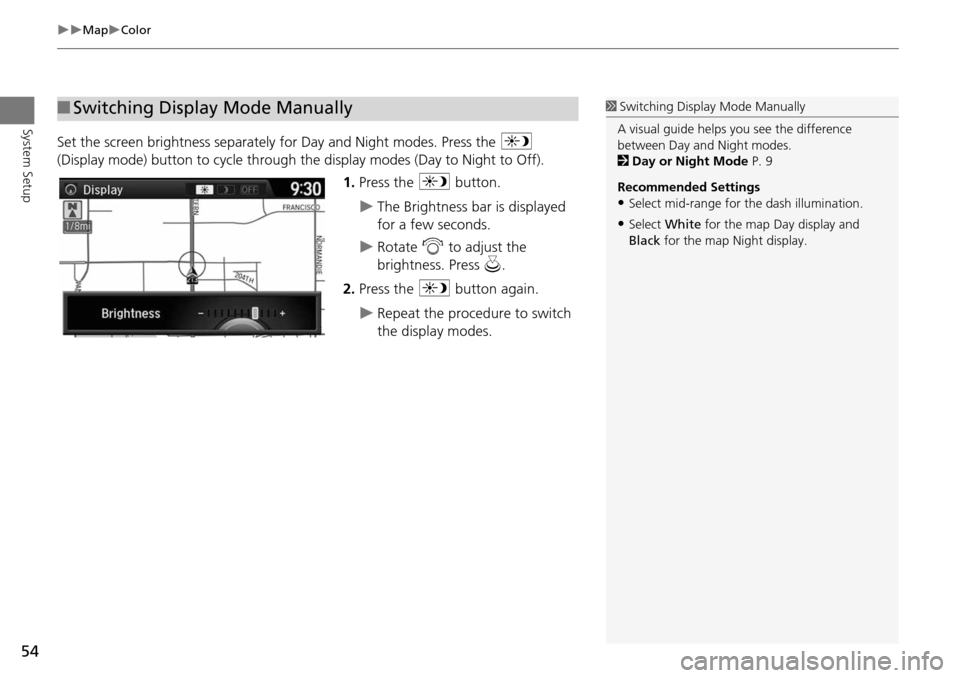

54
MapColor
System Setup
Set the screen brightness separately for Day and Night modes. Press the a
(Display mode) button to cycle through the display modes (Day to Night to Off).
1. Press the a button.
The Brightness bar is displayed
for a few seconds.
Rotate i to adjust the
brightness. Press u.
2. Press the a button again.
Repeat the procedure to switch
the display modes.
■Switching Display Mode Manually1 Switching Display Mode Manually
A visual guide helps y ou see the difference
between Day an d Night modes.
2 Day or Night Mode P. 9
Recommended Settings
•Select mid-range for the dash illumination.
•Select White for the map Day display and
Black for the map Night display.
