2015 HONDA CR-Z audio

Navigation*..............................................................................................................22
Bluetooth®HandsFreeLink®(HFL)........................................................................25
SMS Text Messaging* ..............................................................................................31
iPod
®or USB Flash Drive .....................................................................................32
Bluetooth®Audio* ....................................................................................................33
Pandora®*................................................................................................................. 34
Honda Owners .......................................................................................................35
Safety Reminder ......................................................................................................35
Fuel Recommendation...........................................................................................36
Honda Roadside Assistance..................................................................................36
*if equipped
Instrument Panel Indicators ...................................................................................2
MultiInformation Display (MID) ...........................................................................4
Auto Door Locks .....................................................................................................6
Fuel Fill Door .............................................................................................................7
Eco Assist
TM................................................................................................................8
3Mode Drive System ............................................................................................12
Plus Sport System ...................................................................................................13
Tire Pressure Monitoring System (TPMS) ........................................................14
Paddle Shifting*........................................................................................................15
Rearview Camera* .................................................................................................16
MultiView Rear Camera* ....................................................................................17
Voice Recognition* ................................................................................................ 18
PLUS SPORT SYSTEMp.\b3
VOICE RECOGNITION p.\b8
INSTRUMENT PANEL p. 2
3MODE DRIVE SYSTEM p.\b2
ECO ASSISTTMp. 8
T E C H N O L O G Y R E F E R E N C E G U I D E
This Technology Reference Guide is designed to help you
get acquainted with your 2015 Honda CRZ and provide
basic instructions on some of its technology and
convenience features.
This guide is not intended to be a substitute \0for the
Owner’s Manual. For more detailed information on vehicle
controls and operation, please refer to the respective
sections in the Owner’s Manual or Navigation Manual.
As with the Owner’s Manual, this guide covers all trims of
the CRZ. Therefore, you may find descriptions of
equipment and features that are not on your particular
vehicle.
15 CRZ_Ka_eng_TRG_AQ\AS51842_ATG_NEW STYL\AE 7/29/2014 11\f23\A AM Page 2

Malfunction IndicatorsIf an indicator remains on, there may be a problem; see a dealer
On/Off Indicators
Condition IndicatorsAction is needed by driver
SIDE AIRBAG OFF
CRUISE CONTROL on
SPORT mode on
VSA OFF
Fog lights on (if equipped)
Exterior lights on
Turn signals\fhazards on
Auto Idle Stop on (blinking)
NORMAL mode on
ECON mode on
High beams on
Charging system
Low brake fluid, Brake system
Low oil pressure
AntiLock Brake System (ABS)
Low tire pressure:
Add air
Message indicator:
See MID
High temperature indicator:
Pull over for engine cooling
IMA System
Malfunction lamp
(check engine light)
Vehicle Stability Assist®(VSA)
Supplemental Restraint System
(SRS)
Electric Power Steering (EPS)
Low engine temperature
(stays on)
Tire Pressure Monitoring System
(TPMS) (blinks and stays on)
Transmission (blinks)
Parking brake on:
Release
Door\fHatch open:
Close door(s) \b hatch
Seat belt reminder:
Fasten seat belt(s)
Low fuel:
Refill
INSTRUMENT PANEL INDICATORSBriefly appear with each engine start. Red and amber indicators are most critical. Blue
and green indicators are used for general information. See your Owner’s Manual for
more information.
23
CRUISE MAIN on
PASSENGER AIRBAG OFF(center audio panel)
Manual Transmission
Shift Indicators
Note\f Indicators do not
come on in SPORT mode.
Immobilizer (blinks):
Use other vehicle key
and see dealer
Plus Sport System on
15 CRZ_Ka_eng_TRG_AQ\AS51842_ATG_NEW STYL\AE 7/29/2014 11\f24\A AM Page 3

Voice Command Tips
V O I C E R E C O G N I T I O N
Key Functions by Voice Command
B L U E T O O T H® H A N D S F R E E L I N K®p. 27
A U D I Op. 21
C L I M A T Ep. 21
N A V I G A T I O Np. 22
The voice control system uses the steering wheel buttons and th\0e ceiling microphone.
To reduce the potential for driver distraction, certain manual and
touchscreen functions may be inoperable or grayed out while the vehicle is
moving. Voice commands are always available.
1819
PickUp button\f Answer an
incoming call, or go directly to
the Phone screen.
Talk button\f Say navigation, HFL,
audio, and climate control
commands.
HangUp button\f End a call or
decline a call.
Back button\f Cancel a command
or return to the previous screen.
To keep your eyes on the road and hands on the wheel, use the Talk button to say
voice commands to operate certain vehicle features.
• Press and release the Talk button, wait for a beep, then say a command.
• All available voice commands are highlighted in blue when you press the Talk button.
• For a list of available commands, press and release the Talk button and say “Help” at any time. For a full list of commands, say “Display information” and “Voice
info,” or see your Navigation Manual.
• Speak in a clear, natural voice, and reduce all background noise.
• Adjust the dashboard and side vents away from the microphone in the ceiling.
• Close the windows.
• The system also uses a touchscreen display. You can select options or icons by touching them on the screen. This is limited while the vehicle is moving.
15 CRZ_Ka_eng_TRG_AQ\AS51842_ATG_NEW STYL\AE 7/29/2014 11\f25\A AM Page 11

2021
Commonly Used Voice Commands
Here are some examples of commonly used voice commands. Try some of these
to familiarize yourself with the voice command system.
G e n e r a l C o m m a n d s(Accepted on most screens to change displays)
• Display map
• Display menu
• Display information
• Display audio
• What time is it?
• Next\fprevious
(to change pages)• Left\fright(to change tabs)• Up\fdown(to scroll lists up to three pages)
F i n d P l a c e C o m m a n d s(Accepted on Map screen)
• Find nearest: ATM Honda dealer
gas station airport
Mexican hospital restaurant bank
post office
N a v i g a t i o n C o m m a n d s(Accepted on Map screen)
• How long\ffar to the destination?
• Display destination map
• Display entire route
D i s p l a y C o m m a n d s(Accepted on Map screen)
• Display\fHide: ATM
gas station
restaurant
post office
• Display north up\fheading up
• Zoom in\fout
• Go home
• Display current location
A u d i o C o m m a n d s(Accepted on most screens)
• Radio on
• Radio # FM\fAM
• Radio preset 1\f2\f3\f4\f5\f6
• DISC\fUSB\fiPod play
• DISC\fUSB\fiPod skip forward\fback
• Auxiliary (AUX) play
H e l p C o m m a n d s(Accepted on most screens)
• Help (list of available commands for current screen)
• Voice info from INFO screen (list of all
available commands by category)
P h o n e C o m m a n d s(Accepted on Phone screen)
• Dial
• Speed Dial 1 (or 2)
• Redial
• Phonebook
• Phone setup
(Accepted on any screen)
• Dial by number
• Dial by voice tag
C l i m a t e C o n t r o l C o m m a n d s(Accepted on most screens)
• Air conditioner on\foff
• Rear defrost on\foff
• Climate control recirculate\f fresh air
• Fan speed up\fdown
• Temperature # degrees (# = 57–87)
• Temperature max hot\fcold
Press and release the Talk button before you say a command.Press and release the Talk button before you say a command.
15 CRZ_Ka_eng_TRG_AQ\AS51842_ATG_NEW STYL\AE 7/29/2014 11\f25\A AM Page 12

FM Traffic
25
Displaying Traffic Information
Say “Display traffic”to view highway flow data.
Note\fTraffic flow and incident icons
are only displayed on map scales of 5
miles or less.
Heavy traffic
Moderate traffic
Traffic
Flow
data
Traffic
Flow
data Incident
icon
Incident
icon
Incident
Traffic Icons\f
Construction
Road closed
Weather
Provides continuously updated information, including traffic speed, incidents, and
construction in major metro areas. Works in cities where a clear FM traffic signal
is available.
1. Say “Display traffic list” to view a
list of incidents on your route.
2. Say the number of the incident you want to avoid. When the
incident appears, say “Traffic
detail.”
3. Say “Avoid,” and the incident
list returns.
4. Say “Reroute” to set the new
route.
Traffic Rerouting
When a destination is already set, you can create a detour to avoid traffic
incidents or congestion.
24
How to Use HFL
HFL Talk button\f Give HFL commands
or answer incoming calls.
HFL Back button\f End a call, go back
to the previous command, or cancel an
operation.
BLUETOOTH® HANDSFREELINK®(HFL) (without navigation)
Make and receive phone calls through your vehicle’s audio system. Visit
handsfreelink.honda.com to check if this feature is compatible with your phone.
Pairing Your Phone
You can pair your phone only when your vehicle is stopped.
Press and release the Talk button before you say a command.
Press and release the HFL Talk button before you say a command.
1. Enable discovery mode on your
phone.
2. If no phone has been paired before, the system gives you instructions.
If you are pairing an additional phone,
say “Phone setup,” then say “Pair.”
3. HFL gives you a fourdigit code that also appears on the MID.
4. Search for HandsFreeLink from your phone, and enter the code when
prompted. Connect to HFL.
5. HFL asks you to name the phone. For example, say “Mary’s phone.” The
phone is now added.
15 CRZ_Ka_eng_TRG_AQ\AS51842_ATG_NEW STYL\AE 7/29/2014 11\f25\A AM Page 14

Receiving a Call
Press the HFL Talk button to
accept the call.
Press the HFL Back button to
end or decline the call.
A notification is heard and the
incoming phone number appears
on the MID.
2627
Press and release the HFL Talk button before you say a command.
Making a Call
1. Say “Call” or “Dial” and the phone number.
2. Say “Call” or “Dial”to continue.
3. The call is connected and heard through the vehicle’s speakers.
Press and release the HFL Talk button before you say a command.
HFL Phonebook
1. Say “Phonebook.”
2. Say “Store.”
3. Say the name of the contact, and then the phone number.
4. To call a contact once an entry is stored, say “Call Mike.”
Store up to 50 names and their phone numbers, which can be used as speed dials.
BLUETOOTH® HANDSFREELINK®(HFL) (with navigation)
Make and receive phone calls through your vehicle’s audio system. Visit
handsfreelink.honda.com to check if this feature is compatible with your phone.
To reduce the potential for driver distraction, certain manual and touch
screen functions may be inoperable or grayed out while the vehicle is
moving. Voice commands are always available.
How to Use HFL
PickUp button\f Answer an
incoming call, or go directly to the
Phone screen.
Talk button\f Give navigation, HFL,
audio, or climate control commands.
HangUp button\f End a call or
decline a call.
Back button\f Cancel a command
and return to the previous screen.
Use these buttons to navigate through the HFL menus.
Joystick\bENTER button\f
Move up, down, left, or
right to scroll options, and
press to make a selection. PHONE button\f
Go directly to the
Phone screen.
CANCEL button\f
Press to cancel an
operation or return to
the previous screen.
15 CRZ_Ka_eng_TRG_AQ\AS51842_ATG_NEW STYL\AE 7/29/2014 11\f25\A AM Page 15

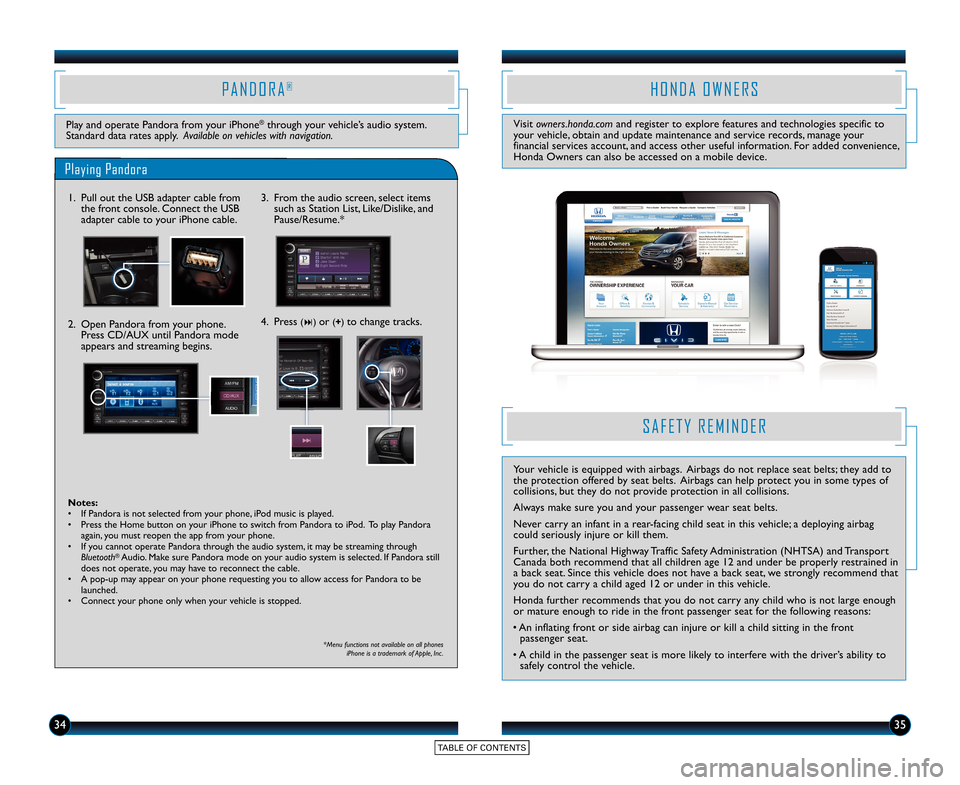

4. Press (9) (:) or (+) () to change
tracks.
Notes\f
• You may need to enable additional settings on your phone for playback.
• Remote audio controls and the play\fpause function may not be supported on all phones.
• Operate your phone only when your vehicle is stopped.
3. From your phone, open the desired audio player or app and begin playing.
Sound is redirected to the audio
system.
Make sure the volume on your phone
is properly adjusted.
3233
i P o d®O R U S B F L A S H D R I V E
Play audio files from your compatible iPod or USB flash drive through your vehicle’s
audio system.
Connecting Devices and Playing Audio
1. Pull out the USB adapter cable from the front console.
2. Press AUX or CD\fAUX until iPod or USB mode appears. Audio begins
to play.
Playing BluetoothAudio
BLUETOOTH®AUDIO
Play stored or streaming audio files from your compatible phone through your
vehicle’s audio system. Visit handsfreelink.honda.comto check if this feature is
compatible with your phone. Available on vehicles with navigation.
1. Make sure your phone is on and
paired to Bluetooth® HandsFreeLink®
(see page 28).
2. Press CD\fAUX until Bluetooth Audio
mode appears.
Connect the USB adapter cable to
your iPod cable or flash drive.
Model with navigation shown
iPod is a trademark of Apple, Inc .
3. Press (9) (:) or (+) () to change
tracks.
Note\f Connect your device only when your vehicle is stopped.
15 CRZ_Ka_eng_TRG_AQ\AS51842_ATG_NEW STYL\AE 7/29/2014 11\f25\A AM Page 18

3435
Play and operate Pandora from your iPhone®through your vehicle’s audio system.
Standard data rates apply. Available on vehicles with navigation.
S A F E T Y R E M I N D E R
Your vehicle is equipped with airbags. Airbags do not replace seat belts; they add to
the protection offered by seat belts. Airbags can help protect you in some types of
collisions, but they do not provide protection in all collisions.
Always make sure you and your passenger wear seat belts.
Never carry an infant in a rearfacing child seat in this vehicle; a deploying airbag
could seriously injure or kill them.
Further, the National Highway Traffic Safety Administration (NHTSA) and Transport
Canada both recommend that all children age 12 and under be properly restrained in
a back seat. Since this vehicle does not have a back seat, we strongly recommend that
you do not carry a child aged 12 or under in this vehicle.
Honda further recommends that you do not carry any child who is not large enough
or mature enough to ride in the front passenger seat for the following reasons:
• An inflating front or side airbag can injure or kill a child sitting in the front passenger seat.
• A child in the passenger seat is more likely to interfere with the driver’s ability to safely control the vehicle.
4. Press (:) or (+) to change tracks.
Notes\f
• If Pandora is not selected from your phone, iPod music is played.
• Press the Home button on your iPhone to switch from Pandora to iPod. To play Pandora
again, you must reopen the app from your phone.
• If you cannot operate Pandora through the audio system, it may be streaming through Bluetooth
®Audio. Make sure Pandora mode on your audio system is selected. If Pandora still
does not operate, you may have to reconnect the cable.
• A popup may appear on your phone requesting you to allow access for Pandora to be launched.
• Connect your phone only when your vehicle is stopped.
3. From the audio screen, select items such as Station List, Like\fDislike, and
Pause\fResume.*
Playing Pandora
P A N D O R A®
1. Pull out the USB adapter cable from the front console. Connect the USB
adapter cable to your iPhone cable.
2. Open Pandora from your phone. Press CD\fAUX until Pandora mode
appears and streaming begins.
*Menu functions not available on all phones
iPhone is a trademark of Apple, Inc .
H O N D A O W N E R S
Visit owners.honda.com and register to explore features and technologies specific to
your vehicle, obtain and update maintenance and service records, manage your
financial services account, and access other useful information. For added convenience,
Honda Owners can also be accessed on a mobile device.
15 CRZ_Ka_eng_TRG_AQ\AS51842_ATG_NEW STYL\AE 7/29/2014 11\f2\b \AAM Page 19
