2015 HONDA CR-Z lock

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner's manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 27
For Safe Driving P. 28 Seat Belts P. 32 Airbags P. 39
2Instrument Panel P. 65
Indicators P. 66 Gauges and Multi-Information Display P. 81
2Controls P. 97
Clock P. 98 Locking and Unlocking the Doors P. 99
Operating the Switches Ar ound the Steering Wheel P. 111
Interior Lights/Interior Convenience Items P. 127
2 Features P. 139
Audio System P. 140 Audio Error Messages P. 155
2Driving P. 173
Before Driving P. 174 Towing a Trailer P. 179
Multi-View Rear Camera P. 215
Refueling P. 218 Fuel Economy P. 221
2Maintenance P. 223
Before Performing Maintenance P. 224 Maintenance MinderTM P. 227
Checking and Maintaining Wiper Blades P. 252
Climate Control System Maintenance P. 267
2Handling the Unexpected P. 273
Tools P. 274 If a Tire Goes Flat P. 275
Overheating P. 294 Indicator, Coming On/Blinking P. 296
2Information P. 309
Specifications P. 310 Identification Numbers P. 312
Emissions Testing P. 315 Warranty Coverages P. 317
15 CR-Z-31SZT6400.book 2 ページ ２０１４年８月１日　金曜日　午後１時５９分

4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙Rear Window Defogger (P 118)
❙Heated Mirror Button* (P 118)
❙Seat Heater Switches* (P135)
❙Ignition Switch (P 111)
❙Steering Wheel Adjustments (P 119)
❙SPORT Mode Button (P 199)
❙NORMAL Mode Button (P 199)
❙ECON Mode Button (P 199)
❙ (Vehicle Stability Assist (VSA®) System OFF) Button (P 206)
❙km/h/mph Change Button (P81)
❙System Indicators (P 66)
❙Gauges (P 81)
❙Multi-Information Display (P 83)
❙Climate Control System (P136 )
❙Hazard Warning Button
❙Clock (P98)
❙Audio System (P 140)
❙Navigation System*
() See the Navigation System Manual
15 CR-Z-31SZT6400.book 4 ページ ２０１４年８月１日　金曜日　午後１時５９分

Visual Index
6
Quick Reference Guide
❙Passenger's Front Airbag (P 42)❙Driver's Front Airbag (P 42)
❙Driver’s Door Lock Switch (P 102)
❙Door Mirror Controls (P 121)
❙Hood Release Handle (P 232)
❙Interior Fuse Box (P 302)
❙Shift Lever
Continuously Variable
Transmission
(P 185)
Manual Transmission (P 190)
❙Glove Box (P 128)
❙Parking Brake (P 210)
❙Accessory Power Socket
(P 130)
❙Center Pocket
❙USB Adapter Cable (P 141)
❙Auxiliary Input Jack (P 142)
❙Power Door Lock Master Switch (P 103)
❙Power Window Switches (P 109)
15 CR-Z-31SZT6400.book 6 ページ ２０１４年８月１日　金曜日　午後１時５９分

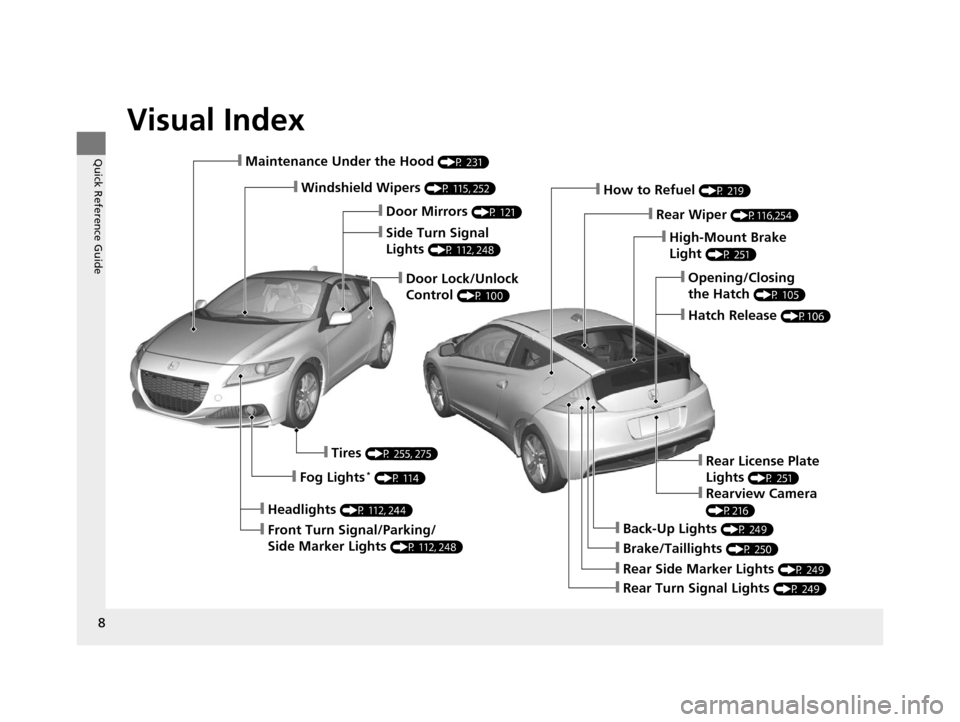

Visual Index
8
Quick Reference Guide❙Maintenance Under the Hood (P 231)
❙Windshield Wipers (P 115, 252)
❙Door Lock/Unlock
Control
(P 100)
❙Headlights (P 112, 244)
❙Front Turn Signal/Parking/
Side Marker Lights
(P 112, 248)
❙Tires (P 255, 275)
❙Fog Lights* (P 114)
❙Brake/Taillights (P 250)
❙Back-Up Lights (P 249)
❙Rear Turn Signal Lights (P 249)
❙Rear Side Marker Lights (P 249)
❙High-Mount Brake
Light
(P 251)
❙How to Refuel (P 219)
❙Rear Wiper (P116,254)
❙Opening/Closing
the Hatch
(P 105)
❙Hatch Release (P106)
❙Side Turn Signal
Lights
(P 112, 248)
❙Door Mirrors (P 121)
❙Rear License Plate
Lights
(P 251)
❙Rearview Camera
(P216)
15 CR-Z-31SZT6400.book 8 ページ ２０１４年８月１日　金曜日　午後１時５９分

16
Quick Reference Guide
Instrument Panel (P65)
Tachometer
CHRG
/ASST
Indicators
IMA Battery
Charge Level
Indicator
Shift UP/DOWN Indicator
*Multi-Information
Display
7-Speed Manual Shift
Mode Indicator
*
System Indicators
Lights Indicators
Instant Fuel
Economy
Gauge Speedometer
Fuel Gauge
Security System
Alarm Indicator
Shift Lever
Position Indicator
Gauges (P81)/Multi-Information Display (P83)/System Indicators (P66)
Ambient Meter
System Indicators System Indicators System Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator
*
Malfunction
Indicator Lamp
Low Oil Pressure
Indicator
12 Volt Battery
Charging System
Indicator
Anti-lock Brake
System (ABS)
Indicator
Vehicle Stability
Assist (VSA
®) System
Indicator
VSA ® OFF Indicator
Turn Signal and
Hazard Warning
Indicators
Electric Power
Steering (EPS) System
Indicator
Immobilizer System
Indicator
IMA System Indicator
Auto Idle Stop
Indicator
Seat Belt Reminder
Indicator
Parking Brake and
Brake System
Indicator (Red)
Supplemental
Restraint System
Indicator
Side Airbag Off
Indicator
Low Tire Pressure/
TPMS Indicator
U.S. models only
Door/Hatch Open
Indicator
CRUISE MAIN
Indicator
CRUISE CONTROL
Indicator
System Message
IndicatorHigh Temperature
Indicator
Low Temperature
Indicator
SPORT Mode
Indicator
NORMAL Mode
Indicator
ECON Mode
Indicator Low Fuel Indicator
Plus Sport System
Indicator
Plus Sport READY
Indicator
Plus Sport Indicator
Canada U.S.
Canada U.S.
15 CR-Z-31SZT6400.book 16 ページ ２０１４年８月１日　金曜日　午後１時５９分

17
Quick Reference Guide
Controls (P97)
Clock (P98)
aPress the FM/AM button until you hear
a beep. The displayed time begins
flashing.
bPress ( 1 (Hour) or (2 (Minute) to set
the time. Press ( 3 (Reset) to set the
time to the nearest hour.
cPress the FM /AM button again to set
the time.
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
Models without navigation system
Models with navigation system
Turn Signals (P112)
Lights (P112)
Turn Signal Control Lever Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P115)
Wiper/Washer Control Lever Adjustment Ring: Long Delay
: Short Delay
MIST
OFF
INT : Low speed with intermittent
LO : Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
*
Not available on all models
15 CR-Z-31SZT6400.book 17 ページ ２０１４年８月１日　金曜日　午後１時５９分

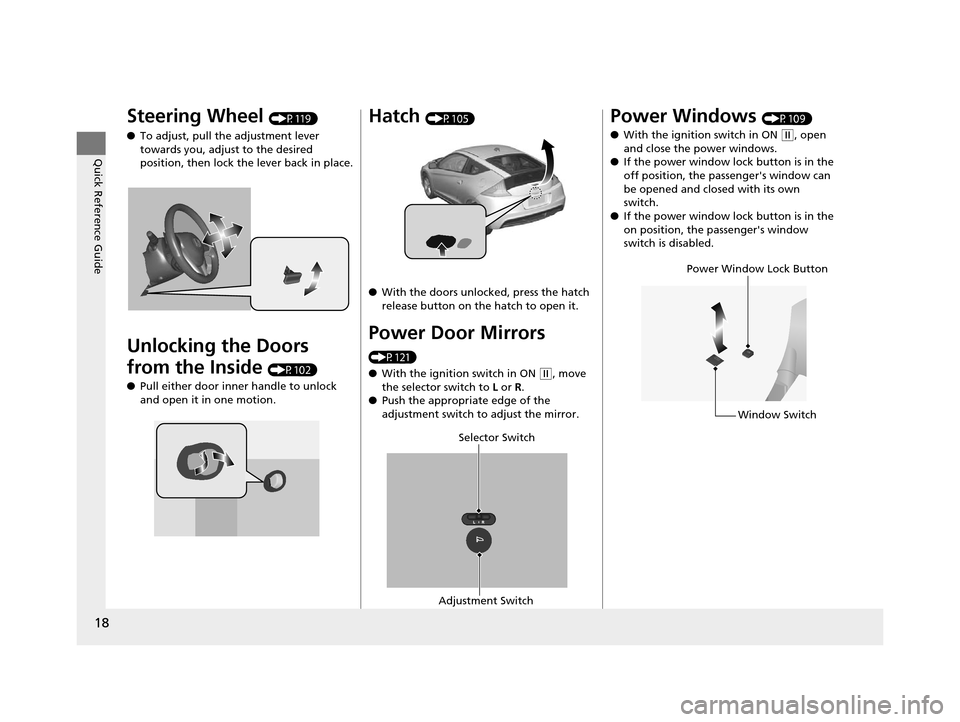

18
Quick Reference Guide
Steering Wheel (P119)
● To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Unlocking the Doors
from the Inside
(P102)
● Pull either door inner handle to unlock
and open it in one motion.
Hatch (P105)
● With the doors unlocked, press the hatch
release button on the hatch to open it.
Power Door Mirrors
(P121)
●With the ignition switch in ON
(w, move
the selector switch to L or R .
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
Selector Switch
Adjustment Switch
Power Windows (P109)
● With the ignition switch in ON
(w, open
and close the power windows.
● If the power window lock button is in the
off position, the passenger's window can
be opened and closed with its own
switch.
● If the power window lock button is in the
on position, the pa ssenger's window
switch is disabled.
Power Window Lock Button
Window Switch
15 CR-Z-31SZT6400.book 18 ページ ２０１４年８月１日　金曜日　午後１時５９分

21
Quick Reference Guide
Driving (P173)
Manual Transmission (P190)
Continuously Variable
Transmission
(P185)
● Shift to
(P and depress the brake pedal when
starting the engine.
● Shifting
7-Speed Manual Shift Mode (P187)
● Allows you to manually shift the transmission up or down without
removing your hands from the steering wheel.
●Pulling a paddle shifter changes the mode
from continuously vari able transmission
to 7-speed manual shift mode. The M
indicator and the selected speed number
are displayed in the shift indicator.
● Pulling a paddle shifter temporarily
changes the mode from continuously
variable transmission to 7-speed manual
shift mode. The selected speed number is
displayed in the shift indicator.
L (Low) Mode (P189)
● Use Low to get more power when
climbing steep hills.
● Pull the
(+ and (- paddle shifters at the
same time until the shift indicator display
changes to L.
SPORT Mode
NORMAL Mode/ECON Mode
(M Indicator
Shift Indicator
Shift Down
( -
Paddle Shifter Shift Up (
+
Paddle Shifter
Ignition Switch
Release
ButtonShift Lever
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing.
Neutral
Transmission is not locked.
Drive
Normal driving.
7-speed manual shift mode
can be used.
L mode is available.
Depress the brake pedal
and press the release
button to move out of
(P.
Move the shift lever
without pressing the
release button.
Press the release button to
move the shift lever.
15 CR-Z-31SZT6400.book 21 ページ ２０１４年８月１日　金曜日　午後１時５９分
