uuIndicator, Comin g On/BlinkinguIf the Brake System Indicator (Red) Comes On
Handling the Unexpected

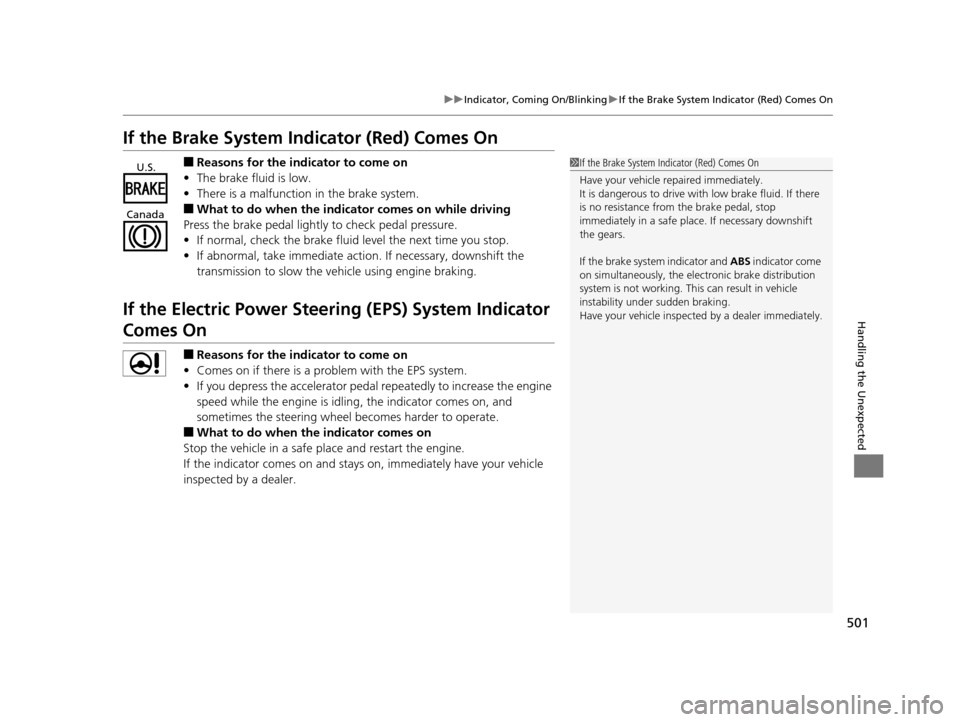

If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indica tor comes on while driving
Press the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate acti on. If necessary, downshift the
transmission to slow the vehicle using engine braking.
If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
• Comes on if there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when th e indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
1 If the Brake System Indicator (Red) Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.U.S.
Canada
15 CR-V-31T0A6300.book 501 ページ ２０１５年２月２日　月曜日　午前１０時３５分

503Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
(0*1 and
check to see if any appl icable fuse is blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
*1: Models with the smart entry system
have an ENGINE START/STOP button
instead of an ignition switch.
■Engine Compartment Fuse Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
EPS70 A
Power Tailgate(40 A)
ABS/VSA FSR20 A
ABS/VSA Motor40 A
E-DPS*(30 A)
Main Fuse120 A
2
Main50 A
Fuse Box Main 60 A
Fuse Box Main 260 A
Headlight High Beam Main 30 A
ST Magnetic Switch(30 A)
Rear Defogger 30 A −−
Heater Motor 40 A
Front Wiper Main 30 A Sub Fan Motor 20 A
Main Fan Motor 20 A
3
DC/DC1(30 A)
DC/DC2(30 A)
IG MAIN(30 A)
IG MAIN2(30 A)
4− −
5−−
6− −
7−−
8 Sub Fan Rly CL 7.5 A
9VSA ECU7.5 A
10 Heated Door Mirror*(7.5 A)
11STRLD7.5 A
12 Injector 20 A
13Premium Amp*(20 A)
14 Horn 10 A
15Hazard10 A
16 Stop 10 A
17IG Coil15 A
18 IGP2 15 A
19Daytime Running Lights(10 A)
20 Passenger’s Power Seat
Reclining (20 A)
21Deicer(15 A)
22 DBW 15 A
23IGP15 A
24 Left Headlight Low Beam 10 A
25Right Headlight Low Beam10 A
26 SMALL 20 A
27MG Clutch7.5 A
28 Interior Lights 7.5 A
29Backup10 A
Circuit ProtectedAmps
* Not available on all models
15 CR-V-31T0A6300.book 503 ページ ２０１５年２月２日　月曜日　午前１０時３５分

505
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
*1: Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 503 to 504.
Use the charts to locate the fuse in question and
conform the specific amperage on the fuse label. 2 Fuse Locations P. 503
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller
15 CR-V-31T0A6300.book 505 ページ ２０１５年２月２日　月曜日　午前１０時３５分

Index
522
Index
Index
Numbers
4WD........................................................... 400
A
ABS (Anti-lock Brake System) ................... 407
Accessories and Modifications ................. 424
Accessory Power Sockets .......................... 189
Adaptive Cruise Control (ACC) ................. 375
Indicator .................................................... 82
Additives Coolant ................................................... 447
Engine Oil ................................................ 442
Washer .................................................... 451
Additives, Engine Oil ................................ 442
Adjusting
Armrest ................................................... 184
Front Seats .............................................. 175
Head Restraints........................................ 178
Mirrors .................................................... 173
Rear Seat Back ......................................... 183
Rear Seats................................................ 182
Steering Wheel ........................................ 172
Adjusting the Sound ................................. 237
Air Conditioning System (Climate Control System) .................................................... 200
Changing the Mode ................................ 200
Defrosting the Windshield and Windows ............................................... 201
Dust and Pollen Filter ............................... 477
Recirculation/Fresh Air Mode ................... 200 Sensors ................................................... 203
Synchronized Mode................................. 202
Using Automatic Climate Control ............ 200
Air Conditioning System (Heating and Cooling System) ...................................... 197
Cooling ................................................... 199
Defrosting the Windshield and Windows ............................................... 199
Dust and Pollen Filter............................... 477
Heating ................................................... 198
Air Pressure ....................................... 466, 511
Airbags ........................................................ 41
Advanced Airbags ..................................... 47
Airbag Care............................................... 53
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 44
Indicator.............................................. 51, 73
Passenger Airbag Off Indicator .................. 52
Sensors ..................................................... 41
Side Airbags .............................................. 48
Side Curtain Airbags.................................. 50
All-Wheel Drive (AWD) ............................ 400
AM/FM Radio ............................................ 215
Anti-lock Brake System (ABS) .................. 407
Indicator.................................................... 73
Armrest ..................................................... 184
Audio Antenna ......................................... 209
Audio System ............................................ 206
Adjusting the Sound................................ 214
Auxiliary Input Jack.................................. 207
Error Messages ........................................ 262 General Information................................ 267
Internet Radio ......................................... 224
iPhone .................................................... 270
iPod ........................................................ 221
MP3/WMA/AAC ..................... 218, 226, 253
Pandora
®................................................ 224
Reactivating ............................................ 210
Recommended CDs ................................ 268
Recommended Devices ........................... 270
Security Code ......................................... 210
Theft Protection ...................................... 210
USB Adapter Cable ................................. 207
USB Flash Drives...................................... 270
USB Port(s) .............................................. 208
Audio/Information Screen ....................... 233
Authorized Manuals ................................ 519
Auto Door Locking/Unlocking ................ 139
Customize .............................................. 122
Automatic Intermittent Wipers .............. 165
Automatic Lighting .................................. 160
Auxiliary Input Jack ................................. 207
Average Fuel Economy ...................... 94, 112
Average Speed ......................................... 112
AWD (All-Wheel Drive) ............................ 400
B
Battery...................................................... 474
Charging System Indicator ................ 71, 499
Jump Starting ......................................... 494
Maintenance (Checking the Battery) ....... 474
15 CR-V-31T0A6300.book 522 ページ ２０１５年２月２日　月曜日　午前１０時３５分

524
Index
D
Daytime Running Lights........................... 163
Dead Battery ............................................. 494
Defrosting the Windshield and Windows .......................................... 199, 201
Detachable Anchor ..................................... 38
Devices that Emit Radio Waves ................ 513
Dimming
Headlights ............................................... 159
Rearview Mirror ....................................... 173
Dipstick (Engine Oil) ................................. 443
Directional Signals (Turn Signals) ............ 158
Display Button .......................................... 111
Display Setup ............................................ 238
Door Mirrors ............................................. 174
Doors ......................................................... 130
Auto Door Locking .................................. 139
Auto Door Unlocking ............................... 139
Door Open Indicator .................................. 32
Keys ........................................................ 130
Locking/Unlocking the Doors from the Inside ..................................................... 137
Locking/Unlocking the Doors from the Outside .................................................. 133
Lockout Prevention System ...................... 136
DOT Tire Quality Grading ........................ 468
Driver’s Seat Lumbar Support .................. 175
Driving ....................................................... 347
Adaptive Cruise Control (ACC) ................ 375
Braking .................................................... 405
Continuously Variable Transmission ......... 367 Cruise Control ......................................... 371
Off-Highway Driving Guidelines............... 358
Shifting Gear ........................................... 368
Starting the Engine.......................... 360, 362
Driving Position Memory System ............ 170
Dust and Pollen Filter ............................... 477
E
Eco Assist System.......................................... 9
ECON Button ............................................ 370
Elapsed Time ............................................. 112
Electric Power Steering (EPS) System
Indicator............................................ 76, 501
Electronic Stability Control (ESC) ............. 396
Emergency ................................................ 506
Emissions Testing (Readiness Codes) ....... 515
Engine ....................................................... 512
Coolant ................................................... 447
Jump Starting .......................................... 494
Oil ........................................................... 442
Starting ........................................... 360, 362
Switch Buzzer.................................. 153, 156
Engine Coolant ......................................... 447
Adding to the Radiator ............................ 448
Adding to the Reserve Tank..................... 447
Overheating ............................................ 497
Temperature Gauge .................................. 92
Engine Oil ................................................. 442
Adding .................................................... 444
Checking................................................. 443 Displaying Oil Life ................................... 429
Low Oil Pressure Indicator ................. 70, 499
Recommended Engine Oil ....................... 442
ENGINE START/STOP Button .................... 154
EPS (Electric Power Steering)
System ............................................... 76, 501
Exhaust Gas Hazard (Carbon Monoxide) ................................................ 67
Exterior Care (Cleaning) .......................... 480
Exterior Mirrors ........................................ 174
F
Features.................................................... 205
Filters Dust and Pollen....................................... 477
Oil .......................................................... 445
Flat Tire ..................................................... 485
Floor Mats ................................................ 479
Fluids Brake ...................................................... 450
Continuously Variable Transmission ........ 449
Engine Coolant ....................................... 447
Windshield Washer ................................. 451
Fog Light Indicator .................................... 77
Folding Down the Rear Seats .................. 182
Foot Brake ................................................ 406
Front Airbags (SRS) .................................... 44
Front Seats ................................................ 175
Adjusting ................................................ 175
Front Sensor Camera ............................... 374
15 CR-V-31T0A6300.book 524 ページ ２０１５年２月２日　月曜日　午前１０時３５分

527
Index
Load Limits............................................... 351
Locking/Unlocking ................................... 130
Auto Door Locking/Unlocking ................. 139
Childproof Door Locks ............................ 138
From Inside ............................................. 137
From Outside .......................................... 133
Keys........................................................ 130
Using a Key............................................. 136
Lockout Prevention System ..................... 136
Low Battery Charge ................................. 499
Low Fuel Indicator ..................................... 72
Low Oil Pressure Indicator ................. 70, 499
Low Smart Entry Remote Signal Strength .................................................. 132
Lower Anchors ..................................... 59, 63
Luggage (Maximum Load Limit) ............. 351
M
Maintenance............................................ 425
Battery .................................................... 474
Brake Fluid .............................................. 450
Cleaning ................................................. 478
Climate Control System .......................... 477
Coolant .................................................. 447
Heating and Cooling System ................... 477
Maintenance Minder
TM............................ 429
Oil .......................................................... 443
Precautions ............................................. 426
Radiator .................................................. 448
Remote Transmitter ................................ 475 Replacing Light Bulbs ............................... 452
Safety ...................................................... 427
Service Items ........................................... 434
Tires ........................................................ 465
Transmission Fluid ................................... 449
Under the Hood ...................................... 440
Malfunction Indicator Lamp .............. 71, 500
Map Lights ................................................ 186
Maximum Load Limit ............................... 351
Meters, Gauges ........................................... 92
Mirrors ....................................................... 173
Adjusting ................................................. 173
Door ........................................................ 174
Exterior .................................................... 174
Interior Rearview ..................................... 173
Modifications (and Accessories) .............. 424
Moonroof .................................................. 152
MP3 ........................................... 218, 226, 253
Multi-Information Display ......................... 96
Multi-View Rear Camera .......................... 417
N
Numbers (Identification).......................... 512
O
Odometer.............................................. 93, 97
Off-Highway Driving Guidelines ............. 358
Oil (Engine) ............................................... 442
Adding .................................................... 444 Checking................................................. 443
Displaying Oil Life .................................... 429
Low Oil Pressure Indicator ................. 70, 499
Recommended Engine Oil ....................... 442
Viscosity .................................................. 442
Opening/Closing Hood....................................................... 441
Moonroof ............................................... 152
Power Windows ...................................... 150
Tailgate ................................................... 140
Outside Temperature ........................... 95, 98
Adjusting ............................................ 95, 98
Overheating .............................................. 497
P
Pandora®........................................... 224, 252
Panic Mode ............................................... 149
Parking ...................................................... 416
Parking Brake ........................................... 405
Parking Brake and Brake System
Indicator ............................................ 70, 501
Passenger Airbag Off Indicator ................. 52
Passing Indicators ..................................... 159
Playing Bluetooth ® Audio ........................ 256
Power Tailgate ......................................... 143
Power Windows ....................................... 150
Precautions While Driving ....................... 366
Driving Guidelines for Your Utility Vehicle .................................................. 366
Rain ........................................................ 366
15 CR-V-31T0A6300.book 527 ページ ２０１５年２月２日　月曜日　午前１０時３５分
