2015 HONDA CIVIC HYBRID tire type

314

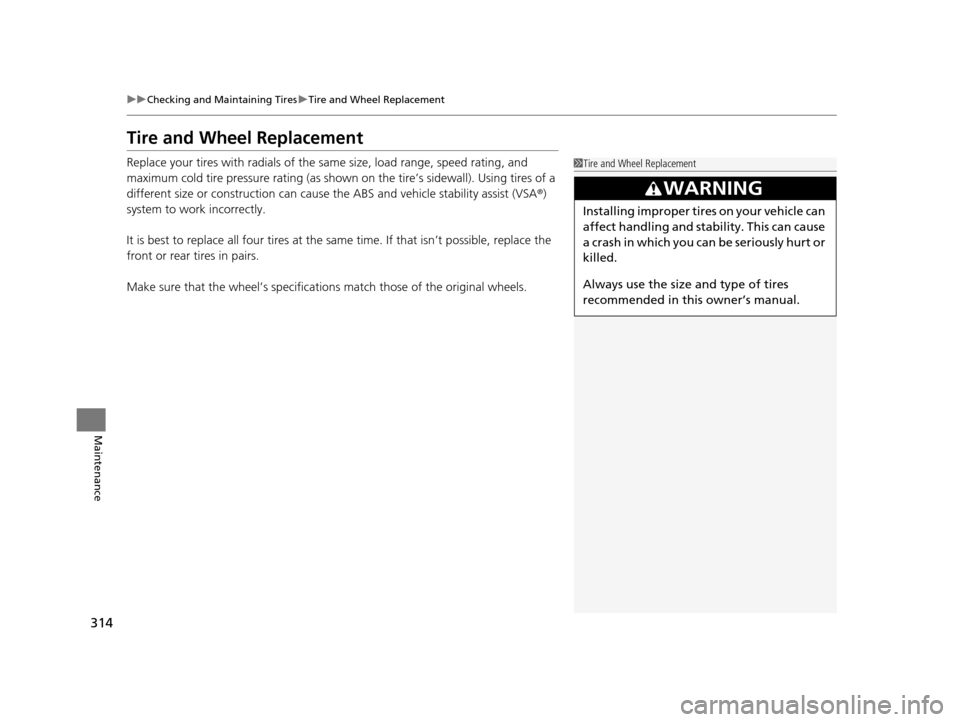

uuChecking and Maintaining Tires uTire and Wheel Replacement
Maintenance
Tire and Wheel Replacement
Replace your tires with radials of the sa me size, load range, speed rating, and
maximum cold tire pressure ra ting (as shown on the tire’s sidewall). Using tires of a
different size or construction can cause the ABS and vehicle stability assist (VSA®)
system to work incorrectly.
It is best to replace all four tires at the same time. If that isn’t possible, replace the
front or rear tires in pairs.
Make sure that the wheel’s specifications match thos e of the original wheels.1Tire and Wheel Replacement
3WARNING
Installing improper tires on your vehicle can
affect handling and stability. This can cause
a crash in which you can be seriously hurt or
killed.
Always use the size and type of tires
recommended in this owner’s manual.
15 CIVIC IMA-31TR26300.book 314 ページ ２０１４年９月９日　火曜日　午後１２時２０分

316
uuChecking and Maintaining Tires uWinter Tires
Maintenance
Winter Tires
If driving on snowy or frozen roads, mount all season marked M+S tires, snow tires,
or tire chains; reduce speed; and maintain su fficient distance between vehicles when
driving.
Be particularly careful when operating the steering wheel or brakes to prevent
skidding.
Use tire chains, snow tires, or all season tires when necessary or according to the
law.
When mounting, refer to the following points.
For winter tires:
• Select the size and load ranges that are the same as the original tires.
• Mount the tires to all four wheels.
For tire chains:
• Install them on the front tires only.
• Because your vehicle has limited tire clearance, we strongly recommend using the
chains listed below:
• Follow the chain manufacturer’s instruction when installing. Mount them as
tightly as you can.
• Check that the chains do not to uch the brake lines or suspension.
• Drive slowly.
Cable-type: SCC Radial Chain SC1030
1Winter Tires
NOTICE
Traction devices that are th e wrong size or improperly
installed can damage your vehicle’s brake lines,
suspension, body, and wheels. Stop driving if they are
hitting any part of the vehicle.
When tire chains are mounted, follow the chain
manufacturer’s instructi ons regarding vehicle
operational limits.
3WARNING
Using the wrong chains, or not properly
installing chains, can damage the brake
lines and cause a crash in which you can be
seriously injured or killed.
Follow all instruction s in this owner’s
manual regarding the selection and use of
tire chains.
15 CIVIC IMA-31TR26300.book 316 ページ ２０１４年９月９日　火曜日　午後１２時２０分

325
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 326
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 327
Changing a Flat Tire ......................... 335
Engine Does Not Start Checking the Engine ........................ 341
If the Smart Entry Remote Battery is Weak .......................................... 342
Emergency Engine Stop ................... 343
Jump Starting .................................... 344
Shift Lever Does Not Move .............. 346Overheating
How to Handle Overheating............. 347
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On.................................................. 349
If the 12 Volt Battery Charging System
Indicator Comes On ....................... 349
If the Malfunction Indicator Lamp Comes On or Blinks ..................................... 350
If the Brake System Indicator (Red) Comes On...................................................... 351
If the Electric Power Steering (EPS) System Indicator Comes On .............................351
If the IMA Indicator Comes On ........ 352
If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 352
Fuses Fuse Locations ................................. 353
Inspecting and Changing Fuses ........ 355
Emergency Towing ........................... 356
15 CIVIC IMA-31TR26300.book 325 ページ ２０１４年９月９日　火曜日　午後１２時２０分

335
uuIf a Tire Goes Flat uChanging a Flat Tire
Continued
Handling the Unexpected
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park the vehicle on firm, level, and non- slippery surface, and apply the parking
brake.
2. Move the shift lever to
(P.
3. Set the parking brake.
4. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
Models with optional compact spare tire
1 Changing a Flat Tire
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
15 CIVIC IMA-31TR26300.book 335 ページ ２０１４年９月９日　火曜日　午後１２時２０分

359
uuSpecifications u
Information
■Brake Fluid
■ Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda CVTF (continuously variable
transmission fluid)
Capacity Change 2.95 US qt (2.8 ℓ)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20·API Premium-grade 0W-20 detergent oil
Capacity Change 3.6 US qt (3.4 ℓ)
Change
including
filter
3.8 US qt (3.6 ℓ)
SpecifiedHonda Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.37 US gal (5.18 ℓ)
(change including the remaining
0.125 US gal (0.475 ℓ) in the reserve tank)
■ Tire
*1: Optional
RegularSizeP195/65R15 89SPressure
psi (kPa [kgf/cm2])32 (220 [2.2])
Compact
Spare
*1
Size T135/80D15 99M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular15 x 6JCompact Spare*115 x 4T
15 CIVIC IMA-31TR26300.book 359 ページ ２０１４年９月９日　火曜日　午後１２時２０分

373
Index
Shift Lever Position.................................... 69
Smart Entry System ................................... 79
Supplemental Restraint System ........... 49, 71
System Message ....................................... 74
Transmission ............................................. 70
Trunk Open .............................................. 72
Turn Signal ............................................... 74
Vehicle Stability Assist (VSA®)
System ............................................ 71, 259
VSA ® OFF.......................................... 72, 260
Information .............................................. 357
Instant Fuel Economy ................................ 89
Instant Fuel Economy Gauge .................... 84
Instrument Panel ........................................ 67
Brightness Control .................................. 129
intelligent Multi-Information Display (i-MID) ....................................................... 85
Interior Lights ........................................... 139
Interior Rearview Mirror ......................... 132
J
Jack (Wheel Nut Wrench) ........................ 338
Jump Starting ........................................... 344
K
Key Number Tag ...................................... 104
Keyless Lockout Prevention ..................... 109
Keys Lockout Prevention ................................. 109 Number Tag ............................................ 104
Rear Door Won’t Open ............................ 112
Remote Transmitter ................................. 106
Types and Functions ................................ 103
Won’t Turn ................................................ 24
Kickdown .................................................. 242
L
Lane Departure Warning (LDW) .............. 256
LaneWatchTM............................................. 261
Language (HFL) ......................................... 206
LATCH (Child Seats) .................................... 57
Lights ................................................. 124, 300
Automatic ............................................... 125
Bulb Replacement .................................... 300
Daytime Running Lights ........................... 127
High Beam Indicator .................................. 75
Interior .................................................... 139
Light Switches ......................................... 124
Lights On Indicator .................................... 75
Turn Signals ............................................. 124
Load Limits ................................................ 235
Locking and Unlocking ............................ 103
Auto Door Locking/Unlocking .................. 113
Childproof Door Locks ............................. 112
From Inside .............................................. 110
From Outside ........................................... 106
Keys ........................................................ 103
Using a Key ............................................. 109
Lockout Prevention System ...................... 109Low Battery Charge (12 volt)
................... 349
Low Fuel Indicator ...................................... 70
Low Oil Pressure Indicator ................. 72, 349
Low Smart Entry Remote Signal Strength .................................................. 105
Low Temperature Indicator ....................... 76
Lower Anchor ............................................. 57
Lubricant Specifications Chart ................. 358
Luggage (Maximum Load Limit) ............. 235M
Maintenance............................................. 279
Battery .................................................... 317
Brake Fluid .............................................. 298
Cleaning ................................................. 320
Climate Control System ........................... 319
Coolant ................................................... 295
Maintenance Minder
TM............................ 283
Oil ........................................................... 290
Precautions ............................................. 280
Radiator .................................................. 296
Remote Transmitter ................................. 318
Replacing Light Bulbs .............................. 300
Safety...................................................... 281
Service Items ........................................... 286
Tires ........................................................ 308
Transmission Fluid ................................... 297
Under the Hood ...................................... 288
Maintenance Minder
TM............................ 283
Malfunction Indicator Lamp .............. 69, 350
15 CIVIC IMA-31TR26300.book 373 ページ ２０１４年９月９日　火曜日　午後１２時２０分
