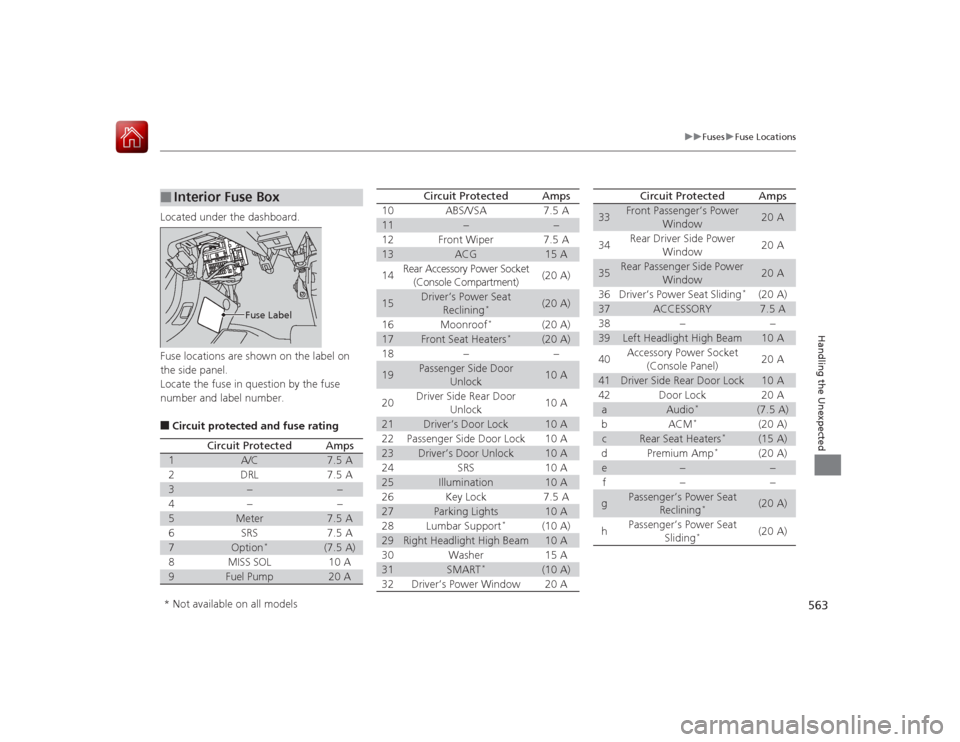

uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.■Circuit protec ted and fuse rating■
Interior Fuse Box
Fuse Label
Circuit Protected
Amps
1
A/C
7.5 A
2
DRL
7.5 A
3
−
−
4
−
−
5
Meter
7.5 A
6
SRS
7.5 A
7
Option
*
(7.5 A)
8
MISS SOL
10 A
9
Fuel Pump
20 A
10
ABS/VSA
7.5 A
11
−
−
12
Front Wiper
7.5 A
13
ACG
15 A
14
Rear Accessory Power Socket
(Console Compartment)
(20 A)
15
Driver’s Power Seat Reclining
*
(20 A)
16
Moonroof
*
(20 A)
17
Front Seat Heaters
*
(20 A)
18
−
−
19
Passenger Side Door Unlock
10 A
20
Driver Side Rear Door
Unlock
10 A
21
Driver’s Door Lock
10 A
22
Passenger Side Door Lock
10 A
23
Driver’s Door Unlock
10 A
24
SRS
10 A
25
Illumination
10 A
26
Key Lock
7.5 A
27
Parking Lights
10 A
28
Lumbar Support
*
(10 A)
29
Right Headlight High Beam
10 A
30
Washer
15 A
31
SMART
*
(10 A)
32
Driver’s Power Window
20 A
Circuit Protected
Amps
33
Front Passenger’s Power Window
20 A
34
Rear Driver Side Power Window
20 A
35
Rear Passenger Side Power Window
20 A
36
Driver’s Power Seat Sliding
*
(20 A)
37
ACCESSORY
7.5 A
38
−
−
39
Left Headlight High Beam
10 A
40
Accessory Power Socket
(Console Panel)
20 A
41
Driver Side Rear Door Lock
10 A
42
Door Lock
20 A
a
Audio
*
(7.5 A)
b
ACM
*
(20 A)
c
Rear Seat Heaters
*
(15 A)
d
Premium Amp
*
(20 A)
e
−
−
f
−
−
g
Passenger’s Power Seat Reclining
*
(20 A)
h
Passenger’s Power Seat Sliding
*
(20 A)
Circuit Protected
Amps
* Not available on all models
