534Handling the Unexpected
Indicator, Coming On/BlinkingIf the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.■What to do as soon as the indicator comes on
1. Immediately park the vehicle in a safe place.
2. If necessary, turn the hazard warning lights on.■What to do after parking the vehicle
1. Turn the power system off and let the engine sit for about three
minute.
2. Open the hood and check the oil level.
u Add oil as necessary.
3. Turn the power system on and check the low oil pressure indicator.
u The indicator goes off: Start driving again.
u The indicator does not go off within 10 seconds: Turn the power
off and contact a dealer for repairs immediately.
If the 12-Volt Battery Charging System Indicator Comes On
■Reasons for the indicator to come on
Comes on when the 12-vo lt battery is not being charged.■What to do when the indicator comes on
Turn off the climate control system, rear defogger, and other electrical
systems, and immediately contact a dealer for repairs.
1 If the Low Oil Pressure Indicator Comes OnNOTICERunning the engine with low oil pressure can cause
serious mechanical damage almost immediately.

538Handling the Unexpected

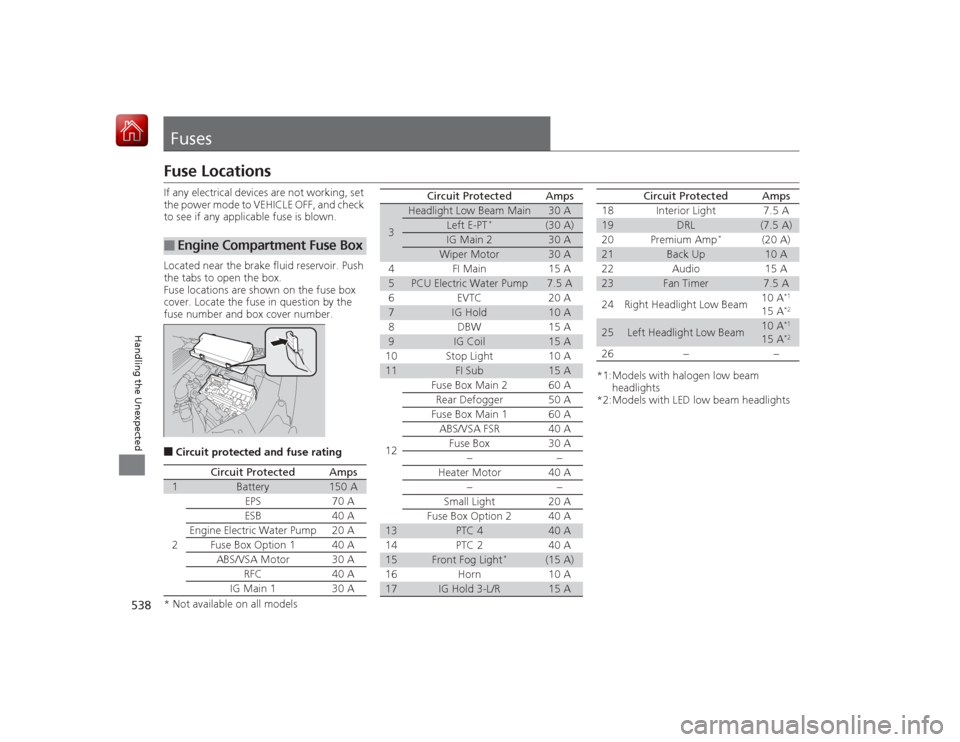

FusesFuse LocationsIf any electrical devices are not working, set
the power mode to VEHICLE OFF, and check
to see if any applicable fuse is blown.
Located near the brake fluid reservoir. Push
the tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.■Circuit protected and fuse rating■
Engine Compartment Fuse Box
Circuit Protected
Amps
1
Battery
150 A
2
EPS
70 A
ESB 40 A
Engine Electric Water Pump
20 A
Fuse Box Option 1 40 A
ABS/VSA Motor
30 A
RFC 40 A
IG Main 1 30 A
3
Headlight Low Beam Main
30 A
Left E-PT
*
(30 A)
IG Main 2
30 A
Wiper Motor
30 A
4 FI Main 15 A
5
PCU Electric Water Pump
7.5 A
6EVTC 20A
7
IG Hold
10 A
8 DBW 15 A
9
IG Coil
15 A
10 Stop Light 10 A
11
FI Sub
15 A
12 Fuse Box Main 2 60 A
Rear Defogger 50 A
Fuse Box Main 1 60 A ABS/VSA FSR 40 A Fuse Box 30 A −−
Heater Motor 40 A −−
Small Light 20 A
Fuse Box Option 2 40 A
13
PTC 4
40 A
14 PTC 2 40 A
15
Front Fog Light
*
(15 A)
16 Horn 10 A
17
IG Hold 3-L/R
15 A
Circuit Protected
Amps
*1:Models with halogen low beam headlights
*2:Models with LED low beam headlights 18 Interior Light 7.5 A19
DRL
(7.5 A)
20 Premium Amp
*
(20 A)
21
Back Up
10 A
22 Audio 15 A
23
Fan Timer
7.5 A
24 Right Headlight Low Beam 10 A
*1
15 A
*2
25
Left Headlight Low Beam
10 A
*1
15 A
*2
26
− −
Circuit Protected
Amps
* Not available on all models

540
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF
(LOCK). Turn headlights and all accessories
off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
1Inspecting and Changing FusesNOTICEReplacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 538 to 539.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
