2015 HONDA ACCORD COUPE engine

Contents
Child Safety P. 52Exhaust Gas Hazard P. 64Safety Labels P. 65Opening and Closing the Trunk P. 99 Security System P. 103 Opening and Closing the Windows P. 106
Operating the Switches Around the Steering Wheel P. 110 Adjusting the Mirrors P. 125
Interior Lights/Interior Convenience Items P. 135 Climate Control System P. 144Audio Error Messages P. 264General Information on the Audio System P. 270
Bluetooth® HandsFreeLink ® P. 314, 351 Compass
* P. 389
When Driving P. 401 Braking P. 440Parking Your Vehicle P. 444
Accessories and Modifications P. 450Maintenance Under the Hood P. 459 Replacing Light Bulbs P. 475
Checking and Maintaining Tires P. 485 Battery P. 494 Remote Transmitter Care P. 495
Cleaning P. 498Engine Does Not Start P. 511 Jump Starting P. 514Shift Lever Does Not Move P. 517
Fuses P. 524 Emergency Towing P. 527Devices that Emit Radio Waves P. 535 Reporting Safety Defects P. 536
Authorized Manuals P. 541 Customer Service Information P. 542
Quick Reference Guide
P. 4
Safe Driving
P. 27
Instrument Panel
P. 67
Controls
P. 85
Features
P. 149
Driving
P. 391
Maintenance
P. 451
Handling the Unexpected
P. 503
Information
P. 529
Index
P. 546

4Quick Reference Guide
Quick Reference GuideVisual Index*1: Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
❙System Indicators
(P 68)
❙Gauges
(P 81)
❙Information Display
(P 82)
❙Navigation System
*
() See Navigation System Manual❙Audio System
(P 156, 178, 211)
❙ENGINE START/STOP Button
*1 (P 111)
❙Rear Window Defogger
(P 121)
❙Seat Heater Switches
* (P 143)
❙Ignition Switch
*1 (P 110)
❙ECON Button
(P 420)
❙Heated Mirror Button
* (P 121)
❙Climate Control System
(P 144)
❙
(Vehicle Stability Assist (VSA ®) System OFF) Button
(P 433)
❙Lane Departure Warning (LDW) Button
* (P 430)
❙Tire Pressure Monitoring System (TPMS) Button
* (P 436)
❙Hazard Warning Button❙Audio with Touch Screen
* (P 179, 212)
❙Audio/Information Screen (P 157, 182, 214)

12Quick Reference Guide
Controls
(P 85)
Clock
(P 86)
a
Enter the Clock Adjustment screen.
2 Adjusting the Clock (P 86)
b
Rotate to change hour, then press
.
c
Rotate to change minute, then
press .
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
Models without navigation systemModels with navigation system
ENGINE START/STOP
Button
* (P 111)
Press the button to change the vehicle’s
power mode.
Turn Signals
(P 115)
Turn Signal Control Lever
Right
Left
Lights
(P 115)
Wipers and Washers
(P 119)
Light Control Switches
Low Beam High Beam
FlashingWiper/Washer Control Lever Adjustment Ring: Long Delay: Short Delay
MIST
OFF
INT: Low speed with intermittent
LO : Low speed wipe
HI: High speed wipe Pull toward
you to spray
washer fluid.

13Quick Reference Guide
Steering Wheel
(P 124)
● To adjust, pull th e adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Unlocking the Doors
from the Inside (P 96)
● Pull either door inner handle to unlock
and open it at the same time.
● Unlocking and opening the driver’s door
from the inner handle unlocks the
passenger’s door.
Trunk
(P 99)
● To unlock and open the trunk:
•Pull the trunk release.
• Press the trunk release button on the remote
transmitter or the smart entry remote.
• Press the trunk release button
* on the
trunk lid.
Power Door Mirrors (P 126)
● With the ignition switch in ON
(w*1, move
the selector switch to L or R .
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
Trunk Release
Selector Switch
Adjustment Switch
Power Windows
(P 106)
● With the ignition switch in ON
(w*1, open
and close the power windows.
● If the power window lock button is in the
off position, the passenger's window can
be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator on), the passenger's
window switch is disabled.
*1: Models with the smart entry system have
an ENGINE START/STOP button instead of
an ignition switch.
Power Window Lock Button
Window
Switch Indicator
*
Not available on all models

18Quick Reference Guide
Driving
(P 391)
M Indicator
Shift Indicator
Manual Transmission
* (P 417)
Continuously Variable Transmission
(CVT)
* (P 409)
● Shift to (P and depress the brake pedal when starting the engine.
● Shifting
ParkTurn off or start the engine.
Transmission is locked.NeutralTransmission is not locked.
Drive (S)●Better acceleration.
● Increased engine braking.
● Going up or down hills.
● 7-speed manual shift
mode can be used.
Depress the brake pedal
and press the release button
to move out of
(P.
Press the release button to
move the shift lever.
Move the shift lever without
pressing the release button.
ReverseUsed when reversing.Drive● Normal driving.
● 7-speed mode can be used
temporarily. Shift Down
(
-
Paddle Shifter Shift Up
(
+
Paddle Shifter
7-Speed Manual Shift Mode (P 411)
● Allows you to manually shift
the transmission up or down
without removing your hands
from the steering wheel.
When the shift lever is in
(S
●Pulling a paddle shifter changes
the mode from continuously
variable transmission (CVT) to
7-speed manual shift mode.
● The M indicator and the
selected speed number are
displayed in the shift indicator.When the shift lever is in
(D
● Pulling a paddle shifter
temporarily chang es the mode
from continuously variable
transmission (CVT) to 7-speed
manual shift mode. The
selected speed number is
displayed in the shift indicator.
Shift Lever
Release
Button

19Quick Reference Guide

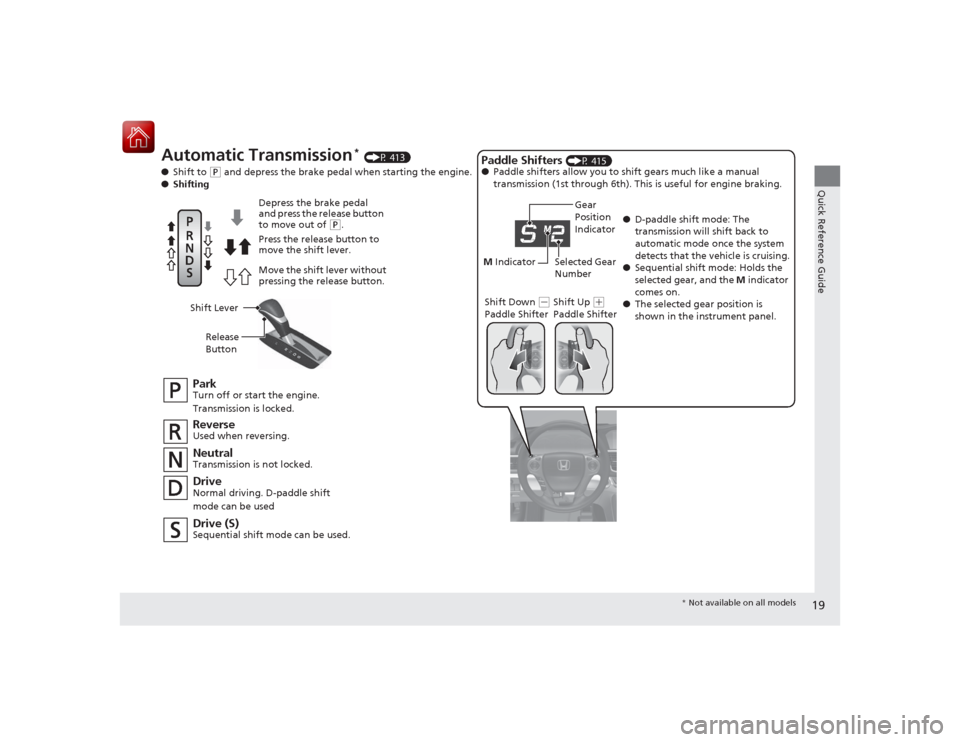

Automatic Transmission
* (P 413)
● Shift to
(P and depress the brake pedal when starting the engine.
● Shifting
ParkTurn off or start the engine.
Transmission is locked.NeutralTransmission is not locked.Drive (S)Sequential shift mode can be used.
Depress the brake pedal
and press the release button
to move out of
(P.
Press the release button to
move the shift lever.
Move the shift lever without
pressing the release button.
ReverseUsed when reversing.DriveNormal driving. D-paddle shift
mode can be usedShift Lever
Release
Button
M Indicator Gear
Position
IndicatorShift Down
(
-
Paddle Shifter Shift Up
(
+
Paddle Shifter
Paddle Shifters
(P 415)
● Paddle shifters allow you to shift gears much like a manual
transmission (1st through 6th). This is useful for engine braking.
●D-paddle shift mode: The
transmission will shift back to
automatic mode once the system
detects that the vehicle is cruising.
● Sequential shift mode: Holds the
selected gear, and the M indicator
comes on.
● The selected gear position is
shown in the instrument panel.Selected Gear
Number
* Not available on all models

20Quick Reference Guide
VSA® OFF Button
(P 433)
● The vehicle stability assist (VSA ®) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To turn VSA ® on or off, press and hold
the button until you hear a beep.
Cruise Control
(P 421)
● Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
● To use cruise control, press the CRUISE
button, then press the –/SET button once
you have achieved the desired speed
(above 25 mph or 40 km/h).
Tire Pressure Monitoring
System (TPMS)
(P 436)
● Detects a change in tire conditions and
overall dimensions due to decrease in tire
pressures.
● The TPMS is turned on automatically
every time you start the engine.
● A calibration proc edure must be
performed when certain conditions arise.
Refueling
(P 447)
Fuel recommendation: Unleaded gasoline with a pump octane number 87 or
higher required
Fuel tank capacity: 17.2 US gal (65 L)a
Push the fuel fill door
release handle.
b
Turn the fuel fill cap
slowly to remove the
cap.
c
Place the cap in the
holder on the fuel fill
door.
d
After refueling, screw
the cap back on until it
clicks at least once.

21Quick Reference Guide
Maintenance
(P 451)
Under the Hood
(P 459)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid and clutch* fluid.
● Check the battery condition monthly.
a
Pull the hood release handle under the corner of the
dashboard.
b
Locate the hood latch lever, pull the lever up, and lift up
the hood.
c
When finished, close the hood and make sure it is firmly
locked in place.
Lights
(P 475)
● Inspect all lights regularly.
Wiper Blades
(P 483)
● Replace blades if they leave streaks
across the windshield.
Tires
(P 485)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
* Not available on all models
