uuReplacing Light Bulbs uBrake/Taillight, Back-Up Light, Rear Turn Signal Light and Rear Side Marker Light Bulbs
Maintenance

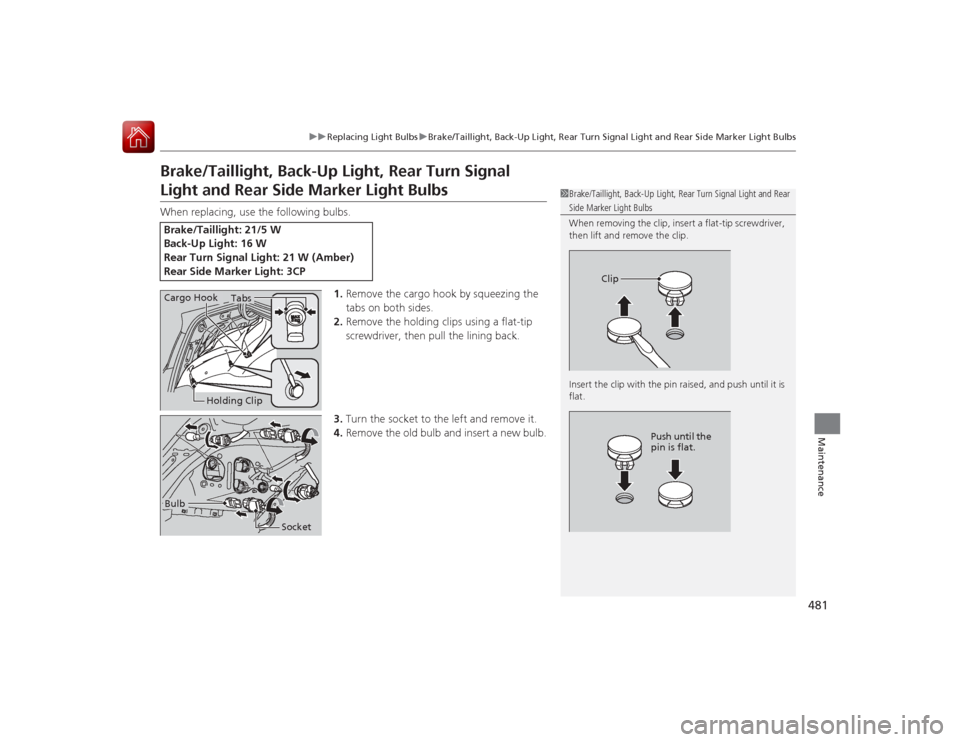

Brake/Taillight, Back-Up Light, Rear Turn Signal Light and Rear Side Marker Light BulbsWhen replacing, use the following bulbs.
1.Remove the cargo hook by squeezing the
tabs on both sides.
2. Remove the holding clips using a flat-tip
screwdriver, then pull the lining back.
3. Turn the socket to the left and remove it.
4. Remove the old bulb and insert a new bulb.Brake/Taillight: 21/5 W
Back-Up Light: 16 W
Rear Turn Signal Light: 21 W (Amber)
Rear Side Marker Light: 3CP
1Brake/Taillight, Back-Up Light, Rear Turn Signal Light and Rear Side Marker Light Bulbs
When removing the clip, inser t a flat-tip screwdriver,
then lift and remove the clip.
Insert the clip with the pin raised, and push until it is
flat.
Clip
Push until the
pin is flat.
Holding Clip
Tabs
Cargo HookBulb
Socket

530Information
Specifications■Vehicle Specifications*1: LX-S models
*2: Except LX-S models
*3: LX models
*4: Except LX modelsModel
Honda Accord Coupe
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating
U.S.: 4,189 lbs (1,900 kg)
*1
4,255 lbs (1,930 kg)
*2
Canada: 1,900 kg
*3
1,930 kg
*4
Gross Axle Weight
Rating (Front)
U.S.: 2,271 lbs (1,030 kg)
*1
2,315 lbs (1,050 kg)
*2
Canada: 1,040 kg
*3
1,055 kg
*4
Gross Axle Weight
Rating (Rear)
U.S.: 1,962 lbs (890 kg)
*1
2,006 lbs (910 kg)
*2
Canada: 890 kg
*3
910 kg
*4
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.0 – 16.8 oz (425 – 475 g)
Lubricant Type ND-OIL 84-cylinder models
■ Engine Specifications
■ Fuel
■ Washer FluidDisplacement
144 cu-in (2,356 cm
3)
Spark Plugs NGK
DILKAR7G11GS
DILKAR7H11GS
DENSO DXE22HQR-D11S
Fuel:
Type
Unleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 17.2 US gal (65 ℓ)
Tank Capacity
U.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.12 US qt (4.85 ℓ)
■ Light BulbsHeadlights (Low Beam)
55W (H11)
Headlights (High Beam) 60W (HB3)
Fog Lights
*
35W (H8)
Parking Lights 5W
Front Turn Signal/Side Marker Lights
28/8W (Amber)
Side Turn Signal Lights
(on Door Mirrors)
*
LED
Brake/Taillights
21/5W
Rear Side Marker Lights 3CP
Back-Up Lights
16W
Rear Turn Signal Lights 21W (Amber)
High-Mount Brake Light
LED
Rear License Plate Lights 5W
Trunk Light
5W
Interior Lights Map Lights 8W
Ceiling Light 8W
Vanity Mirror Lights 1.4W
* Not available on all models

532
uuSpecifications u
Information
■Vehicle Specifications*1: Manual transmission models
*2: Automatic transmission modelsModel
Honda Accord Coupe
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating
U.S.: 4,387 lbs (1,990 kg)
*1
4,475 lbs (2,030 kg)
*2
Canada: 1,990 kg
*1
2,030 kg
*2
Gross Axle Weight
Rating (Front)
U.S.: 2,403 lbs (1,090 kg)
*1
2,513 lbs (1,140 kg)
*2
Canada: 1,090 kg
*1
1,145 kg
*2
Gross Axle Weight
Rating (Rear)
U.S.: 2,006 lbs (910 kg)
Canada: 910 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.0 – 16.8 oz (425 – 475 g)
Lubricant Type ND-OIL 8
6-cylinder models
■ Engine Specifications
■ Fuel
■ Washer FluidDisplacement
212 cu-in (3,471 cm
3)
Spark Plugs NGK ILZKR7B11
DENSO SXU22HCR11
Fuel:
Type
Unleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 17.2 US gal (65 ℓ)
Tank Capacity
U.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.12 US qt (4.85 ℓ)
■ Light BulbsHeadlights (Low Beam)
55W (H11)
*
LED
*
Headlights (High Beam) 60W (HB3)Fog Lights
35W (H8)
Parking/Daytime Running Lights LED
Front Turn Signal/Side Marker Lights
28/8W (Amber)
Side Turn Signal Lights
(on Door Mirrors) LED
Brake/Taillights
21/5W
Rear Side Marker Lights 3CP
Back-Up Lights
16W
Rear Turn Signal Lights 21W (Amber)
High-Mount Brake Light
LED
Rear License Plate Lights 5W
Trunk Light
5W
Interior Lights
Map Lights
8W
Ceiling Light
8W
Vanity Mirror Lights
1.4W
Courtesy Lights
2CP
* Not available on all models

547Index
Brake System............................................ 440
Anti-lock Brake System (ABS) .................. 442
Brake Assist System................................. 443
Fluid ....................................................... 473
Foot Brake .............................................. 441
Indicator ........................................... 68, 522
Parking Brake.......................................... 440
Brake System Indicator (Amber) ............... 68
Brake System Indicator (Red) .................... 68
Brightness Control (Instrument Panel) ... 120
Bulb Replacement .................................... 475
Brake/Taillights, Back-Up Lights, Rear Turn Signal Lights and Rear Side Marker
Lights .................................................... 481
Fog Lights ............................................... 478
Front Turn Signal/Side Marker Lights ....... 479
Headlights .............................................. 475
High-Mount Brake Light.......................... 482
Parking Lights ......................................... 480
Parking/Daytime Running Lights .............. 480
Rear License Plate Lights ......................... 482
Side Turn Signal/Emergency Indicator Lights .................................................... 479
Bulb Specifications ........................... 530, 532CCarbon Monoxide Gas ............................... 64
Cargo Hooks ............................................. 141
Carrying Cargo ................................. 393, 395
CD Player .................................. 165, 196, 235 Center Pocket
........................................... 138
Certification Label .................................... 534
Changing Bulbs ......................................... 475
Charging System Indicator ................. 69, 520
Child Safety ................................................. 52
Emergency Trunk Opener ........................ 102
Child Seat .................................................... 52
Booster Seats ............................................. 63
Child Seat for Infants ................................. 54
Child Seat for Small Children ..................... 55
Installing a Child Seat with a Lap/Shoulder Seat
Belt.......................................................... 59
Larger Children .......................................... 62
Rear-facing Child Seat ............................... 54
Selecting a Child Seat ................................ 56
Using a Tether ........................................... 61
Cleaning the Exterior ............................... 500
Cleaning the Interior ................................ 498
Climate Control System ............................ 144
Changing the Mode ................................ 144
Defrosting the Windshield and Windows ............................................... 145
Dust and Pollen Filter ............................... 497
Recirculation and Fresh Air Mode ............ 144
Sensors .................................................... 147
Synchronized Mode ................................. 146
Using Automatic Climate Control ............ 144
Clock ............................................................ 86
Clutch Fluid ............................................... 473
Coat Hook ................................................. 141
Compact Spare Tire .................. 505, 531, 533 Compass
.................................................... 389
Console Compartment ............................. 137
Continuously Variable Transmission (CVT)
Creeping ................................................. 408
Fluid ........................................................ 471
Kickdown ................................................ 408
Operating the Shift Lever................... 18, 410
Shift Lever Does Not Move ...................... 517
Shifting ................................................... 409
Controls ....................................................... 85
Coolant (Engine) ...................................... 469
Adding to the Engine Coolant Reserve Tank ...................................................... 469
Adding to the Radiator ............................ 470
Overheating ............................................ 518
Creeping (Automatic Transmission/ CVT) ......................................................... 408
Cruise Control ........................................... 421
Indicator.................................................... 77
Cup Holders .............................................. 139
Customer Service Information ................. 542
Customized Features ................................ 274
DDaytime Running Lights .......................... 118
Dead Battery ............................................. 514
Defrosting the Windshield and Windows ................................................. 145
Devices that Emit Radio Waves ............... 535

548Index
DimmingHeadlights ............................................... 115
Rearview Mirror ....................................... 125
Dipstick (Engine Oil) ................................. 464
Directional Signals (Turn Signal) .............. 115
Display Button .......................... 157, 182, 214
Door Mirrors ............................................. 126
Doors ........................................................... 88
Auto Door Locking .................................... 98
Auto Door Unlocking ................................. 98
Door and Trunk Open Indicator ........... 31, 72
Keys .......................................................... 88
Locking/Unlocking the Doors from the Inside ................................................. 96
Locking/Unlocking the Doors from the Outside .............................................. 91
Lockout Prevention System ........................ 95
DOT Tire Quality Grading ........................ 488
Driving ....................................................... 391
Automatic Transmissi on/CVT ................... 408
Braking .................................................... 440
Cruise Control ......................................... 421
Shifting Gear ................................... 413, 417
Shifting Position....................................... 409
Starting the Engine .......................... 401, 403
Driving Position Memory System ............. 122
Dust and Pollen Filter ............................... 497
EEco Assist System.......................................... 9
ECON Button ............................................ 420
Electric Power Steering (EPS) System Indicator............................................ 73, 522
Electronic Stability Control (ESC) ............. 432
Emergency ................................................ 527
Emergency Engine Stop ........................... 513
Emergency Trunk Opener ........................ 102
Emissions Testing (Readiness Codes) ....... 537
Engine ....................................................... 534
Coolant ................................................... 469
Jump Starting .......................................... 514
Oil ........................................................... 463
Starting ........................................... 401, 403
Switch Buzzer.......................................... 110
Engine Coolant ......................................... 469
Adding to the Engine Coolant Reserve Tank ...................................................... 469
Adding to the Radiator ............................ 470
Overheating ............................................ 518
Temperature Gauge .................................. 81
Engine Oil ................................................. 463
Adding .................................................... 466
Checking................................................. 464
Displaying Oil Life .................................... 455
Low Oil Pressure Indicator ................. 69, 520
Recommended Engine Oil ....................... 463
ENGINE START/STOP Button .................... 111EPS (Electric Power Steering) System
........ 73
Exhaust Gas Hazard (Carbon
Monoxide) ................................................ 64
Expanded View Driver’s Mirror ............... 126
Exterior Care (Cleaning) .......................... 500
Exterior Mirrors ........................................ 126
FFeatures.................................................... 149
Filters Dust and Pollen....................................... 497
Oil .......................................................... 467
Flat Tire ..................................................... 505
Floor Mats ................................................ 499
Fluids
Automatic Transmission .......................... 472
Brake/Clutch ........................................... 473
Continuously Variable Transmission (CVT) .................................................... 471
Engine Coolant ....................................... 469
Manual Transmission .............................. 471
Windshield Washer ................................. 474
Fog Light Indicator .................................... 74
Folding Down the Rear Seat ................... 134
Foot Brake ................................................ 441
Forward Collision Warning (FCW) .......... 424
Front Airbags (SRS) .................................... 42
Front Seats ................................................ 127
Adjusting ................................................ 127

550Index
Door and Trunk Open ................................ 72
ECON Mode ...................................... 77, 420
Electric Power Steering (EPS) System ............................................. 73, 522
Fog Light ................................................... 74
Forward Collision Warning (FCW) .............. 75
High Beam................................................. 74
Immobilizer System .................................... 74
Lane Departure Warning (LDW) ................. 76
Light Control ............................................. 78
Lights On ................................................... 74
Low Fuel .................................................... 71
Low Oil Pressure ................................ 69, 520
Low Tire Pressure/TPMS ............. 73, 436, 438
Maintenance Minder ......................... 77, 455
Malfunction Indicator Lamp ............... 69, 521
Parking Brake and Brake System ........ 68, 522
Seat Belt Reminder .............................. 33, 71
Security System Alarm ............................... 74
Smart Entry System .................................... 77
Starter System ........................................... 78
Supplemental Restraint System ............ 49, 72
Transmission .............................................. 71
Turn Signal and Hazard Warning ............... 73
Vehicle Stability Assist (VSA ®)
System ............................................. 72, 432
VSA ® OFF .......................................... 72, 433
Washer Level ............................................. 77
Information ............................................... 529
Information Display .................................... 82 Instant Fuel Economy
................................. 83
Instrument Panel ........................................ 67
Brightness Control................................... 120
Interface Dial ............................................ 211
Interior Lights ........................................... 135
Interior Rearview Mirror .......................... 125
JJack (Wheel Nut Wrench) ........................ 508
Jump Starting ........................................... 514KKey Number Tag ......................................... 89
Keyless Lockout Prevention ....................... 95
Keys ............................................................. 88
Lockout Prevention.................................... 95
Master Keys .............................................. 88
Number Tag .............................................. 89
Remote Transmitter ................................... 91
Types and Functions .................................. 88
Valet Key........................................... 89, 101
Won’t Turn ............................................... 23
Kickdown (Automatic Transmission/ CVT) ......................................................... 408
LLane Departure Warning (LDW) ............. 428
LaneWatch
TM............................................ 434
Language (HFL) ................................ 316, 352
LATCH (Child Seats) ................................... 57
Lights ................................................ 115, 475
Automatic............................................... 116
Bulb Replacement ................................... 475
Daytime Running Lights .......................... 118
Fog Lights ............................................... 117
High Beam Indicator ................................. 74
Interior.................................................... 135
Light Switches......................................... 115
Lights On Indicator.................................... 74
Turn Signals ............................................ 115
Load Limits ............................................... 395
Locking/Unlocking ..................................... 88
Auto Door Locking/Unlocking ................... 98
From Inside ............................................... 96
From Outside ............................................ 91
Keys.......................................................... 88
Using a Key............................................... 95
Lockout Prevention System ....................... 95
Low Battery Charge ................................. 520
Low Fuel Indicator ..................................... 71
Low Oil Pressure Indicator ................. 69, 520
Low Smart Entry Remote Signal Strength .................................................... 90
Lower Anchors ........................................... 57
Lubricant Specifications Chart ........ 530, 532
Luggage (Maximum Load Limit) ............. 395

553Index
Wear Indicators....................................... 490
Winter .................................................... 493
Tools ......................................................... 504
Towing a Trailer ....................................... 397
Equipment and Accessories ..................... 398
Load Limits ............................................. 397
Towing Your Vehicle ............................... 400
Emergency .............................................. 527
TPMS (Tire Pressure Monitoring System) .................................................... 436
Indicator ........................................... 73, 523
Transmission ............................. 409, 413, 417
Automatic............................................... 413
Continuously Variable (CVT).................... 409
Fluid ............................................... 471, 472
Manual ................................................... 417
Number .................................................. 534
Shift Lever Position Indicator ..... 70, 410, 414
Trip Meter .................................................. 83
Troubleshooting ...................................... 503
Blown Fuse ..................................... 524, 525
Brake Pedal Vibrates ................................. 24
Buzzer Sounds When Opening Door ......... 24
Emergency Towing ................................. 527
Engine Won’t Start ................................. 511
Noise When Braking ................................. 25
Overheating ............................................ 518
Puncture/Flat Tire .................................... 505
Shift Lever Won’t Move .......................... 517
Warning Indicators.................................... 68 Trunk
........................................................... 99
Lid ............................................................. 99
Light Bulb ........................................ 530, 532
Main Switch ............................................ 101
Turn Signals .............................................. 115
Indicators (Instrument Panel) ...................... 73
UUnlocking the Doors .................................. 91
Unlocking the Doors from the Inside ........ 13
USB Flash Drives ........................................ 273
USB Port .................................................... 151
Using the Smart Entry with Push Button Start System ....................................................... 93VValet Key ............................................. 89, 101
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................ 534
Vehicle Stability Assist (VSA® ).................. 432
Off Button ............................................... 433
Off Indicator .............................................. 72
System Indicator ........................................ 72
Ventilation ................................................ 144
Viscosity (Oil) ............................ 463, 531, 533
VSA ® (Vehicle Stability Assist) .................. 432
WWarning and Information Messages ......... 79
Warning Indicator On/Blinking ............... 520
Warning Labels ........................................... 65
Warranties (Warranty Manual provided
separately) .............................................. 539
Watts ................................................. 530, 532
Wear Indicators (Tire) .............................. 490
Wheel Nut Wrench (Jack Handle) ........... 508
Window Washers ..................................... 119
Adding/Refilling Fluid .............................. 474
Switch ..................................................... 119
Windows (Opening and Closing) ............ 106
Windshield ................................................ 119
Cleaning ................................................. 501
Defrosting/Defogging .............................. 145
Washer Fluid ........................................... 474
Wiper Blades ........................................... 483
Wipers and Washers................................ 119
Winter Tires .............................................. 493
Snow Tires .............................................. 493
Tire Chains .............................................. 493
Wipers and Washers ................................. 119
Checking and Replacing Wiper Blades ..... 483
WMA ................. 165, 173, 196, 206, 235, 259
Worn Tires ................................................ 485
