2015 FORD TAURUS towing

Traction Control197
TractionControl™ ....................................197
Stability Control 198
AdvanceTrac® .......................................199
Parking Aids 201
Sensing system .......................................201
Active park assist .....................................203
Rear-view camera system ...............................208
Cruise Control 212
Using cruise control ...................................212
Using Adaptive Cruise Control ............................213
Driving Aids 222
Driveralert .........................................222
Lane keeping system...................................224
Blind Spot Information System (BLIS) with Cross Traffic Alert
(CTA) .............................................228
Collision warning system ................................233
Steering ............................................237
Load Carrying 239
Cargo net ...........................................239
Vehicle loading .......................................239
Towing 247
Trailertowing........................................247
Wrecker towing ......................................251
Recreational towing ...................................252
Driving Hints 254
Economical driving ....................................254
Driving through water ..................................255
Floormats..........................................256
Table of Contents 5
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

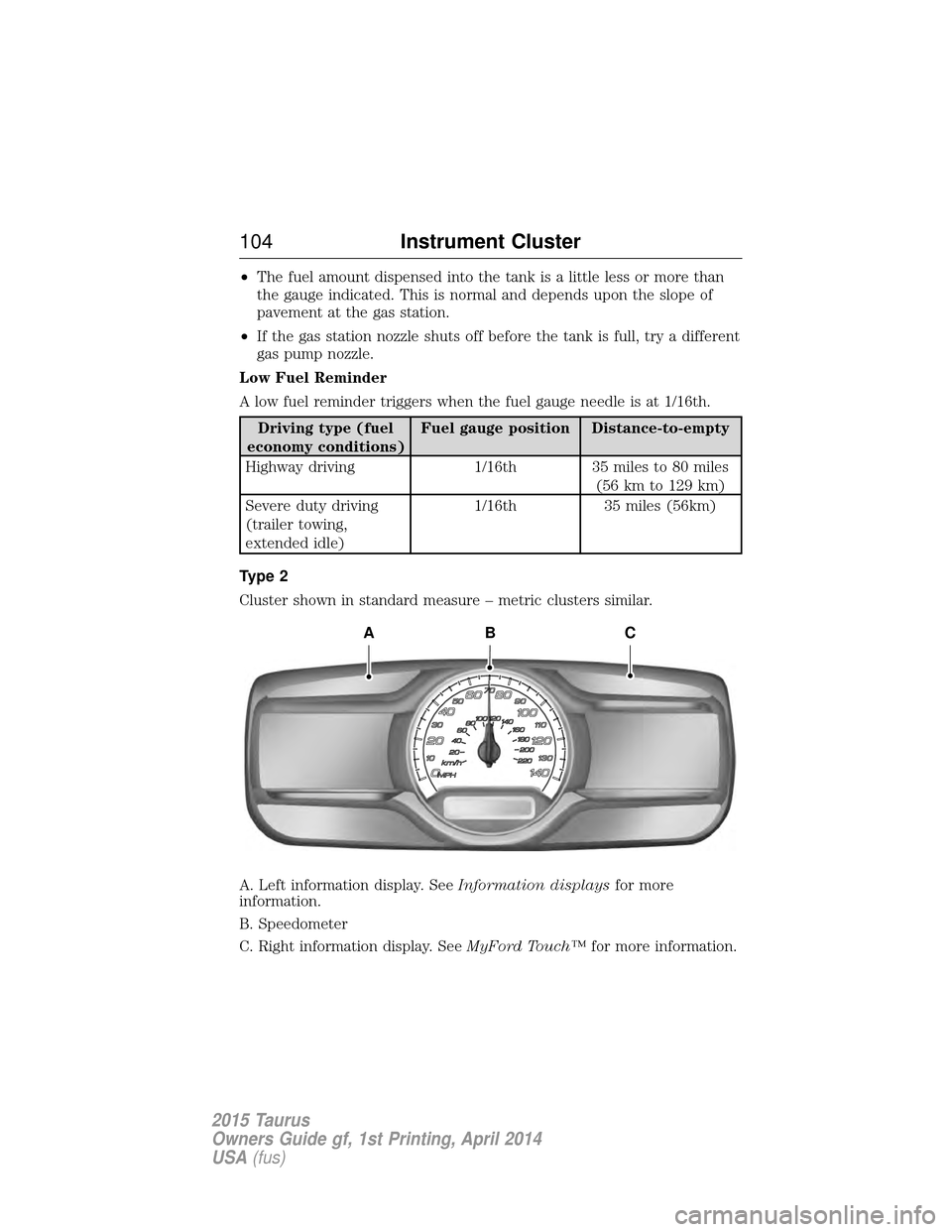

•The fuel amount dispensed into the tank is a little less or more than
the gauge indicated. This is normal and depends upon the slope of
pavement at the gas station.
• If the gas station nozzle shuts off before the tank is full, try a different
gas pump nozzle.
Low Fuel Reminder
A low fuel reminder triggers when the fuel gauge needle is at 1/16th.
Driving type (fuel
economy conditions) Fuel gauge position Distance-to-empty
Highway driving 1/16th 35 miles to 80 miles (56 km to 129 km)
Severe duty driving
(trailer towing,
extended idle) 1/16th 35 miles (56km)
Type 2
Cluster shown in standard measure – metric clusters similar.
A. Left information display. See Information displaysfor more
information.
B. Speedometer
C. Right information display. See MyFord Touch™for more information.
ABC
104 Instrument Cluster
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Settings
Convenience Auto Engine Off — check enabled (default) / uncheck disabled
Auto Highbeam — check enabled (default) / uncheck
disabled
Autolamp Delay Off or number of seconds
Compass Display — check enabled (default) / uncheck disabled
DTE Calculation Normal or Towing
Easy Entry/Exit — check enabled (default) /
uncheck disabled
Locks Autolock — check enabled (default) / uncheck disabled
Autounlock — check enabled
(default) / uncheck disabled
Remote Unlock All Doors orDriver First
Oil life Reset Set XXX% — Hold OK to Reset
Remote Start Climate Control Auto or Last Setting
Seats and Wheel
or Front Seats Automatic or
Off
Duration (5, 10 or 15 minutes)
System — check enabled
(default) / uncheck disabled
Windows Remote Open or Close
Wipers Courtesy Wipe — check enabled (default) / uncheck disabled
Rain Sensing — check enabled
(default) / uncheck disabled
Information Displays 11 3
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Settings
Vehicle Auto Engine Off — check enabled / uncheck disabled DTE Calculation Normal / Towing
Easy Entry/Exit — check enabled / uncheck disabled
Lighting Auto highbeam — check enabled(default) / uncheck disabled
Autolamp Delay Off or number ofseconds
Locks Autolock — check enabled (default) / uncheck disabled
Autounlock — check enabled
(default) / uncheck disabled
Remote
UnlockingAll doors /
Driver’s door
Oil Life Reset Set to XXX % — Hold OK to Reset
Remote Start Climate Control
(using this
feature allows
you to select
different climate
control modes
when the vehicle
is started using
the remote start
feature)
Auto / Last
Setting
Seats & Wheel or
Front Seats Auto / Off
Duration 5/10
/15 minutes
System — check enabled (default)
/ uncheck disabled
Windows Remote Open or Close
Wipers Courtesy Wipe — check enabled
(default) / uncheck disabled
Rain Sensing — check enabled
(default) / uncheck disabled
Information Displays
11 9
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Using the Rear View Camera System
The rear view camera system displays what is behind your vehicle when
you place the transmission inR. The system uses fixed guidelines which
show the actual path the vehicle is moving in while reversing in a
straight line. This can be helpful when backing into a parking space or
aligning the vehicle with another object behind the vehicle.
Note: Do not use the camera system if the trunk is ajar.
Note: If the image comes on while the transmission is not in R, have the
system inspected by your authorized dealer.
Note: When towing, the camera only sees what is being towed behind
the vehicle. This might not provide adequate coverage as it usually
provides in normal operation and some objects might not be seen. In
some vehicles, the guidelines may disappear once the trailer tow
connector is engaged.
Note: The camera may not operate correctly under the following
conditions:
• Nighttime or dark areas if one or both reverse lamps are not
operating.
• The camera’s view is obstructed by mud, water or debris. Clean the
lens with a soft, lint-free cloth and non-abrasive cleaner.
• The rear of the vehicle is hit or damaged, causing the camera to
become misaligned.
Parking Aids 209
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Blocked Sensor
WARNING:Do not use ACC when towing a trailer with brake
controls. Aftermarket trailer brakes will not function properly
when ACC is activated because the brakes are electronically controlled.
Failing to do so may result in loss of vehicle control, which could result
in serious injury.
WARNING: Do not use tires sizes other than those
recommended because this can affect the normal operation of
ACC. Failing to do so may result in a loss of vehicle control, which
could result in serious injury.
A message regarding a blocked
sensor is displayed if the radar
signals from the sensor have been
obstructed. The sensor is located
behind a fascia cover near the driver
side of the lower grille. A vehicle
ahead cannot be detected and the
system will not function when the
radar signals are obstructed. The following table lists possible causes and
actions for this message being displayed.
Cause Action
The surface of the radar in the
grille is dirty or obstructed in
some way. Clean the grille surface in front of
the radar or remove the object
causing the obstruction.
The surface of the radar in the
grille is clean but the message
remains in the display. Wait a short time. It may take
several minutes for the radar to
detect that it is no longer
obstructed.
Heavy rain or snow is interfering
with the radar signals. Do not use the system in these
conditions because it may not
detect any vehicle ahead.
220
Cruise Control
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Example only:
Cargo Weight– includes all weight added to the Base Curb Weight,
including cargo and optional equipment. When towing, trailer tongue load
weight is also part of cargo weight.
Load Carrying 241
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

GAW (Gross Axle Weight)– is the total weight placed on each axle
(front and rear) – including vehicle curb weight and all payload.
GAWR (Gross Axle Weight Rating) – is the maximum allowable
weight that can be carried by a single axle (front or rear). These
numbers are shown on the Safety Compliance Certification Label.
The label shall be affixed to either the door hinge pillar,
door-latch post, or the door edge that meets the door-latch post,
next to the driver’s seating position. The total load on each axle
must never exceed its GAWR.
Note: For trailer towing information refer to Trailer towingfound in
this chapter or the RV and Trailer Towing Guide provided by your
authorized dealer.
GVW (Gross Vehicle Weight) – is the Vehicle Curb Weight + cargo +
passengers.
GVWR (Gross Vehicle Weight Rating) – is the maximum allowable
weight of the fully loaded vehicle (including all options, equipment,
passengers and cargo). The GVWR is shown on the Safety
Compliance Certification Label. The label shall be affixed to
either the door hinge pillar, door-latch post, or the door edge that
meets the door-latch post, next to the driver’s seating position.
The GVW must never exceed the GVWR.
242 Load Carrying
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)
