Relay Center
The relay center is located along the passenger side A-pillar on the right
side of the footwell.
Relay
LocationRelay Description
R1 Spring applied hydraulic release warning chime module or
PCM power VPWR 2, 3 and 4
R2 A/C compressor clutch
R3 Power windows
R4 Flasher (standard/LED)
R5 Upfitter relay 1
R6 Upfitter relay 2
R7 Headlights
R8 Cummins starter lockout
R9 Upfitter relay 3
R10 Starter
R11 DCU (diesel engine only)
R12 Two–speed axle/Differential lock
R13 Door lock
R14 Air tank moisture valve
R15 DRL #1
R16 Heated mirrors
R17 Spare
R18 Upfitter relay 4
R1
R9 R10 R11 R12 R13 R14 R15 R16 R17
R18 R19 R20 R21 R22 R23 R24 R25 R26
R2 R3 R4 R5 R6 R7 R8
194Fuses
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

Relay
LocationRelay Description
R19 Shift interlock/EPRNDL display
R20 Selective Catalyst Reduction (SCR) system (NOx) (diesel
engine only)
R21 Run
R22 Door unlock
R23 ABS warning indicator
R24 DRL #2
R25 Park lights
R26 Spare
Trailer Tow Relays (If Equipped)
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 30A* Trailer tow ABS feed (non electric trailer
brake vehicles only)
2 30A* Trailer tow park/marker lamps
3 30A* Trailer tow stop lamps
TRAILER
ABS
TRAILER
STOP
LAMPTRAILER
MARKER
LAMP
TRAILER
TA I L
LAMPNOT
USEDNOT
USED
LH
TURNRH
TURN30A
30A
30A
30A
NOT USED
5 4 32 1 R1R2R5
R6
R3R4R7
R8
Fuses195
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
4 30A* Trailer tow turn/stop lamps (combined)
Trailer tow turn lamps (separate)
5 — Not used
R1 — Trailer tow ABS relay (non electric trailer
brake vehicles only)
R2 — Trailer tow marker lamp relay
R3 — Trailer tow stop lamp relay
R4 — Trailer tow tail lamp relay
R5 — Not used
R6 — Not used
R7 — Trailer tow left turn lamp relay
R8 — Trailer tow right turn lamp relay
*Maxi fuse
Inline Fuses
Your vehicle may have several inline fuses located in, or on, the battery
cables located in the battery box (depending on application).
•All vehicles equipped with an Allison transmission have a 10 amp fuse
located in the clean power cables located in the battery box.
•All vehicles have a 30 amp fuse located in the clean power cables
located in the battery box.
•All vehicles equipped with hydraulic brakes have a 40 amp fuse
located in the clean power cables located in the battery box. In
addition, another 30 amp fuse is located in a fuse holder just above
the power distribution center located in the vehicle’s engine
compartment.
196Fuses
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

ON-HIGHWAY - 60000 MILES (96000 KM) OR MORE ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 15 30 45 60 75 90 105 120 135 150
Kilometers (x 1000) 24 48 72 96 120 144 168 192 216 240
Months 3 6 9 12 15 18 21 24 27 30
Non-driving Front Axle
Drag link/kingpin and bushing/tie rod ends - lubricate••••••••••
Wheel bearing - grease type - repack•••••
Wheel bearing - oil type - change oil•
Wheel bearing - oil type - check level••••••••••
Brake System
Master cylinder - check level (hydraulic brakes)••••••••••
Parking brake relay lever/linkage - lubricate (hydraulic
brakes)••
S-cam - lubricate (air brakes)••••••••••
Slack adjusters - lubricate (air brakes)••
Steering
Power steering filter - replacement Every five years or 500000 miles (800000 km)
Power steering fluid - change•
Power steering fluid - check level••••••••••
Steering column U-joints/slip joint - lubricate••••••••••
Steering gear Ross TAS - output shaft - lubricate•••
Driveshaft
U-joint - lubricate (SPL) Every 100000 miles (160000 km) or six months
U-joint and slip joint - lubricate (non-SPL) Every 10000–15000 miles (16000–24000 km) or three months
Scheduled Maintenance351
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

ON-HIGHWAY - 60000 MILES (96000 KM) OR MORE ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 165 180 195 210 225 240 255 270 285 300
Kilometers (x 1000) 264 288 312 336 360 384 408 432 456 480
Months 33 36 39 42 45 48 51 54 57 60
Non-driving Front Axle
Drag link/kingpin and bushing/tie rod ends - lubricate••••••••••
Wheel bearing - grease type - repack•••••
Wheel bearing - oil type - change oil••
Wheel bearing - oil type - check level••••••••••
Brake System
Master cylinder - check level (hydraulic brakes)••••••••••
Parking brake relay lever/linkage - lubricate (hydraulic
brakes)••
S-cam - lubricate (air brakes)••••••••••
Slack adjusters - lubricate (air brakes)•••
Steering
Power steering filter - replacement Five years or 500000 miles (800000 km)
Power steering fluid - change••
Power steering fluid - check level••••••••••
Steering column U-joints/slip joint - lubricate••••••••••
Steering gear Ross TAS - output seal - lubricate•••
Driveshaft
U-joint - lubricate (SPL) Every 100000 miles (160000 km) or six months
U-joint and slip joint - lubricate (non-SPL) Every 10000–15000 miles (16000–24000 km) or three months
Scheduled Maintenance355
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

CITY - 60000 MILES (96000 KM) OR FEWER ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 10 20 30 40 50 60 70 80 90 100
Kilometers (x 1000) 16 32 48 64 80 96 112 128 144 160
Months 3 6 9 12 15 18 21 24 27 30
Non-driving Front Axle
Drag link/kingpin and bushing/tie rod ends - lubricate••••••••••
Wheel bearing - grease type - repack••
Wheel bearing - oil type - change oil••
Wheel bearing - oil type - check level••••••••••
Brake System
Master cylinder - check level (hydraulic brakes)••••••••••
Parking brake relay lever/linkage - lubricate (hydraulic
brakes)•••
S-cam - lubricate (air brakes)••••••••••
Slack adjusters - lubricate (air brakes)••
Steering
Power steering filter - replacement Five years or 50000 miles (80000 km)
Power steering fluid - change••
Power steering fluid - check level••••••••••
Steering column U-joints/slip joint - lubricate••••••••••
Steering gear Ross TAS - output seal - lubricate•••
Scheduled Maintenance359
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

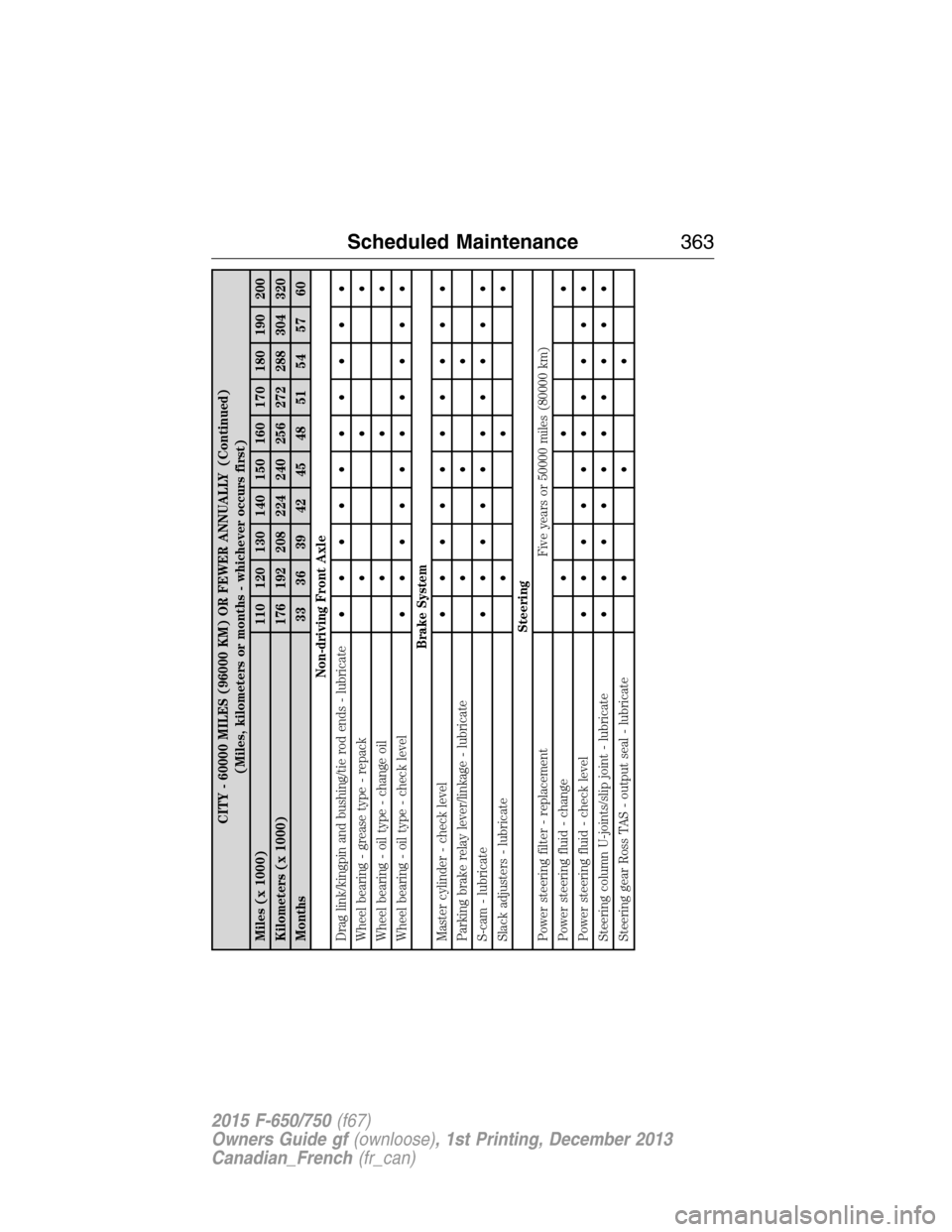

CITY - 60000 MILES (96000 KM) OR FEWER ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 110 120 130 140 150 160 170 180 190 200
Kilometers (x 1000) 176 192 208 224 240 256 272 288 304 320
Months 33 36 39 42 45 48 51 54 57 60
Non-driving Front Axle
Drag link/kingpin and bushing/tie rod ends - lubricate••••••••••
Wheel bearing - grease type - repack•••
Wheel bearing - oil type - change oil•••
Wheel bearing - oil type - check level••••••••••
Brake System
Master cylinder - check level••••••••••
Parking brake relay lever/linkage - lubricate•••
S-cam - lubricate••••••••••
Slack adjusters - lubricate•••
Steering
Power steering filter - replacement Five years or 50000 miles (80000 km)
Power steering fluid - change•••
Power steering fluid - check level••••••••••
Steering column U-joints/slip joint - lubricate••••••••••
Steering gear Ross TAS - output seal - lubricate•••
Scheduled Maintenance363
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20000 MILES (32000 KM) OR FEWER
ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 5 10 15 20 25 30 35 40 45 50
Kilometers (x 1000) 8 16 24 32 40 48 56 64 72 80
Months 3 6 9 12 15 18 21 24 27 30
Brake System
Master cylinder - check fluid level (hydraulic brakes)•••
Parking brake relay lever/linkage - lubricate (hydraulic
brakes)•••
S-cam - lubricate (air brakes)••••••••••
Slack adjusters - lubricate (air brakes)••
Steering
Power steering fluid - change••
Power steering fluid - check level••••••••••
Steering column U-joints/slip joints - lubricate••••••••••
Steering gear Ross TAS - output seal - lubricate•••
Driveshaft
Slip joint - inspect boot; U-joint - lubricate (SPL) Every 25000 miles (40000 km) or six months (whichever comes
first)
U-joint and slip joint - lubricate (non-SPL) Every 5000–8000 miles (8000–12000 km) or three months
(whichever comes first)
Clutch
Release bearing/shafts/forks••••••••••
Scheduled Maintenance367
