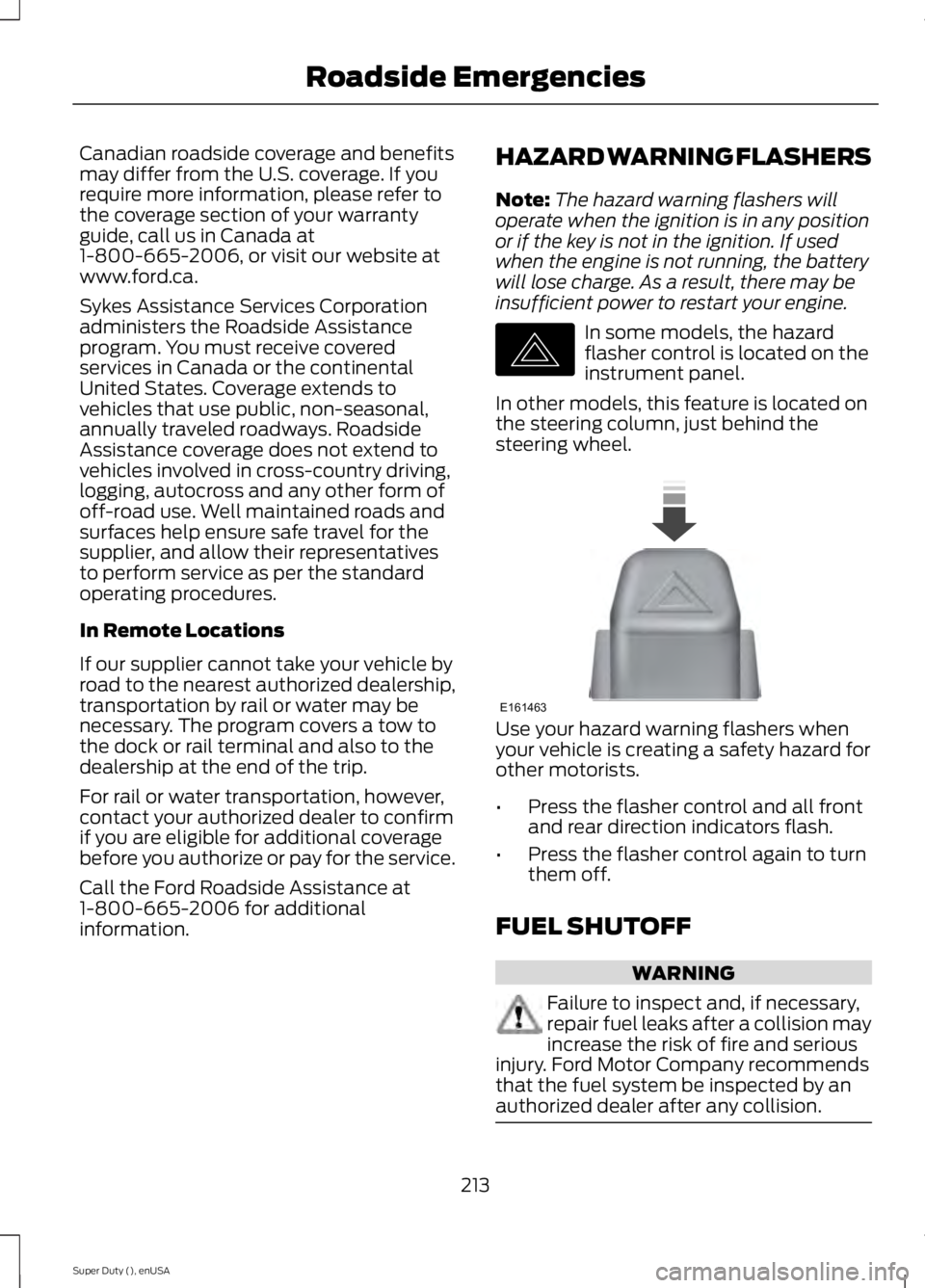

Canadian roadside coverage and benefits
may differ from the U.S. coverage. If you
require more information, please refer to
the coverage section of your warranty
guide, call us in Canada at
1-800-665-2006, or visit our website at
www.ford.ca.
Sykes Assistance Services Corporation
administers the Roadside Assistance
program. You must receive covered
services in Canada or the continental
United States. Coverage extends to
vehicles that use public, non-seasonal,
annually traveled roadways. Roadside
Assistance coverage does not extend to
vehicles involved in cross-country driving,
logging, autocross and any other form of
off-road use. Well maintained roads and
surfaces help ensure safe travel for the
supplier, and allow their representatives
to perform service as per the standard
operating procedures.
In Remote Locations
If our supplier cannot take your vehicle by
road to the nearest authorized dealership,
transportation by rail or water may be
necessary. The program covers a tow to
the dock or rail terminal and also to the
dealership at the end of the trip.
For rail or water transportation, however,
contact your authorized dealer to confirm
if you are eligible for additional coverage
before you authorize or pay for the service.
Call the Ford Roadside Assistance at
1-800-665-2006 for additional
information.
HAZARD WARNING FLASHERS
Note:
The hazard warning flashers will
operate when the ignition is in any position
or if the key is not in the ignition. If used
when the engine is not running, the battery
will lose charge. As a result, there may be
insufficient power to restart your engine. In some models, the hazard
flasher control is located on the
instrument panel.
In other models, this feature is located on
the steering column, just behind the
steering wheel. Use your hazard warning flashers when
your vehicle is creating a safety hazard for
other motorists.
•
Press the flasher control and all front
and rear direction indicators flash.
• Press the flasher control again to turn
them off.
FUEL SHUTOFF WARNING
Failure to inspect and, if necessary,
repair fuel leaks after a collision may
increase the risk of fire and serious
injury. Ford Motor Company recommends
that the fuel system be inspected by an
authorized dealer after any collision. 213
Super Duty (), enUSA Roadside EmergenciesE142663 E161463

Severe Climates
If you drive in extremely cold climates:
•
It may be necessary to have a Ford
authorized dealer increase the coolant
concentration above 50%.
• A coolant concentration of 60% will
provide improved freeze point
protection. Engine coolant
concentrations above 60% will
decrease the overheat protection
characteristics of the engine coolant
and may cause engine damage.
If you drive in extremely hot climates:
• It may be necessary to have a Ford
authorized dealer decrease the coolant
concentration to 40%.
• A coolant concentration of 40% will
provide improved overheat protection.
Engine coolant concentrations below
40% will decrease the corrosion/freeze
protection characteristics of the engine
coolant and may cause engine
damage.
Vehicles driven year-round in non-extreme
climates should use prediluted engine
coolant for optimum cooling system and
engine protection.
What You Should Know About Fail-
Safe Cooling
If the engine coolant supply is depleted,
this feature allows the vehicle to be driven
temporarily before incremental component
damage is incurred. The “fail-safe”
distance depends on ambient
temperatures, vehicle load and terrain.
How Fail-Safe Cooling Works
If the engine begins to overheat, the engine
coolant temperature gauge will move to
the red (hot) area and: The coolant temperature
warning light will illuminate. The service engine soon
indicator will illuminate.
If the engine reaches a preset
over-temperature condition, the engine
will automatically switch to alternating
cylinder operation. Each disabled cylinder
acts as an air pump and cools the engine.
When this occurs the vehicle will still
operate. However:
• The engine power will be limited.
• The air conditioning system will be
disabled.
Continued operation will increase the
engine temperature and the engine will
completely shut down, causing steering
and braking effort to increase.
Once the engine temperature cools, the
engine can be re-started. Take your vehicle
to an authorized dealer as soon as possible
to minimize engine damage.
When Fail-Safe Mode Is Activated WARNINGS
Fail-safe mode is for use during
emergencies only. Operate the
vehicle in fail-safe mode only as long
as necessary to bring the vehicle to rest in
a safe location and seek immediate repairs.
When in fail-safe mode, the vehicle will
have limited power, will not be able to
maintain high-speed operation, and may
completely shut down without warning,
potentially losing engine power, power
steering assist, and power brake assist,
which may increase the possibility of a
crash resulting in serious injury. Never remove the coolant reservoir
cap while the engine is running or hot.
238
Super Duty (), enUSA Maintenance

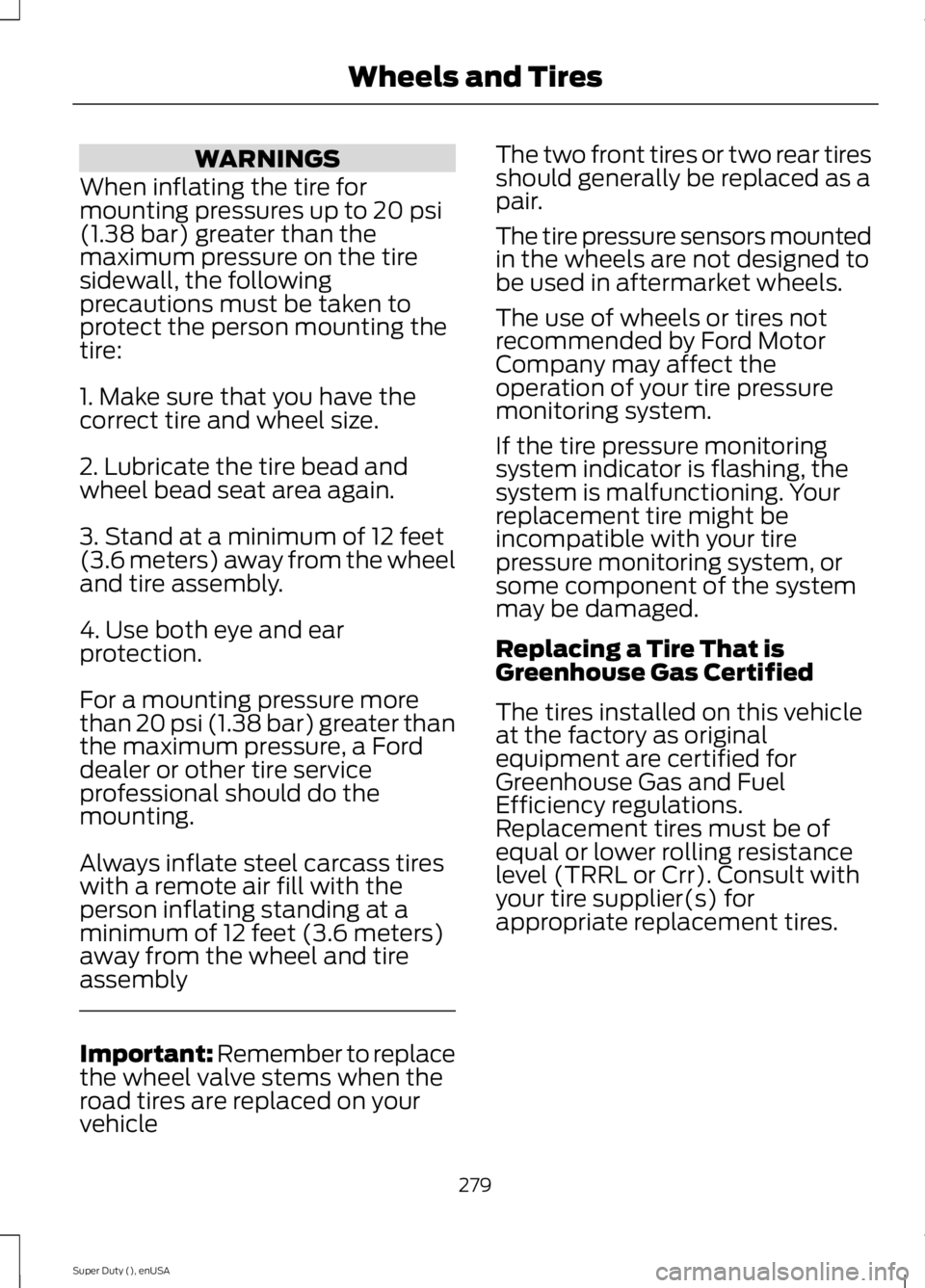

WARNINGS
When inflating the tire for
mounting pressures up to 20 psi
(1.38 bar) greater than the
maximum pressure on the tire
sidewall, the following
precautions must be taken to
protect the person mounting the
tire:
1. Make sure that you have the
correct tire and wheel size.
2. Lubricate the tire bead and
wheel bead seat area again.
3. Stand at a minimum of 12 feet
(3.6 meters) away from the wheel
and tire assembly.
4. Use both eye and ear
protection.
For a mounting pressure more
than 20 psi (1.38 bar) greater than
the maximum pressure, a Ford
dealer or other tire service
professional should do the
mounting.
Always inflate steel carcass tires
with a remote air fill with the
person inflating standing at a
minimum of 12 feet (3.6 meters)
away from the wheel and tire
assembly Important: Remember to replace
the wheel valve stems when the
road tires are replaced on your
vehicle The two front tires or two rear tires
should generally be replaced as a
pair.
The tire pressure sensors mounted
in the wheels are not designed to
be used in aftermarket wheels.
The use of wheels or tires not
recommended by Ford Motor
Company may affect the
operation of your tire pressure
monitoring system.
If the tire pressure monitoring
system indicator is flashing, the
system is malfunctioning. Your
replacement tire might be
incompatible with your tire
pressure monitoring system, or
some component of the system
may be damaged.
Replacing a Tire That is
Greenhouse Gas Certified
The tires installed on this vehicle
at the factory as original
equipment are certified for
Greenhouse Gas and Fuel
Efficiency regulations.
Replacement tires must be of
equal or lower rolling resistance
level (TRRL or Crr). Consult with
your tire supplier(s) for
appropriate replacement tires.
279
Super Duty (), enUSA Wheels and Tires

•
To reduce the chances of interference
from another vehicle, perform the
system reset procedure at least three
feet (one meter) away from another
Ford Motor Company vehicle
undergoing the system reset procedure
at the same time.
• Do not wait more than two minutes
between resetting each tire sensor or
the system will time-out and the entire
procedure will have to be repeated on
all four wheels.
• A double horn will sound indicating the
need to repeat the procedure.
Performing the System Reset Procedure
Read the entire procedure before
attempting.
1. Drive the vehicle above 20 mph (32 km/h) for at least two minutes, then
park in a safe location where you can
easily get to all four tires and have
access to an air pump.
2. Place the ignition in the off position and
keep the key in the ignition.
3. Cycle the ignition to the on position with the engine off.
4. Turn the hazard flashers on then off three times. You must accomplish this
within 10 seconds. If the reset mode
has been entered successfully, the horn
will sound once, the system indicator
will flash and a message is shown in
the information display. If this does not
occur, please try again starting at Step
2. If after repeated attempts to enter
the reset mode, the horn does not
sound, the system indicator does not
flash and no message is shown in the
information display, seek service from
your authorized dealer. 5. Train the tire pressure monitoring
system sensors in the tires using the
following system reset sequence
starting with the left front tire in the
following clockwise order: Left front
(driver's side front tire), Right front
(passenger's side front tire), Right rear
(passenger's side rear tire), Left rear
(driver's side rear tire).
6. Remove the valve cap from the valve stem on the left front tire. Decrease the
air pressure until the horn sounds.
Note: The single horn chirp confirms
that the sensor identification code has
been learned by the module for this
position. If a double horn is heard, the
reset procedure was unsuccessful, and
you must repeat it.
7. Remove the valve cap from the valve stem on the right front tire. Decrease
the air pressure until the horn sounds.
8. Remove the valve cap from the valve stem on the right rear tire. Decrease the
air pressure until the horn sounds.
9. Remove the valve cap from the valve stem on the left rear tire. Decrease the
air pressure until the horn sounds.
Training is complete after the horn
sounds for the last tire trained (driver's
side rear tire), the system indicator
stops flashing, and a message is shown
in the information display.
10. Turn the ignition off. If two short horn
beeps are heard, the reset procedure
was unsuccessful and you must
repeat it. If after repeating the
procedure and two short beeps are
heard when the ignition is turned to
off, seek assistance from your
authorized dealer.
287
Super Duty (), enUSA Wheels and Tires

11.
Set all four tires to the recommended
air pressure as indicated on the
Safety Compliance Certification
Label (affixed to either the door hinge
pillar, door-latch post, or the door
edge that meets the door-latch post,
next to the driver's seating position)
or Tire Label located on the B-Pillar
or the edge of the driver's door.
CHANGING A ROAD WHEEL WARNINGS
The use of tire sealant may damage
your tire pressure monitoring system
and should only be used in roadside
emergencies. If you must use a sealant, the
Ford Tire Mobility Kit sealant should be
used. The tire pressure monitoring system
sensor and valve stem on the wheel must
be replaced by an authorized dealer after
use of the sealant. If the tire pressure monitor sensor
becomes damaged, it will no longer
function. See Tire Pressure
Monitoring System (page 283). Note:
If your vehicle is equipped with the
tire pressure monitoring system, the
indicator light will illuminate when the spare
tire is in use. To restore the full function of
the monitoring system, all road wheels
equipped with tire pressure monitoring
sensors must be mounted on the vehicle.
If you get a flat tire while driving, do not
apply the brake heavily. Instead, gradually
decrease your speed. Hold the steering
wheel firmly and slowly move to a safe
place on the side of the road. If your vehicle is equipped with the tire
pressure monitoring system, have a flat
serviced by an authorized dealer in order
to prevent damage to the system sensors.
See
Tire Pressure Monitoring System
(page 283). Replace the spare tire with a
road tire as soon as possible. During
repairing or replacing of the flat tire, have
the authorized dealer inspect the system
sensor for damage.
Dissimilar Spare Wheel and Tire
Assembly Information WARNING
Failure to follow these guidelines
could result in an increased risk of
loss of vehicle control, injury or death.
If you have a dissimilar spare wheel and
tire, then it is intended for temporary use
only. This means that if you need to use it,
you should replace it as soon as possible
with a road wheel and tire assembly that
is the same size and type as the road tires
and wheels that were originally provided
by Ford. If the dissimilar spare tire or wheel
is damaged, it should be replaced rather
than repaired.
A dissimilar spare wheel and tire assembly
is defined as a spare wheel and tire
assembly that is different in brand, size or
appearance from the road tires and wheels
and can be one of three types:
1.
T-type mini-spare:
This spare tire
begins with the letter T for tire size and
may have Temporary Use Only molded in
the sidewall.
2. Full-size dissimilar spare with label
on wheel:
This spare tire has a label on
the wheel that states: THIS WHEEL AND
TIRE ASSEMBLY FOR TEMPORARY USE
ONLY
When driving with one of the dissimilar
spare tires listed above, do not:
288
Super Duty (), enUSA Wheels and Tires

Center Console..............................................134
Removable Front Cupholders........................ 134
Changing a Bulb...........................................249 Lamp Assembly Condensation.................... 249
Replacing Brake/Tail/Turn/Reverse Lamp Bulbs................................................................. 250
Replacing Cargo Lamp and High-mount Brake Lamp Bulbs........................................ 250
Replacing Fog Lamp Bulbs (If Equipped......................................................... 250
Replacing Front Clearance and Identification Lamp Bulbs (If
Equipped)........................................................ 249
Replacing the License Plate Lamp Bulb..................................................................... 251
Changing a Fuse
............................................231
Fuses........................................................................\
231
Changing a Road Wheel
...........................288
Dissimilar Spare Wheel and Tire Assembly
Information..................................................... 288
Location of the Spare Tire and Tools.........289
Removing the Spare Tire (With Spare Tire Carrier Only)................................................... 290
Tire Change Procedure..................................... 291
Changing the 12V Battery.........................244 Battery Management System (If
Equipped)........................................................ 245
Changing the Engine Air Filter.................253
Changing the Wiper Blades.....................246
Checking MyKey System Status...............53
Checking the Wiper Blades.....................246
Child Restraint and Safety Belt Maintenance.................................................35
Child Safety
.......................................................15
General Information............................................. 15
Child Safety Locks..........................................27
Child Seat Positioning..................................26
Cleaning Leather Seats
.............................258
With King Ranch Edition................................. 259
Without King Ranch Edition.......................... 258
Cleaning Products
.......................................255
Cleaning the Alloy Wheels.......................260
Cleaning the Engine
....................................256
Cleaning the Exterior..................................255 Exterior Chrome Parts...................................... 255
Exterior Plastic Parts........................................ 256
Stripes or Graphics............................................ 256
Underbody........................................................... 256Cleaning the Instrument Panel and
Instrument Cluster Lens.........................257
Cleaning the Interior....................................257
Cleaning the Windows and Wiper Blades............................................................257
Clearing All MyKeys.......................................53
Climate..............................................................411 Climate Control Voice Commands..............413
Climate Control
............................................106
Climate Controlled Seats...........................121 Cooled Seats......................................................... 121
Heated Seats......................................................... 121
Coolant Check See: Engine Coolant Check............................ 236
Crash Sensors and Airbag Indicator
........45
Creating a MyKey.............................................51 Programming/Changing Configurable
Settings............................................................... 52
Cruise Control
..................................................63
Principle of Operation....................................... 178
Cruise control See: Using Cruise Control................................ 178
Customer Assistance
...................................217
D
Data Recording
..................................................9
Event Data Recording.......................................... 10
Service Data Recording........................................ 9
Daytime Running Lamps
............................68
Digital Radio...................................................316 HD Radio Reception and Station
Troubleshooting.............................................. 317
Direction Indicators.......................................69 Lane Change.......................................................... 69
Driver and Passenger Airbags....................37 Children and Airbags........................................... 42
Driver and Front Passenger Seating Adjustment........................................................ 37
Passenger Airbag On and Off Switch ..........37
Driving Aids
......................................................179
Driving Hints...................................................207
Driving Through Water..............................208
DRL See: Daytime Running Lamps........................ 68
474
Super Duty (), enUSA Index

Rear Seats.........................................................117
Folding the Rear Seat Back (Crew Cab)
........................................................................\
....... 118
Folding up the Rear Seat Cushion.................118
Rear Under Seat Storage (Crew Cab).........119
Returning the Seat to the Seating Position............................................................... 118
Rear View Camera........................................175 Using the Rear View Camera System.........176
Rear View Camera See: Rear View Camera.................................... 175
Recommended Towing Weights............192 Calculating the Maximum Loaded Trailer
Weight for Your Vehicle............................... 195
Refueling...........................................................141 Fuel Filler Cap....................................................... 142
Remote Control...............................................47 Car Finder................................................................ 48
Integrated Keyhead Transmitters .................. 47
Memory Feature................................................... 48
Remote Start ........................................................ 49
Replacing the Battery......................................... 47
Sounding a Panic Alarm.................................... 49
Remote Start
...................................................112
Automatic Settings............................................. 112
Removing a Headlamp.............................248
Repairing Minor Paint Damage..............259
Replacement Parts Recommendation........................................12
Collision Repairs.................................................... 12
Scheduled Maintenance and Mechanical Repairs.................................................................. 12
Warranty on Replacement Parts..................... 12
Replacing a Lost Key or Remote Control............................................................50
Reporting Safety Defects (Canada Only)..............................................................222
Reporting Safety Defects (U.S. Only)...............................................................221
Roadside Assistance
...................................212
Vehicles Sold in Canada: Getting Roadside
Assistance......................................................... 212
Vehicles Sold in Canada: Using Roadside Assistance......................................................... 212
Vehicles Sold in the United States: Getting Roadside Assistance.................................... 212
Vehicles Sold in the United States: Using Roadside Assistance.................................... 212Roadside Emergencies...............................212
Running-In
See: Breaking-In................................................. 207
Running Out of Fuel
......................................141
Refilling With a Portable Fuel
Container........................................................... 141
S
Safety Belt Height Adjustment.................32
Safety Belt Minder.........................................33 Belt-Minder™........................................................ 33
Safety Belts......................................................28 Principle of Operation........................................ 28
Safety Belt Warning Lamp and Indicator Chime...............................................................32
Conditions of operation..................................... 33
Safety Canopy ™
............................................44
Safety Precautions.......................................139
Satellite Radio
...............................................318
Satellite Radio Electronic Serial Number
(ESN)................................................................. 319
Satellite Radio Reception Factors...............319
SIRIUS® Satellite Radio Service................... 319
Troubleshooting................................................. 320
Scheduled Maintenance Record...........466
Scheduled Maintenance...........................457
Seats...................................................................113
Security.............................................................60
Settings...........................................................369 Clock....................................................................... 370
Display................................................................... 370
Settings.................................................................. 372
Sound...................................................................... 371
Vehicle..................................................................... 371
Side Airbags
.....................................................43
Sitting in the Correct Position...................113
Snow Chains See: Using Snow Chains................................. 282
Snowplowing................................................209 Engine temperature while plowing..............210
Installing the Snowplow................................. 209
Operating the Vehicle with the Snowplow Attached........................................................... 210
Snowplowing with your Airbag Equipped Vehicle............................................................... 210
Transmission operation while plowing............................................................... 211
479
Super Duty (), enUSA Index

Ventilation
See: Climate Control......................................... 106
VIN See: Vehicle Identification Number............303
Voice Control...................................................63
W
Warning Lamps and Indicators.................79 4X2
........................................................................\
.... 82
4X4 HIGH................................................................ 82
4X4 LOW................................................................. 82
Anti-Lock Braking System................................. 79
Battery...................................................................... 79
Brake System......................................................... 79
Check Fuel Cap.................................................... 80
Cruise Control....................................................... 80
Diesel Warning Lights......................................... 82
Direction Indicator............................................... 80
Door Ajar................................................................. 80
Electronic Locking Differential....................... 80
Engine Coolant Temperature.......................... 80
Engine Oil................................................................ 80
Fasten Safety Belt............................................... 80
Front Airbag........................................................... 80
High Beam.............................................................. 80
Hill Descent............................................................ 80
Low Fuel Level........................................................ 81
Low Tire Pressure Warning................................ 81
Powertrain Malfunction/Reduced Power/Electronic Throttle Control............81
Service Engine Soon............................................ 81
Stability Control..................................................... 81
Stability Control Off............................................ 82
Transmission Tow/Haul..................................... 82
Washer Fluid Check
....................................243
Washers See: Cleaning the Exterior.............................. 255
See: Wipers and Washers................................. 66
Waxing.............................................................256
Wheel Nuts See: Changing a Road Wheel....................... 288
Wheels and Tires
.........................................263
General Information......................................... 263
Technical Specifications................................. 299
Windows and Mirrors.....................................71
Windshield Washers.....................................66 Windshield Wipers
........................................66
Speed dependent wipers................................. 66
Wipers and Washers....................................66
482
Super Duty (), enUSA Index
