2015 FORD ESCAPE wheel

Navigation**
• Navigation list of commands
- Destination street address

- Destination home
- Navigation voice
- Navigation voice volume

- Repeat instruction
- Show

5
1 Cruise Control
To Set Your Cruise
Control Speed
A. Press and release ON.
B. Accelerate to the
desired speed.
C. Press and release SET +,
then take your foot off
the accelerator.
After you set a speed, you can
press SET + or SET - to adjust
cruise speed. To switch cruise
control off, pull the CAN
(Cancel) control toward you
or tap the brake pedal.
2 Service Engine
Soon Light
Lights briefly when
you switch on the ignition.
If it remains on or is flashing
after you start the engine,
the On-Board Diagnostics
(OBD-II) system has
detected a problem. Drive in a
moderate fashion and contact
your authorized dealer as
soon as possible.
3 Information Display
Provides information about
various systems on your
vehicle. Use the left, 5-way
controls located on the
steering wheel to choose
and confirm settings and
messages. Refer to the
Information Displays chapter
of your Owner’s Manual for
more information.
4 Tilt and Telescope
Steering Column
Unlock the steering wheel by
pulling the lever down. Adjust
the wheel to the desired
position (in, out, up and
down). Push the lever back
up to lock the steering wheel
in place.
5 Media Controls*
Use the right, 5-way controls
to adjust entertainment
settings such as volume, seek
and mode. Highlight and
make selections, then press
OK to confirm your selection.
6 Voice Controls*
Press to access
voice recognition.
Press the phone button to
answer an incoming call.
Press and hold to exit
phone mode or end
a call.
Press the home icon
at any time to return
to your MyFord Touch
®
home screen.
Press the information
icon to access MyFord
Touch, Sirius
® Travel
Link™, Alerts, Calender
and more.
7 Wiper Controls
Use the rotary control on
the lever to adjust the wipe
intervals. Pull the lever toward
you to wash the windshield.
8 Push Button Start*
Allows you to start your
vehicle by pressing the
ENGINE START STOP button
while fully pressing down on
the brake pedal. Press the
button again to switch off
the engine.
Note: Your intelligent access
transmitter* must be inside the
vehicle to start the ignition.
9 Hazard Control
*if equipped

Climate
SYNC with MyFord Touch controls
the temperature, airflow direction and
fan speed.
To use voice commands to operate
the climate controls, say a voice
command like “Climate temperature
72 degrees” and MyFord Touch makes
the adjustment.
Set Your Temperature
• Touch the lower-right blue
corner on your touchscreen.
• Set your exact, desired temperature
using the + or – buttons.

Entertainment
No matter how you store your music,
SYNC makes it yours to enjoy when
you’re behind the wheel. Just press
the lower-left, red corner of the
touchscreen. From here, you can easily
go between AM and FM, SiriusXM and
other media sources.
Set Your Radio Presets
• Touch the Entertainment corner
on the touchscreen.
• Touch FM.
• Enter the desired station and
touch Enter.
• Touch Presets and then touch and
hold one of the memory preset
buttons to save it. The system
mutes briefly and the sound
returns once it saves the station. Bring in Your Own Music
Gain access to any audio source by
voice and even control how each
operates, like changing radio stations,
CD tracks or music on one of the
following devices:

• USB
• Bluetooth
® streaming
• SD card*
• Audio in
Refer to the MyFord Touch chapter in
your Owner’s Manual, visit the website
or call the toll-free number for more
information. See the inside front cover
of this guide for details.
10
SYNC® with MyFord Touch®*
continued
*if equipped

11
Remote Entry Icons
• Press once to lock all doors.
Press again within three seconds to
confirm all doors are locked.
• Press
once to unlock the driver’s
door. Press again within three
seconds to unlock all doors.
• Press
to activate the panic
alarm. Press again or switch on the
ignition to deactivate.
• Press
twice within three
seconds to open the liftgate.
• Car finder: Press
twice within
three seconds to locate your
vehicle. The horn sounds and the
lamps flash.
Intelligent Access*
Note: Your
transmitter
must be within
3 feet (1 meter)
of the vehicle
for intelligent
access to
function
properly. To unlock and open the door, pull a
front exterior door handle. To lock
the doors, press and hold the
sensor button on the door handle.
To unlock and open the liftgate, press
the exterior liftgate release button
in the top of the pull cup handle.
The intelligent access transmitter also
contains a mechanical key blade that
you can use to unlock the driver door,
if necessary.
Remote Start*
Remote start allows you to start the
engine from outside your vehicle using
your transmitter. To start, press
and then press twice within three
seconds. Once inside, apply the brake
while pressing the ENGINE START
STOP button. Shift into drive (D)
and go. To switch off the engine from
outside the vehicle after using your
remote start, press
once.
Universal Garage Door Opener*
Your driver’s
side visor has a
built-in wireless
transmitter
that replaces
the common hand-held garage door
opener. This system can also be
programmed to security systems, entry gates and home or office
lighting. Refer to the Universal Garage
Door Opener chapter in your Owner’s
Manual for programming instructions
and additional information on how to
use this device.
Active Park Assist*
The active park
assist system
can detect
an available
parallel parking
space and
automatically
steer the vehicle
into that space
(hands-free). The system visually
and audibly provides you with
braking, accelerating and gearshifting
instructions to park the vehicle. To
initiate active park assist, press the
AUTO |P| button located on the
instrument panel. To stop the parking
procedure, grab the steering wheel or
press the control again. For complete
information, refer to the Parking Aids
chapter of your Owner’s Manual.
Note: The driver is always responsible
for controlling the vehicle, supervising
the system and intervening, if required.
*if equipped

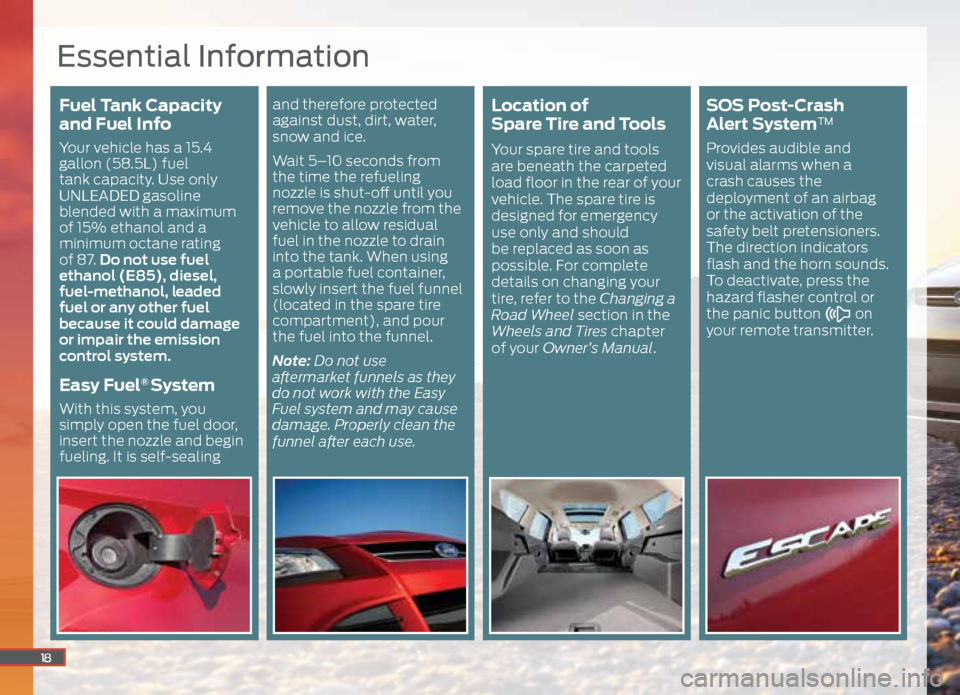

Convenience

Fuel Tank Capacity
and Fuel Info
Your vehicle has a 15.4
gallon (58.5L) fuel
tank capacity. Use only
UNLEADED gasoline
blended with a maximum
of 15% ethanol and a
minimum octane rating
of 87. Do not use fuel
ethanol (E85), diesel,
fuel-methanol, leaded
fuel or any other fuel
because it could damage
or impair the emission
control system.
Easy Fuel® System
With this system, you
simply open the fuel door,
insert the nozzle and begin
fueling. It is self-sealing
and therefore protected
against dust, dirt, water,
snow and ice.
Wait 5–10 seconds from
the time the refueling
nozzle is shut-off until you
remove the nozzle from the
vehicle to allow residual
fuel in the nozzle to drain
into the tank. When using
a portable fuel container,
slowly insert the fuel funnel
(located in the spare tire
compartment), and pour
the fuel into the funnel.
Note: Do not use
aftermarket funnels as they
do not work with the Easy
Fuel system and may cause
damage. Properly clean the
funnel after each use.Location of
Spare Tire and Tools
Your spare tire and tools
are beneath the carpeted
load floor in the rear of your
vehicle. The spare tire is
designed for emergency
use only and should
be replaced as soon as
possible. For complete
details on changing your
tire, refer to the Changing a
Road Wheel section in the
Wheels and Tires chapter
of your Owner’s Manual.
SOS Post-Crash
Alert System™
Provides audible and
visual alarms when a
crash causes the
deployment of an airbag
or the activation of the
safety belt pretensioners.
The direction indicators
flash and the horn sounds.
To deactivate, press the
hazard flasher control or
the panic button
on
your remote transmitter.
18
Essential Information

Towing Your Escape
Towing your vehicle behind
an RV or any other vehicle
may be limited. Refer to
Towing the Vehicle on
Four Wheels section in the
Towing chapter of your
Owner’s Manual.
Tire Pressure
Monitoring System
Your vehicle shows a low
tire pressure warning light in your instrument
cluster when one or more
of your tires are significantly
under-inflated. If this
happens, stop and check
your tires as soon as
possible. Inflate them to
the proper pressure.
Refer to the Inflating Your
Tires section in the Wheels
and Tires chapter of
your Owner’s Manual for
more information.
Fuel-efficient
Transmission
Your vehicle has been
designed to improve fuel
economy by reducing fuel
usage while coasting or
decelerating. This may
be perceived as a light to
medium braking sensation
when removing your foot
from the accelerator pedal.
Rear Window Buffeting
You may hear a pulsing
noise when just one of the
windows is open. Lower the
opposite window slightly to
reduce this noise. Press the
switch to open the window.
Lift the switch to close
the window.
Front and Rear
Sensing System*
This system sounds an
audible warning tone if
there is an obstacle near
the vehicle’s front or rear
bumpers. As the vehicle
moves closer to the
obstacle, the rate of the
warning tone increases
in frequency. The front
sensors are automatically
activated when the vehicle
is in drive (D) and the
vehicle speed is below
6 mph (10 km/h). The
system can detect
objects up to 27 inches
(70 centimeters) away
from the front of the
vehicle and about 14 inches
(35 centimeters) to the
side of the front end.

Essential Information continued
The rear sensors are active
only when the vehicle is
in reverse (R), and can
detect objects up to 6 feet
(1.8 meters) away, with
decreased coverage at
the outer corners of the
bumper). See the Parking
Aids chapter in your Owner’s
Manual for complete
information on your
vehicle’s sensing systems.
Note: Visibility aids do
not replace the need to
watch where the vehicle
is moving. Refer to your
Owner’s Manual for safety
information, more details
and limitations.
Roadside Assistance
Your new Ford vehicle
comes with the assurance
and support of 24-hour
emergency roadside
assistance. To receive
roadside assistance in
the United States, call
1-800-241-3673.
In Canada, call
1-800-665-2006.
19*if equipped
