2015 FIAT DUCATO knowing the instrument panel

What it means What to do
FUEL CUT-OFF DEVICE INERTIA SWITCH
TRIPPED
(Versions with reconfigurable multifunction
display)
This symbol on the display switches on when the
fuel cut-off device inertia switch has tripped.For the fuel cut-off inertia switch reactivation
procedure, refer to the "Electrical power supply
and fuel cut-off switch" section in the "Knowing
your vehicle" chapter. If it is still not possible to
restore the fuel supply, contact a Fiat Dealership.
PARKING SENSOR FAILURE
(Versions with reconfigurable multifunction
display)
The symbol switches on together with a
dedicated message to indicate a failure of the
parking sensors.
DRIVING ADVISOR SYSTEM FAILURE
(Versions with reconfigurable multifunction
display)
The symbol switches on in the display with the
two direction warning lights
andlighting up,
along with an acoustic signal and a dedicated
message.
TRAFFIC SIGN RECOGNITION FAILURE
The symbol switches on in the display together
with a dedicated message to indicate a failure of
the Traffic Sign Recognition.
LIMITED RANGE
The display shows a dedicated message to warn
the driver that the vehicle's range is less than 50
km.
154
KNOWING THE INSTRUMENT PANEL

Warning lights on
panelWhat it means What to do
INDICATION OF DIESEL EMISSIONS ADDITIVE LOW LEVEL
(UREA)
❒Thefirst low level warning is given at around 1,200 km range and is
determined according to the current consumption rate. The UREA low
level warning light and message for topping up are shown on the
instrument panel. The UREA low level warning light remains lit until the
UREA tank is topped up with at least 3 litres of UREA.
❒If topping up is not executed, an additional warning appears at the
following km left until the UREA tank is empty: 400 km, 320 km, 240
km.
❒When 200 km are remaining before the UREA tank is empty, a
continuous message appears on the instrument panel accompanied by
a buzzer sound.
❒When the range is 0 km, the display (for versions/markets where
provided) will show a dedicated message. In this case, the vehicle
speed is limited to 50 km/h and, after turning it off, it is not possible to
restart the vehicle.
❒It is possible to restart the engine again as soon as the UREA is topped
up (the minimum amount to be added is 3 litres).
103)
Top up the UREA tank as
soon as possible with at
least 3 litres of UREA. If
topping up is done with
autonomy tank UREA to
zero, you must wait 2
minutes before starting
the vehicle.
WATER IN DIESEL FILTER (diesel versions)
The symbol switches on constantly when driving (along with a message
in the display), to indicate the presence of water in the diesel filter.
25)
156
KNOWING THE INSTRUMENT PANEL

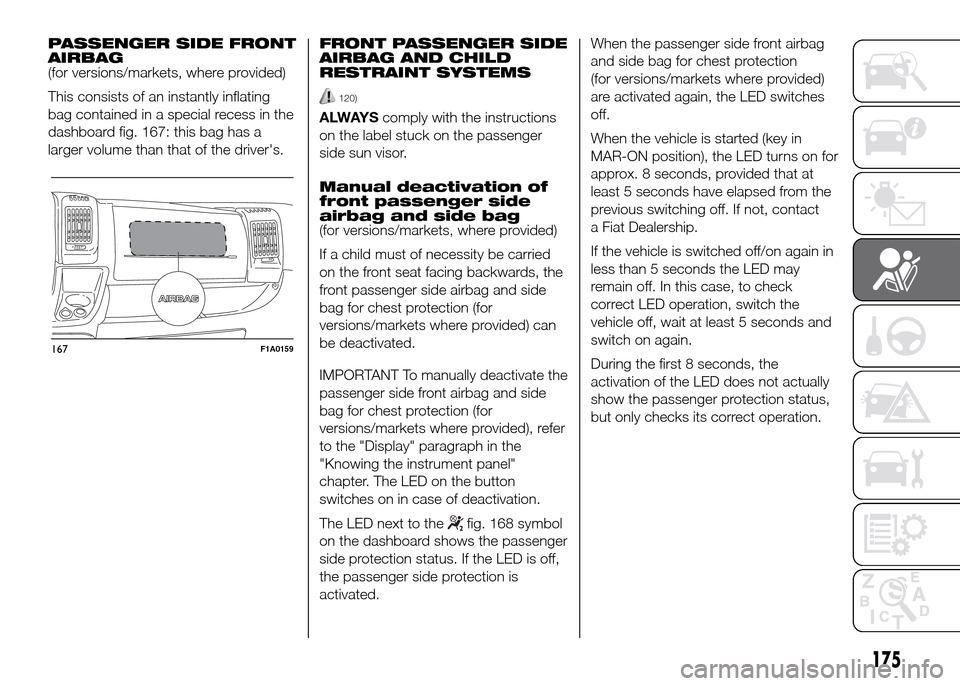

PASSENGER SIDE FRONT
AIRBAG
(for versions/markets, where provided)
This consists of an instantly inflating
bag contained in a special recess in the
dashboard fig. 167: this bag has a
larger volume than that of the driver's.FRONT PASSENGER SIDE
AIRBAG AND CHILD
RESTRAINT SYSTEMS
120)
ALWAYScomply with the instructions
on the label stuck on the passenger
side sun visor.
Manual deactivation of
front passenger side
airbag and side bag
(for versions/markets, where provided)
If a child must of necessity be carried
on the front seat facing backwards, the
front passenger side airbag and side
bag for chest protection (for
versions/markets where provided) can
be deactivated.
IMPORTANT To manually deactivate the
passenger side front airbag and side
bag for chest protection (for
versions/markets where provided), refer
to the "Display" paragraph in the
"Knowing the instrument panel"
chapter. The LED on the button
switches on in case of deactivation.
The LED next to the
fig. 168 symbol
on the dashboard shows the passenger
side protection status. If the LED is off,
the passenger side protection is
activated.When the passenger side front airbag
and side bag for chest protection
(for versions/markets where provided)
are activated again, the LED switches
off.
When the vehicle is started (key in
MAR-ON position), the LED turns on for
approx. 8 seconds, provided that at
least 5 seconds have elapsed from the
previous switching off. If not, contact
a Fiat Dealership.
If the vehicle is switched off/on again in
less than 5 seconds the LED may
remain off. In this case, to check
correct LED operation, switch the
vehicle off, wait at least 5 seconds and
switch on again.
During the first 8 seconds, the
activation of the LED does not actually
show the passenger protection status,
but only checks its correct operation.
167F1A0159
175
