❒The performance of the parking assistance system
may also be affected by the position of the
sensors. For example, if the geometry is altered
(as a result of wear of the shock absorbers,
suspension), the tyres are changed, the vehicle is
too heavily laden or specific tuning is carried
out that lowers the vehicle.
❒ The detection of obstacles at the top part of the
car may not be guaranteed because the system
detects obstacles that could cause an impact with
the car in the bottom part.
AT THE FILLING STATIONMOTORI DIESEL - Operation at low
temperatures
If the outside temperature is very low, diesel
thickens due to the formation of paraffin clots with
consequent defective operation of the fuel supply
system.
In order to avoid these problems, different types of
diesel are distributed according to the season:
summer type, winter type and arctic type
(cold/mountain areas). If refuelling with diesel fuel
whose specifications are not suitable for the current
temperature, it is advisable to mix TUTELA DIESEL
ART additive in the proportions shown on the
container. Pour the additive into the tank before the
diesel fuel.
When using or parking the car for a long time in the
mountains or cold areas, it is advisable to refuel
using locally available diesel. In this case, it is also
advisable to keep the tank over 50% full.
107GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

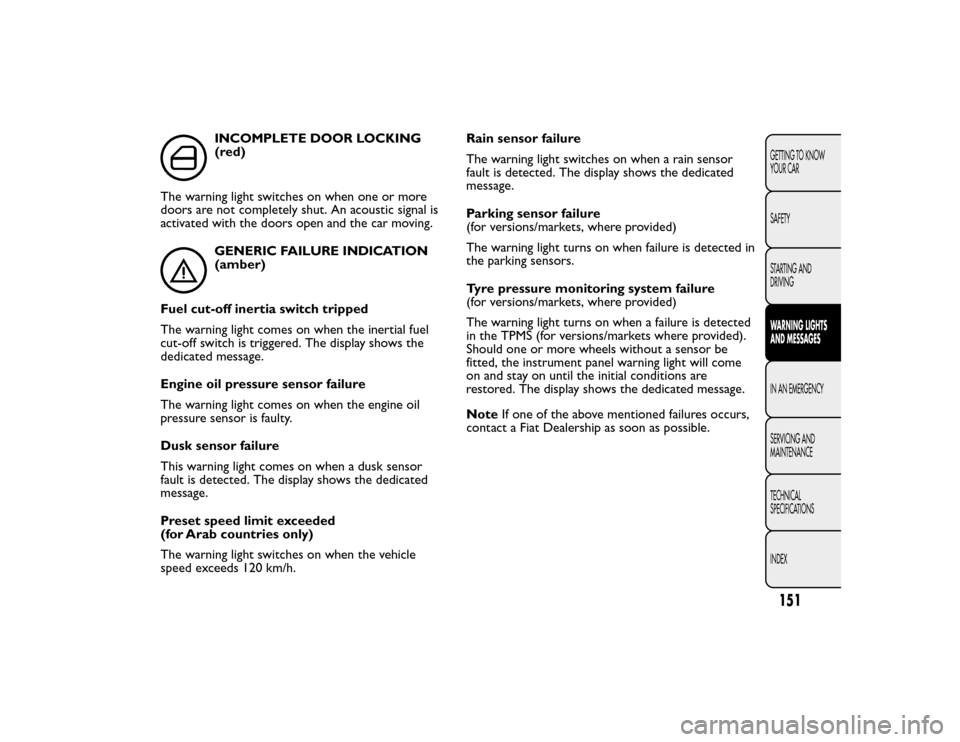

INCOMPLETE DOOR LOCKING
(red)
The warning light switches on when one or more
doors are not completely shut. An acoustic signal is
activated with the doors open and the car moving.GENERIC FAILURE INDICATION
(amber)
Fuel cut-off inertia switch tripped
The warning light comes on when the inertial fuel
cut-off switch is triggered. The display shows the
dedicated message.
Engine oil pressure sensor failure
The warning light comes on when the engine oil
pressure sensor is faulty.
Dusk sensor failure
This warning light comes on when a dusk sensor
fault is detected. The display shows the dedicated
message.
Preset speed limit exceeded
(for Arab countries only)
The warning light switches on when the vehicle
speed exceeds 120 km/h. Rain sensor failure
The warning light switches on when a rain sensor
fault is detected. The display shows the dedicated
message.
Parking sensor failure
(for versions/markets, where provided)
The warning light turns on when failure is detected in
the parking sensors.
Tyre pressure monitoring system failure
(for versions/markets, where provided)
The warning light turns on when a failure is detected
in the TPMS (for versions/markets where provided).
Should one or more wheels without a sensor be
fitted, the instrument panel warning light will come
on and stay on until the initial conditions are
restored. The display shows the dedicated message.
Note
If one of the above mentioned failures occurs,
contact a Fiat Dealership as soon as possible.
151GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

FUSE SUMMARY TABLEDashboard fuse boxFUSEAMPS
Right dipped headlight (halogen headlights) F127,5
Right dipped headlight (Bi-Xenon headlights) F1215
Left dipped headlight (halogen headlights) F137,5
Left dipped headlight (Bi-Xenon headlights) F1315
Reverse F355
3rd brake light F377,5
Rear fog light (driver's side) F537,5
Headlight alignment corrector system
(halogen headlights) F13
7,5
Relay switch coils on engine compartment fuse box
(CVM)/Body Computer control unit (NBC) F31
5
HI-FI audio system subwoofer amplifier F3215
Left rear electric window F3320
Right rear electric window F3420
Control on brake pedal (NC contact)/Water presence
in diesel sensor/Air flow meter F35
5
Central locking system control unit (CGP)
(door opening/closing, safe lock, tailgate release) F36
20
Control on brake pedal (normally open contact NO)/
Instrument panel (NQS)/Gas discharge bulbs control
units on front headlights F37
7,5
193GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Dashboard fuse boxFUSEAMPS
Radio and radio navigator /Radio setup//Blue&Me
TM
system/Alarm siren (CSA)/Alarm system on roof light/
Internal cooling unit/Tyre pressure monitoring system
control unit (CPP)/Diagnosis socket connector/Rear
roof lights F39
10
Heated rear window F4030
Electric door mirror demisters/Demisters on
windscreen jets F41
7,5
Windscreen wiper/Bi-directional windscreen/rear
window washer electric pump system on steering
column stalk F43
30
Current sockets/Cigar lighter F4415
Electric sun roof motor F4620
Front electric window (driver side) F4720
Front electric window (passenger side) F4820
Emergency control panel (lighting)/Right branch central
control panel (lighting, ASR switch) and left branch/
Steering wheel controls (lighting)/Control panel on
front roof light (lighting)/Volume sensing alarm system
control unit (deactivation)/Electric sun roof system
(control unit, control lighting)/Rain sensor/Dusk sensor
on rear view mirror/Heating pad activation controls on
front seats F49
5
194GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Dashboard fuse boxFUSEAMPS
Internal cooling unit/Radio setup/Cruise Control lever/
Blue&Me
TM
system control unit/Parking sensor control
unit (NSP)/Air pollution sensor (AQS)/Automatic
climate control system/Electric door mirrors
(adjustment, folding)/Tyre pressure monitoring system
control unit (CPP) F51
5
Rear window wiper F5215
Instrument Panel (NQS) F537,5
195GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
