2015 DACIA SANDERO power steering

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.13
ENG_UD26927_1
Volant de direction/Heure (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_1
Press and hold button 3 to enter the
hour setting mode.
When only the hours flash, press
button 3 briefly, to scroll through them.
Press and hold button 3 to enter the
minute setting mode.
When only the minutes flash, press
button 3 briefly, to scroll through them.
Confirm by pressing and holding
button 3.
STEERING WHEEL/CLOCK
Adjusting the steering wheel
Depending on the vehicle, the steering
wheel position is adjustable.
Pull lever 1 and move the steering
wheel to the required position.
Then push the lever to lock the steer-
ing wheel.
Make sure that the steering wheel is
correctly locked.
For safety reasons, carry
out any adjustments when
the vehicle is stationary.
Setting the time
Resetting the clock 2
Display the “Clock” display on the instru-
ment panel by pressing the button 3.
2
3
If the power supply is cut (battery
disconnected, supply wire cut, etc.),
the clock must be reset.For your safety, we recom-
mend that you do not adjust
the clock while driving.
1

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.1
ENG_UD34968_6
Sommaire 2 (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_2
Section 2: Driving
(Advice on use relating to fuel economy and the environment)
Running in, Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . 2.2
Special features of petrol versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . 2.4
Special features of diesel versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . 2.5
Special features of LPG versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . 2.6
Gear lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.9
Driving advice, Eco-driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . 2.10
Maintenance and antipollution advice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . 2.14
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.15
Tyre pressure loss warning . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.16
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.19
Power-assisted steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . 2.19
Driver correction devices and aids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . 2.20
Speed limiter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.24
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.27
Parking distance control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . 2.31
Sequential gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.33

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.3
ENG_UD32517_2
Démarrage, Arrêt du moteur GPL (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_2
Special note
Depending on the vehicle, accessories
(e.g. radio) stop working either when
the engine is switched off or when the
doors are locked.
STARTING/STOPPING THE ENGINE
Starting the engine
In very cold conditions (temperatures
below –20°C): so that it is easier to
start the engine, switch on the ignition
for several seconds before starting the
engine.
Feature when starting the engine, if the
outdoor temperature is very low (below
- 10 ° C): hold down the clutch pedal
until the engine starts.
Petrol injection
– Activate the starter without de-
pressing the accelerator.
– Release the key as soon as the engine starts.
ÉDiesel injection
Turn the ignition key to ignition
“On” position M, and hold this position
until the preheating warning light goes
out.
Move the key to “Start” position D with-
out accelerating. Release the key as
soon as the engine starts. LPG versions
The engine is always started using
petrol:
– activate the starter without accelerat-
ing;
– release the key as soon as the engine starts.
The system will automatically deter-
mine the switchover from petrol to LPG.
When operating on LPG, the fuel gauge
may indicate a drop in the petrol level
and the on-board computer will not op-
erate.
Every 3,000 miles driven using LPG,
drivers are recommended to drive for
around 3 to 6 miles in petrol mode.
To enable the system to operate
smoothly and to prevent any wear to
the vehicle’s electric petrol pump, the
petrol tank should always be around
1/4 full.
Stopping the engine
With the engine idling, turn the key
back to “Stop” position St.
Never leave your vehicle
with the key or remote con-
trol inside and never leave
a child (or a pet) unsuper-
vised, even for a short while.
The reason for this is that the child
may endanger himself or others by
starting the engine, activating equip-
ment such as the window winders
for example, or locking the doors.
Risk of serious injury.
Never switch off the ignition
before the vehicle has stopped
completely . Once the engine has
stopped, the brake servo, power as-
sisted steering and passive safety
equipment such as air bags will no
longer operate.
The steering is locked when the key
is removed.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.19
ENG_UD26942_1
Frein à main / Direction assistée (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_2
Power-assisted steering With the engine running, do not leave
the steering wheel at full lock while sta-
tionary as this may damage the power-
assisted steering pump.
Never drive with an inadequately
charged battery.
With the engine switched off, or if there
is a system fault, it is still possible to
turn the steering wheel. The force re-
quired will be greater.
Handbrake
To release
Pull lever 1 up slightly, press button 2
and then lower the lever to the floor.
The red warning light on the instrument
panel will come on if you are driving
with an incorrectly released handbrake.
Depending on the gradient
and/or vehicle load, it may
be necessary when station-
ary to apply the brake by
at least a further two notches and
engage a gear (1
st or reverse gear).
Do not switch off the engine
when driving downhill and,
as a general rule, when
driving (the power-assisted
steering and brake cannot operate
normally).
Make sure that the hand-
brake is properly released
when driving (red indicator
light off), otherwise over-
heating, or even damage, may
occur.
1
2
HANDBRAKE/POWER-ASSISTED STEERING
To apply
Pull lever 1 upwards and make sure the
vehicle is immobilised.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.21
ENG_UD32519_4
Dispositifs de correction et d’assistance à la conduite (X52 - Da\
cia)
ENG_NU_993-5_X52_Dacia_2
DRIVER CORRECTION DEVICES/AIDS (2/4)
Electronic stability control
ESC with understeer control
and traction control ASR
Electronic stability control ESC
(depending on vehicle)
This system helps you to keep control
of the vehicle in critical driving condi-
tions (avoiding an obstacle, loss of grip
on a bend, etc.).
Operating principle
A sensor in the steering wheel detects
the direction selected by the driver.
Other sensors throughout the vehicle
measure the actual direction.
The system compares the direction se-
lected by the driver and the actual di-
rection of the vehicle and corrects this
as necessary by applying the brakes
selectively and/or acting on the engine
power. Understeer control
This system optimises the action of the
ESC in the case of pronounced un-
dersteer (loss of front axle road hol-
ding).
Traction control ASR
This system helps to limit wheelspin of
the drive wheels and to control the vehi-
cle when pulling away accelerating or
decelerating.
Operating principle
Using the wheel sensors, the system
measures and compares the speed of
the drive wheels at all times and slows
down their over-rotation. If a wheel is
starting to slip, the system brakes au-
tomatically until the drive supplied be-
comes compatible with the level of grip
under the wheel again.
The system also adjusts the engine
speed to the grip available under the
wheels, independently of the pressure
exerted on the accelerator pedal.
Warning light
 on the instrument
panel flashes when the function ESC
starts operating (with ASR).
These functions are an ad-
ditional aid in the event of
critical driving conditions,
enabling the vehicle beha-
viour to be adapted to suit the dri-
ving conditions.
However, the functions do not take
the place of the driver. They do
not increase the vehicle’s limits
and should not encourage you
to drive more quickly. Therefore,
they can under no circumstances
replace the vigilance or responsibi-
lity of the driver when manoeuvring
the vehicle (the driver must always
be ready for sudden incidents which
may occur when driving).
Operating fault
When the system detects an opera-
ting fault, the
 warning light on
the instrument panel comes on. In this
case, the ESC and the ASR are deac-
tivated.
Please contact an authorised dealer.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
4.1
ENG_UD34971_6
Sommaire 4 (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_4
Section 4: Maintenance
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.2
Engine oil level: general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . 4.3
Engine oil level: topping up, filling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . 4.4
Levels: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.7
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . 4.7
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . 4.8
Windscreen washer reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . 4.8

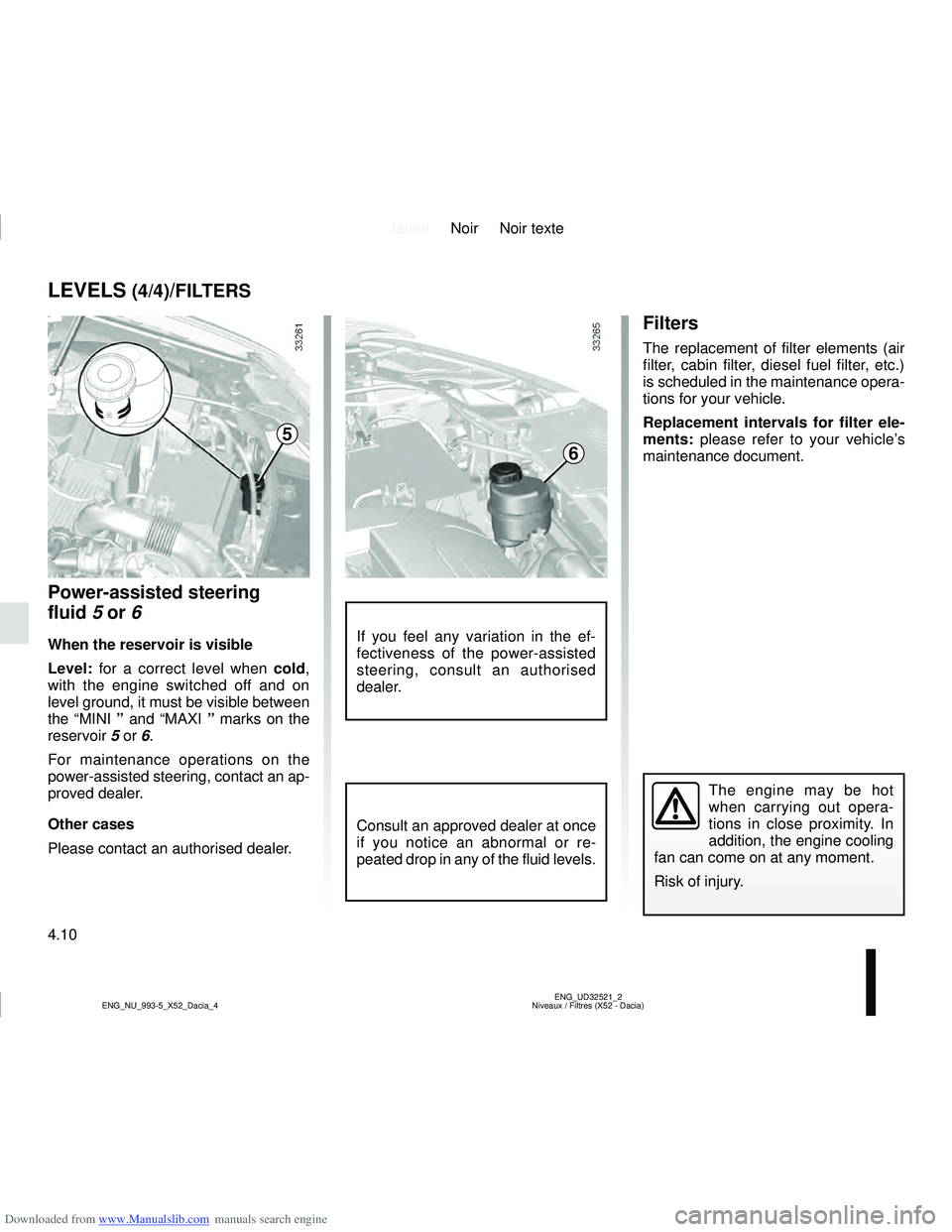

Power-assisted steering fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . 4.10
Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.10
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.11
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.12
Bodywork maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . 4.13
Interior trim maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . 4.15

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
4.10
ENG_UD32521_2
Niveaux / Filtres (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_4
LEVELS (4/4)/FILTERS
Power-assisted steering
fluid 5 or 6
When the reservoir is visible
Level: for a correct level when cold,
with the engine switched off and on
level ground, it must be visible between
the “MINI ” and “MAXI ” marks on the
reservoir 5 or 6.
For maintenance operations on the
power-assisted steering, contact an ap-
proved dealer.
Other cases
Please contact an authorised dealer.
Filters
The replacement of filter elements (air
filter, cabin filter, diesel fuel filter, etc.)
is scheduled in the maintenance opera-
tions for your vehicle.
Replacement intervals for filter ele-
ments: please refer to your vehicle’s
maintenance document.
Consult an approved dealer at once
if you notice an abnormal or re-
peated drop in any of the fluid levels.
The engine may be hot
when carrying out opera-
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
5
6
If you feel any variation in the ef-
fectiveness of the power-assisted
steering, consult an authorised
dealer.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.29
ENG_UD34867_5
Fusibles GPL X52 (X52 - Dacia)
ENG_NU_993-5_X52_Dacia_5
Number Allocation
A Empty location
B Driver’s side window
winder
C to J Empty spaces
1 Front electric window
2 Left-hand main beam
headlight
3 Right-hand main beam
headlight
4 Left-hand dipped beam
headlight
5 Right-hand dipped beam
headlight
6 Left-hand side lights
7 Right-hand side lights
8 Rear electric windows
9 Rear fog lights
10 Horn
11 Automatic door lockingNumber Allocation
12 ABS-ESC, brake switch
13 Interior lights, window
winder, air conditioning,
boot light
14 ESC
15 Reverse gear, windscreen
wiper
16 Cruise control/Speed
limiter, heated door
mirrors, rear windscreen,
unfastened seatbelt
warning, parking distance
control, multimedia,
heated windscreen
17 Daytime running lights
18 Brake lights
19 Injection
20 Airbag
21 LPG circuit shut-off or
LPG circuit and petrol
fuel circuit shut-off or
sequential gearbox or
automatic gearbox
FUSES (4/4)
Number Allocation
22 Power-assisted steering
23
and 28 Location reserved for
additional equipment.
24 Direction indicator lights
25
and 26 Passenger compartment
ECU
27
and 29 Steering column control
30 Empty location
31 Instrument panel
32 Radio
33 Cigar lighter
34 Diagnostics and radio
socket
35 Defrosting rearview mirror
36 Electric door mirrors
37 Starter
38 Windscreen wiper
39 Passenger compartment
ventilation
