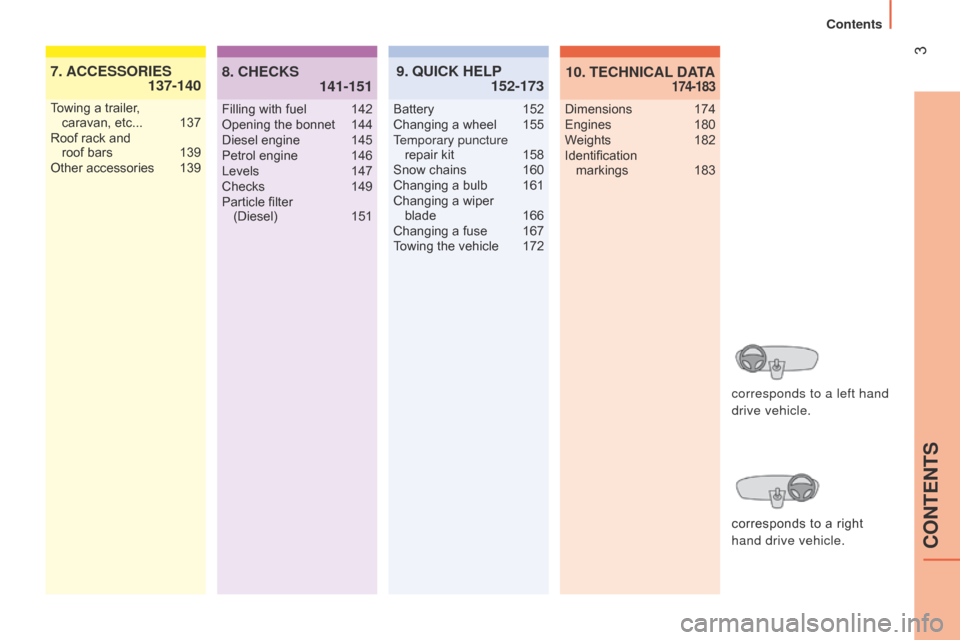

10. 174-183TECHNICAL DATA
7. 137-140
ACCESSORIES

Towing a trailer,
caravan, etc... 137
Roof rack and

roof bars

139
Other accessories


139Filling with fuel

142
Opening the bonnet

144
Diesel engine


145
Petrol engine


146
Levels


147
Checks


149
Particle filter


(Diesel)

151
9. 152-173
QUICK HELP
8. 141-151
CHECKS
Battery 152
Changing a wheel 155
T
emporary puncture repair kit

158
Snow chains


160
Changing a bulb


161
Changing a wiper
blade


166
Changing a fuse


167
T

owing the vehicle
172Dimensions

174
Engines
180
W
eights
182
Identification
markings


183
corresponds to a left hand


drive vehicle.
corresponds to a right
hand drive vehicle.

CONTENTS
Contents

16
Emission controls ....................34, 151
Bulbs, lighting, changing

bulbs
.......

.............................
161-165
Opening the bonnet
....................... 144
Under the bonnet


....................
145-146
Identification markings,
serial number, paint,
tyres

............................................ 183Changing a wiper blade
.................
166
Engine technical data


.............180-181
d

imensions


............................ 174-175,
176-177, 178-179
Weights

.......................................... 182
TECHNICAL DATA - MAINTENANCE
Levels .....................................147-14 8
●
dipstick,
●


power steering fluid,
●


brake fluid,
●


coolant,
●


screenw
ash.
Checks.................................... 149-151
●

battery
,
●

air/passenger compartment filter
,
●

oil filter
,
●

particle emissions filter (1.3 HDi 75),
●


parking brake,
●


brake pads.
Engine fuses


...................167, 170-171
Location

24
Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance (roof\

bars, roof rack, bicycle carrier, trailer...). Use a roof box in preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your summer tyres.
Observe the recommendations on maintenance
Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:
-
before a long journey
,
-

at each change of season,
-


after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.
Have your vehicle serviced regularly (engine oil, oil filter

, air filter,
passenger compartment filter...) and observe the schedule of
operations recommended in the maintenance and warranty guide.
When refuelling, do not continue after the third cut-off of the nozzle to
avoid any overflow.
At the wheel of your new vehicle, it is only after the first 1 800 miles
(3 000 kilometres) that you will see the fuel consumption settle down to
a consistent average.
Motoring & Environment

26WARNING LAMPS
Every time the engine is started: a series of warning lamps comes on applying a self-checking test.
They go off almost immediately. When the engine is running: the warning lamp becomes a warning sign if it remains on continuously or
flashes. This initial warning may be accompanied by an audible signal and a message in the screen. "Do not ignore these warnings."
Warning lampisindicates Solution - action
Service on temporarily. minor faults.
Contact a CITR
o Ë n dealer or a qualified
workshop.
continuously on,
accompanied by a
message in the screen. major faults. Make a note of the warning message and
contact a CITR
o Ë n dealer or qualified
workshop.
Parking brake
Brake fluid level on.
that the parking brake is applied or
has not been released correctly.Releasing the parking brake switches off the
warning lamp.
on. that the fluid level is too
low. Top up using a fluid recommended by CITROËN
dealers.
continuously on, even
though the level is
correct. Stop as soon as it is safe to do so. Park,
switch off the ignition and contact a
CITROËN dealer or qualified workshop.
Low engine oil level on.
that the level of oil in the
engine is too low. Check the engine oil level and contact a
CITROËN dealer or a qualified workshop.
continuously on, even
though the level is
correct. Stop as soon as it is safe to do so. Park,
switch off the ignition and contact a
CITROËN dealer or a qualified workshop.
Coolant temperature on with the needle in
the red zone.
an abnormal increase. Park and switch off the ignition, allow the system
to cool. Visually check the level.
on H in the red zone. the coolant temperature is
too high. "Checks - Levels" section.
Contact a CITR
o Ë n dealer or a qualified
workshop.
Instruments and controls

27
Warning lampisindicates Solution - action
Engine oil on while driving, with
a message in the
screen.
that the engine oil
pressure is too low.
Park and switch off the ignition and contact a
CITROËN dealer or a qualified workshop.
flashing, with a
message in the
screen (1.3 HDi 75
only). deteriorated engine oil.
Have the vehicle services as soon as possible to
avoid damage to the engine.
Battery charge on.
a fault in the charging
circuit. Check the battery terminals…
"Quick help - Battery" section.
continuously on, in
spite of the checks. an ignition or injection
fault. Contact a CITR
o Ë n dealer or a qualified
workshop.
d

oor open detection on.
that a door is not closed
correctly. Check that the front, rear and side doors are
closed.
accompanied by a
message in the screen.
Seat belt not fastened on then flashes.
that the driver has not
fastened his seat belt. Pull the strap then insert the tongue in the
buckle.
accompanied by an
audible signal then
remains on. that the vehicle is moving
with the driver's seat belt
unfastened. Check that the seat belt is fastened correctly by
pulling the strap.
"Safety - Seat belts" section.
flashing,
accompanied by an
audible signal the front passenger has
not fastened their seat
belt.
Pull on the strap and insert the tongue in the
buckle.
3
READY TO GO
Instruments and controls

30
Warning lampisindicates Solution - action
Electronic
anti-theft on.the ignition key introduced
is not recognised.
Starting impossible. Use another key and have the faulty key
checked by a CITROËN dealer.
"Ready to go - Access" section.
Emissions control
system flashing or on
continuously.
a fault with the system. Have it checked as soon as possible by a
CITROËN dealer or a qualified workshop.
Low fuel level on with the gauge
needle in zone E.that the fuel reserve is
being used. Refuel without delay. The assessment of the
fuel reserve is sensitive to the style of driving,
the profile of the road, the time elapsed and the
distance travelled since the warning lamp first
came on.
Particle filter on, accompanied by
an audible signal and
a message in the
screen.the start of saturation of
the particle filter.
Regenerate the filter as soon as possible.
"Checks" section.
Presence of water in
the
d
iesel filter on, accompanied by
a message in the
screen. water in the
d iesel fuel
filter. Have the filter bled by a CITR
o Ë n dealer or a
qualified workshop.
"Checks" section.
Diesel pre-heating on.that the weather
conditions impose pre-
heating (up to around
30 seconds in extreme
climatic conditions). Wait for the warning lamp to switch off before
operating the starter.
If the engine does not start, switch the ignition
off and on again, wait for the warning lamp to go
off, and start the engine.
Instruments and controls

34
FUEL GAUGE
The fuel level is tested every time the
ignition is switched on.
If the gauge is positioned on:
-
f (full):
the capacity of the fuel tank is
approximately 45 litres.
-

e (empty):
the reserve is now being
used, the warning lamp comes on
continuously.
The low fuel warning first comes on when
approximately 6 litres of fuel is left.
COOLANT TEMPERATURE
- wait approximately 15 minutes to allow
the engine to cool down in order to check
the level and top it up if necessary. The
cooling system is pressurised. In order to
avoid any risk of scalding, unscrew the
cap by two turns to allow the pressure to
drop.
When the pressure has dropped, check the
level and remove the cap to top up.
If the needle remains in the red zone,
contact a CITROËN or a qualified workshop.
EMISSIONS CONTROL
EOBD (European On Board Diagnosis) is a
diagnostics system which meets the exhaust
emissions standards for:
-

CO (carbon monoxide),
-


HC (unburnt hydrocarbons),
-


NOx (nitrous oxides) or particles detected

by oxygen sensors placed upstream and
downstream of the catalytic converters.
Refer to the "Checks - Levels" section. Refer to the "Checks - Levels" section.
The driver is warned of any
fault with this emission control
system by flashing of this specific
warning lamp in the instrument
panel.
If the needle enters the red zone, or
if the warning lamp comes on:
The needle is positioned between c (cold)
and h (hot): normal operation.
In arduous conditions of use or hot climatic
conditions, the needle may move close to
the red graduations.
-

stop immediately

, switch off the ignition.
The cooling fan may continue to operate
for a certain time up to approximately
10 minutes.
Instruments and controls

35SERVICE INDICATORENGINE OIL WARNING LAMP
L IGHTING DIMMER
The dimmer is active when the sidelamps
are on.
Refer to the list of checks in the
maintenance and warranty guide which
was given to you on delivery of the
vehicle.
a

fter a few seconds, the screen returns to its
usual functions.
Use these controls to adjust the
brightness of the instrument
panel and the audio system panel
lighting.
The screen in the instrument panel informs
you when the next service is due, in
accordance with the Manufacturer's servicing
schedule indicated in the maintenance
and warranty guide. This information is
determined in relation to the distance
travelled since the previous service.
Low engine oil pressure
Oil deterioration (1.3 HDi 75 hp engine only)The warning lamp comes on
continuously, accompanied by a
message in the instrument panel
screen, when the system detects
that the oil pressure is too low.
The warning lamp flashes,
accompanied by a message in the
instrument panel screen, when the
system detects deterioration of the
engine oil. The flashing of this warning lamp
should not be considered as a fault wit the
vehicle, but rather as an indication to the
driver that the normal use of the vehicle now
requires that the oil be changed.
If the oil is not changed, when a
second level of deterioration is
reached, the emissions warning
lamp comes on in the instrument
panel and the engine speed is restricted to
3000 rpm. To avoid damaging the engine, it is
recommended that the oil be changed
on flashing of the engine oil warning lamp.
Stop as soon as it is safe to do so: park,
switch off the ignition and contact a
CITROËN dealer or a qualified workshop. If the oil is still not changed, when a third
level of deterioration is reached, the engine
speed is restricted to 1500 rpm, so as to
avoid any damage.
3
READY TO GO
Instruments and controls
