182

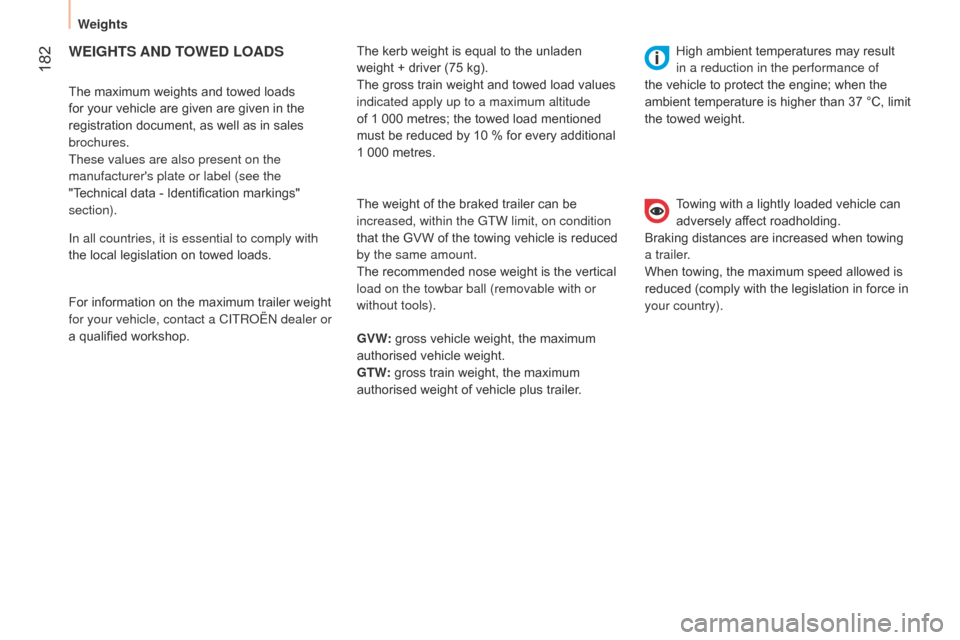

WEIGHTS AND TOWED LOADS
The maximum weights and towed loads
for your vehicle are given are given in the
registration document, as well as in sales
brochures.
These values are also present on the
manufacturer's plate or label (see the
"Technical data - Identification markings"
section). The kerb weight is equal to the unladen
weight
+ driver (75 kg).
The gross train weight and towed load values
indicated apply up to a maximum altitude
of 1
000 metres; the towed load mentioned
must be reduced by 10 % for every additional
1
000 metres.High ambient temperatures may result
in a reduction in the performance of
the vehicle to protect the engine; when the
ambient temperature is higher than 37 °C, limit
the towed weight.
Towing with a lightly loaded vehicle can
adversely affect roadholding.
Braking distances are increased when towing
a trailer.
When towing, the maximum speed allowed is
reduced (comply with the legislation in force in
your country).
For information on the maximum trailer weight
for your vehicle, contact a CITR
o Ë n dealer or
a qualified workshop. The weight of the braked trailer can be
increased, within the GTW limit, on condition
that the GVW of the towing vehicle is reduced
by the same amount.
The recommended nose weight is the vertical
load on the towbar ball (removable with or
without tools).
GVW: gross vehicle weight, the maximum
authorised vehicle weight.
GTW: gross train weight, the maximum
authorised weight of vehicle plus trailer.
In all countries, it is essential to comply with
the local legislation on towed loads.
Weights
183
IDENTIFICATION MARKINGS
A. Manufacturer's plateB. Serial number on the body
C. Paint code
D. Serial number on the dashboard
E. Tyre pressures
1.
VF
Type serial number.
2.
Gross vehicle weight (GVW).
3.
Gross train weight (GTW).
4.
Maximum weight on front axle.
5.
Maximum weight on rear axle.
Identification markings
TECHNICAL DATA
10
