2015 CITROEN JUMPY dimensions

CONTENTS
Contents
39. TECHNOLOGY on BOARD 5. ACCESSORIES 105-108
6. CHECKS 109-119
7. QUICK HELP 120-143
The "Technology on board"
section presents the new audio/
navigation systems.
Towing a trailer 105Other accessories 107Trade range 108
Opening the bonnet 109Diesel engines 110Petrol engine 111Levels 112Checks 114Fuel 117Fuel cut-off 118Diesel priming pump 118
Battery 120Puncture repair kit 122Changing a wheel 124Removable snow screen 128Snow chains 129Changing a bulb 130 a fuse 135 a wiper blade 140Towing the vehicle 141
8. TECHNICAL DATA 144-152
Dimensions 144Weights 150Identification markings 152
10. VISUAL SEARCH 153-160
Emergency or assistance 9.1eMyWay 9.3Audio system 9.63
The "Visual search" section
assists you in finding the
controls and functions and their
associated page numbers on
the schematic outlines of the
vehicle (visual index).
Exterior 153Instruments and controls 154Interior 156Technical data - Maintenance 157

7
4
7
8
3
2b
2
2a
7
Exterior
FAMILIARISATION
1
Key
: section identifi cation
: page identification 122
86
Rear suspension
Repairing a wheel Parking sensors
124
Changing a wheel
79
26
25 20
Side-hinged rear doors
Key - Remote control
Sliding side door
144
Usable dimensions

144
Dimensions

145
Dimensions
TECHNICAL DATA
8 * Value for rear suspension.
L1
L2
H1 H1 H2
L Overall length 4 805 to 4 813 5 135 to 5 143
H Overall height 1 894 * / 1 942 2 204 * / 2 276
A Wheelbase 3 000 3 122
B Front overhang 975
C Rear overhang 830 to 838 1 038 to 1 046
D Overall width:

over panels 1 870
with mouldings 1 895
with mirrors folded 1 986
with mirrors unfolded 2 194
E Width of front track 1 562 to 1 570
F Width of rear track 1 596 to 1 604
I Length of interior floor 2 254 2 584
J Maximum interior height under roof 1 449 1 750
K Maximum interior width 1 600
M Interior width between wheel arches 1 245
Turning circle between kerbs (m) 12.18 12.59
Maximum loads (kg)
Payload 1 000 to 1 200
On roof 170
m
3 5 6 7
DIMENSIONS (MM)
The vehicle is available in 2 lengths (L1, L2) and 2 heights (H1, H2)\
,
refer to the tables:

146
Dimensions REAR DOORS (mm)
L1 L2
H1 H1 H2
N Usable height 1 272 1 630
O Usable width 1 237

147
Dimensions
TECHNICAL DATA
8
SLIDING SIDE DOOR (mm)
L1 L2
H1 H1 H2
P Height 1 293 1 301
Q Width 924

148
Dimensions

149
Dimensions
TECHNICAL DATA
8

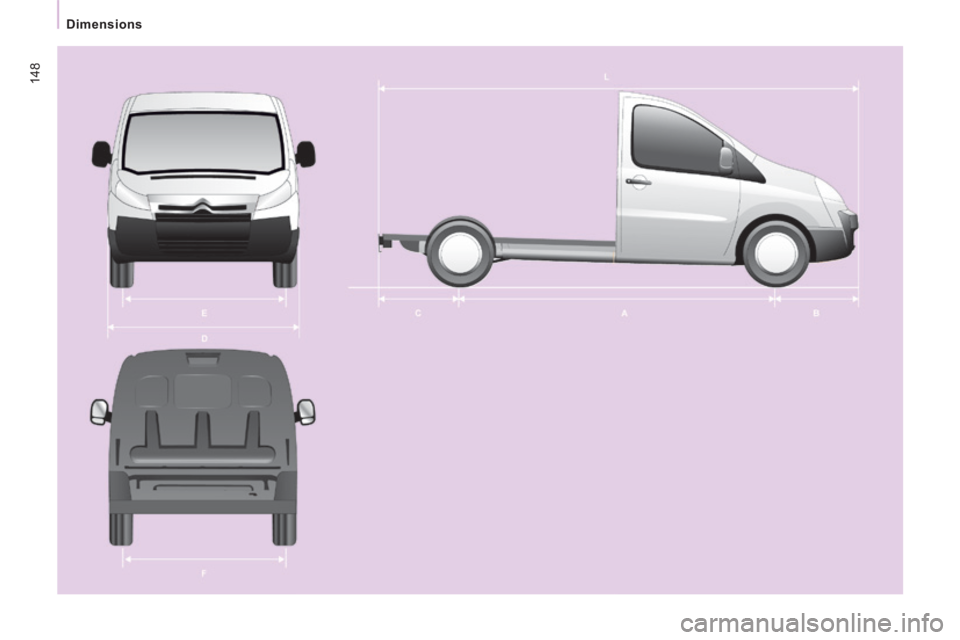

PLATFORM CAB (mm)
L2
L Overall length 5 016
A Wheelbase 3 122
B Front overhang 975
C Rear overhang 920
Max rear body overhang 1 420
D Overall width (excluding mirrors) 1 895
E Width of front track 1 574
F Width of rear track 1 574
- Gross vehicle weight -
- Max weight at the front 1 400
- Max weight at the rear 1 700
