2015 Citroen DS5 stop start

95
DS5_en_Chap03_confort_ed01-2015
F Switch off the demisting/defrosting of the rear screen and door mirrors
as soon as appropriate, as lower
current consumption results in
reduced fuel consumption.
Front demist -
defrost Rear screen and door mirrors demist
-
defrost
F It is possible to stop the
demisting/defrosting operation
before it is switched off
automatically by pressing the
button again. The indicator
lamp associated with the
button goes off.
Automatic visibility programmeSwitching on
With Stop & Start, when demisting has
been activated, the STOP mode is not
available.
Switching off
The demisting/defrosting switches off automatically
to prevent an excessive consumption of current.
F Select this programme to demist or defrost the
windscreen and side windows
as quickly as possible.
The system automatically manages the air
conditioning, air flow and air intake, and
provides optimum distribution towards the
windscreen and side windows.
F

To stop the programme, press either
the " visibility" button again or "AUTO" , the
indicator lamp in the button goes off and the
indicator lamp in the "AUTO" button comes on.
The system starts again with the values in
use before it was overridden by the visibility
programme. F

P
ress this button (located on
the air conditioning system
control panel) to demist /defrost
the rear screen and the door
mirrors. The indicator lamp
associated with the button
comes on.
The rear screen demist - defrost
can only operate when the engine is
running.
comfort

DS5_en_Chap04_conduite_ed01-2015

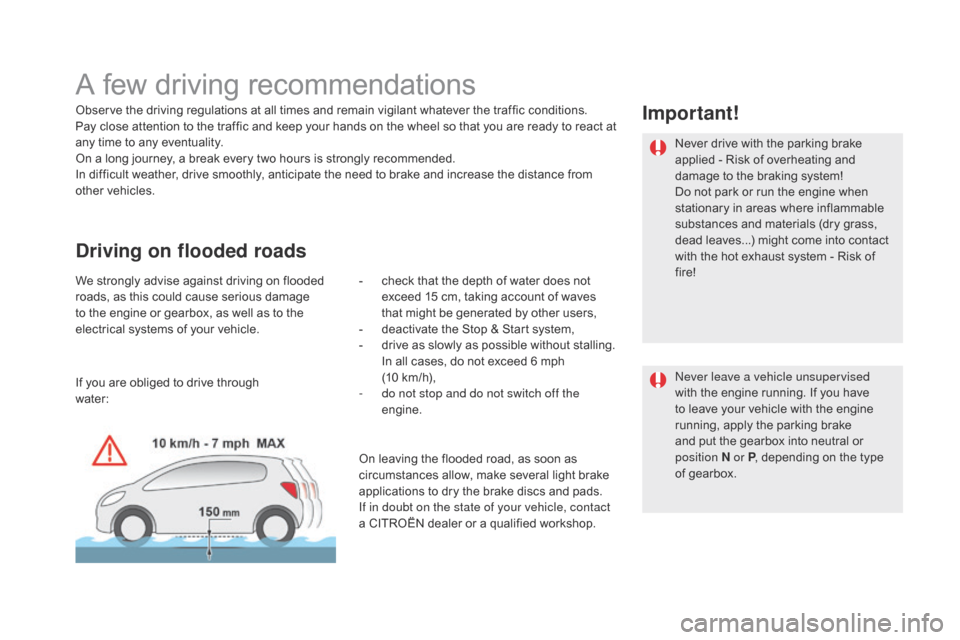

A few driving recommendations
Observe the driving regulations at all times and remain vigilant whatever the traffic conditions.
Pay close attention to the traffic and keep your hands on the wheel so that you are ready to react at
any time to any eventuality.
On a long journey, a break every two hours is strongly recommended.
In difficult weather, drive smoothly, anticipate the need to brake and increase the distance from
other vehicles.
driving on flooded roads
We strongly advise against driving on flooded
roads, as this could cause serious damage
to the engine or gearbox, as well as to the
electrical systems of your vehicle.-
c heck that the depth of water does not
exceed 15 cm, taking account of waves
that might be generated by other users,
-

d
eactivate the Stop & Start system,
-

d
rive as slowly as possible without stalling.
In all cases, do not exceed 6 mph
(10 km/h),
-

d
o not stop and do not switch off the
engine.
Important!
Never drive with the parking brake
applied - Risk of overheating and
damage to the braking system!
Do not park or run the engine when
stationary in areas where inflammable
substances and materials (dry grass,
dead leaves...) might come into contact
with the hot exhaust system - Risk of
fire!
Never leave a vehicle unsupervised
with the engine running. If you have
to leave your vehicle with the engine
running, apply the parking brake
and put the gearbox into neutral or
position


N or P, depending on the type
of gearbox.
If you are obliged to drive through
water:
On leaving the flooded road, as soon as
circumstances allow, make several light brake
applications to dry the brake discs and pads.
If in doubt on the state of your vehicle, contact
a CITROËN dealer or a qualified workshop.

99
DS5_en_Chap04_conduite_ed01-2015
Starting-switching off the engine
F Insert the electronic key in the reader.
F P ress the brake pedal for vehicles with
an automatic or electronic gearbox, or
fully declutch for vehicles with a manual
gearbox.
Starting using
the electronic key Starting with the "Keyless
Entry and Starting"
system
If one of the starting conditions is not
met, a reminder message appears in
the instrument panel screen. In some
circumstances, it is necessary to turn
the steering wheel slightly while pressing
the "START/STOP" button to assist
unlocking of the steering; a message
warns you when this is needed.
With a manual gearbox
, put the gear lever in neutral.
With an electronic gearbox , put the gear lever in N.
With an automatic gearbox , put the gear lever in P or N.
For
d iesel vehicles, in
temperatures below zero the
engine will not start until the
preheater warning lamp has gone off.
If this warning lamp comes on after
pressing "START/STOP", you should
hold the brake or clutch pedal down
until the warning lamp goes off and
do not press the START/STOP button
again.
F

W

ith the electronic key inside the vehicle
(it is not necessary to put it in the reader),
press the brake pedal for vehicles with
an automatic or electronic gearbox, or
fully declutch for vehicles with a manual
gearbox.
F

P

ress the " START/STOP "
button.
T

he engine starts (see the
warning below for Diesel
vehicles). F

P

ress the " START/STOP "
button.
T

he engine starts (see the
warning below for Diesel
vehicles). The "Keyless Entry and Starting" device
must be in the recognition zone.
For safety reasons, do not leave
this
zone with the vehicle running.
driving

DS5_en_Chap04_conduite_ed01-2015
Switching off using the
electronic key
F Immobilise the vehicle.
Electronic key left in the reader
If the electronic key is left in the reader,
on opening the driver's door a message
appears to warn you.
Stopping with the "Keyless
Entry and Starting"
system
F Immobilise the vehicle.If the vehicle is not immobilised, the
engine will not stop.
Switching the ignition on
(without starting)
F With the electronic key inside the vehicle, press the " S TA R T/
STOP " button.
T

he engine stops and the
steering column locks.
F

P
ress the "
START/STOP " button
T
he engine stops and the
steering column locks.
Anti-theft protection
Electronic engine immobiliser
The keys contain an electronic chip which has
a secret code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
This electronic engine immobiliser locks the
engine management system a few minutes
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
In the event of a malfunction, you are informed
by a message in the instrument panel screen.
In this case, your vehicle does not start; contact
a CITROËN dealer as soon as possible.
With the electronic key in the reader or the
Keyless Entry and Starting key inside the
vehicle, pressing the "START/STOP" button,
with no action on the pedals
, allows the
ignition to be switched on.
F

R

emove the electronic key from the reader. F

P

ress the "START/STOP" button,
the instrument panel comes on
but the engine does not start.
F

P

ress the button again to switch
off the ignition and so allow the
vehicle to be locked.
With the ignition on, the system goes
into energy economy mode when
necessary to maintain the state of
charge of the battery.
Switching off the engine leads to a loss
of braking assistance.

101
DS5_en_Chap04_conduite_ed01-2015
Emergency starting with the
"Keyless Entry and Starting"
system
When the electronic key is in the recognition
zone and your vehicle does not start after
pressing the "START/STOP" button:
F
I
nsert the electronic key in the reader.
F

P
ress the brake pedal on vehicles with an
automatic or electronic gearbox, or fully
declutch with a manual gearbox.
F

P
ress the "START/STOP" button.
T

he engine starts. In the event of an emergency only, the engine
can be switched of without conditions. To do
this, press and hold the "START/STOP" button
for about 3 seconds.
In this case the steering column locks as soon
as the vehicle stops.
If the electronic key is no longer in the
recognition zone when driving or when you
(later) request switching off the engine, a
message appears in the instrument panel.
Emergency switch-offElectronic key not recognised by
the "Keyless Entry and Starting"
system
F Press and hold the "START/STOP"
button for about 3 seconds if you want to
force switching off the engine (note that
restarting will not be possible without
the
key).
driving

105
DS5_en_Chap04_conduite_ed01-2015
Emergency braking
The emergency braking must only be used in
exceptional circumstances.If a failure of the DSC system is signalled
by the illumination of this warning lamp,
then braking stability is not guaranteed.
In this event, stability must be assured
by the driver by repeating alternate "pull-
release" actions on the control lever A
.
In the event of a failure of the main
service brake or in an exceptional
situation (e.g. driver taken ill, under
instruction, etc) a continuous pull
on the control lever A will stop the
vehicle.
The DSC system provides stability when
braking during emergency braking.
If the emergency braking malfunctions, the
message "Parking brake control faulty" will be
displayed.
Special situations
To ensure correct operation, and so
your safety, the number of successive
applications and releases of the parking
brake is limited to eight cycles.
If used excessively, you are alerted by
the message "parking brake faulty" and
a flashing warning lamp. In some circumstances (engine start...),
the parking brake may adjust the level
of application itself. This is normal
operation.
To move your vehicle a few centimetres
without starting the engine, with the
ignition on, press the brake pedal and
release the parking brake by pulling
then releasing the control lever A .
Complete release of the parking brake
is indicated by the warning lamps in the
control lever A and in the instrument
panel going off and by the display of the
message "Parking brake off ".
driving

11 7
DS5_en_Chap04_conduite_ed01-2015
You must press the brake pedal when
starting the engine.
Whatever the circumstances, you must
manually apply the parking brake when
parking, unless the parking brake is
programmed in automatic mode.
When immobilising the vehicle, with
the engine running, you must place the
gear lever in neutral N
.
Before carrying out any work in the
engine compartment, check that the
gear lever is in neutral N and that the
parking brake is applied.
Stopping the vehicle
With the ignition on, the flashing of
this warning lamp, accompanied by
an audible signal and a message
in the instrument panel screen,
indicates a malfunction of the
gearbox.
Before switching off the engine, you can
choose to:
-

m

ove to position N to engage neutral,
-

l

eave the gear engaged; in this case, it will
not be possible to move the vehicle.
In both cases, you should apply the parking
brake to immobilise the vehicle, unless it is
programmed in automatic mode.
Operating fault
Sport setting
F After selection of manual or
automated mode, press the
S
button to switch on the Sport
setting, which provides a more
dynamic driving style.
S

appears alongside the gear
engaged in the instrument panel
screen.
F

P

ress the S button again to switch it off.
S


then disappears from the instrument
panel screen.
The Sport setting is switched off every time the
ignition is switched off. Have it checked by CITROËN or a qualified
workshop.
driving

DS5_en_Chap04_conduite_ed01-2015
Gear shift indicator*
System which reduces fuel consumption by recommending the most appropriate gear.The information appears in the instrument
panel in the form of an arrow.Example:
-

Y
ou are in third gear.
-

Y
ou press the accelerator pedal.
-

T
he system may suggest that you engage
a higher gear.
On vehicle fitted with a manual gearbox,
the arrow may be accompanied by the
gear recommended.
The system adapts its gear change
recommendation according to the
driving conditions (slope, load, ...) and
the demands of the driver (power,
acceleration, braking, ...).
The system never suggests:
-

e
ngaging first gear,
-
enga

ging reverse gear.
With an electronic or automatic
gearbox, the system is only active in
manual mode.
Operation
* Depending on engine.
Depending on the driving situation and your
vehicle's equipment, the system may advise
you to skip one (or more) gear(s). You can
follow this instruction without engaging the
intermediate gears.
The gear engagement recommendations must
not be considered compulsory. In fact, the
configuration of the road, the amount of traffic
and safety remain determining factors when
choosing the best gear. Therefore, the driver
remains responsible for deciding whether or not
to follow the advice given by the system.
This function cannot be deactivated.
On BlueHDi Diesel 135 and 150 versions with
manual gearbox, in certain driving conditions
the system may suggest changing into neutral
so that the engine can go into standby (STOP
mode with Stop & Start). In this case, N is
displayed in the instrument panel.
