2015 Citroen DS5 HYBRID4 display

375
DS5_en_Chap11d_RD5_ed01-2015
QUESTIONANSWER SOLUTION
In "Random all" play, not
all of the tracks are played. In "Random all" play, the system can only take into account up to
999 tracks.
With the engine off, the
audio system switches off
after a few minutes of use. When the engine is switched off, the audio system operating time
depends on the state of charge of the battery.
The switch-off is normal: energy economy mode is activated
automatically to preserve the state of charge of the vehicle's
battery. (See the "Energy Economy Mode" section). Start the vehicle's engine to increase the battery
charge.
The message "the audio
system is overheated"
appears on the display. In order to protect the installation if the surrounding temperature
is too high, the audio system switches to an automatic thermal
protection mode leading to a reduction of the volume or stopping of
the playing of the CD. Switch the audio system off for a few minutes to
allow the system to cool.
Audio and Telematics

379
DS5_en_Chap12_index-recherche_ed01-2015
DAB (Digital Audio Broadcasting) ........31 2, 313
Date (setting) ............................... .............. 42, 47
Daytime running lamps

.................. 1
47, 213, 214
Deactivating ESC

.......................................... 18

6
Deactivating the passenger airbag
............... 19

2
Deadlocking
...............................

.....................56
Defrosting the mirrors

............................... 8
0, 95
Demisting, defrosting
...................................... 95
D

emisting, front
............................................... 95
D

iesel additive level
...................................... 2

51
Diesel engine pre-heat warning lamp

............21
D

igital Audio Broadcasting (DAB)
........31

2, 313
Dimensions
..............................

.....................277
Dipped beam
...............................

.... 20, 144, 213
Dipstick
................

.................................... 36, 248
Directional lighting
...............................

.153, 15 4
Direction indicators
....... 1

50, 182, 213, 216, 218
Doors back-up control

.................................... 57
D

riving economically ...................................... 14
Driving positions (storing)

...............................74
D

ynamic emergency braking
........................ 10

5
Dynamic stability control (DSC)

...... 2
7, 184, 186Filling with fuel

.......................................24

1-243
Fitting a wheel

...............................
................210
Fitting roof bars

.............................................23

3
Fittings, boot

...................................................87
F

ittings, rear
...............................
.....................86
Flashing indicators
................................ 15

0, 182
Foglamps, front
..................... 1

46, 154, 213, 216
Foglamps, rear
...................................... 1

46, 219
Folding/unfolding the door mirrors

.................80
F

requency (radio)
...................................31

0, 311
Front seats
..............................

...................7 2 -74
Fuel consumption
............................................ 14
F

uel filler cap
.................................................2

41
Fuel filler flap

......................................... 2
41, 243
Fuel gauge

.............................................. 1
8, 241
Fuel tank................................................ 241, 243
Fusebox, engine compartment
..................... 2

23
Fusebox, dashboard
..................................... 2

22
Fuses
................

.............................................221
EBA (Emergency braking assistance)

..........18

4
Eco-driving
...............................

......................14
Economy mode

...............................
..............227
Electronic brake force distribution (EBFD)

...18

4
Electronic engine immobiliser ................. 60, 100
Emergency boot release
................................. 62
E

mergency call
..................................... 1
83, 282
Emergency starting using another battery
......................................................... 2

25 Gearbox,

automatic .............. 1
4, 108, 110, 121, 226, 253
Gearbox,
electronic
.............. 1

4, 108, 114, 121, 226, 253
Gearbox, manual
............ 1

4, 108, 109, 121, 253
Gear shift indicator
....................................... 11

8
Gear lever, automatic gearbox

.....................11

0
Gear lever, electronic gearbox

............. 1
14, 253
Gear lever, manual gearbox

.........................10

9
Guide-me-home
...............................

..... 148, 150
Halogen headlamps
...................................... 2

13
Hands-free kit

..............................
. 336, 337, 360
Hazard warning
....................................... 8

8, 182
Headlamp adjustment
................................... 15

2
Headlamps, directional
......................... 1

53, 213
Headlamp wash
.................................... 1

56, 250
Head restraints, front

................................7

2, 75
Head restraints, rear

.......................................79
H

ead-up display
............................ 1
29, 133, 136
Heated seats
...............................

....................76
Heating
................

............................................91
Height and reach adjustment, steering wheel
..............................

................81
Hill start assist

.................................................10
Emergency warning lamps .....................8 8, 182
Emissions control system, SCR ............. 3 0, 255
Energy economy mode

.................................2

27
Engine compartment
............................ 2

45, 246
Engine, Diesel

....................... 2
42, 246, 247, 269
Engine oil level indicator

......................... 3
6, 248
Engine, petrol

................................ 2
42, 245, 266
Engines
..............................

...................266, 269
Environment
..........1

4, 59, 90, 95, 226, 251, 263
Equipment settings
................................... 3

9, 46
Alphabetical index

008
003010
DS5Hy4_en_Chap00a_sommaire_ed01-2015
ALPHABETICAL INDEX
4 Presentation
8 Instrument panel
9 READY lamp
9 Power indicator
10 Display of energy fl ows
12 Fuel consumption histogramme
13 Trip computer
15 Starting / switching off
19 Mode selector
22 ECO OFF function
23 Driving recommendations
24 Eco-driving
25 Special aspects of ZEV mode
27 High voltage battery
30 Underbonnet
HYBRID4 SYSTEMPRACTICAL INFORMATION COMFORT
32 Car washing machine or tunnel
33 Temporary puncture repair kit
34 Recovery on a fl at-bed
34 Snow chains
TECHNICAL
DATA
35 Electric motor
36 Diesel engine
37 Diesel weights
FREQUENTLY ASKED QUESTIONS
31 Boot fi ttings
38
41

5Hybrid4 system
DS5Hy4_en_Chap00c_hybride_ed01-2015
Main parts of the Hybrid4 system
The HDi Diesel engine (1), located at the front,
drives the front wheels and provides most of the power needed to drive the vehicle.
The electric motor (2) , located at the rear
of the vehicle, drives the rear wheels on its own, or supplements the HDi Diesel engine, according to the Hybrid4 operating mode selected. This electric motor also manages the recovery of energy, the charging of the batteries during phases of deceleration of the vehicle. It is active up to 70 mph (120 km/h).
The 200 V high voltage batter y (3) , using Ni-MH technology, stores and delivers the energy needed for operation of the electric motor. Its state of charge is managed automatically by the electric motor during phases of deceleration or by the HDi Diesel engine below a certain threshold. This high voltage battery is located in a special compartment under the boot floor. Access to it is strictly restricted to technicians at a CITROËN dealer or a qualified workshop.
The state of charge of the high voltage battery is represented graphically by bars. See the "Display of energy flows" section.
Your Hybrid4 vehicle is fitted with effective emissions control systems, including the Par ticle Filter (FAP) . During particle filter regeneration phases, the HDi engine is called on to produce the temperatures needed for combustion of the particles. Electric running is temporarily unavailable and is accompanied by the display of a message " Electric mode not available: FAP regeneration in progress " .

DS5Hy4_en_Chap00c_hybride_ed01-2015
Instrument panel
* By successive presses on the end of the wiper control stalk.
1. Power indicator (%). Display of the percentage of the total power available supplied by the Hybrid4 system, or the energy recovered. 2. Selector position and gear engaged for the electronic gearbox or gear shift indicator. 3. Speed limiter or cruise control settings. 4. READY lamp: indicates that the vehicle is ready to drive.
Control buttons Dials and screens
A. Main lighting and controls dimmer. B. - Successive short presses: under-inflation detection, recall servicing information, alert log. - Long press: reset the function selected to zero (service indicator or trip recorder).
5. Engine coolant temperature gauge (°Celsius). 6. Analogue speedometer (mph or km/h). 7. Digital speedometer (mph or km/h). 8. Fuel gauge. 9. Instrument panel screen: - permanent display of distance recorders, and, as desired * : trip computer, energy flows, current media playing or navigation instructions, - temporary display: service indicator, engine oil level indicator, alert messages.

9Hybrid4 system
DS5Hy4_en_Chap00c_hybride_ed01-2015
When the Hybrid4 system is started, this indicator lamp comes on to signal that the vehicle is ready to move off.
Illumination of this indicator lamp is more or less instant but may take a few seconds in some cases (pre-heating the HDi Diesel engine in cold weather or in energy economy mode...).

READY lamp
Never leave the Hybrid4 system on when leaving the vehicle, or opening the bonnet, refuelling... Before leaving the vehicle, ensure that the RE ADY lamp is off. RE ADY lamp is off. RE ADY
better energy recovery). This allows the high voltage battery to be recharged using "free" energy which can then be reused for future energy requirements.
CHARGE zone
POWER zone
Indicates an increased cumulative power demand from your vehicle, taking account of the combined power available from the HDi Diesel engine and the electric motor.
Power indicator
The indicator dial displays information on the total power used in real time, combining electric and Diesel. It comprises three operating zones.
Indicates that the vehicle is optimising its energy consumption , electric, Diesel or a combination of both.
ECO zone
This zone corresponds to phases of electric running as well as to phases of optimum use of the HDi Diesel engine, which are easily accessible with a suitable driving style (smooth "eco-citizen" driving).
Indicates that the vehicle is in
an electrical energy recoveryphase: on deceleration, braking (partially or particularly with your foot off the accelerator, to use in preference as this gives

DS5Hy4_en_Chap00c_hybride_ed01-2015
Display of energy fl ows
Display of fl ows in the instrument panel
Hybrid4 modes
1. Hybrid4 mode selected ( AUTO , ZEV , ZEV , ZEVSPORT or 4WD ) . 2. "Zero Emission" messages if the HDi Diesel engine is stopped (0 g/km CO2) .
Display of fl ows in the touch screen tablet
Information on the hybrid mode selected ( 1, 2 ), arrows for energy flows ( 6 to 8 ) and the state of charge of the high voltage battery ( 4 ), is displayed in real time in the instrument panel screen or the the touch screen tablet. See the "Trip computer" section.
Vehicle infrastructure
3. HDi Diesel engine. 4. State of charge of the high voltage battery. 5. Electric Motor/Generator.
Operation / Energy flows
6. The HDi Diesel engine supplies the battery (as needed). 7. Arrow from left to right: the battery powers the electric motor (when the electric motor is operating). Arrow from right to left: the electric motor/generator recharges the battery (energy recovery phases). 8. The HDi Diesel engine drives the front wheels. 9. The electric motor drives the rear wheels.

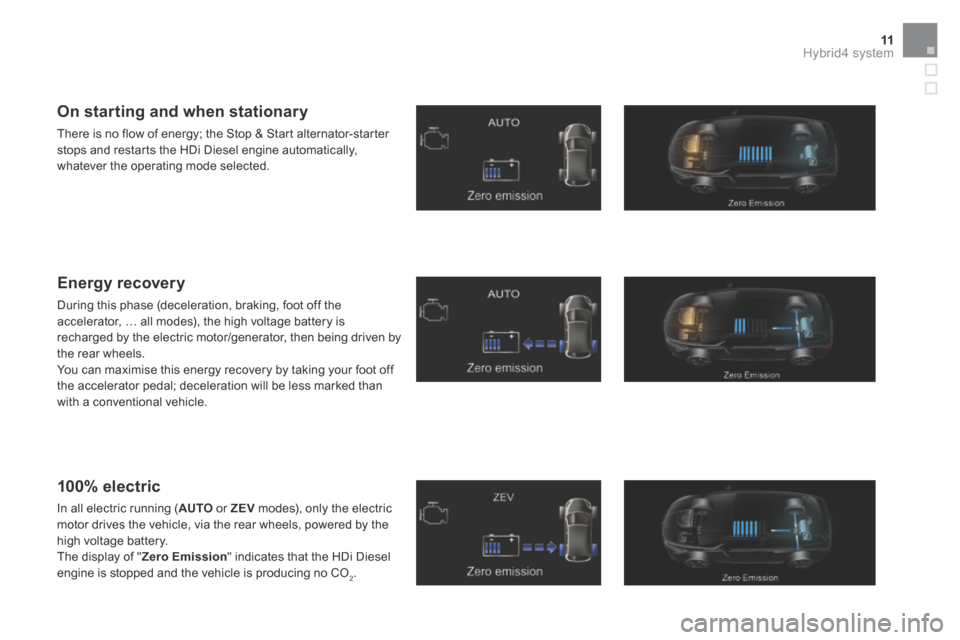

11Hybrid4 system
DS5Hy4_en_Chap00c_hybride_ed01-2015
On starting and when stationary
There is no flow of energy; the Stop & Start alternator-starter stops and restarts the HDi Diesel engine automatically, whatever the operating mode selected.
Energy recovery
During this phase (deceleration, braking, foot off the accelerator, … all modes), the high voltage battery is recharged by the electric motor/generator, then being driven by the rear wheels. You can maximise this energy recovery by taking your foot off the accelerator pedal; deceleration will be less marked than with a conventional vehicle.
100% electric
In all electric running (AUTO or ZEV modes), only the electric ZEV modes), only the electric ZEVmotor drives the vehicle, via the rear wheels, powered by the high voltage battery. The display of " Zero Emission " indicates that the HDi Diesel engine is stopped and the vehicle is producing no CO2.
