The high voltage battery must not in any circumstances be charged from an external source and must only be handled by a qualified technician at a CITROËN dealer or a qualified workshop. There is the risk of serious burns, as well as electric arcs that could cause serious injury or even death. A used Ni-MH (Nickel Metal Hydride) type high voltage battery must be removed in an appropriate manner by a repair workshop, so that its recycling presents no risk to the environment.
High voltage
The voltage used for the operation of the electric motor is in the range 150 to 270 Volts. Be sure to take account of the warning labels fitted to the vehicle. Take great care regarding the high voltage and high temperatures of components carrying the c u r r e n t .
Emergency cut-off
In the event of an accident, a cut-off system blocks the high voltage current and cuts off the fuel pump; your vehicle can no longer be started. To restart the hybrid system, contact a CITROËN dealer.
High voltage cables are routed under the vehicle (sills); take care not to damage them when the vehicle is used for off-road activity (such as covering rough ground).
Before doing any work on the vehicle, switch off the ignition ( RE ADY l a m p o f f ) . RE ADY l a m p o f f ) . RE ADY
Battery precautions High voltage cables
Take care to position lifting equipment ( jack, hoist, ...) at the locations provided to avoid damaging the cables.
Never touch, dismantle, remove or replace the high voltage parts, orange cables or connectors, even in the event of an accident.

31Comfort
DS5Hy4_en_Chap03_confort_ed01-2015
Boot fi ttings
1. Rear parcel shelf Rear parcel shelf Rear parcel shelf It can be removed for carrying large objects. 2. Bag hooks3. Warning triangle retaining straps4. Removable boot floor Removable boot floor Removable boot floor Lift the floor using the grip and follow the g u i d e s .

37Technical data
DS5Hy4_en_Chap10_caracteristiques_ed01-2015
Weights and towed loads (in kg)
* The kerb weight is equal to the unladen weight + driver (75 kg). ** The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding. To make use of the 300 kg load transfer, the driver must be alone in the vehicle with no luggage in the vehicle.
Diesel engineHDi 160
GearboxETG6 electronic (6- speed)
Model codeRHC8 RHCM
- U n l a d e n w e i g h t 1 6 6 0
- K e r b w e i g h t * 1 735
- Gross vehicle weight (GV W) 2 2 6 5
- Gross train weight (GTW) on a 12% gradient 2 7 6 5
- Braked trailer (within GTW limit) on a 10% or 12% gradient 500
- Braked trailer ** (with load transfer with the GTW limit) 8 0 0
- U n b r a k e d t r a i l e r 500
- Recommended nose weight 75
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude. The maximum authorised speed is reduced when towing (comply with the legislation in force in your country). High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C, limit the towed load.

DS5Hy4_en_Chap12_index-recherche_ed01-2015
Warning triangle ..............................................31Washing (advice).............................................32Weights ...........................................................37
Ventilation, high voltage battery .....................29
Table of weights ..............................................37Tables: engine, motor ...............................Tables: engine, motor ...............................Tables: engine, motor35, 36Technical data ...........................................35 -37Temporary puncture repair kit ........................33To o l s ................................................................33Touch screen tablet ............................10, 12, 14Towed loads ....................................................37Trip computer .............................................Trip computer .............................................Trip computer12-14Ty r e s ................................................................33

4DconceptDiadeisInterak
02-15
DS5Hy4_en_Chap13_couv-fi n_ed01-2015

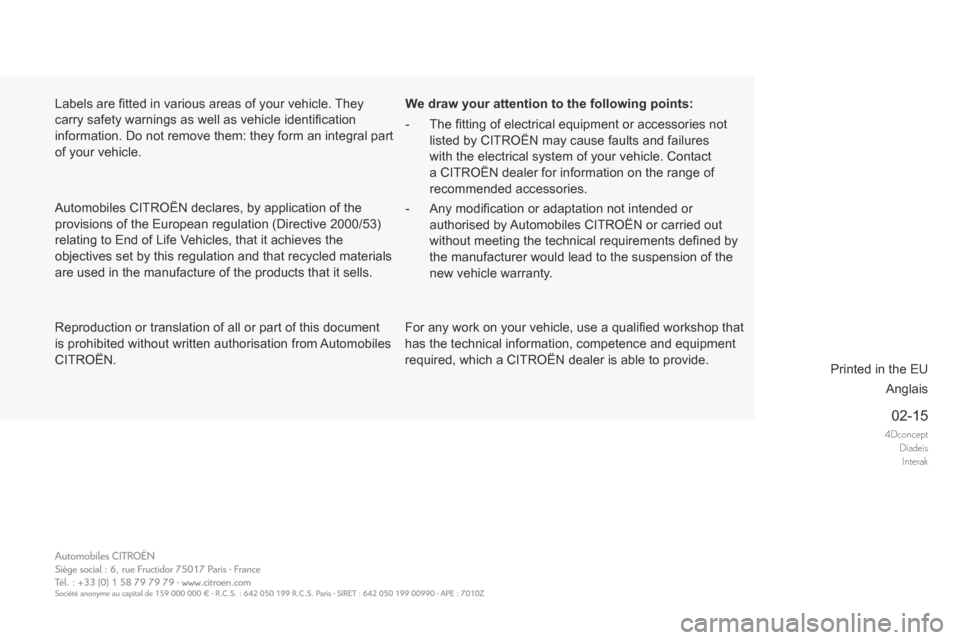

Reproduction or translation of all or part of this document is prohibited without written authorisation from Automobiles CITROËN.
