2015 Citroen DS3 boot

Contents
ACCESS
2 Soft top
10 Boot
12 Alarm
002 PR ACTICAL
INFORMATION
13 Rear shelf
010
008
TECHNICAL DATA
14 Changing a fuse
15 Recommendations on care
16 Petrol engines
17 Petrol weights
18 Diesel engine
19 Diesel weights
20 Dimensions
Key
safety warning
additional information
COMFORT 003
corresponds to a left hand drive vehicle.
corresponds to a right hand drive vehicle.

5Access
During complete opening of the roof, the rear screen comes down onto the rear shelf. Ensure that no object is left on the shelf which might damage the rear screen or the roof.
Automatic opening of the roof in zone B
is not possible if the boot is open. In the event of a problem, check that the boot is fully closed .
During an operation in zone B , an instruction to stop the roof is not possible. Pressing the control reverses the direction of movement of the roof, whichever direction the control is pressed. This "anti-panic" function allows a quick change in direction of movement of the roof if suddenly required.
 Release the control: opening of the roof continues up to the maximum horizontal position (position 2 ).
 In zone B , a press on the control opens the roof completely (position 3 ).
Closing
Manual mode
 In zone A , press and hold the control without passing the point of resistance to close the roof.

10Access
Boot
Opening
 After unlocking the vehicle using the remote control or the key, press the opening control and raise the boot lid.
Closing
 Lower the boot lid by pressing on the middle of its finisher.
If the boot is not closed correctly:
- when the engine is running , this warning lamp comes on, accompanied by a message on the multifunction screen for a few seconds,
- when the vehicle is moving (speed above 6 mph (10 km/h)), this warning lamp comes on, accompanied by an audible signal and a message in the multifunction screen for a few seconds.
It is strongly recommended not to lower the boot lid by pressing on either end.
If the boot is not fully closed, opening the roof in zone B is not possible. Check that the boot is fully closed.

11Access
If the roof is carrying out an opening operation in zone B , an action on the boot opening control causes the roof to close. The boot will be released when the roof reaches position 2 . You can then raise the boot lid.
Conditions for opening the boot with the roof in zone B
To avoid inter ference between the boot and the roof in zone B, opening the boot depends on the position of the roof.
If the roof is carrying out a closing operation in zone B , an action on the boot opening control has no effect on the roof operation, but the boot will only be released once the roof has reached position 2 . You can then raise the boot lid.
During an opening or closing operation of the roof in zone B following an "anti-panic" function, the boot opening control is inhibited. It will work again once the roof has reached position 2 or position 3 .
If the roof is position 3 , an action on the boot opening control causes the closing of the roof to position 2 . When the roof has reached this position, the boot lid will be released. You can then raise the boot lid.

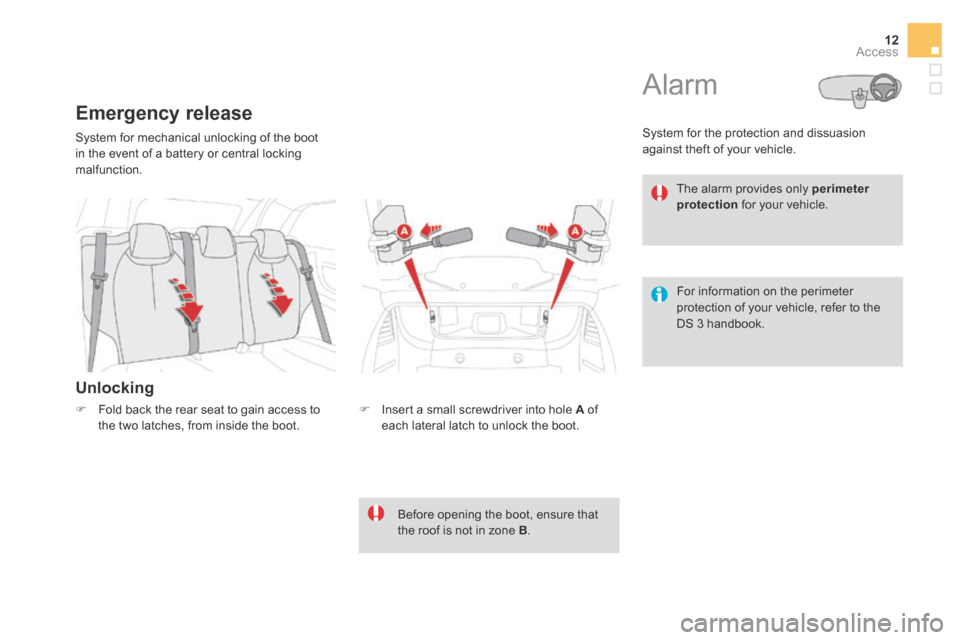

12Access
System for mechanical unlocking of the boot in the event of a battery or central locking malfunction.
Unlocking
Emergency release
 Insert a small screwdriver into hole A of each lateral latch to unlock the boot.  Fold back the rear seat to gain access to the two latches, from inside the boot.
Before opening the boot, ensure that the roof is not in zone B .
For information on the perimeter protection of your vehicle, refer to the DS 3 handbook.
The alarm provides only perimeter protection for your vehicle.
Alarm
System for the protection and dissuasion against theft of your vehicle.

14Practical information
Changing a fuse
 To unclip the upper boot trim, pull it down, starting on the left.  Remove the trim by tipping it downwards.  Change the fuses. To reassemble, carry out these operations in reverse order, starting at the back of the boot.
Fuse under the bonnet
(maxi-fuse)
Fuse N°RatingFunctions
-20 A Soft top roof
-20 A Soft top roof
If the roof is in zone B when a fuse fails, it is then not possible to open the boot. To be able to open the boot and proceed with fuse replacement, first close the roof manually from inside the boot (by folding the rear seats).
There are three fuses for the soft top roof.
Fuses under the rear shelf
Fuse N°RatingFunctions
MF0840 A Soft top roof
The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried out by a CITROËN dealer or a qualified workshop.
