2015 Citroen DS3 engine

Contents
ACCESS
2 Soft top
10 Boot
12 Alarm
002 PR ACTICAL
INFORMATION
13 Rear shelf
010
008
TECHNICAL DATA
14 Changing a fuse
15 Recommendations on care
16 Petrol engines
17 Petrol weights
18 Diesel engine
19 Diesel weights
20 Dimensions
Key
safety warning
additional information
COMFORT 003
corresponds to a left hand drive vehicle.
corresponds to a right hand drive vehicle.

3Access
In order to maintain the state of charge of the battery, it is recommended that the roof be operated with the engine running .
Operation of the roof is possible: - engine running, or - ignition on.
During operation of the roof with just the ignition on, starting the engine may cause the roof to stop, depending on the state of charge of the battery. To have the roof continue the operation, operate the control again after the engine has started.
Operating zones
There are two operating zones: Zone A : horizontal operating zone, in manual or automatic mode. Zone B : vertical operating zone, in automatic mode only.
Before operating the roof, ensure that no occupant of the vehicle or person outside the vehicle could be subject to any risk related to the movement of the roof or the rear screen and that no object could inter fere with the operation.
Roof positions
Position 0 : Roof completely closed. Position 1 : Stop position for automatic roof closing. Position 2 : Roof open horizontally. Position 3 : Roof completely open.

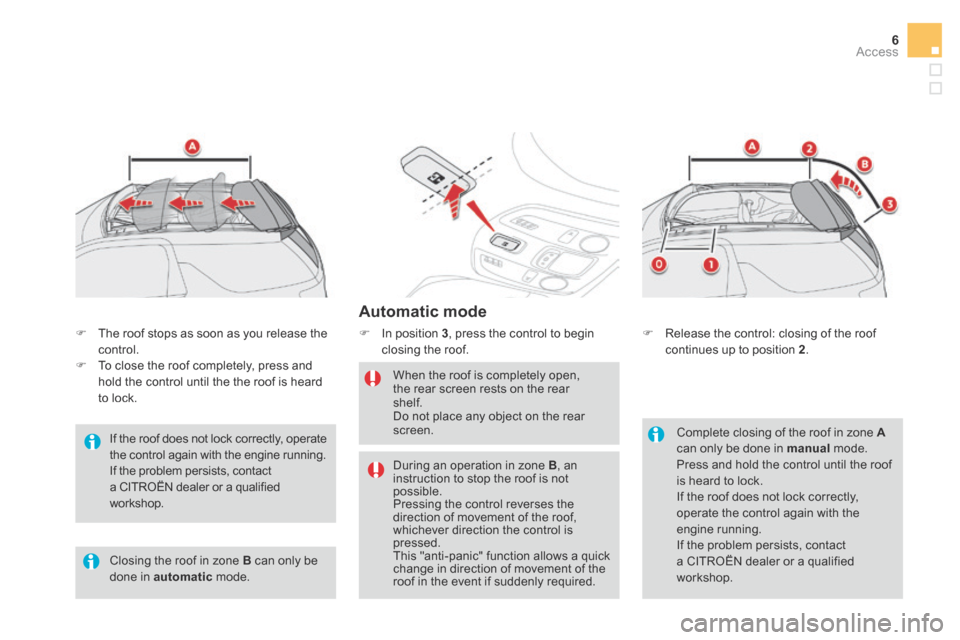

6Access
Automatic mode
 In position 3 , press the control to begin closing the roof.
When the roof is completely open, the rear screen rests on the rear shelf. Do not place any object on the rear screen.
Closing the roof in zone B can only be done in automatic mode.
Complete closing of the roof in zone Acan only be done in manual mode. Press and hold the control until the roof is heard to lock. If the roof does not lock correctly, operate the control again with the engine running.
If the problem persists, contact a CITROËN dealer or a qualified workshop.
 Release the control: closing of the roof continues up to position 2 .
During an operation in zone B , an instruction to stop the roof is not possible. Pressing the control reverses the direction of movement of the roof, whichever direction the control is pressed. This "anti-panic" function allows a quick change in direction of movement of the roof in the event if suddenly required.
If the roof does not lock correctly, operate the control again with the engine running. If the problem persists, contact a CITROËN dealer or a qualified workshop.
 The roof stops as soon as you release the control.  To close the roof completely, press and hold the control until the the roof is heard to lock.

9Access
Precautions for use
Never place objects on the roof, whether open or closed.
In the event of prolonged storage of the vehicle outside, it is recommended that the roof be protected with a cover.
To avoid damaging the roof, do not open it under snowy or frosty conditions. Never use sharp tools to remove ice or accumulations of snow on the roof. Never use scrapers or aerosol products to remove ice that may have formed on the rear screen. Avoid operating the heated rear screen when the roof is completely open (risk of overheating).
To limit the creation of folds in the roof fabric, it is recommended that the roof not be left open for long periods. Operation of the vehicle's air conditioning system is not recommended while the roof is open.
Never place objects on the transverse roof support when the roof is open.
It is recommended that the roof be closed when the vehicle is left parked. Even if the roof is closed, it is prudent not to leave any valuable objects inside the vehicle. When you leave the vehicle, remove the ignition key to avoid any unwanted operation of the roof.
If your vehicle has a voice command system, this may not work as well when driving with the roof open.
Protection of the roof opening and closing electric motors: during repeated opening and closing of the roof, the electric motors may become too hot and then no longer allow the roof to be opened or closed. Allow the motors to cool down by not operating the roof for ten minutes.
Reinitialisation
Do not release the control during the reinitialisation procedure.
Operating
fault
In the event of an electrical fault, contact a CITROËN dealer or a qualified workshop.
If the automatic roof operation mode is lost, the system must be reinitialised.  With the engine running , press and hold the control for closing the roof.  After about 5 seconds, the roof closes
completely to position 0 . The roof is then reinitialised.

10Access
Boot
Opening
 After unlocking the vehicle using the remote control or the key, press the opening control and raise the boot lid.
Closing
 Lower the boot lid by pressing on the middle of its finisher.
If the boot is not closed correctly:
- when the engine is running , this warning lamp comes on, accompanied by a message on the multifunction screen for a few seconds,
- when the vehicle is moving (speed above 6 mph (10 km/h)), this warning lamp comes on, accompanied by an audible signal and a message in the multifunction screen for a few seconds.
It is strongly recommended not to lower the boot lid by pressing on either end.
If the boot is not fully closed, opening the roof in zone B is not possible. Check that the boot is fully closed.

16Technical data
Petrol enginePureTech 82V Ti 120PureTech 110 S&STHP 165 S&STHP 150 S&S **
Gearbox Manual (5-speed) Automatic (4-speed) Manual (5-speed)
E AT 6 (6-speed automatic)
Manual (6-speed)
Model code: SB... HMZ6 5FS9 HNZ6/S H NZ T/S 5GZM/S 5GWM/S **
Cubic capacity (cc) 1 199 1 598 1 199 1 598
Bore x stroke (mm) 75 x 90.5 77 x 85.8 75 x 90.5 77 x 85.8
Max power: EU standard (kW) * 60 88 81 120 11 0 * *
Max power engine speed (rpm) 5 750 6 000 5 500 6 000
Max torque: EU standard (Nm) 118 160 205 240
Max torque engine speed (rpm) 2 750 4 250 1 500 1 750
Fuel Unleaded Unleaded Unleaded Unleaded
Catalytic converter Ye s Ye s Ye s Ye s
Engine oil capacity (in litres) (with filter replacement) 3.25 4.25 3.25 4.25
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC). ** For Belgium.
Petrol engines
.../S: model fitted with Stop & Start.

17Technical data
Petrol enginePureTech 82V Ti 120PureTech 110 S&STHP 165 S&STHP 150 S&S *
Gearbox Manual (5-speed) Automatic (4-speed) Manual (5-speed)
E AT 6 (6-speed automatic)
Manual (6-speed)
Model code: SB... HMZ6 5FS9 HNZ6/S H NZ T/S 5GZM/S 5GWM/S *
- Unladen weight 1 035 1 133 1 090 1 150 1 165
- Kerb weight 1 110 1 208 1 165 1 225 1 240
- Gross vehicle weight (GV W) 1 536 1 610 1 598 1 635 1 630
- Gross train weight (GTW) on a 12 % gradient 2 336 2 510 2 498 2 535 2 530
- Braked trailer (within the GTW limit) on a 12 % gradient 800 900 900 900 900
- Braked trailer ** (with load transfer within the GTW limit) 1 100 1 150 1 500 1 150 1 150
- Unbraked trailer 520 570 520 570 570
- Recommended nose weight 46 46 46 46 46
* For Belgium. ** The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude. The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country). High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
Petrol weights and towed loads (in kg)

18Technical data
Diesel enginee-HDi 90BlueHDi 100BlueHDi 120BlueHDi 115 **
Gearbox Manual (5-speed) ETG6 electronic (6-speed) Manual (5-speed) Manual (6-speed)
Model code: SB... 9HPK /S 9HP8/PS BHY6/S BHZM/S BHXM/S **
Cubic capacity (cc) 1 560 1 560 1 560
Bore x stroke (mm) 75 x 88.3 75 x 88.3 75 x 88.3
Max power: EU standard (kW) * 68 73 88 85 **
Max power engine speed (rpm) 4 000 3 750 3 500
Max torque: EU standard (Nm) 230 254 300
Max torque engine speed (rpm) 1 750 1 750 1 750
Fuel Diesel Diesel Diesel
Catalytic converter Ye s Ye s Ye s
Particle filter (FAP) Ye s Ye s Ye s
Engine oil capacity (in litres)(with filter replacement) 3.75 3.75 3.75
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC). ** For Belgium.
Diesel engines
.../S: model fitted with Stop & Start .
