2015 Citroen C5 sensor

37
C5_en_Chap01_controle-de-marche_ed01-2014
Colour screen (with eMyWay)
Depending on the context, it displays:
- t ime,
-
d

ate,
-
al

titude,
-

a
mbient temperature (the value displayed
flashes if there is a risk of ice),
-

p
arking sensor information,
-

a
udio functions,
-

t
elephone information and contacts,
-

s
atellite navigation system information.
-

a
lert messages,
-

s
ettings menus for the screen and the
navigation system.
Controls
From the eMyWay control panel, to select one
of the applications:
F

p
ress the dedicated "RADIO" , "MUSIC",
" N AV " , "TR AFFIC" , "SETUP" or
"PHONE" button for access to the
corresponding menu,
F

t
urn dial A to select a function, an item in
a
list,
F

p
ress button B to confirm the selection,


or
F

p
ress the "Back" button to abandon the
current operation and return to the previous
display.
"SETUP" menu
F Press the "SETUP" button to gain access
to the configuration menu. It allows you to
choose from the following functions:
-

"
Display configuration",
-

"
Speech synthesis setting",
-
"

Select language",
-

"
Trip computer".
Displays in the screen
For more information on these
applications, refer to the "eMyWay"
section.
1
Monitoring

64
C5_en_Chap03_ergo-et-confort_ed01-2014
Automatic day/night model
In order to guarantee optimum visibility
during your manoeuvres, the mirror lightens
automatically when reverse gear is engaged. By means of a sensor, which measures the
light from the rear of the vehicle, this system
automatically and progressively changes
between the day and night uses.
It has an anti-dazzle system which darkens the
mirror glass: this reduces any driver discomfort
caused by the light beam of following vehicles,
the sun...In vehicles fitted with electrochromatic door
mirrors, the system has an on/off button and an
associated warning lamp.
On
F With the ignition on, press on button 1
.
The warning lamp 2 comes on and the mirror
glass is in automatic mode.
Off
F Press on button 1 .
The warning lamp 2 goes off and the mirror
glass remains in its lightest definition.
Rear view mirror
Manual day/night model
Adjustment
F Adjust the mirror so that the glass is directed correctly in the "day" position.
Day / night position
F Pull the lever to change to the "night" anti-dazzle position.
F

P
ush the lever to change to the normal
"day" position. As a safety measure, the mirrors should
be adjusted to reduce the "blind spot".
Adjustable mirror providing a central rear ward view.
Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to
the driver caused by the sun, headlamps from other vehicles...
Ease of use and comfort

67
C5_en_Chap03_ergo-et-confort_ed01-2014

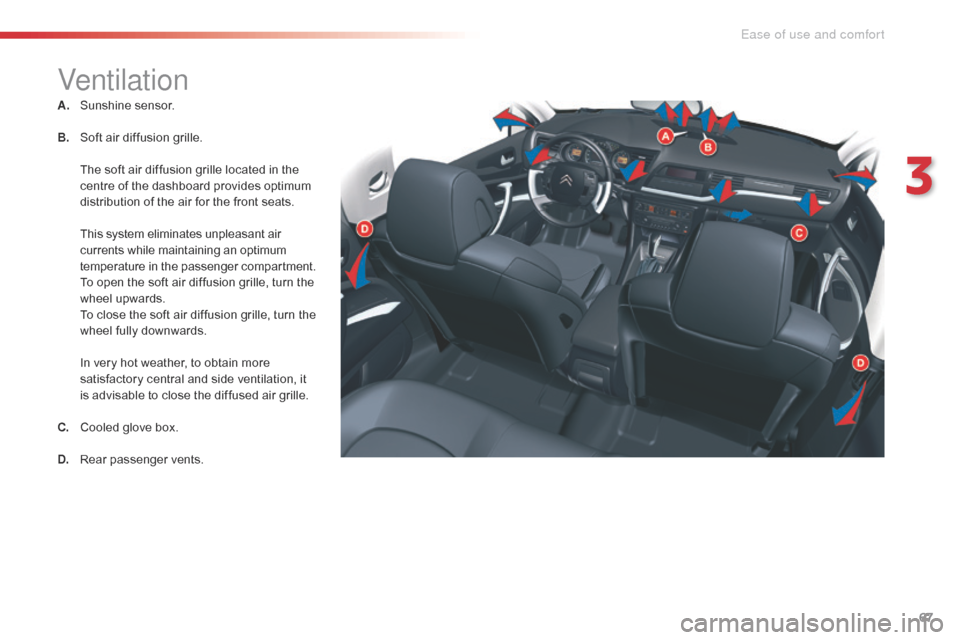

Ventilation
A. Sunshine sensor.
B.
S
oft air diffusion grille.
T

he soft air diffusion grille located in the
centre of the dashboard provides optimum
distribution of the air for the front seats.
T

his system eliminates unpleasant air
currents while maintaining an optimum
temperature in the passenger compartment.
T

o open the soft air diffusion grille, turn the
wheel upwards.
T

o close the soft air diffusion grille, turn the
wheel fully downwards.
I

n very hot weather, to obtain more
satisfactory central and side ventilation, it
is advisable to close the diffused air grille.
C.
C

ooled glove box.
D.
R

ear passenger vents.
3
Ease of use and comfort

68
C5_en_Chap03_ergo-et-confort_ed01-2014
We recommend use of the automatic regulation
of the air conditioning.
It permits automatic and optimised control
of all of the following functions: air flow,
temperature in the passenger compartment
and air distribution, by means of various
sensors (ambient temperature, sunshine).
This eliminates any need for you to change
your settings other than the temperature value
displayed.
F Take care not to cover the sunshine sensor A .
If you select the automatic mode
(by pressing the "AUTO" control) and leave
all of the vents open, optimum comfort will be
maintained and humidity and condensation will
be removed regardless of the exterior climatic
conditions.
The temperature in the passenger compartment
can only be lower than the ambient temperature
if the air conditioning is on.
In order to be effective, the air conditioning must
be used with the windows closed. If the vehicle
has been parked in the sun for a long period
and the interior temperature is very high, first
ventilate the passenger compartment with the
windows open for a few minutes, then close the
windows.
Heating, ventilation and air conditioning recommendations
To keep the air conditioning system in
good working order it is essential that it is
operated at least once a month.
The air conditioning uses engine power
during its operation. As a result, the fuel
consumption of the vehicle increases.
In certain cases of particularly arduous use
(e.g. towing the maximum load on a steep
gradient in high temperatures), switching off
the air conditioning saves engine power and
improves the towing capacity.
Air inlet
Check that the exterior grille for the air inlet,
at the bottom of the windscreen, is clean and
free of dead leaves, snow, etc.
When washing the vehicle using a high
pressure nozzle, avoid spraying at the air
inlet. Maximum comfort is obtained by means of
a good distribution of air in the passenger
compartment, both in the front and in the rear.
To obtain a uniform distribution of air, take
care not to block the exterior air intake grille
located at the base of the windscreen, the
vents, the air outlets under the front seats and
the air extractor located behind the flaps in
the boot.
The front and rear vents are fitted with
thumbwheels to adjust the air flow and
direction. We recommend that you leave all of
the vents open.
Dust filter / Odour filter
(active carbon)
There is a filter for excluding odours and
dust.
This filter must be changed in line with the
vehicle's servicing schedule. (Refer to the
maintenance and warranty guide).
Air conditioning
Air circulation
Ease of use and comfort

82
C5_en_Chap03_ergo-et-confort_ed01-2014
Reinitialising the remote control
If the vehicle's battery is disconnected or the
remote control's battery is replaced, the remote
control must be reinitialised.
After switching on the power, press button 4
(OFF) for 1 second within the next 5 seconds.
If the operation has taken place correctly the
message "OK" is displayed on the remote
control screen.
If a problem occurs, the message " F A I L"
appears. Repeat the operation. Always switch off the programmable
heating while filling with fuel to avoid
any risk of fire or explosion.
To avoid any risk of poisoning and
asphyxiation, the programmable
heating must not be used, even for
short periods, in an enclosed space
such as a garage or workshop which
is not equipped with an exhaust gas
extraction system.
Do not park the vehicle on an
inflammable sur face (dry grass, dead
leaves, paper…), there is a risk of fire.
The programmable heating system
is supplied by the vehicle's fuel tank.
Before use, ensure that the quantity
of fuel remaining is sufficient. If the
fuel tank is at the reserve, we strongly
advise that you do not programme the
heating.
The interior volumetric protection alarm
movement sensor may be disturbed by
the flow of air from the programmable
heating when it is in operation.
To avoid any unexpected triggering
of the alarm during use of the
programmable heating, it is advisable
to deactivate the interior volumetric
protection.
An adaptation of your programmable
heating allows you to pre-heat your
vehicle's passenger compartment.
Contact a CITROËN dealer or a
qualified workshop.
Ease of use and comfort

144
C5_en_Chap05_visibilite_ed01-2014
- 1st turn for wards: rear foglamps on.
-
1st turn rear wards: rear foglamps off. - 1st turn for wards: front foglamps on.
-
2nd turn for wards: rear foglamps on.
-
1st turn rear wards: rear foglamps off.
-
2nd turn rear wards: front foglamps off.
Model with rear foglamps
only Model with front and rear
foglamps
In good or rainy weather, both day and
night, use of the front foglamps and the
rear foglamps is prohibited. In these
situations, the power of their beams
may dazzle other drivers. They should
only be used in fog or falling snow.
In these weather conditions, it is your
responsibility to switch on the foglamps
and dipped headlamps manually as the
sunshine sensor may detect sufficient
light.
Do not forget to switch off the front and
rear foglamps when they are no longer
needed.
Visibility

146
C5_en_Chap05_visibilite_ed01-2014
Linked with the automatic
"Guide-me-home" lighting
The link with the automatic illumination of
headlamps provides the "guide-me-home"
lighting with the following additional options:
-
s
election of the duration of lighting for 15,
30 or 60 seconds in the vehicle
parameters on the instrument panel screen
configuration menu,
-

a
utomatic activation of "guide-me-home"
lighting when automatic illumination of
headlamps is in operation.
Operating fault
In the event of a fault with the sunshine
sensor, the lighting comes on and a
message appears in the instrument panel
screen, accompanied by an audible signal.
Contact a CITROËN dealer or a qualified
workshop.
Automatic illumination of headlamps
Activation
F Turn ring A to the "AUTO" position. The automatic
illumination of headlamps is accompanied by a
message in the instrument panel screen.
Deactivation
F Turn ring A to a position other than "AUTO" .
Deactivation is accompanied by a message
in the instrument panel screen.
The sidelamps and dipped beam headlamps are
switched on automatically, without any action on
the part of the driver, when a low level of external
light is detected or in certain cases of activation of
the windscreen wipers.
As soon as the brightness returns to a sufficient
level or after the windscreen wipers are switched
off, the lamps are switched off automatically.
In fog or snow, the sunshine sensor
may detect sufficient light. Therefore,
the lighting will not come on
automatically.
do n
ot cover the sunshine sensor,
linked with the rain sensor and located
in the centre of the windscreen behind
the rear view mirror; the associated
functions would no longer operate.
Visibility

152
C5_en_Chap05_visibilite_ed01-2014
Automatic rain sensitive
windscreen wipers
Activation
This is controlled manually by the driver by
moving stalk A to the "AUTO" position.
It is accompanied by a message in the
instrument panel screen.
Switching off
This is controlled manually by the driver by
moving stalk A upwards and returning it to
position "0" .
It is accompanied by a message in the
instrument panel screen.
Operating fault
If an automatic wiping malfunction occurs, the
wipers will operate in intermittent mode.
Have it checked by a CITROËN dealer or a
qualified workshop.
The windscreen wipers operate automatically,
without any action on the part of the driver, if
rain is detected (sensor behind the rear view
mirror), adapting their speed to the intensity of
the rainfall.
Do not cover the rain sensor, linked with
the sunshine sensor and located in the
centre of the windscreen behind the
rear view mirror.
Switch off the automatic wiping when
using an automatic car wash.
In winter, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic wiping.
The automatic wiping must be
reactivated if the ignition has been off
for more than one minute, by pushing
stalk A downwards.
Visibility
