2015 Citroen C4 CACTUS display

04
250
CD, MP3 CD, USB player, auxiliary input
Insert the Cd in the player, insert the USb
memory   stick   in   the   USB   player   or   connect   the
USB

  peripheral   to   the   USB   port   using   a   suitable
cable

  (not   supplied)
The
  system   builds   playlists   (in   temporary
memory),

  an   operation   which   can   take   from
a

  few   seconds   to   several   minutes   at   the   first
connection.
Reduce

  the   number   of   non-music   files   and   the
number

  of   folders   to   reduce   the   waiting   time.
The
  playlists   are   updated   every   time   the   ignition
is

  switched   off   or   connection   of   a   USB   memory
stick.

  However,   the   system   memorises   these
lists

  and   if   they   are   not   modified,   the   loading
time

  will   be   shorter. Selection of source
The   steering   mounted
SRC
  (source)   button   can   be   used   to   go   to   the
next

  media   source,   available   if   the   source   is   active.
Press OK
  to   confirm   the   selection.
"CD / CD MP3"
"USB, iPod"
"Bluetooth (streaming)"
"Auxiliary"
"Radio" Select
  change   of   source   then   choose
the source. Press on
Media   to   display   the   primary   page.
MUSIC
The CD player is available as an accessory from CITROËN dealers.

04
251
CD, MP3 CD / USB player
The audio equipment will only play audio files with ".wma, .aac,  .flac,   .ogg   and   .mp3"   file   extensions   and   with   a   bit   rate   of
between 32 Kbps

  and   320   Kbps.
It
  also   supports   VBR   (Variable   Bit   Rate)   mode.
No
  other   type   of   file   (.mp4, ...)   can   be   played.
WMA


files   must   be   of   the   standard   wma   9   type.
The
  sampling   rates   supported   are   11,   22,   44   and   48   KHz.
It
  is   advisable   to   restrict   file   names   to   20   characters,   without   using   of
special

  characters   (e.g.:   "   "   ?   ;   ù)   to   avoid   any   playing   and   displaying
problems.
In order to be able to play a recorded C

d R or C d RW, when
recording
  it   is   preferable   to   select   the   ISO   9660   level   1,   2   or   Joliet
standard.
If

  the   disc   is   recorded   in   another   format   it   may   not   be   played
correctly

.
It
  is   recommended   that   the   same   recording   standard   is   always   used
for

  an   individual   disc,   with   as   low   a   speed   as   possible   (4x   maximum)
for

  optimum   sound   quality.
In
  the   particular   case   of   a   multi-session   CD,   the   Joliet   standard   is
recommended. Information and advice The
  system   supports   USB   mass   storage   devices,   BlackBerry®
devices or
a
pple® players via USB ports. The   adaptor   cable   not  supplied.
Control

of

the

peripheral   device   is   with   the   audio   system   controls.
Other

peripherals,   not   recognised   on   connection,   must   be   connected
to


the

auxiliary

socket   using   a   Jack   cable   (not   supplied).
Use

only

USB

memory   sticks   formatted   FAT

32   (28-bit   file   allocation
table).
MUSIC
The system does not support two identical devices connected at the same  time   (two   memory   sticks,   two  Apple® players) but it is possible to connect

one

memory

stick

and

one
 Apple® player at the same time.
It

is

recommended

that

genuine

Apple® USb cables are used to
ensure

correct

operation.

04

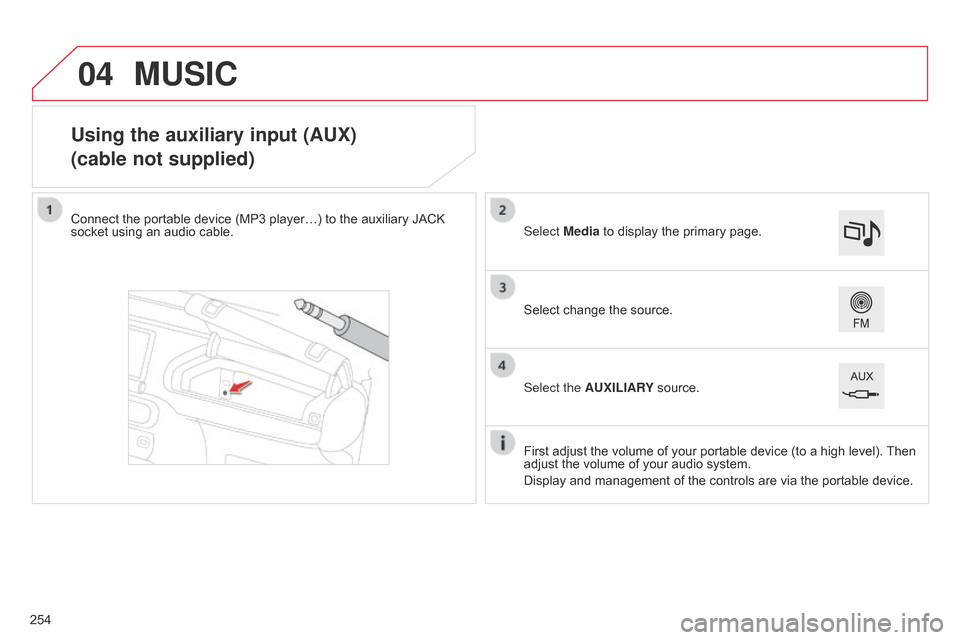

Using the auxiliary input (AUX)
(cable not supplied)
Connect the portable device (MP3 player…) to the auxiliary JACK socket  using   an   audio   cable.
First
  adjust   the   volume   of   your   portable   device   (to   a   high   level).
Then

adjust

  the   volume   of   your   audio   system.
Display
  and   management   of   the   controls   are   via   the   portable   device.
Select
  change   the   source.
Select Media
  to   display   the   primary   page.
Select the AUXILIARY
  source.
MUSIC
254

257
Level 1
Level 2 Level 3 Comments
Navigation Settings
Navigation Enter destination
display recent destinations
Calculatory criteria
Fastest
Choose the navigation criteria.
The   map   displays   the   route   chosen   according   to   these
criteria.
Shortest
Time/distance
Ecological
Tolls
Ferries
Strict - Close
Show
  route   on   map
Display the map and start navigation.
ConfirmSave the options.
SaveSave the current address.
Stop navigationDelete the navigation information.
VoiceChoose the volume for voice and announcement of street names.
DiversionDetour from your initial route by a certain distance.
Navigation
Display in text mode.
Zoom   in.
Zoom
  out.
Display
  in   full   screen   mode.
Use
  the   arrows   to   move   the   map.
Switch
  to   2D   map.

05
258To use the telephone
functions, refer to the
"Communications" section. For   managing   contacts   and
their addresses, refer to the
"

Communications"   section.
NAVIGATION
Search for a point of interest
Navigation Address
Enter destination
Contacts
Point of interest displayed on the map
Level 1Level 2 Level 3
"Navigation"
Secondary page
Search for a POI by name

259
Level 1
Level 2 Level 3 Comments
Navigation
Secondary page
Enter destination Address
Curr.

location
Address settingsPoints of Interest
Town centre
Save
Save the current address.
add waypointAdd a waypoint to the route.
Navigate toPress to calculate the route.
Contacts
a

ddressesSelect a contact then calculate the route.
add contact
a

dd waypoint
Search for contact
Navigate
  to
From map
Display the map and zoom to view the roads.
ItineraryCreate, add or delete a waypoint or view the itinerary.
StopDelete navigation information.
Navigate toPress to calculate the route.
Navigation
Secondary page Search for POI All POIsList of categories available.
After   choosing   the   category,   select   the   points   of   interest.Garage
Dining/hotels
Personal
By name
Search
Save the settings.
Navigation
Secondary page Show POIs Select all
Choose the display settings for POIs.Delete
Import POIs
Confirm
Save the options.

261
Level 1
Level 2 Level 3 Comments
Navigation
Secondary page
Traffic messages On the route
Settings for the choice of messages and the filter radius.
Around vehicle
Near destination
Detour
d

etour over a distance
Recalculate route
Finish
Save the options.
Navigation
Secondary page Map settings Orientation
Flat   view   north   heading
Choose the display and orientation of the map.
Flat view vehicle heading
Perspective view
Maps
Aspect "Day"
  map   colour
"Night"
  map   colour
Automatic
  day/night
Confirm
Save the settings.
Navigation
Secondary page Settings Route settingsEnter settings and choose the volume for the voice and announcement
  of   street   names.Voice
Alert!
Traffic options
Confirm
Save the options.

05
262Towards a new destination
Choosing a new destination
Select "Enter destination".
Select "Save" to save the address entered as
a contact
  entry.
The
  system   allows   up   to   200   entries. Select "Confirm" or press "Show route on
map"
  to   start   navigation   guidance.
Select "Address".
Select the "Country:"
  from   the   list   offered
then in

  the   same   way:
the "

City:" or its post code, the "Road:",
the
"N°:".   Confirm   each   time. Select "Navigate to".
Choose
  the   restriction   criteria:   "Include
tollroads", "Include ferries", "Traffic", "Strict",
"Close". Choose   the   navigation   criteria:   "
Fastest" or
"Shortest" or "Time/distance" or "Ecological ".
To   delete   navigation   information,   press   on
"

Settings" then "Stop navigation".
To
  restore   the   navigation   information   press   on
"

Settings" then "Resume navigation".
Press on Navigation
  to   display   the   primary
page

  then   go   to   the   secondary   page.
NAVIGATION - GUIDANCE
