2015 Citroen C4 AIRCROSS sat nav

48

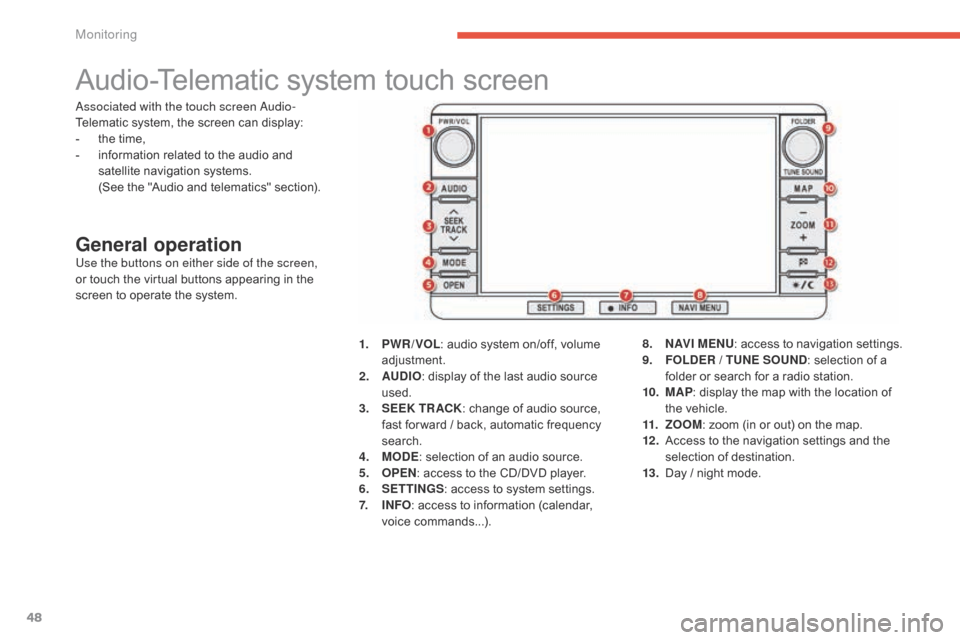

Audio-Telematic system touch screen
General operationUse the buttons on either side of the screen,
or touch the virtual buttons appearing in the
screen to operate the system.1.
P

WR / VOL: audio system on/off, volume
adjustment.
2.
AU

DIO: display of the last audio source
used.
3.
S

EEK TR ACK: change of audio source,
fast for ward / back, automatic frequency
search.
4.
M

ODE: selection of an audio source.
5.
O

PEN: access to the CD/DVD player.
6.
S

ETTINGS: access to system settings.
7.
I

NFO: access to information (calendar,
voice commands...). 8.
N

AV I M E NU: access to navigation settings.
9.
F

OLDER / TUNE SOUND: selection of a
folder or search for a radio station.
10.
M

AP: display the map with the location of
the vehicle.
11.
Z

OOM: zoom (in or out) on the map.
12 .
A

ccess to the navigation settings and the
selection of destination.
13.
D

ay / night mode.
Associated with the touch screen Audio-
Telematic system, the screen can display:
-

t
he time,
-
i
nformation related to the audio and
satellite navigation systems.
(
See the "Audio and telematics" section).
Monitoring

205
C4-Aircross_en_Chap07_info-pratiques_ed01-2014

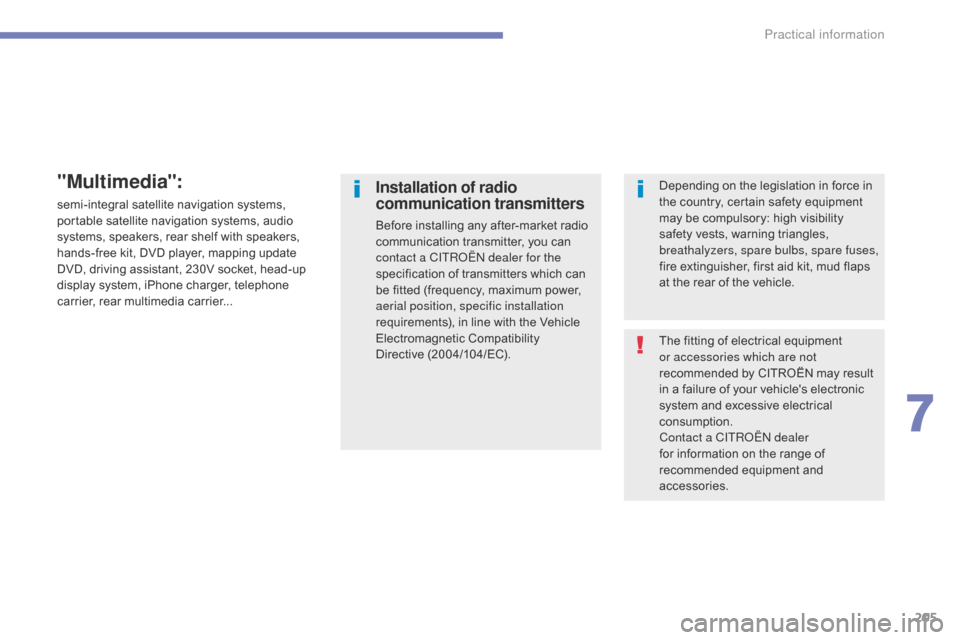

The fitting of electrical equipment
or accessories which are not
recommended by CITROËN may result
in a failure of your vehicle's electronic
system and excessive electrical
consumption.
Contact a CITR
oËn
dealer
for information on the range of
recommended equipment and
accessories.
Installation of radio
communication transmitters
Before installing any after-market radio
communication transmitter, you can
contact a CITR
oËn

dealer for the
specification of transmitters which can
be fitted (frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility
Directive (2004/104/EC). Depending on the legislation in force in
the country, certain safety equipment
may be compulsory: high visibility
safety vests, warning triangles,
breathalyzers, spare bulbs, spare fuses,
fire extinguisher, first aid kit, mud flaps
at the rear of the vehicle.
"Multimedia":
semi-integral satellite navigation systems,
portable satellite navigation systems, audio
systems, speakers, rear shelf with speakers,
hands-free kit, DVD player, mapping update
DVD, driving assistant, 230V socket, head-up
display system, iPhone charger, telephone
carrier, rear multimedia carrier...
7
Practical information

263
C4-Aircross_en_Chap10b_Mitsu6_ed01-2014
Level 1Level 2 Level 3 Comments
Route o ptionsRoute Priority
Adjust the roads used conditions.
Minimize Motorways
Minimize Toll Roads
Navi Voice/Others Beep Sound Volume
Set the voice used for navigation instructions and adjust the volume.
Guidance Voice Volume
Speed Compensated Volume
Personal Address Book
Save, modify or delete an entry in the address book.
Go Home
Special Location
My Categories
Start Demo Play the video to check the prepared route.

04
264
C4-Aircross_en_Chap10b_Mitsu6_ed01-2014
The satellite navigation system guides the driver to the destination
set in accordance with a chosen route.
Initially, it searches for the destination required by the user, then
it calculates the route and finally it provides the visual and vocal
guidance instructions.A point of interest (P
o I) is represented by an icon on
the map, it represents an airport, a station, a town
hall,
...
What is a point of interest (POI)?
Up to 40 different icons may be displayed (refer to the
section "Points of interest icon").
They are classified in 5 groups and identified by one
colour for each group:
-

Shops, finance and businesses (Green),
-


V
ehicles and travel (Dark blue),
-

Restaurants (Orange),
-


Public places and emergency services (Brown),
-


Entertainment and attractions (Blue).
GPS (Global Positioning System) consists of several
satellites arranged around the earth.

They continuously
transmit digital signals which travel at the speed of
light, on 2 different frequencies.
At any given time, the system receives its position
in relation to the satellites detected and the time of
transmission of the signal.
This enables the telematic unit to calculate its position
and therefore that of the vehicle.
A repositioning process using the map database stored
on the hard disk allows the vehicle to be positioned
on the road network, so improving the accuracy of the
vehicle location function.
GPS system
What is the navigation system and GPS? The system's measurements may be inaccurate if the vehicle is:
-

in a tunnel or underground car park,
-


underneath a two-level motorway
,
-

in an area with several very high buildings,
-


surrounded by closely planted trees.
Depending on the vehicle's situation and the reception of the GPS
information, the displayed information may disappear from the
screen temporarily

.
What precautions should be observed in order to make
best use of the system?
Do not place anything on or near the GPS aerial.
Do not use any digital communication equipment (personal
computers, etc.) near the GPS aerial.
Do not affix any reflective films or films containing carbon to the
windows.
NAVIGATION - GUIDANCE
