Reversing camera
Linked with the navigation option, the reversing
camera complements the parking sensor
system and is activated automatically when
reverse gear is engaged.The image from the camera is displayed in the
navigation screen.
The zone (A)


represents the upper part of the
rear bumper.
The red line represents the distance of 50 cm
from the edge of the rear bumper.
The green lines represent the width of the
vehicle increased by 20 cm on each side.
The marks on the green lines correspond to the
edges of the rear bumper (B), then the distance
of 1 metre from the edge of the rear bumper (C)
and 2 metres (D) . In no circumstances can the reversing
camera replace the need for vigilance
on the part of the driver.
Clean the reversing camera from time
to time using a soft dry cloth.
High pressure jet wash
When washing your vehicle, do not
direct the lance to within 30 cm of the
camera lens.
driving

186
C4-Aircross_en_Chap07_info-pratiques_ed01-2014

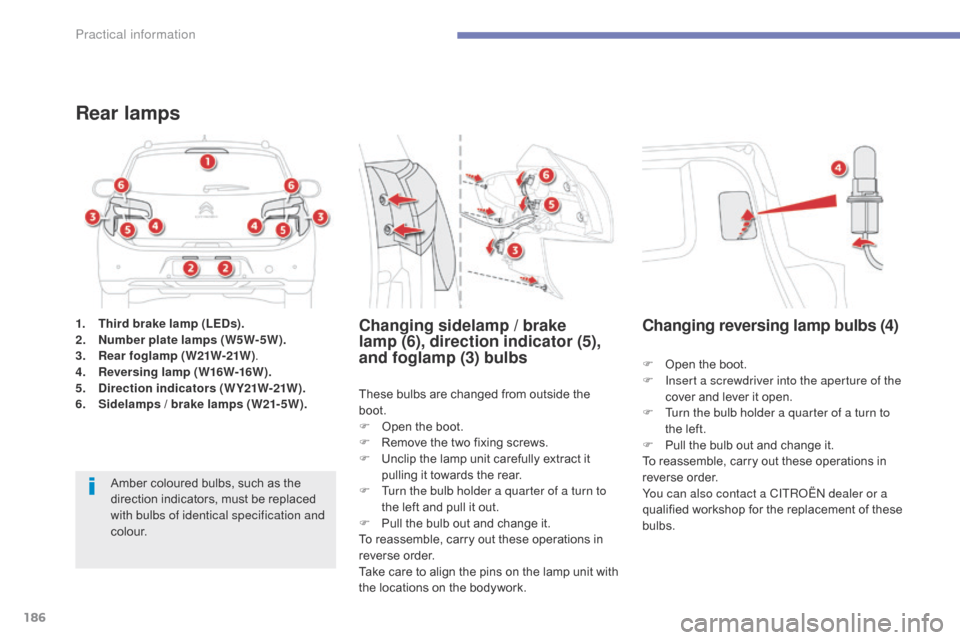

1. Third brake lamp (LEDs).
2. Number plate lamps (W5W-5W).
3.
R

ear foglamp ( W21W-21W ) .
4.
R

eversing lamp ( W16W-16W ).
5.
D

irection indicators (WY21W-21W).
6.
S

idelamps / brake lamps (W21-5W).
Rear lamps
Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specification and
c o l o u r. These bulbs are changed from outside the
boot.
F

O
pen the boot.
F
R
emove the two fixing screws.
F
U
nclip the lamp unit carefully extract it
pulling it towards the rear.
F T urn the bulb holder a quarter of a turn to
the left and pull it out.
F

P
ull the bulb out and change it.
To reassemble, carry out these operations in
reverse order.
Take care to align the pins on the lamp unit with
the locations on the bodywork.
Changing sidelamp / brake
l amp (6), direction indicator (5),
and foglamp (3) bulbs
F Open the boot.
F
I nsert a screwdriver into the aperture of the
cover and lever it open.
F

T
urn the bulb holder a quarter of a turn to
the left.
F

P
ull the bulb out and change it.
To reassemble, carry out these operations in
reverse order.
You can also contact a CITR
oËn

dealer or a
qualified workshop for the replacement of these
bulbs.
Changing reversing lamp bulbs (4)
Practical information

190
C4-Aircross_en_Chap07_info-pratiques_ed01-2014
* The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried out by a CITROËN dealer or a qualified workshop.
Fuse N°
Rating Functions
18 7. 5 AReversing lamps.
19 15 AAccessory socket.
20* 30 AElectric window controls.
21 * 30 AHeated rear screen.
22 7. 5 AHeated door mirrors.
24 25 ADriver's and passenger's electric seat.
25 30 AHeated seats.
Practical information

03
293
