10
Panel grouping together the vehicle operation indication dials and warning lamps.

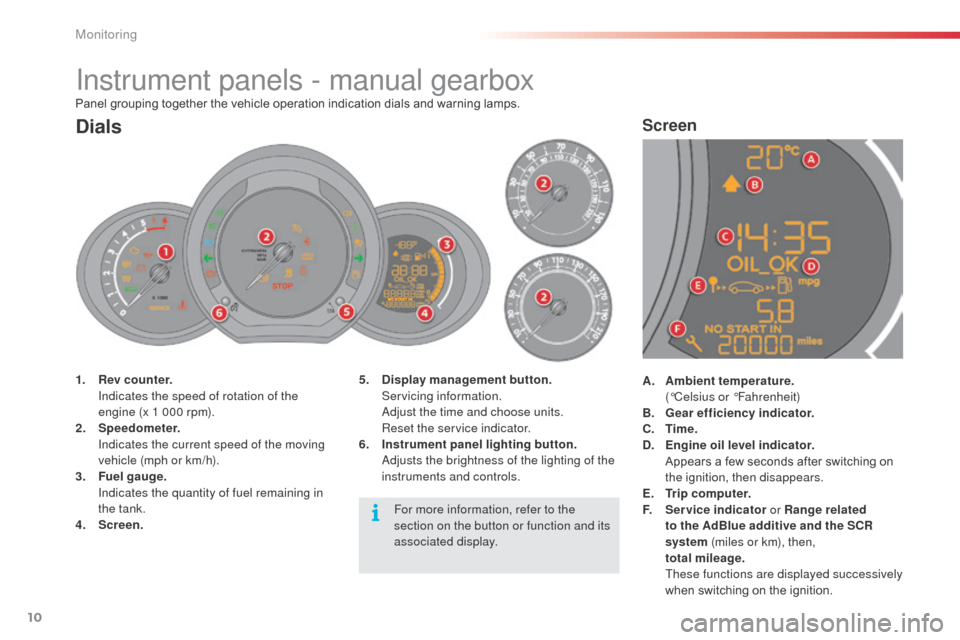

Instrument panels - manual gearbox
5. Display management button. S
ervicing information.


a
d
just the time and choose units.
R

eset the service indicator.
6.
I

nstrument panel lighting button.


a
d
justs the brightness of the lighting of the
instruments and controls.
1. R
ev counter.
I
ndicates the speed of rotation of the
engine (x 1 000 rpm).
2.
S

peedometer .
I

ndicates the current speed of the moving
vehicle (mph or km/h).
3.
F

uel gauge.
I

ndicates the quantity of fuel remaining in
the tank.
4.
S

creen. A. A
mbient temperature.
(

°Celsius or °Fahrenheit)
B.
G

ear efficiency indicator.
C.
Ti

me.
D.
E

ngine oil level indicator.
A

ppears a few seconds after switching on
the ignition, then disappears.
E.
T

rip computer.
F.
S

ervice indicator or Range related
to the AdBlue additive and the SCR
system (miles or km), then,
t

otal mileage.
T

hese functions are displayed successively
when switching on the ignition.
Screen
For more information, refer to the
section on the button or function and its
associated display.
Dials
Monitoring

11
Instrument panels - electronic or automatic gearboxes
Panel grouping together the vehicle operation indication dials and warning lamps. Depending on the version, the instrument panel may have permanent
back-lighting.
1.
R
ev counter.
I

ndicates the speed of rotation of the
engine (x 1 000 rpm).
2.
S

peedometer .
I

ndicates the current speed of the moving
vehicle (mph or km/h).
3.
F

uel gauge.
I

ndicates the quantity of fuel remaining in
the tank.
4.
S

creen. 5.
D

isplay management button.
A

lternates display between range and trip
mileage recorder.
S

ervicing information.
R

esets the selected function to zero (trip
distance recorder or service indicator).
6.
I

nstrument panel lighting button.


a
d
justs the brightness of the lighting of the
instruments and controls.
ScreenDials
For more information, refer to the
section on the button or function and its
associated display. A.
S

peed limiter

(
mph or km/h) or

C
ruise control.
B.
G
ear
efficiency indicator.
C.
E
lectronic
or automatic gearbox
information.
D.
R
ange

(
miles or km) or
T

rip mileage recorder.
E.
S
ervice indicator

(
miles or km), then
tot

al mileage recorder.
T hese two functions are displayed
successively when switching on the ignition.
F.
E

ngine oil level indicator.
A

ppears a few seconds after switching on
the ignition, then disappears.
1
Monitoring

17
Any fault resulting in the illumination of a warning lamp must be investigated further by
reading the associated message in the multifunction screen.
If you encounter any problems, do not hesitate to contact a CITROËN dealer or a qualified workshop.
Warning lamps
When the engine is running or the vehicle is
being driven, the illumination of one of the
following warning lamps indicates a fault which
requires action on the part of the driver.STOP fixed, alone or
associated with
another warning
lamp, accompanied
by an audible signal
and a message in the
screen. Illumination of the warning lamp is
associated with a serious braking
system or engine coolant temperature
problem.
Stop as soon as it is safe to do so as the engine may
cut out when driving.
Park, switch off the ignition and call a CITROËN
dealer or a qualified workshop.
Service temporarily. Minor problems have occurred for
which there is no specific warning
lamp. Identify the problem by reading the message shown in
the screen, such as, for example:
-

t
he engine oil level,
-

t
he screenwash level,
-

t
he remote control battery,
-

s
aturation of the particle filter on d
i
esel vehicles
(refer to the "Particle filter (
di

esel)" section).
For any other faults, contact a CITR
oËn

dealer or
a
qualified workshop.
fixed. Major problems have occurred for
which there is no specific warning
lamp. Identify the problem by reading the message shown
in the screen and contact a CITR
oËn

dealer or
a
qualified workshop.
Warning/indicator
lampis on Cause Action / Observations
1
Monitoring

21
Water in Dieselfixed. The Diesel fuel filter contains water. Risk of damage to the injection system on di esel
engines.
Contact a CITROËN dealer or a qualified workshop
without delay.
Particle
filter
(Diesel) fixed, accompanied by
an audible signal.
This indicates that the particle filter is
starting to become saturated. As soon as driving conditions allow, regenerate the
filter by driving at a speed of at least 35 mph (60 km/h)
until the warning lamp goes off (see the "Checks -
Particle filter" section).
fixed, accompanied by
an audible signal. This indicates the low level of the
additive reservoir. Have the reservoir topped up as soon as possible by
a CITROËN dealer or a qualified workshop (see the
"Checks -
a
d
ditive level" section).
Under-inflation fixed, accompanied by
an audible signal and
a message. The pressure in one or more tyres is
too low.
Check the tyre pressures as soon as possible.
This check should preferably be carried out when the
tyres are cold.
You must reinitialise the system after the adjustment
of one or more tyre pressures and after changing one
or more wheels.
For more information, refer to the "Under-inflation
detection" section.
+ flashing then fixed,
accompanied by the
Service warning lamp.The system has fault: the tyre
pressures are no longer monitored.
Check the tyre pressures as soon as possible.
Have the system checked by a CITR
oËn

dealer or a
qualified workshop.
Warning/indicator
lampis on Cause Action / Observations
1
Monitoring

22
Warning/indicator lampis on Cause Action / Observations
AdBlue
® additive
(BlueHDi Diesel) fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating the
remaining driving range. The remaining driving range is
between 350 miles (600 km) and
1500 miles (2400 km).
Have the
adbl ue® additive tank topped up as soon
as possible: go to a CITRoËn dealer or a qualified
workshop, or carry out this operation yourself by
referring to the corresponding section.
+ flashing associated with
the SERVICE warning
lamp, accompanied by
an audible signal and a
message indicating the
remaining driving range.The remaining driving range is
between 0 and 350 miles (600 km).
You must top-up the
a d
blu
e
® additive tank to avoid
a breakdown : go to a CITRoËn
dealer or a qualified
workshop, or carry out this operation yourself by
referring to the corresponding section.
flashing, associated
with the SERVICE
warning lamp,
accompanied by an
audible signal and a
message indicating that
starting is prevented. The
a
d
blu

e
® tank is empty: the
starting inhibition system required
by legislation prevents starting of the
engine. To be able to start the engine, you must top-up the a
dblu e® additive tank: go to a CITRoËn dealer or a
qualified workshop, or carry out this operation yourself
by referring to the corresponding section.
It is essential to add at least 3.8 litres of AdBlue
® to
the additive tank.
Monitoring

23
Warning/indicator lampis on Cause Action / Observations
+
+ SCR emissions
control system

(BlueHDi Diesel)
fixed, on switching on the ignition,
associated with the SERVICE
and engine diagnostic warning
lamps, accompanied by an
audible signal and a message.A fault with the SCR emissions
control system has been detected. This alert disappears once the exhaust
emissions return to normal levels.
flashing, on switching on
the ignition, associated with
the SERVICE and engine
diagnostic warning lamps,
accompanied by an audible
signal and a message
indicating the remaining
driving range. After confirmation of the fault with the
emissions control system, you can
drive for up to 650 miles (1 100 km)
before the engine starting inhibition
system is triggered.
Contact a CITR
oËn

dealer or a qualified
workshop without delay , to avoid
a


breakdown.
flashing, on switching on
the ignition, associated with
the SERVICE and engine
diagnostic warning lamps,
accompanied by an audible
signal and a message. You have exceeded the authorised
driving limit following confirmation
of a fault with the emissions control
system: the engine starting inhibition
system prevents starting of the
engine. To be able to start the engine, you must

call on a CITR
oËn

dealer or a qualified
workshop.
1
Monitoring

24
System which informs the driver when the
next service is due, in accordance with the
manufacturer's servicing schedule.
Between 600 miles (1 000 km)
and 1 800 miles (3 000 km) remain
before the next service is due
For 5 seconds after the ignition is switched on, the
spanner symbolising the service operations comes
on. The distance recorder display line indicates the
distance remaining before the next service is due.
Example: 1 700 miles (2 800 km) remain
before the next service is due.
For 5 seconds after the ignition is switched on, the
screen indicates:
Less than 600 miles (1 000 km)
remain before the next service is due
Example: 560 miles (900 km) remain before
the next service is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
5 seconds after the ignition is switched on,
the spanner goes off ; the distance recorder
resumes its normal operation. The screen then
indicates the total distance. 5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on
to
indicate that a service must be carried out
soon.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no service
information appears in the screen.
Service indicator
The point at which the next service is due is
calculated from the last indicator zero reset,
depending on the distance travelled and the
time elapsed since the last service.
For
b
l
ueH
di
d
i
esel versions, the
degree of deterioration of the engine oil
is also taken into account (depending
on the country of sale).
Monitoring

26
Service indicator zero reset
after each service, the service indicator must
be reset to zero.
The procedure for resetting to zero is as
follows:
F
s
witch off the ignition,
F

p
ress and hold the trip distance recorder
zero reset button,
F

s
witch on the ignition; the distance recorder
display begins a countdown,
F

w
hen the display indicates "=0" , release
the button; the spanner disappears.
Retrieving the service
information
You can access the service information at any
time.
F

P
ress the trip distance recorder zero reset
button.
T

he service information is displayed for a
few seconds, then disappears. Following this operation, if you wish to
disconnect the battery, lock the vehicle
and wait at least five minutes for the
zero reset to be taken into account.
Monitoring
