118
avoid attaching heavy objects to the
key, which would weigh down on its
blade in the ignition switch and could
cause a malfunction.
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip which has
a special code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
This electronic engine immobiliser locks the
engine management system a few minutes
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal and
a message in the screen.
Ignition switch
It has 3 positions:
- P osition 1: Stop
-

P
osition 2: Ignition on
-

P
osition 3: Starting
Ignition on
In this position the vehicle's electrical
equipment can be used or accessories
charged.
When the state of charge of the battery
drops to a reserve level, the system goes into
energy economy mode: the power supply is
automatically cut off to preserve the state of
charge of the battery.
In this case, your vehicle will not start; contact
a CITR
oËn

dealer as soon as possible.
Keep safely, away from your vehicle, the label
attached to the keys given to you on acquisition
of the vehicle.
Starting-switching off the engine
driving

119
Starting the engine
F apply the parking brake.
F W ith a manual gearbox: place the lever in
neutral and fully depress the clutch pedal.
F

W
ith an electronic gearbox: place the lever
at position N and press the brake pedal
f i r m l y.
F

W
ith an automatic gearbox: place the lever
at position P and press the brake pedal
f i r m l y.
F

I
nsert the key in the ignition switch; the
system recognises the code.
F

U
nlock the steering column by
simultaneously turning the steering and
t h e


key.
In some circumstances, you may have
to apply some force to turn the steering
wheel (wheels on lock for example).
F

W
ith a petrol engine, operate the starter
motor by turning the key to position 3 until
the engine starts, without pressing the
accelerator pedal.
o
n
ce the engine starts,
release the key. F
W ith a di esel engine, turn the key to
position 2 , ignition on, to operate the
engine preheating system.
Wait until this warning lamp goes off
in the instrument panel, then operate
the starter motor by turning the key to
position 3 until the engine starts, without
pressing the accelerator pedal.
o
n
ce
the engine starts, release the key.
If the engine does not start straight
away, switch the ignition off. Wait a
few moments before trying again. If
the engine does not start after a few
attempts, do not keep trying: you risk
damaging the starter motor and the
engine. Call on a CITR
oËn

dealer or a
qualified workshop.
ne

ver leave the engine running in
an enclosed area without adequate
ventilation: internal combustion
engines emit toxic exhaust gases,
such as carbon monoxide. Danger of
intoxication and death. In very severe
winter conditions (temperatures
below -23°C), it is necessary to allow
the engine to run for 4 minutes before
setting off, in order to ensure the
correct operation and durability of
the mechanical components of your
vehicle, the engine and gearbox.
In wintry conditions, the warning lamp
will stay on longer. When the engine is
hot, it does not come on. In temperate conditions, do not
warm the engine up with the vehicle
stationary, but move off straight away
and drive at moderate engine speeds.
9
Driving

120
Switching the engine off
F Immobilise the vehicle.
F W ith the engine at idle, turn the key fully
towards you to position 1 (Stop) .
F

R
emove the key from the ignition switch.
F

T
o lock the steering column, turn the
steering wheel until it locks.
Never switch the ignition off until the
vehicle has come to a complete stop
and the parking brake has been applied.
With the engine stopped, the braking and
steering assistance systems are also cut
off: risk of loss of control of the vehicle. To facilitate unlocking of the steering
column, put the front wheels in the
straight ahead position before switching
the ignition off.
When you leave the vehicle, take the
key with you and lock the vehicle.Key reminder
If the key is left in the ignition switch, an
audible signal sounds when the driver's
door is opened.
For more information, refer to the
"Energy economy mode" section.
F

E

nsure that the parking brake is applied
correctly, particularly when on a slope.
Energy economy mode
After switching off the engine (position 1 - Stop ),
you can still use functions such as the audio
and telematic system, the wipers, dipped beam,
courtesy lamps, etc., for maximum cumulative
period of 30 minutes.
Driving

121
Parking brake
Applying
F Pull the parking brake lever fully up to immobilise your vehicle.
Releasing
F Pull the parking brake lever gently, press the release button then lower the lever
fully.
When the vehicle is being driven, if this
warning lamp and the STOP warning lamp
come on, accompanied by an audible
signal and a message in the multifunction
screen, this indicates that the parking brake
is still on or has not been properly released.
6-speed manual
gearbox
Engaging 5th or 6th gear
F Move the lever fully to the right to
engage 5th or 6th g e a r.
F
R
aise the ring under the knob and move
the gear lever to the left then for wards.
Engaging reverse
gear
Only engage reverse gear when the
vehicle is stationary with the engine at idle.
as a safety precaution and to facilitate
starting of the engine:
-

a
lways select neutral,
-

p
ress the clutch pedal.
When parking on a slope, direct your
wheels against the pavement, apply the
parking brake and engage a gear. Failure to follow this advice may cause
permanent damage to the gearbox
(engagement of 3
rd or 4th gear by
m i st a ke).
9
driving

122
Electronic gearbox (ETG)
R. Reverse
F W ith your foot on the brake, move the
selector for wards to select this position.
N.


n
e
utral.
F

W
ith your foot on the brake, select this
position to start the engine.
A.


a
u
tomated mode.
F

M
ove the selector backwards to select this
mode.
M + / -.

M
anual mode with sequential gear
changing.
F

M
ove the selector backwards, then to the
left to select this mode, then:
-

p
ush for wards to change up a gear,
-

o
r push backwards to change down a gear.
Gear selector positions
+. Paddle to the right of the steering wheel for changing up.
F

P
ress the back of the steering
mounted
"+"

paddle to change up a gear.
-.
P

addle to the left of the steering wheel for
changing down.
F

P
ress the back of the steering
mounted

"-
"

paddle to change down a gear.
Steering mounted controlsFive or six-speed electronically controlled
gearbox which offers a choice between the
comfort of automated operation or the pleasure
of manual gear changing.
Two driving modes are offered:
-
a
utomated mode for automatic control
of the gears by the gearbox, without any
action by the driver,
-

m
anual mode for the sequential changing
of the gears by the driver, using the gear
selector or the steering mounted control
paddles.
In automated mode, you can temporarily take
control of gear changes at any time, using the
steering mounted control paddles.
The steering mounted paddles do not
allow neutral to be selected, reverse
gear to be engaged or disengaged, or
the driving mode to be changed.
Driving

123
Display in the instrument panel
N. neutral
R. R everse
1 2 3 4 5 / 6. Gears in manual mode.
AUTO.

T
his comes on when automated mode
is selected. It goes off when changing
to manual mode. F

Sel
ect position N
.
F
P
ress the brake pedal fully.
F
S
tart the engine.
N appears in the instrument panel. F
S
elect automated mode (position A
),
manual mode (position M) or reverse
(position R).
AUTO and 1, 1 or R appear in the
instrument panel.
F
R
elease the parking brake.
F
P
rogressively take your foot off the brake
pedal.
F
A
ccelerate away.de pending on the type of electronic
gearbox, the vehicle may move off on
its own.
For more information, refer to the
"Creep function" section.
do n

ot press the brake and clutch
pedals simultaneously. This can cause
rapid clutch wear.
If the engine does not start:
-
If
N is flashing in the instrument
panel, move the gear selector to
position A , then to position N .
Moving off
- If this warning lamp comes on,
accompanied by an audible
signal and the display of a
message, press firmly on the
brake pedal.
9
Driving

124
Automated mode
AUTO and the gear engaged appear
in the instrument panel.
The gearbox then operates in auto-adaptive
mode, without any action on the part of the
driver. It continuously selects the most suitable
gear taking account of:
-
o

ptimisation of fuel consumption,
-

d

riving style,
-

r

oad conditions,
-

v

ehicle load.
For optimum acceleration, when overtaking
another vehicle for example, press the
accelerator pedal fully down, beyond the point
of resistance.
Temporary control of gear
changing
You can temporarily take over control of gear
changes using the steering mounted "+" and
"-"
control paddles: if the engine speed allows, the
gear change is carried out.
This function allows you to anticipate certain
situations such as overtaking another vehicle or
approaching a bend.
After a few moments without any action on the
paddles, the gearbox resumes control of gear
changing automatically.
Creep function
(depending on equipment)
This function allows the vehicle to be
manoeuvred more easily at low speeds (when
parking, in traffic jams...).
With the gear selector in position A , M or R,
the vehicle moves as soon as you take your
foot off the brake pedal , at low speed and
with the engine at idle.
do n

ot leave children unsupervised
inside the vehicle when the engine is
running.
You can change mode at any time by
moving the gear selector from A to M or
the other way round.
The creep function may be temporarily
unavailable if the clutch temperature is
too high or the slope too steep.
Never select neutral (position N) when
moving.
F

Sel
ect position A
.

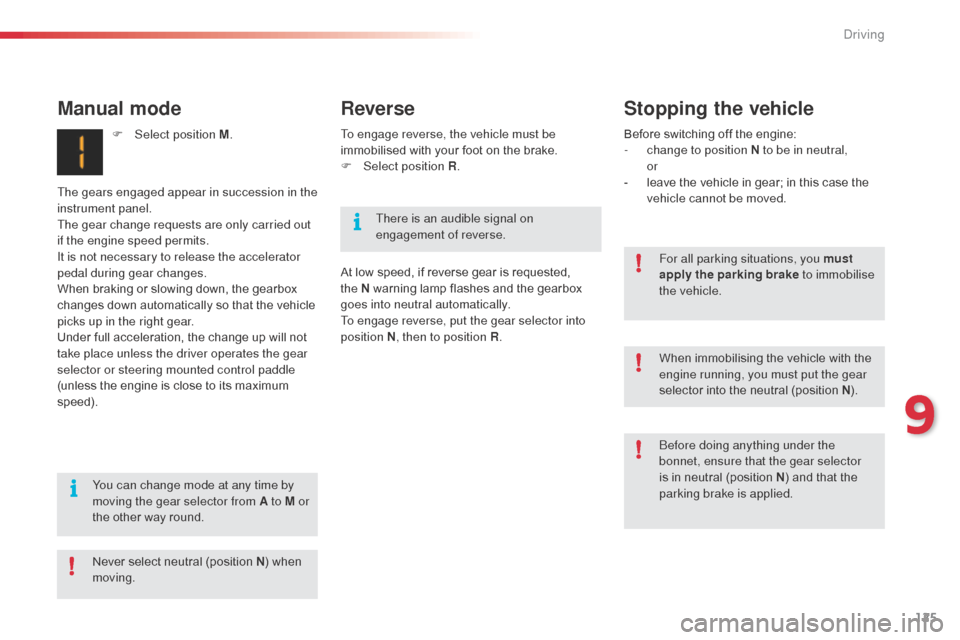

Driving

125
To engage reverse, the vehicle must be
immobilised with your foot on the brake.
F
Sel
ect position R .
At low speed, if reverse gear is requested,
the N warning lamp flashes and the gearbox
goes into neutral automatically.
To engage reverse, put the gear selector into
position N , then to position R .
There is an audible signal on
engagement of reverse.
You can change mode at any time by
moving the gear selector from A to M or
the other way round. Before switching off the engine:
-
c hange to position N to be in neutral,


or
-

l
eave the vehicle in gear; in this case the
vehicle cannot be moved.
For all parking situations, you must
apply the parking brake to immobilise
the vehicle.
Never select neutral (position N ) when
moving.
Manual mode
F Select position M .
The gears engaged appear in succession in the
instrument panel.
The gear change requests are only carried out
if the engine speed permits.
It is not necessary to release the accelerator
pedal during gear changes.
When braking or slowing down, the gearbox
changes down automatically so that the vehicle
picks up in the right gear.
Under full acceleration, the change up will not
take place unless the driver operates the gear
selector or steering mounted control paddle
(unless the engine is close to its maximum
speed).
Reverse Stopping the vehicle
before doing anything under the
bonnet, ensure that the gear selector
is in neutral (position N) and that the
parking brake is applied. When immobilising the vehicle with the
engine running, you must put the gear
selector into the neutral (position N ).
9
driving
