2015 CITROEN C-ELYSÉE engine

48
1. Temperature level adjustment
F Turn the control knob from blue (cold) to red (hot) to
adjust the temperature to your
requirements. This system only operates with the engine running.
2. Air flow adjustment
F Turn the control knob from
position 1 to position 4 to obtain
a comfortable air flow. If you put the air flow control in
position 0
(system off), the temperature
is no longer controlled. However,
a slight flow of air can still be felt,
resulting from the movement of
the
vehicle.
Manual air conditioning
(without display screen)
Heating / Ventilation
This system only operates when the engine is running.
Comfort

50
Electronic air conditioning (with display screen)
These systems only operate with the engine running.
1. Air intake / Air recirculation
The recirculation of interior air isolates the
passenger compartment from exterior odours
and smoke.
2. Temperature level adjustment
F Press the "5" (red for hot) and
" 6 " (blue for cold) buttons, to
adjust the temperature to your
requirements.
The temperature bars come on
or go off progressively in the air
conditioning screen.
Return to exterior air intake as soon as possible
to prevent deterioration of the the air quality
and the formation of mist.
F

P

ress the button to recirculate the interior
air. The indicator lamp comes on to confirm
this. F

P

ress the button again to
permit the intake of exterior air.
The

indicator lamp goes off to
confirm this.
3. Front demist - defrost
See the corresponding section.
Comfort

54

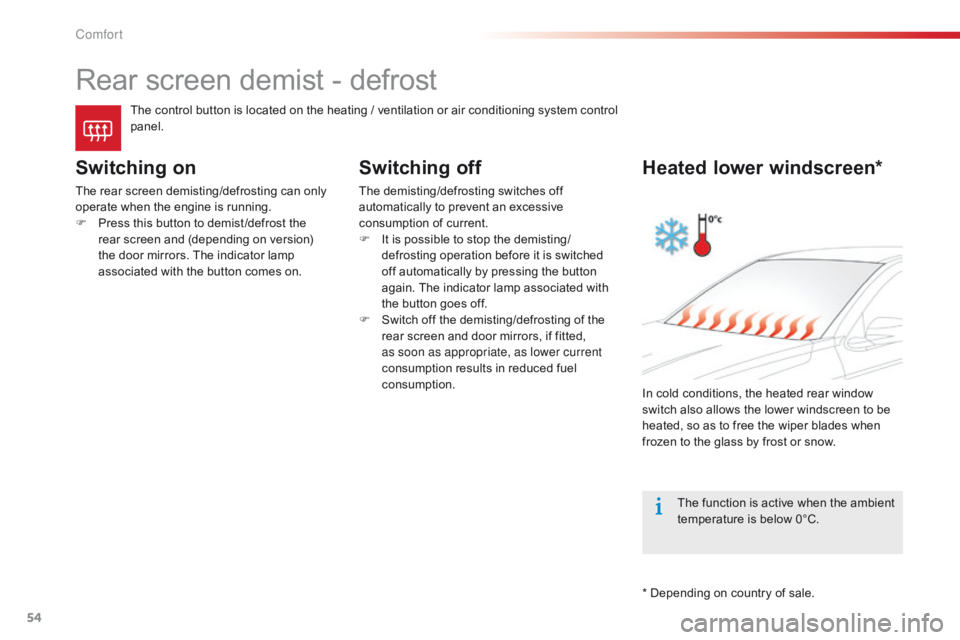

Rear screen demist - defrost
The control button is located on the heating / ventilation or air conditioning system control
panel.
Switching on
The rear screen demisting/defrosting can only
operate when the engine is running.
F
P
ress this button to demist /defrost the
rear screen and (depending on version)
the door mirrors. The indicator lamp
associated with the button comes on.
Switching off
The demisting/defrosting switches off
automatically to prevent an excessive
consumption of current.
F

I
t is possible to stop the demisting/
defrosting operation before it is switched
off automatically by pressing the button
again. The indicator lamp associated with
the button goes off.
F

S
witch off the demisting/defrosting of the
rear screen and door mirrors, if fitted,
as soon as appropriate, as lower current
consumption results in reduced fuel
consumption.
Heated lower windscreen*
In cold conditions, the heated rear window
switch also allows the lower windscreen to be
heated, so as to free the wiper blades when
frozen to the glass by frost or snow.
The function is active when the ambient
temperature is below 0°C.
* Depending on country of sale.
Comfort

60
Never drive with the parking brake
applied - Risk of overheating and
damage to the braking system!
Do not park or run the engine when
stationary in areas where inflammable
substances and materials (dry grass,
dead leaves...) might come into contact
with the hot exhaust system - Risk of
fire!
Never leave a vehicle unsupervised
with the engine running. If you have
to leave your vehicle with the engine
running, apply the parking brake
and put the gearbox into neutral or
position

N or P, depending on the type
of gearbox.
A few driving recommendations
Observe the driving regulations at all times and
remain vigilant whatever the traffic conditions.
Pay close attention to the traffic and keep your
hands on the wheel so that you are ready to
react at any time to any eventuality.
On a long journey, a break every two hours is
strongly recommended.
In difficult weather, drive smoothly, anticipate
the need to brake and increase the distance
from other vehicles. If you are obliged to drive through water:
-

c
heck that the depth of water does not
exceed 15 cm, taking account of waves
that might be generated by other users,
-

d
eactivate the Stop & Start system,
-

d
rive as slowly as possible without
stalling. In all cases, do not exceed 6 mph
(10
km/h),
-

d
o not stop and do not switch off the
engine.
On leaving the flooded road, as soon as
circumstances allow, make several light brake
applications to dry the brake discs and pads.
If in doubt on the state of your vehicle, contact
a CITROËN dealer or a qualified workshop.Important!
Driving on flooded roads
We strongly advise against driving on flooded
roads, as this could cause serious damage
to the engine or gearbox, as well as to the
electrical systems of your vehicle.
driving

61
Starting-switching off the engine
It has 3 positions:
- p osition 1 (Stop) : insert and removing the
key,
-

p
osition 2 (Ignition on) : steering column
unlocked, ignition on, Diesel preheating,
engine running,
-

p
osition 3 (Star ting) .
Ignition switch
It allows the use of the vehicle's electric
equipment or portable devices to be charged.
Once the state of charge of the battery drops
to the reserve level, the system switches to
energy economy mode: the power supply is
cut off automatically to preserve the remaining
battery charge.
Ignition on positionAnti-theft protection
Electronic engine immobiliser
The key contains an electronic chip which has
a special code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
This electronic engine immobiliser locks the
engine management system a few minutes
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal
and a message in the screen.
Keep safely, away from your vehicle,
the label attached to the keys given to
you on acquisition of the vehicle. Avoid attaching heavy objects to the
key, which would weigh down on its
blade in the ignition switch and could
cause a malfunction.
In this case, your vehicle will not start; contact
a CITROËN dealer as soon as possible.
5
driving

62
In certain cases, you may have to apply
more force to the steering (wheels on
full lock, for example).
Starting the engine
F With a petrol engine, operate the starter motor by turning the key to position 3
without pressing the accelerator pedal,
until the engine starts. Once the engine is
running, release the key. F

W
ith a Diesel engine, turn the key to
position 2 , ignition on, to operate the
engine pre-heating system.
With the parking brake applied and the gearbox
in neutral or position N or P
:
F
d
epress the clutch pedal fully (manual
gearbox),

or
F
p
ress the brake pedal firmly (electronic or
automatic gearbox),
F
i
nsert the key into the ignition switch; the
system recognises the code,
F
u
nlock the steering column by
simultaneously turning the steering and the
key.
Wait until this warning lamp goes off in the
instrument panel then operate the starter
motor by turning the key to position
3
without pressing the accelerator pedal,
until the engine starts. Once the engine is
running, release the key.
If the engine does not start straight
away, switch off the ignition. Wait a
few moments before operating the
starter motor again. If the engine does
not start after several attempts, do not
keep trying: you risk damaging the
starter motor or the engine. Contact
a CITROËN dealer or a qualified
workshop. In wintry conditions, the warning lamp
can stay on for a longer period. When
the engine is hot, the warning lamp
does not come on. Never leave the engine running in
an enclosed area without adequate
ventilation: internal combustion
engines emit toxic exhaust gases,
such as carbon monoxide. Danger of
intoxication and death.
In very severe wintry conditions
(temperatures below -23°C), to ensure
the correct operation and durability of
the mechanical components of your
vehicle, engine and gearbox, it is
necessary to leave the engine running
for 4 minutes before moving off. In temperate conditions, do not leave
the engine at idle to warm up but move
off straight away and drive at moderate
speed.
Driving

63
Never switch off the ignition before the
vehicle is at a complete stop. With the
engine off, the braking and steering
assistance systems are also cut off: risk
of loss of control of the vehicle.
For more information, refer to the
"Practical information" section, under
"Energy economy mode". When you leave the vehicle, keep the
key with you and lock the vehicle.
To facilitate unlocking of the steering
column, it is recommended that the
wheels be returned to the straight ahead
position before switching off the engine.
Switching off the engine
F Check that the parking brake is correctly
applied, particularly on sloping ground.
F

S
top the vehicle.
F
W
ith the engine running at idle, turn the key
to position 1 .
F
R
emove the key from the ignition switch.
F
T
o lock the steering column, turn the
steering until it locks.
Energy economy mode
After switching off the engine (position 1- Stop ),
for a maximum of 30 minutes you can still use
functions such as the audio and telematic
system, the wipers, dipped beam headlamps,
courtesy lamps, ...
Key left in the "Ignition on"
position
On opening the driver's door, an alert
message is displayed, accompanied by an
audible signal, to remind you that the key is
still in the ignition switch at position 1 (Stop).
If the key has been left in the ignition
switch at position 2 (Ignition on) ,
the ignition will be switched off
automatically after one hour.
To switch the ignition back on, turn the
key to position 1 (Stop) , then back to
position 2 (Ignition on) .
5
driving

65
Only engage reverse gear when the
vehicle is stationary with the engine at idle.
As a safety precaution and to facilitate
starting of the engine:
-
a
lways select neutral,
-

p
ress the clutch pedal.
Manual gearbox
F Fully depress the clutch pedal.
F P ush the gear lever fully to the right then
backwards.
Engaging reverse gear
5
Driving
