2015 CITROEN BERLINGO ELECTRIC brake sensor

2

Contents
Key 17
Remote control 17
Alarm 19
Doors 20
Rear roof fl ap 24
Tailgate 25
Central locking 26
Instrument panel 27
Adjusting the time 28
Warning lamps 29
Fuel gauge 35
Coolant 35
Tyre under-infl ation
detection 36
Service indicator 37
Lighting dimmer 38
Gearbox 39
Gear effi ciency
indicator 39
6-speed electronic
gearbox 40
Steering wheel
adjustment 42
Stop & Start 43
Starting and stopping 46
Hill start assist 47
Lighting control 48
wipers 51
Cruise control 53
Speed limiter 56
Heating / Air conditioning
manual 59
digital 61
Demisting
and defrosting 63
Front seats 65
Individual
passenger seat 66
Extenso Cab 67
Confi gurations 69
Front fi ttings 70
Courtesy lamps 72
Crew cab 73
Load space 75
Roof bars 77
Mirrors 78
Toll cards/
car park tickets 79
Electric windows 80
Presentation4
Exterior 6
Instruments and controls 8
Centre console9
Sitting comfortably 10
Seeing clearly 11
Driving safely 11
Cab space 12
Load space 13
Ventilation 14
Eco-driving 15
Hazard warning lamps 81
Parking brake 81
Parking sensors 82
Anti-lock braking
system (ABS) 84
Emergency braking
assistance 84
ASR and DSC 85
"Grip control" 86
Seat belts 88
Airbags 90
Deactivating the
passenger's airbag 93
Child seats 95
Recommended seats 99
Installation 100
2. READY TO GO
17-47
4. SAFETY
81-101
1. FAMILIARISATION
4-16
3. EASE OF USE and
COMFORT 48-80

36
Instruments and controls

Puncture

The STOP warning lamp comes on.
Stop as soon as it is safe to do so,
avoiding any sudden movement of the
steering wheel and the brakes.
Make a temporary repair to the tyre
using the puncture repair kit or by
fi tting the spare wheel.
Change the damaged wheel, and have
the tyre pressures checked as soon as
possible.

Sensor(s) fault or not detected

The Service warning lamp comes on.
When changing a wheel or in the
event of a sensor fault, the tyre
pressure is no longer monitored.
Contact a CITROËN dealer or a
qualifi ed workshop to replace the faulty
sensor(s).
All repairs and changing of tyres on a
wheel fi tted with this system must be
carried out by a CITROËN dealer or a
qualifi ed workshop.
If when changing a tyre, you fi t a
wheel not detected by your vehicle
(for example: fi tting snow tyres), you
must have the system reinitialised
by a CITROËN dealer or a qualifi ed
workshop.

The tyre under-infl ation detection
system is a driving aid which does
not take the place of vigilance or the
responsibility of the driver.



TYRE UNDER-INFLATION
DETECTION EMISSIONS CONTROLS
Deflated tyre

The Service warning lamp comes on.
Following a warning, the under-infl ation
of the tyre will not necessarily be
visible.
Check the tyre pressure as soon as
possible.
Refer to the "Changing a wheel"
section of chapter 7.
If the damaged wheel is replaced by
one without a sensor (for example,
the spare wheel), the message
is maintained to indicate that the
pressure of the wheel cannot be
monitored, so providing a reminder that
the damaged wheel with sensor must
be repaired. Sensors continuously monitor the tyre
pressures and trigger a warning in the
event of under-infl ation, a puncture or
a fault with a sensor. EOBD (European On Board
Diagnosis) is a diagnostics
system which complies with,
among others, the standards
concerning authorised
emissions of:


- CO (carbon monoxide),

- HC (unburnt hydrocarbons),

- NOx (nitrous oxides) or particles,
detected by oxygen sensors placed
upstream and downstream of the
catalytic converters.
The driver is warned of any malfunction
of this emission control system by the
illumination of this specifi c warning
lamp in the instrument panel.
There is a risk of damage to the
catalytic converter. Have it checked
by a CITROËN dealer or a qualifi ed
workshop.
Any anomaly is indicated
by visual and audible
information and is
accompanied by a
message in the screen.

Good practice

This system does not avoid the need
to have the tyre pressures checked
regularly (including the spare wheel), to
ensure that the dynamic performance
of the vehicle remains at its best and
to avoid premature wear of the tyres,
in particular in the case of heavy loads
and high speeds.
Observing the recommended tyre
pressures helps reduce the vehicle's
fuel consumption.
The system may temporarily be
disturbed by electro-magnetic
emissions on a frequency close to that
used by it.

103

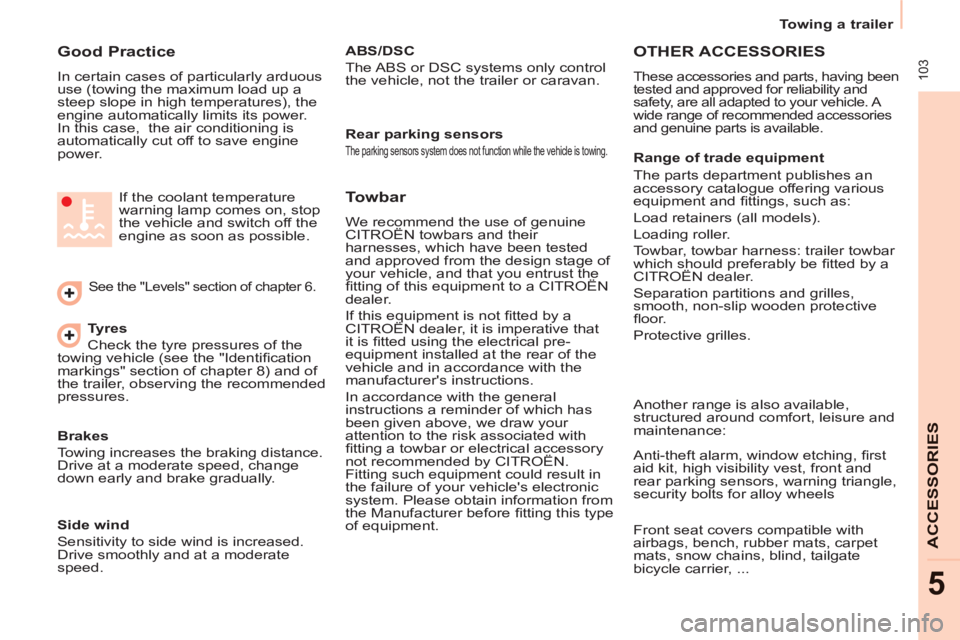

Towing a trailer

ACCESSORIE
S
5


Good Practice

In certain cases of particularly arduous
use (towing the maximum load up a
steep slope in high temperatures), the
engine automatically limits its power.
In this case, the air conditioning is
automatically cut off to save engine
power.

Tyres

Check the tyre pressures of the
towing vehicle (see the "Identifi cation
markings" section of chapter 8) and of
the trailer, observing the recommended
pressures.
See the "Levels" section of chapter 6.
If the coolant temperature
warning lamp comes on, stop
the vehicle and switch off the
engine as soon as possible.

Brakes

Towing increases the braking distance.
Drive at a moderate speed, change
down early and brake gradually.
Towbar

We recommend the use of genuine
CITROËN towbars and their
harnesses, which have been tested
and approved from the design stage of
your vehicle, and that you entrust the
fi tting of this equipment to a CITROËN
dealer.
If this equipment is not fi tted by a
CITROËN dealer, it is imperative that
it is fi tted using the electrical pre-
equipment installed at the rear of the
vehicle and in accordance with the
manufacturer's instructions.
In accordance with the general
instructions a reminder of which has
been given above, we draw your
attention to the risk associated with
fi tting a towbar or electrical accessory
not recommended by CITROËN.
Fitting such equipment could result in
the failure of your vehicle's electronic
system. Please obtain information from
the Manufacturer before fi tting this type
of equipment.
Anti-theft alarm, window etching, fi rst
aid kit, high visibility vest, front and
rear parking sensors, warning triangle,
security bolts for alloy wheels

Front seat covers compatible with
airbags, bench, rubber mats, carpet
mats, snow chains, blind, tailgate
bicycle carrier, ...

OTHER ACCESSORIES

These accessories and parts, having been
tested and approved for reliability and
safety, are all adapted to your vehicle. A
wide range of recommended accessories
and genuine parts is available.

Range of trade equipment
The parts department publishes an
accessory catalogue offering various
equipment and fi ttings, such as:
Load retainers (all models).
Loading roller.
Towbar, towbar harness: trailer towbar
which should preferably be fi tted by a
CITROËN dealer.
Separation partitions and grilles,
smooth, non-slip wooden protective
fl oor.
Protective grilles.


Side wind

Sensitivity to side wind is increased.
Drive smoothly and at a moderate
speed.
ABS/DSC

The ABS or DSC systems only control
the vehicle, not the trailer or caravan.

Rear parking sensors

The parking sensors system does not function while the vehicle is towing.


Another range is also available,
structured around comfort, leisure and
maintenance:

131
QUICK HELP
7
Changing a fuse

FUSES UNDER THE BONNET

After opening the bonnet, unclip and tilt
the box to gain access to the fuses. Fuses
F
Amperes
A
Allocation
1 20 Engine management
2 15 Horn
3 10 Front and rear screenwash pump
4 20 Headlamp wash pump or LED
5 15 Engine components
6 10 Steering wheel angle sensor, ESC
7 10 Brake switch, clutch switch
8 25 Starter
9 10 Headlamp beam motor, parc management unit
10 30 Engine components
11 40 Not used
12 30 Wipers
13 40 Built-in systems interface
14 30 Pump
15 10 Right-hand main beam headlamp
16 10 Left-hand main beam headlamp
17 15 Right-hand dipped beam headlamp
18 15 Left-hand dipped beam headlamp

141


Exterior

VISUAL SEARCH
10

EXTERIOR


Remote control 17-18
Changing the battery,
reinitialisation 18
Key 17
Starting 46
Hill start assist 47
Central locking /
unlocking 17, 26
Locking / unlocking
the load space 17, 26

Filler cap, fuel tank 113-114
Fuel cut-off, Diesel
priming 114

Wiper blades 132
Door mirrors 78-79
Side repeater 125

Front lamps, foglamps, direction
indicators 48-49, 124-125
Headlamp beam height
adjustment 50
Changing front bulbs 123-125
Headlamp wash 52, 110
Snow cover 121

Front doors 20
Sliding side door 21
Key 17
Opening the bonnet 106

Infl ation, pressures 140
Towing, lifting 102-103, 133
Towbar 102-103
Rear parking sensors 82-83
Number plate lamp 127
Spare wheel, jack,
changing a wheel,
tools 117-121
Rear lamps, direction
indicators 48-49, 125-126
3rd brake lamp 127
Changing rear bulbs 126-127
Load space, opening 17, 26
Doors, tailgate 22-25
Accessories 103
Roof bars 77

Rear roof fl ap 24
Emergency control 25
Dimensions 134-138
Floor cab dimensions 138

Brakes, pads 81, 109, 111

Emergency braking 84
ABS, EBFD 84
ASR, ESC 85
"Grip control" 86-87
Tyre, pressures 140
Tyre under-infl ation detection 36
Snow chains 122

142
Instruments and controls
INSTRUMENTS AND CONTROLS


Parking brake,
handbrake 81
Instrument panels,
screens, dials 27-28
Warning lamps,
indicator lamps 29-34
Indicators, gauge 35, 37-38
Setting the time
in the instrument panel 28
Lighting dimmer 38
Gear effi ciency indicator 39-40

Passenger's airbag
deactivation 93

ESC 85
Parking sensors 82-83
Electric mirrors 78
Headlamp beam height
adjustment 50
Stop & Start 43-45
Starter, ignition 46
Wipers controls 51-52
Automatic wiping 51
Windscreen /
headlamp wash 52, 110
Trip computer Section 9

Audio equipment steering
mounted controls Section 9

Steering wheel adjustment 42
Horn 81


Cruise control 53-55
Speed limiter 56-58
Lighting controls 48-50
Automatic illumination of
headlamps 49-50
Foglamps 49
LED daytime runing lamps 49

Gearbox 39

11

Starting the vehicle



- To start the vehicle, the
drive selector must be in
position P
,

- press the brake pedal,

- torn the ignition key in the
switch.


STARTING PROCEDURE

This indicator lamp comes on
when the vehicle is ready to drive.


- Press the brake pedal,

- select R
or D
,

- release the brake pedal
and press the accelerator
pedal to move off. The selection appears in the current
energy consumption screen in the
instrument panel.


Drive selector


If the drive selector is not in
position P
and/or if the brake pedal is
not pressed, The vehicle will not start.
Repeat the procedure for starting the
vehicle.
The selection of position D
or R
on
the drive selector determines the drive
direction. It is preferable to be at a
full stop before changing the drive
direction.


P
(Park). Parking. Move the
selector to position P
, there is
an audible signal.

N
(Neutral). Move the
selector to position N
, there is
an audible signal.
Do not select this position, even
momentarily, when the vehicle is
moving.
The vehicle is free-wheeling. Select D

to return to forward drive.


D
(Drive). Forward drive.
Move the selector to
position D
, there is an audible
signal.

It is recommended that you keep
your foot on the brake pedal when
selecting positions R
or D
.


R
(Reverse). Reverse
drive. Move the selector to
position R
, there is an audible
signal.

Only engage reverse when the
vehicle is immobilised.
When moving from position R
to
position P
, N
is displayed momentarily
in the instrument panel.

There is an audible signal when
changing drive position with the
selector.
The audible signal is deactivated if the
user has chosen to inhibit operation of
the "Rear parking sensors".

The driver must be particularly
vigilant when driving the electric
vehicle as it makes very little noise
when moving.


Ready


Parking the vehicle
When leaving the vehicle, it is strongly
recommended that you apply the
parking brake, place the drive selector
in position P
then switch off the
ignition.
There is an audible signal on opening
the driver's door if:


-
the ignition is still on (" Ready
" lamp on),


- the vehicle has not been correctly
immobilised (drive selector not in
position P
).
An alert message is displayed in the screen.
