100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Automatic High Beam Headlamp Control — If
Equipped
The Automatic High Beam Headlamp Control system
provides increased forward lighting at night by automat-
ing high beam control through the use of a digital camera
mounted on the windshield. This camera detects vehicle
specific light and automatically switches from high
beams to low beams until the approaching vehicle is out
of view.
NOTE:
•The Automatic High Beam Headlamp Control can be
turned on or off using the Uconnect® System. Refer to
“Uconnect® Settings” in “Understanding Your Instru-
ment Panel” for further information.
•Broken, muddy, or obstructed headlights and taillights
of vehicles in the field of view will cause headlights to
remain on longer (closer to the vehicle). Also, dirt, film,
and other obstructions on the windshield or camera
lens will cause the system to function improperly.
If the windshield or Automatic High Beam Headlamp
Control mirror is replaced, the mirror must be re-aimed
to ensure proper performance. See your local authorized
dealer.
To Activate
1. Turn the headlight switch to the AUTO headlight
position.
2. Push the multifunction lever away from you (toward
front of vehicle) to engage the high beam mode.
NOTE:This system will not activate until the vehicle is
at or above 15 mph (24 km/h).
148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫Automatic Transmission................499
▫All Wheel Drive (AWD) — If Equipped.....500
▫Rear Axle...........................501
▫Appearance Care And Protection From
Corrosion...........................501
!FUSES..............................508
▫Front Power Distribution Center (Fuses).....509
▫Rear Power Distribution Center (Fuses).....513
!VEHICLE STORAGE....................521
!REPLACEMENT BULBS.................521
!BULB REPLACEMENT..................523
▫Low Beam And High Beam Headlamp......523
▫Front Turn Signal Lamps................525
▫Front Fog Lamp......................525
▫Front/Rear Side Marker Lamp............526
▫Rear Backup Lamp And Turn Signal Lamps . . .526
▫License Lamp........................526
▫Center High Mounted Stop Lamp (CHMSL) . . .526
!FLUID CAPACITIES....................527
!FLUIDS, LUBRICANTS, AND GENUINE
PA R T S . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..528
▫Engine.............................528
▫Chassis............................530
470 MAINTAINING YOUR VEHICLE

Cavity Cartridge FuseMini-FuseDescription
14––Fuse – Spare
15–20 Amp YellowLeft HID – If Equipped
16–20 Amp YellowRight HID – If Equipped
1850 Amp Red–Radiator Fan #2 – If Equipped
1950 Amp Red–Power Steering #2 / Radiator Fan (6.2L Super-
charged)
2030 Amp Pink–Wiper Motor
2130 Amp Pink–Headlamp Washers – If Equipped / Police
Feed
22 40 Amp Green / 20
Amp Blue – Police
–Engine Cooling Pump (6.2L Supercharged) /
Police Bat Feed#3–IfEquipped
2320 Amp Blue–Police Bat Feed#1–IfEquipped
2420 Amp Blue–Police Bat Feed#3–IfEquipped
28––Fuse – Spare
29–15 Amp Blue Transmission Control Module (LA/LD Police)
7
MAINTAINING YOUR VEHICLE 511

Bulb Number
Shift Indicator LampJKLE14140
Optional Door Map Pocket/CupholderLED (Serviced at Authorized Dealer)
For lighted switches, see your authorized dealer for replacement instructions.

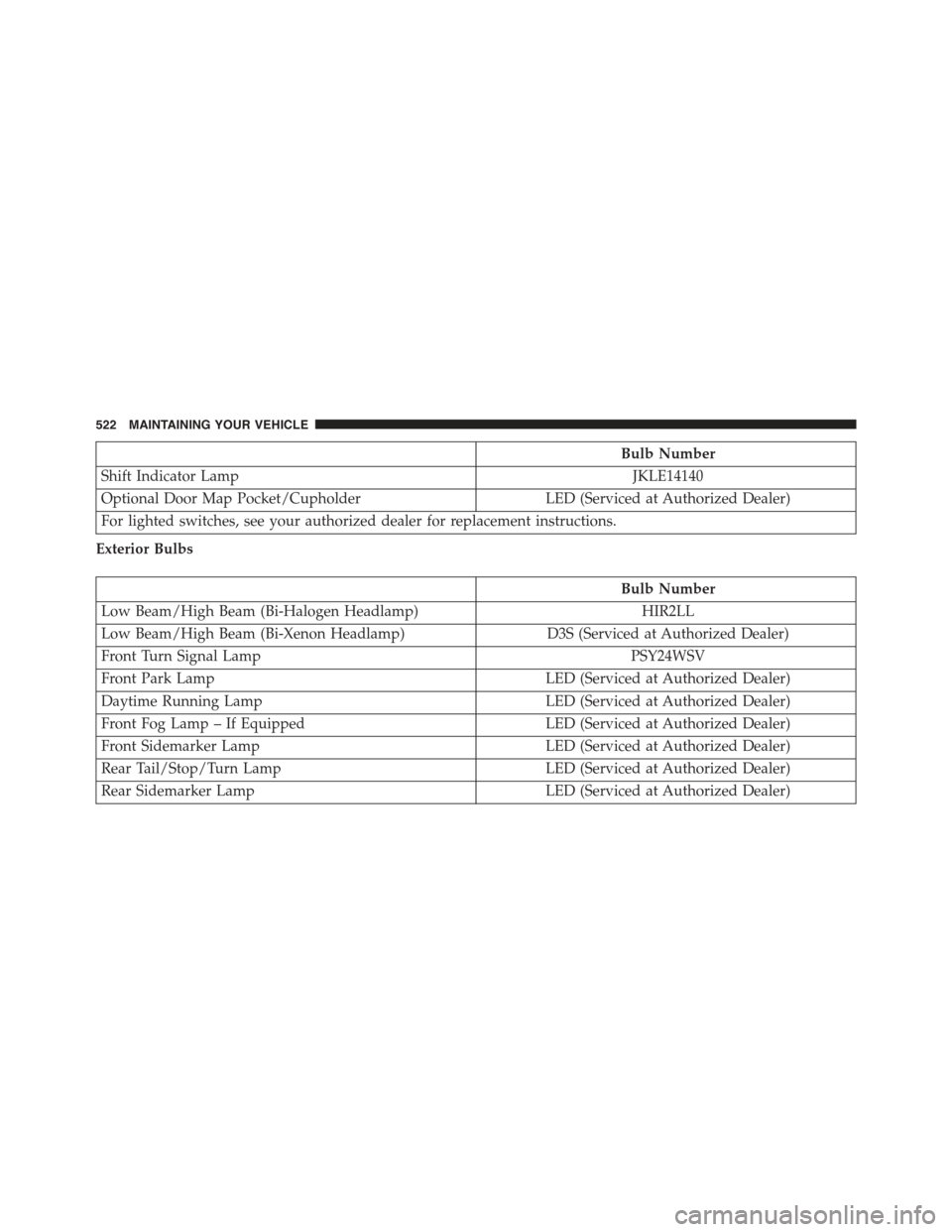

Exterior Bulbs
Bulb Number
Low Beam/High Beam (Bi-Halogen Headlamp)HIR2LL
Low Beam/High Beam (Bi-Xenon Headlamp)D3S (Serviced at Authorized Dealer)
Front Turn Signal LampPSY24WSV
Front Park LampLED (Serviced at Authorized Dealer)
Daytime Running LampLED (Serviced at Authorized Dealer)
Front Fog Lamp – If EquippedLED (Serviced at Authorized Dealer)
Front Sidemarker LampLED (Serviced at Authorized Dealer)
Rear Tail/Stop/Turn LampLED (Serviced at Authorized Dealer)
Rear Sidemarker LampLED (Serviced at Authorized Dealer)
522 MAINTAINING YOUR VEHICLE

Bulb Number
Backup LampLED (Serviced at Authorized Dealer)
Center High Mount Stop Lamp (CHMSL)LED (Serviced at Authorized Dealer)
LicenseLED (Serviced at Authorized Dealer)
Rear Fog Lamp – If EquippedLED (Serviced at Authorized Dealer)

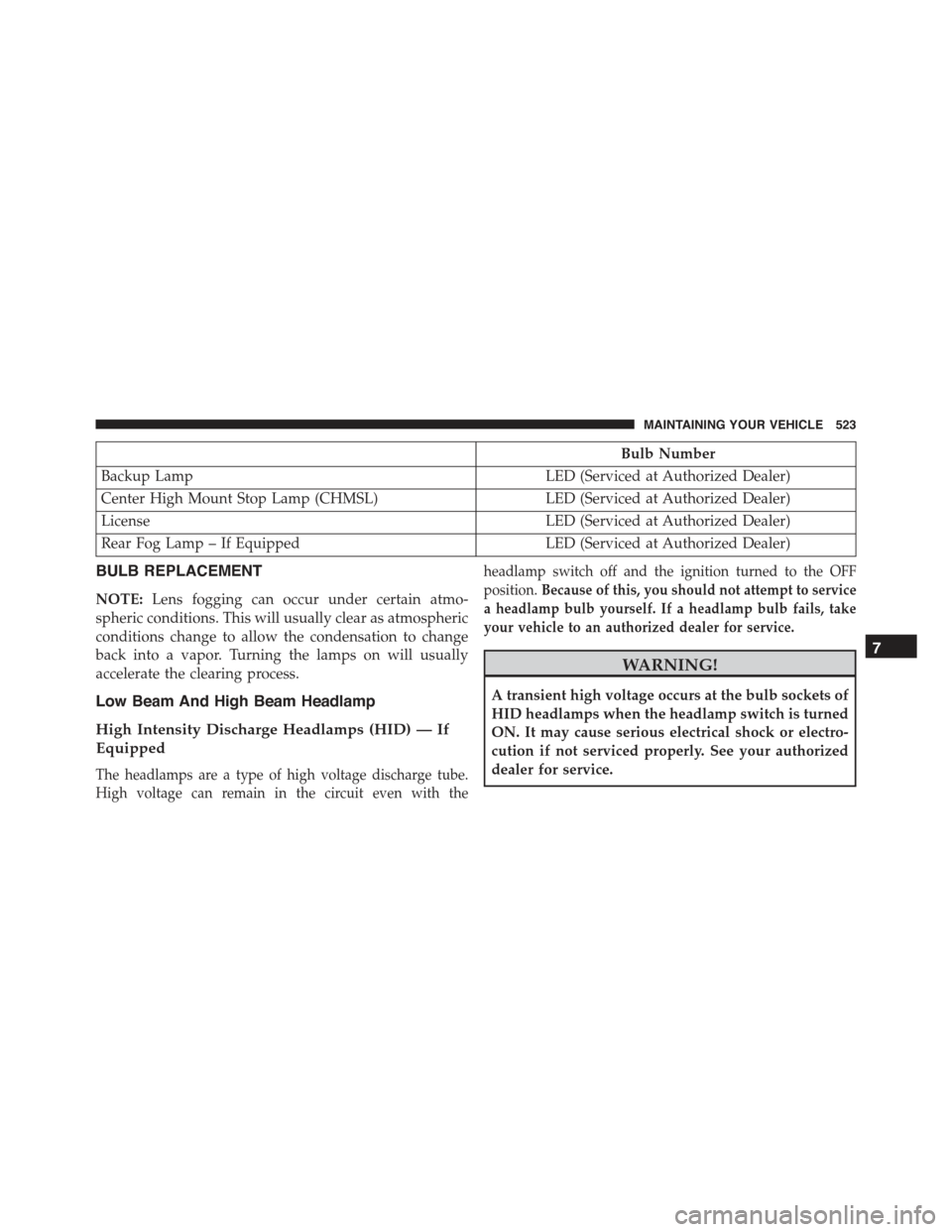

BULB REPLACEMENT
