2015 CHEVROLET CAMARO engine

Black plate (2,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7695163) - 2015 - crc - 9/4/14
10-2 Vehicle Care
Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . 10-49
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . 10-51
Rear Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . 10-53
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . 10-55
All-Season Tires . . . . . . . . . . . . 10-56
Winter Tires . . . . . . . . . . . . . . . . 10-56
Low-Profile Tires . . . . . . . . . . . 10-56
Competition OrientedTires . . . . . . . . . . . . . . . . . . . . . . 10-57
Summer Tires . . . . . . . . . . . . . . 10-58
Tire Sidewall Labeling . . . . . . 10-58
Tire Designations . . . . . . . . . . . 10-60
Tire Terminology and Definitions . . . . . . . . . . . . . . . . 10-61
Tire Pressure . . . . . . . . . . . . . . . 10-64 Tire Pressure for High-Speed
Operation . . . . . . . . . . . . . . . . . 10-65
Tire Pressure Monitor System . . . . . . . . . . . . . . . . . . . 10-66
Tire Pressure Monitor
Operation . . . . . . . . . . . . . . . . . 10-67
Tire Inspection . . . . . . . . . . . . . . 10-70
Tire Rotation . . . . . . . . . . . . . . . 10-70
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . 10-72
Buying New Tires . . . . . . . . . . . 10-73
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . 10-74
Uniform Tire Quality Grading . . . . . . . . . . . . . . . . . . . 10-75
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . 10-76
Wheel Replacement . . . . . . . . 10-77
Tire Chains . . . . . . . . . . . . . . . . . 10-77 If a Tire Goes Flat . . . . . . . . . . 10-78
Tire Sealant and
Compressor Kit . . . . . . . . . . . 10-80
Storing the Tire Sealant and Compressor Kit . . . . . . . . . . . 10-87
Tire Changing . . . . . . . . . . . . . . 10-88
Compact Spare Tire . . . . . . . . 10-94Jump Starting
Jump Starting . . . . . . . . . . . . . . 10-95
Towing the Vehicle
Towing the Vehicle . . . . . . . . . 10-97
Recreational Vehicle Towing . . . . . . . . . . . . . . . . . . . . 10-98
Appearance Care
Exterior Care . . . . . . . . . . . . . . . 10-98
Interior Care . . . . . . . . . . . . . . . 10-104
Floor Mats . . . . . . . . . . . . . . . . 10-107

Black plate (3,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7695163) - 2015 - crc - 9/4/14
Vehicle Care 10-3

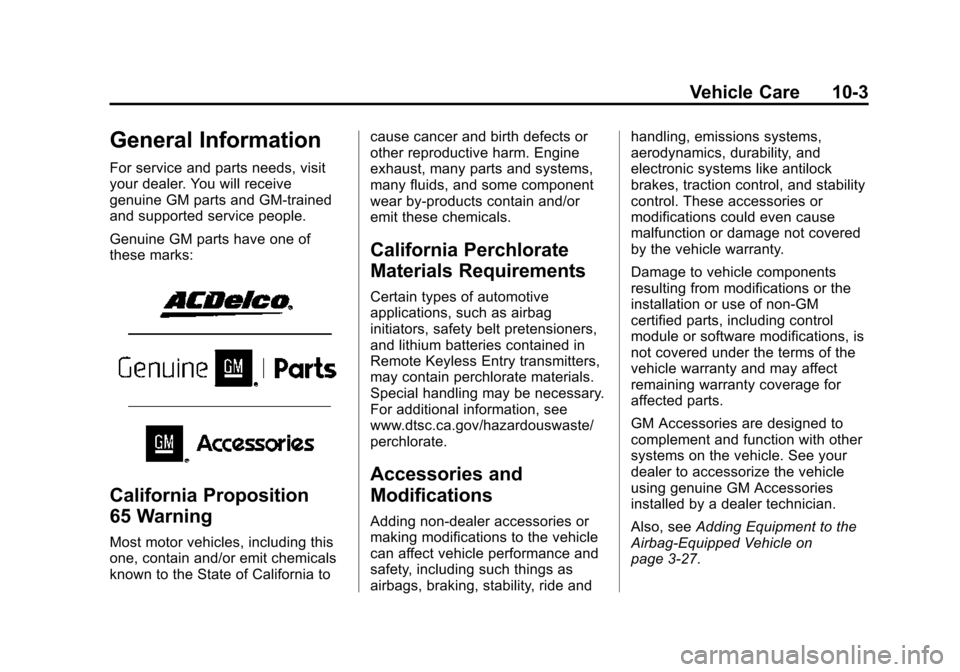

General Information
For service and parts needs, visit
your dealer. You will receive
genuine GM parts and GM-trained
and supported service people.
Genuine GM parts have one of
these marks:
California Proposition
65 Warning
Most motor vehicles, including this
one, contain and/or emit chemicals
known to the State of California tocause cancer and birth defects or
other reproductive harm. Engine
exhaust, many parts and systems,
many fluids, and some component
wear by-products contain and/or
emit these chemicals.
California Perchlorate
Materials Requirements
Certain types of automotive
applications, such as airbag
initiators, safety belt pretensioners,
and lithium batteries contained in
Remote Keyless Entry transmitters,
may contain perchlorate materials.
Special handling may be necessary.
For additional information, see
www.dtsc.ca.gov/hazardouswaste/
perchlorate.
Accessories and
Modifications
Adding non-dealer accessories or
making modifications to the vehicle
can affect vehicle performance and
safety, including such things as
airbags, braking, stability, ride andhandling, emissions systems,
aerodynamics, durability, and
electronic systems like antilock
brakes, traction control, and stability
control. These accessories or
modifications could even cause
malfunction or damage not covered
by the vehicle warranty.
Damage to vehicle components
resulting from modifications or the
installation or use of non-GM
certified parts, including control
module or software modifications, is
not covered under the terms of the
vehicle warranty and may affect
remaining warranty coverage for
affected parts.
GM Accessories are designed to
complement and function with other
systems on the vehicle. See your
dealer to accessorize the vehicle
using genuine GM Accessories
installed by a dealer technician.
Also, see
Adding Equipment to the
Airbag-Equipped Vehicle on
page 3-27.

Black plate (6,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7695163) - 2015 - crc - 9/4/14
10-6 Vehicle Care

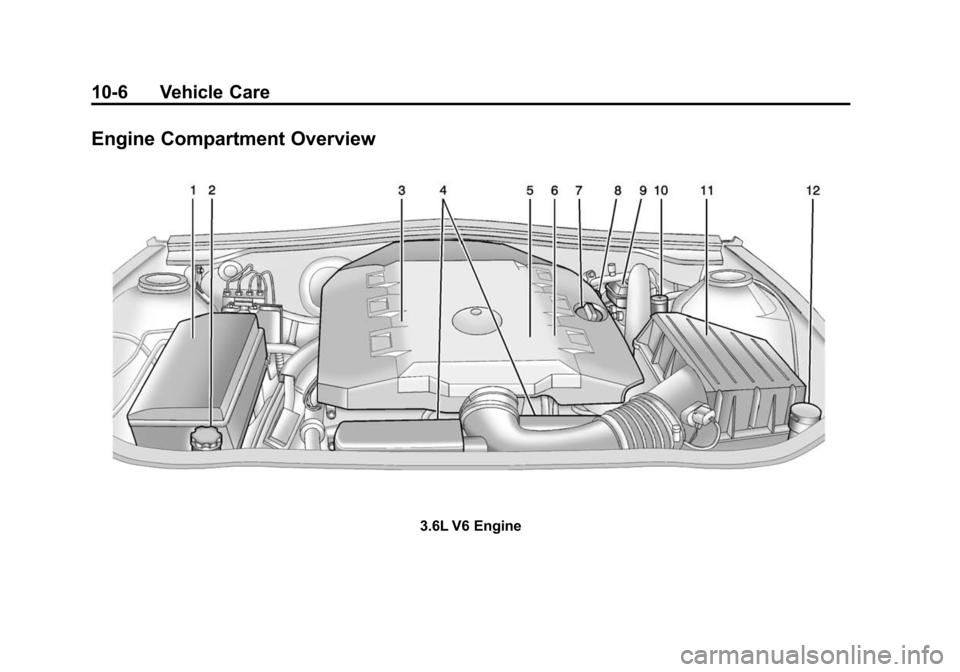

Engine Compartment Overview
3.6L V6 Engine

Black plate (7,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7695163) - 2015 - crc - 9/4/14
Vehicle Care 10-7
1. Underhood Electrical Center.See Engine Compartment Fuse
Block on page 10-49.
2. Engine Coolant Recovery Bottle and Cap. See Engine Coolant
on page 10-30.
3. Engine Cover on page 10-13.
4. Engine Cooling Fans (Out of View). See Cooling System
(Except ZL1 and Z/28 Engines)
on page 10-25 orCooling
System (ZL1 Engine Only) on
page 10-27 orCooling System
(Intercooler) on page 10-28 or
Cooling System (Z/28 Engine
Only) on page 10-29. 5. Radiator Fill Cap (Out of View).
See Engine Coolant on
page 10-30.
6. Power Steering Reservoir and Cap (Out of View). See Power
Steering Fluid (L99, LS3,
ZL1 and Z/28) on page 10-36 or
Power Steering Fluid (LFX) on
page 10-36.
7. Engine Oil Fill Cap. See Engine
Oil on page 10-15.
8. Engine Oil Dipstick (Out of View). See Engine Oil on
page 10-15.
9. Brake Fluid and Hydraulic Clutch Reservoir (If Equipped with
Manual Transmission). See
Brakes on page 10-38 or
Hydraulic Clutch on page 10-21. 10. Remote Positive (+) Terminal.
SeeBattery on page 10-40.
11. Engine Air Cleaner/Filter
(Except ZL1 and Z/28)) on
page 10-21 orEngine Air
Cleaner/Filter (ZL1 Only) on
page 10-23 orEngine Air
Cleaner/Filter (Z/28 Only) on
page 10-24.
12. Windshield Washer Fluid Reservoir. See Washer Fluid
on page 10-37.

Black plate (8,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7695163) - 2015 - crc - 9/4/14
10-8 Vehicle Care

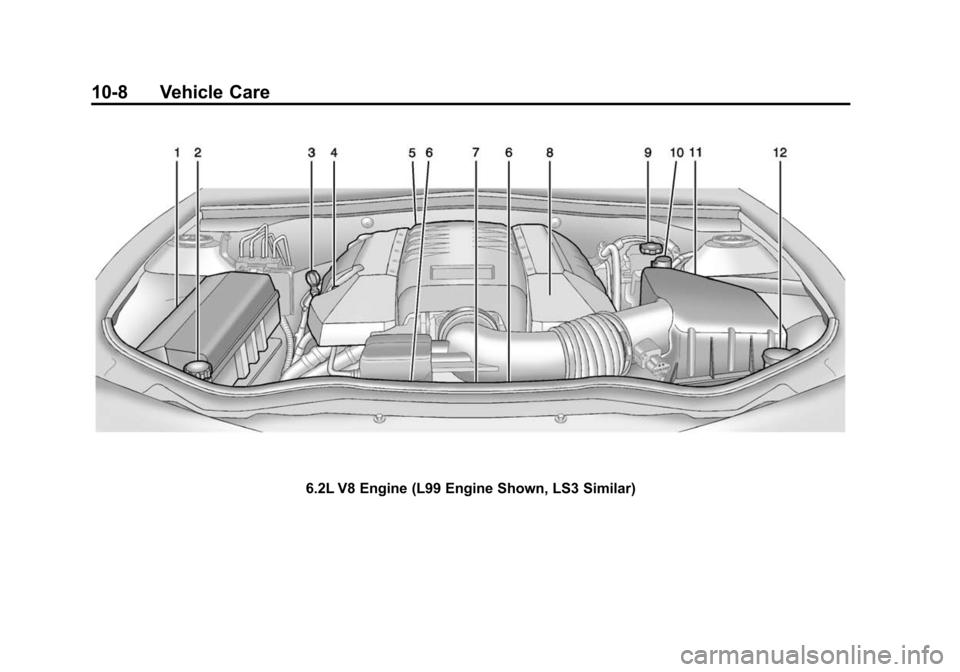

6.2L V8 Engine (L99 Engine Shown, LS3 Similar)

Black plate (9,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7695163) - 2015 - crc - 9/4/14
Vehicle Care 10-9
1. Underhood Electrical Center.See Engine Compartment Fuse
Block on page 10-49.
2. Engine Coolant Recovery Bottle and Cap. See Engine Coolant
on page 10-30.
3. Engine Oil Dipstick. See Engine
Oil on page 10-15.
4. Engine Oil Fill Cap (Out of View). See Engine Oil on
page 10-15.
5. Engine Cover on page 10-13. 6. Engine Cooling Fans (Out of
View). See Cooling System
(Except ZL1 and Z/28 Engines)
on page 10-25 orCooling
System (ZL1 Engine Only) on
page 10-27 orCooling System
(Intercooler) on page 10-28 or
Cooling System (Z/28 Engine
Only) on page 10-29.
7. Radiator Fill Cap (Out of View). See Engine Coolant on
page 10-30.
8. Power Steering Reservoir and Cap (Under Engine Cover) (if
equipped). See Power Steering
Fluid (L99, LS3, ZL1 and Z/28)
on page 10-36 orPower
Steering Fluid (LFX) on
page 10-36. 9. Brake Fluid and Hydraulic Clutch
Reservoir (If Equipped with
Manual Transmission). See
Brakes on page 10-38 or
Hydraulic Clutch on page 10-21.
10. Remote Positive (+) Terminal. SeeBattery on page 10-40.
11. Engine Air Cleaner/Filter
(Except ZL1 and Z/28)) on
page 10-21 orEngine Air
Cleaner/Filter (ZL1 Only) on
page 10-23 orEngine Air
Cleaner/Filter (Z/28 Only) on
page 10-24.
12. Windshield Washer Fluid Reservoir. See Washer Fluid
on page 10-37.

Black plate (10,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7695163) - 2015 - crc - 9/4/14
10-10 Vehicle Care

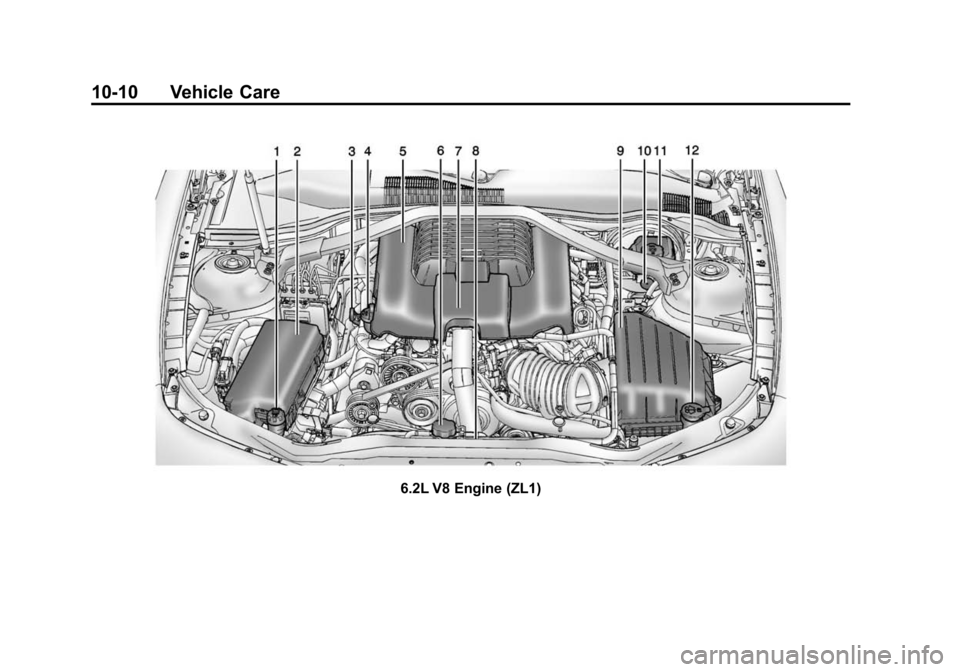

6.2L V8 Engine (ZL1)

Black plate (11,1)Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7695163) - 2015 - crc - 9/4/14
Vehicle Care 10-11
1. Engine Coolant Recovery Bottleand Cap. See Engine Coolant
on page 10-30.
2. Underhood Electrical Center. See Engine Compartment Fuse
Block on page 10-49.
3. Engine Oil Dipstick. See Engine
Oil on page 10-15.
4. Engine Oil Fill Cap (Out of View). See Engine Oil on
page 10-15.
5. Engine Cover on page 10-13.
6. Radiator Fill Cap. See Engine
Coolant on page 10-30. 7. Intercooler Fill Cap (Out of
View). See Cooling System
(Except ZL1 and Z/28 Engines)
on page 10-25 orCooling
System (ZL1 Engine Only) on
page 10-27 orCooling System
(Intercooler) on page 10-28 or
Cooling System (Z/28 Engine
Only) on page 10-29.
8. Engine Cooling Fans (Out of View). See Cooling System
(Except ZL1 and Z/28 Engines)
on page 10-25 orCooling
System (ZL1 Engine Only) on
page 10-27 orCooling System
(Intercooler) on page 10-28 or
Cooling System (Z/28 Engine
Only) on page 10-29. 9.
Engine Air Cleaner/Filter (Except
ZL1 and Z/28)) on page 10-21 or
Engine Air Cleaner/Filter (ZL1
Only) on page 10-23 orEngine
Air Cleaner/Filter (Z/28 Only) on
page 10-24.
10. Remote Positive (+) Terminal. SeeBattery on page 10-40.
11. Brake Fluid and Hydraulic Clutch Reservoir (If Equipped
with Manual Transmission).
SeeBrakes on page 10-38 or
Hydraulic Clutch on
page 10-21.
12. Windshield Washer Fluid Reservoir. See Washer Fluid
on page 10-37.
