2015 CADILLAC ELR run flat

Black plate (17,1)Cadillac ELR Owner Manual (GMNA-Localizing-U.S./Canada-7695154) -
2015 - CRC - 4/25/14
Instruments and Controls 5-17
as a system check. Then, after
several more seconds, the status
indicator will light either ON or OFF,
or the on or off symbol, to let you
know the status of the front
outboard passenger frontal airbag
and knee airbag.
If the word ON or the on symbol is
lit on the passenger airbag status
indicator, it means that the front
outboard passenger frontal airbag
and knee airbag are allowed to
inflate.
If the word OFF or the off symbol is
lit on the airbag status indicator, it
means that the passenger sensing
system has turned off the front
outboard passenger frontal airbag
and knee airbag.
If, after several seconds, both status
indicator lights remain on, or if there
are no lights at all, there may be a
problem with the lights or the
passenger sensing system. See
your dealer for service.{Warning
If the airbag readiness light ever
comes on and stays on, it means
that something may be wrong
with the airbag system. To help
avoid injury to yourself or others,
have the vehicle serviced right
away. SeeAirbag Readiness
Light on page 5-16 for more
information, including important
safety information.
Charging System Light
(12-Volt Battery)
The charging system light comes on
briefly when the vehicle is in ON/
RUN, as a check to show the light is
working. If the light stays on, or comes on
while driving, there could be a
problem with the electrical charging
system. Have it checked by your
dealer. Driving while this light is on
could drain the 12‐volt battery.
If a short distance must be driven
with the light on, be sure to turn off
all accessories, such as the radio.
Malfunction
Indicator Lamp
A computer system called OBD II
(On-Board Diagnostics-Second
Generation) monitors operation of
the vehicle. It ensures that
emissions are at acceptable levels
for the life of the vehicle, helping to
maintain a clean environment. The
malfunction indicator lamp comes
on when the vehicle is placed in
Service Only Mode, as a check to
show it is working. If it does not,
have the vehicle serviced by your
dealer. See
Power Button on
page 9-16 for more information.
ProCarManuals.com

Black plate (62,1)Cadillac ELR Owner Manual (GMNA-Localizing-U.S./Canada-7695154) -
2015 - CRC - 4/25/14
10-62 Vehicle Care
Tire Sealant and
Compressor Kit
{Warning
Running the engine in Extended
Range Mode in an enclosed area
with poor ventilation is dangerous.
Engine exhaust may enter the
vehicle. Engine exhaust contains
carbon monoxide (CO) which
cannot be seen or smelled. It can
cause unconsciousness and even
death. Never run the engine in
Extended Range Mode in an
enclosed area that has no fresh
air ventilation. For more
information, seeEngine Exhaust
on page 9-27.
{Warning
Overinflating a tire could cause
the tire to rupture and you or
others could be injured. Be sure
to read and follow the tire sealant
and compressor kit instructions
and inflate the tire to its
recommended pressure. Do not
exceed the recommended
pressure.
{Warning
Storing the tire sealant and
compressor kit or other
equipment in the passenger
compartment of the vehicle could
cause injury. In a sudden stop or
collision, loose equipment could
strike someone. Store the tire
sealant and compressor kit in its
original location. If this vehicle has a tire sealant and
compressor kit, there may not be a
spare tire, tire changing equipment,
and on some vehicles there may not
be a place to store a tire.
The tire sealant and compressor
can be used to temporarily seal
punctures up to 6 mm (0.25 in) in
the tread area of the tire. It can also
be used to inflate an
underinflated tire.
If the tire has been separated from
the wheel, has damaged sidewalls,
or has a large puncture, the tire is
too severely damaged for the tire
sealant and compressor kit to be
effective. See
Roadside Service on
page 13-5.
Read and follow all of the tire
sealant and compressor kit
instructions.
ProCarManuals.com

Black plate (64,1)Cadillac ELR Owner Manual (GMNA-Localizing-U.S./Canada-7695154) -
2015 - CRC - 4/25/14
10-64 Vehicle Care

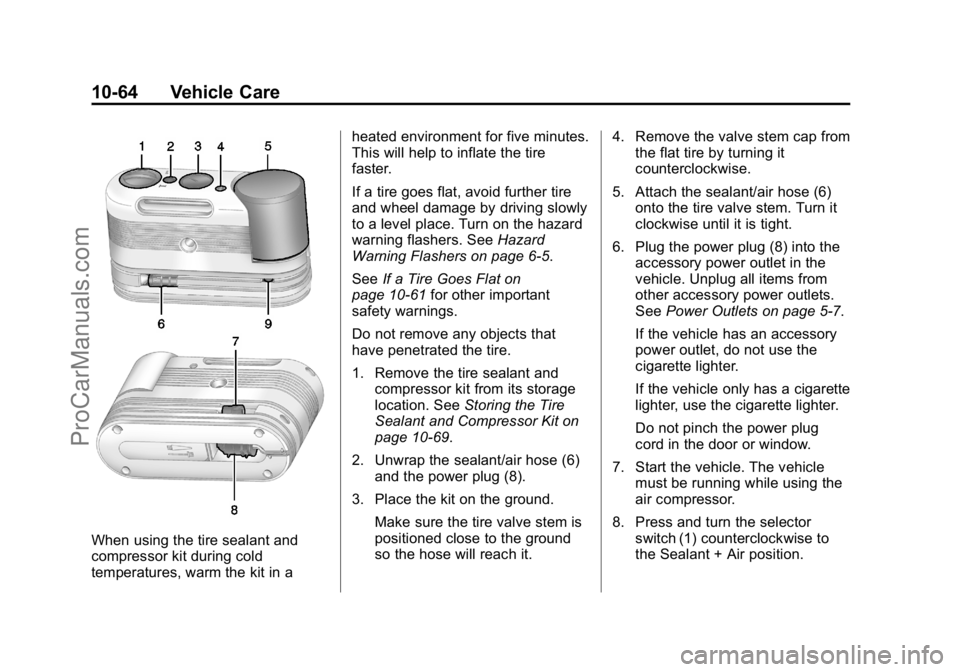

When using the tire sealant and
compressor kit during cold
temperatures, warm the kit in aheated environment for five minutes.
This will help to inflate the tire
faster.
If a tire goes flat, avoid further tire
and wheel damage by driving slowly
to a level place. Turn on the hazard
warning flashers. See
Hazard
Warning Flashers on page 6-5.
See If a Tire Goes Flat on
page 10-61 for other important
safety warnings.
Do not remove any objects that
have penetrated the tire.
1. Remove the tire sealant and compressor kit from its storage
location. See Storing the Tire
Sealant and Compressor Kit on
page 10-69.
2. Unwrap the sealant/air hose (6) and the power plug (8).
3. Place the kit on the ground. Make sure the tire valve stem is
positioned close to the ground
so the hose will reach it. 4. Remove the valve stem cap from
the flat tire by turning it
counterclockwise.
5. Attach the sealant/air hose (6) onto the tire valve stem. Turn it
clockwise until it is tight.
6. Plug the power plug (8) into the accessory power outlet in the
vehicle. Unplug all items from
other accessory power outlets.
See Power Outlets on page 5-7.
If the vehicle has an accessory
power outlet, do not use the
cigarette lighter.
If the vehicle only has a cigarette
lighter, use the cigarette lighter.
Do not pinch the power plug
cord in the door or window.
7. Start the vehicle. The vehicle must be running while using the
air compressor.
8. Press and turn the selector switch (1) counterclockwise to
the Sealant + Air position.
ProCarManuals.com

Black plate (67,1)Cadillac ELR Owner Manual (GMNA-Localizing-U.S./Canada-7695154) -
2015 - CRC - 4/25/14
Vehicle Care 10-67
If a tire goes flat, avoid further tire
and wheel damage by driving slowly
to a level place. Turn on the hazard
warning flashers. SeeHazard
Warning Flashers on page 6-5.
See If a Tire Goes Flat on
page 10-61 for other important
safety warnings.
1. Remove the tire sealant and compressor kit from its storage
location. See Storing the Tire
Sealant and Compressor Kit on
page 10-69.
2. Unwrap the air only hose (7) and the power plug (8).
3. Place the kit on the ground. Make sure the tire valve stem is
positioned close to the ground
so the hose will reach it.
4. Remove the tire valve stem cap from the flat tire by turning it
counterclockwise.
5. Attach the air only hose (7) onto the tire valve stem by turning it
clockwise until it is tight. 6. Plug the power plug (8) into the
accessory power outlet in the
vehicle. Unplug all items from
other accessory power outlets.
See Power Outlets on page 5-7.
If the vehicle has an accessory
power outlet, do not use the
cigarette lighter.
If the vehicle only has a cigarette
lighter, use the cigarette lighter.
Do not pinch the power plug
cord in the door or window.
7. Start the vehicle. The vehicle must be running while using the
air compressor.
8. Press and turn the selector switch (1) clockwise to the Air
Only position.
9. Press the on/off button (2) to turn the compressor on.
The compressor will inflate the
tire with air only.
ProCarManuals.com

Black plate (4,1)Cadillac ELR Owner Manual (GMNA-Localizing-U.S./Canada-7695154) -
2015 - CRC - 4/25/14
i-4 INDEX
E
Easy Entry Seat . . . . . . . . . . . . . . . . 3-3
Electric Drive Unit . . . . . . . . . . . . . 9-28
Electric Drive UnitMessages . . . . . . . . . . . . . . . . . . . . 5-44
Electric Drive Unit Shift Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . 10-25
Electric Mode . . . . . . . . . . . . . . . . . . 9-21
Electric Parking Brake . . . . . . . . . 9-30
Electric Parking Brake Light . . . 5-21
Electrical Equipment, Add-On . . . . . . . . . . . . . . . . . . . . . . 9-71
Electrical Requirements for Battery Charging . . . . . . . . . . . . . 9-66
Electrical System
Engine CompartmentFuse Block . . . . . . . . . . . . . . . . 10-29
Instrument Panel Fuse Block . . . . . . . . . 10-33, 10-35
Overload . . . . . . . . . . . . . . . . . . . 10-29
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . 10-38
Emergency OnStar
®. . . . . . . . . . . . . . . . . . . . . . 14-2 Energy Efficiency
Driving . . . . . . . . . . . . . . . . . . . 1-26, 9-2
Energy Information . . . . . . . . . . . . 5-38
Engine Air Cleaner/Filter . . . . . . . . . . . 10-13
Check and Service EngineSoon Light . . . . . . . . . . . . . . . . . . 5-17
Compartment Overview . . . . . . . 10-8
Coolant . . . . . . . . . . . . . . . . . . . . . 10-16
Coolant Temperature Warning Light . . . . . . . . . . . . . . . 5-23
Cooling System . . . . . . 10-14–10-16
Cooling System Messages . . . 5-44
Drive Belt Routing . . . . . . . . . . . . 12-4
Exhaust . . . . . . . . . . . . . . . . . . . . . . 9-27
Oil Life System . . . . . . . . . . . . . 10-12
Oil Messages . . . . . . . . . . . . . . . . . 5-44
Overheating . . . . . . . . . . . . . . . . 10-19
Pressure Light . . . . . . . . . . . . . . . . 5-24
Running While Parked . . . . . . . . 9-27
Engine Unavailable
Out of Fuel . . . . . . . . . . . . . . . . . . . 9-24
Entry Lighting . . . . . . . . . . . . . . . . . . . 6-8
Event Data Recorders . . . . . . . . 13-14
Exit Lighting . . . . . . . . . . . . . . . . . . . . 6-8 Extended Range Mode . . . . . . . . 9-22
Extender, Safety Belt . . . . . . . . . . 3-17
Exterior Lamp Controls . . . . . . . . . 6-1
Exterior Lamps Off Reminder . . . 6-3
Exterior Lighting Battery
Saver . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
F
FeaturesMemory . . . . . . . . . . . . . . . . . . . . . . . . 1-9
Filter, Engine Air Cleaner . . . . . . . . . 10-13
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 6-4
Flashers, Hazard Warning . . . . . . 6-5
Flat Tire . . . . . . . . . . . . . . . . . . . . . . 10-61
Floor Mats . . . . . . . . . . . . . . . . . . . . 10-87
Fluid Brakes . . . . . . . . . . . . . . . . . . . . . . 10-21
Washer . . . . . . . . . . . . . . . . . . . . . 10-19
Folding Mirrors . . . . . . . . . . . . . . . . 2-18
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . 9-50
Frequency Statement
Radio . . . . . . . . . . . . . . . . . . . . . . . 13-12
ProCarManuals.com

Black plate (11,1)Cadillac ELR Owner Manual (GMNA-Localizing-U.S./Canada-7695154) -
2015 - CRC - 4/25/14
INDEX i-11
Sun Visors . . . . . . . . . . . . . . . . . . . . . 2-21
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . iv
SystemActive Emergency Braking . . . . 9-53
Forward CollisionAlert (FCA) . . . . . . . . . . . . . . . . . . 9-50
Infotainment . . . . . . . . . . . . 7-1, 13-15
System Operation . . . . . . . . . . . . . 9-21
Systems Driver Assistance . . . . . . . . . . . . . 9-47
T
Text Telephone (TTY) Users . . . 13-4
Theft-Deterrent Systems . . . . . . . 2-16Immobilizer . . . . . . . . . . . . . . . . . . . 2-16
Thigh Support Adjustment . . . . . . 3-5
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 10-41 All-Season . . . . . . . . . . . . . . . . . . 10-42
Buying New Tires . . . . . . . . . . . 10-55
Chains . . . . . . . . . . . . . . . . . . . . . . 10-60
Designations . . . . . . . . . . . . . . . 10-44
Different Size . . . . . . . . . . . . . . . 10-57
If a Tire Goes Flat . . . . . . . . . . 10-61
Inflation Monitor System . . . . 10-49
Inspection . . . . . . . . . . . . . . . . . . 10-53 Tires (cont'd)
Lifting the Vehicle . . . . . . . . . . . . . 10-3
Messages . . . . . . . . . . . . . . . . . . . . 5-50
Pressure Light . . . . . . . . . . . . . . . . 5-24
Pressure Monitor System . . . 10-48
Rotation . . . . . . . . . . . . . . . . . . . . 10-53
Sealant and
Compressor Kit . . . . . . . . . . . 10-62
Sealant and Compressor
Kit, Storing . . . . . . . . . . . . . . . . 10-69
Sidewall Labeling . . . . . . . . . . . 10-43
Terminology and Definitions . . . . . . . . . . . . . . . . . 10-44
Uniform Tire Quality
Grading . . . . . . . . . . . . . . . . . . . 10-57
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . 10-59
Wheel Replacement . . . . . . . . 10-59
When It Is Time for New
Tires . . . . . . . . . . . . . . . . . . . . . . 10-54
Winter . . . . . . . . . . . . . . . . . . . . . . 10-42
Towing General Information . . . . . . . . . . 9-71
Recreational Vehicle . . . . . . . . 10-77
Vehicle . . . . . . . . . . . . . . . . . . . . . 10-75 Traction
Control System (TCS)/
StabiliTrak
®Light . . . . . . . . . . . . 5-23
Off Light . . . . . . . . . . . . . . . . . . . . . . 5-22
Traction Control/Electronic Stability Control . . . . . . . . . . . . . . 9-33
Transportation Program,
Courtesy . . . . . . . . . . . . . . . . . . . . . 13-8
Trip Odometer . . . . . . . . . . . . . . . . . 5-12
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
Turn and Lane-Change Signals . . . . . . . . . . . . . . . . . . . . . . . . 6-5
U
Uniform Tire QualityGrading . . . . . . . . . . . . . . . . . . . . . 10-57
Universal Remote System . . . . . 5-59 Operation . . . . . . . . . . . . . . . . . . . . . 5-62
Programming . . . . . . . . . . . . . . . . . 5-59
Using This Manual . . . . . . . . . . . . . . . . iii
Utility Interruption of Charging . . . . . . . . . . . . . . . . . . . . . 9-65
ProCarManuals.com
