2015 BMW M6 CONVERTIBLE check engine light

HintsCheck the traffic situation as well
Check the traffic situation around the ve‐
hicle with your own eyes. Otherwise, an acci‐
dent could result from road users or objects
that are not lidtured by the camera.◀
At a glance
Button in the vehicle
Rearview camera
Camera
The camera lens is located under the BMW
emblem of the tail gate. The image quality may
be impaired by dirt. The camera calibrates it‐
self regularly after the system has been
switched off. This is why the emblem on the
tailgate remains open after the system has
been deactivated and while driving. The em‐
blem closes automatically as soon as calibra‐
tion is complete.
Clean the camera lens, refer to page 210.
Switching on/off
Switching on automatically With the engine running, engage lever in posi‐
tion P R.
The rearview camera image is displayed if the
system was switched on via the iDrive.
Automatic deactivation during forward
travel
The system switches off when a certain driving
distance or speed is exceeded.
Switch the system back on if needed.
Switching on/off manually Press button.▷On: the LED lights up.▷Off: the LED goes out.
The PDC is shown on the Control Display.
Switching the view via iDrive With PDC activated or Top View switched on:
"Rear view camera"
The rearview camera image is displayed.
Display on the Control Display
Functional requirement
▷The rearview camera is switched on.▷The trunk lid is fully closed.
Activating assistance functions
More than one assistance function can be ac‐
tive at the same time.
▷Parking aid lines
"Parking aid lines"
Lanes and turning radius are indicated.
▷Obstacle marking
"Obstacle marking"
Spatially-shaped markings are displayed.
Seite 139Driving comfortControls139
Online Edition for Part no. 01 40 2 959 664 - II/15

Socket for OBD Onboard
Diagnosis
Note Socket for Onboard Diagnosis
The socket for onboard diagnostics may
only be used by the service center or a work‐
shop that operates in accordance with the
specifications of the vehicle manufacturer with
correspondingly trained personnel and other
authorized persons. Otherwise, use may result
in operating problems for the vehicle.◀
Position
There is an OBD socket on the driver's side for
checking the primary components in the vehi‐
cle's emissions.
Emissions
▷The warning lamp lights up:
Emissions are deteriorating. Have
the vehicle checked as soon as
possible.▷The warning lamp flashes under certain
circumstances:
This indicates that there is excessive mis‐
firing in the engine.
Reduce the vehicle speed and have the
system checked immediately; otherwise,
serious engine misfiring within a brief pe‐
riod can seriously damage emission con‐
trol components, in particular the catalytic
converter.Seite 194MobilityMaintenance194
Online Edition for Part no. 01 40 2 959 664 - II/15

corresponding engine or body ground of
the vehicle to be started.
Starting the engine
Never use spray fluids to start the engine.
1.Start the engine of the assisting vehicle
and let it run for several minutes at an in‐
creased idle speed.2.Start the engine of the vehicle that is to be
started in the usual way.
If the first starting attempt is not success‐
ful, wait a few minutes before making an‐
other attempt in order to allow the dis‐
charged battery to recharge.3.Let both engines run for several minutes.4.Disconnect the jumper cables in the re‐
verse order.
Check the battery and recharge if needed.
Tow-starting and towing Note Tow-starting and towing
For tow-starting or towing, switch off the
Intelligent Safety systems; otherwise malfunc‐
tions of the individual braking systems might
lead to accidents.◀
Manual transmission
Observe before towing your vehicle Gearshift lever in neutral position.
Towing When the parking brake is blocked
The parking brake cannot be released
manually.
Do not tow the vehicle with the parking brake
blocked, or the vehicle can be damaged.
Contact your service center.◀
Follow the towing instructions
Follow all towing instructions; otherwise,
vehicle damage or accidents may occur.◀▷Make sure that the ignition is switched on;
otherwise, the low beams, tail lights, turn
signals, and wipers may be unavailable.▷Do not tow the vehicle with the rear axle
tilted, as the front wheels could turn.▷When the engine is stopped, there is no
power assist. Consequently, more force
needs to be applied when braking and
steering.▷Larger steering wheel movements are re‐
quired.▷The towing vehicle must not be lighter
than the vehicle being towed; otherwise,
it will not be possible to control the vehi‐
cle's response.
Tow truck
Have your vehicle transported with a tow truck
with a so-called lift bar or on a flat bed.
Do not lift the vehicle
Do not lift the vehicle by the tow fitting or
body and chassis parts; otherwise, damage
may result.◀
Seite 203Breakdown assistanceMobility203
Online Edition for Part no. 01 40 2 959 664 - II/15

Manual transmission:1.Drive into the car wash.2.Shift to neutral.3.Switch the engine off.4.Switch on the ignition.
M double-clutch transmission:
1.Drive into the car wash.2.Engage selector lever position N.3.Switch the engine off.
In this way, the ignition remains switched
on, and a Check-Control message is dis‐
played.
Do not turn off the ignition in the car
wash
Do not turn off the ignition in the car wash;
otherwise, the transmission position P is
engaged and damages can result.◀
The vehicle cannot be locked from the outside
when in selector lever position N. A signal
sounds when an attempt is made to lock the
vehicle.
To start the engine with manual transmission:
1.Press on the clutch pedal.2.Press the Start/Stop button.
To start the engine with a M double clutch
transmission:
1.Depress the brake pedal.2.Press the Start/Stop button.
Pressing the Start/Stop button without step‐
ping on the brake turns the ignition off.
Transmission position
Transmission position P is engaged automati‐
cally:
▷When the ignition is switched off.▷After approx. 15 minutes.Headlights▷Do not rub dry and do not use abrasive or
acidic cleansers.▷Soak areas that have been dirtied e. g.,
from insects, with shampoo and wash off
with water.▷Thaw ice with de-icing spray; do not use an
ice scraper.
After washing the vehicle
After washing the vehicle, apply the brakes
briefly to dry them; otherwise, braking action
can be reduced and corrosion of the brake
discs can occur.
Completely remove all residues on the win‐
dows, to minimize loss of visibility due to
smearing and to reduce wiper noises and
wiper blade wear.
Vehicle care
Car care products BMW recommends using care and cleaning
products from BMW, since these have been
tested and approved.
Car care and cleaning products
Follow the instructions on the container.
When cleaning the interior, open the doors or
windows.
Only use products intended for cleaning vehi‐
cles.
Cleansers can contain substances that are
dangerous and harmful to your health.◀
Vehicle paint
Regular care contributes to driving safety and
value retention. Environmental influences in
areas with elevated air pollution or natural con‐
taminants, such as tree resin or pollen can af‐
fect the vehicle's paintwork. Tailor the fre‐
quency and extent of your car care to these
influences.
Seite 207CareMobility207
Online Edition for Part no. 01 40 2 959 664 - II/15

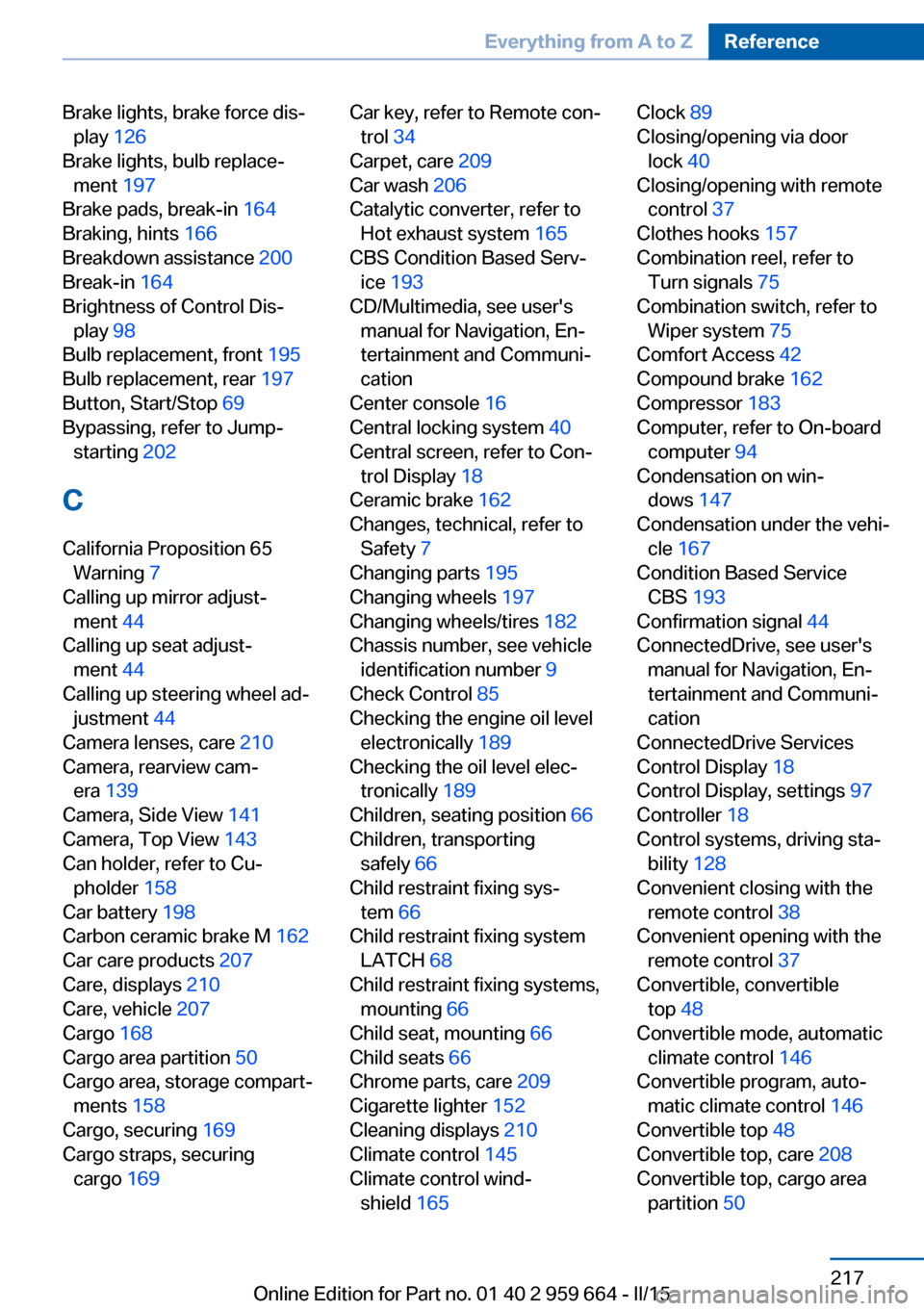

Brake lights, brake force dis‐play 126
Brake lights, bulb replace‐ ment 197
Brake pads, break-in 164
Braking, hints 166
Breakdown assistance 200
Break-in 164
Brightness of Control Dis‐ play 98
Bulb replacement, front 195
Bulb replacement, rear 197
Button, Start/Stop 69
Bypassing, refer to Jump- starting 202
C
California Proposition 65 Warning 7
Calling up mirror adjust‐ ment 44
Calling up seat adjust‐ ment 44
Calling up steering wheel ad‐ justment 44
Camera lenses, care 210
Camera, rearview cam‐ era 139
Camera, Side View 141
Camera, Top View 143
Can holder, refer to Cu‐ pholder 158
Car battery 198
Carbon ceramic brake M 162
Car care products 207
Care, displays 210
Care, vehicle 207
Cargo 168
Cargo area partition 50
Cargo area, storage compart‐ ments 158
Cargo, securing 169
Cargo straps, securing cargo 169 Car key, refer to Remote con‐
trol 34
Carpet, care 209
Car wash 206
Catalytic converter, refer to Hot exhaust system 165
CBS Condition Based Serv‐ ice 193
CD/Multimedia, see user's manual for Navigation, En‐
tertainment and Communi‐
cation
Center console 16
Central locking system 40
Central screen, refer to Con‐ trol Display 18
Ceramic brake 162
Changes, technical, refer to Safety 7
Changing parts 195
Changing wheels 197
Changing wheels/tires 182
Chassis number, see vehicle identification number 9
Check Control 85
Checking the engine oil level electronically 189
Checking the oil level elec‐ tronically 189
Children, seating position 66
Children, transporting safely 66
Child restraint fixing sys‐ tem 66
Child restraint fixing system LATCH 68
Child restraint fixing systems, mounting 66
Child seat, mounting 66
Child seats 66
Chrome parts, care 209
Cigarette lighter 152
Cleaning displays 210
Climate control 145
Climate control wind‐ shield 165 Clock 89
Closing/opening via door lock 40
Closing/opening with remote control 37
Clothes hooks 157
Combination reel, refer to Turn signals 75
Combination switch, refer to Wiper system 75
Comfort Access 42
Compound brake 162
Compressor 183
Computer, refer to On-board computer 94
Condensation on win‐ dows 147
Condensation under the vehi‐ cle 167
Condition Based Service CBS 193
Confirmation signal 44
ConnectedDrive, see user's manual for Navigation, En‐
tertainment and Communi‐
cation
ConnectedDrive Services
Control Display 18
Control Display, settings 97
Controller 18
Control systems, driving sta‐ bility 128
Convenient closing with the remote control 38
Convenient opening with the remote control 37
Convertible, convertible top 48
Convertible mode, automatic climate control 146
Convertible program, auto‐ matic climate control 146
Convertible top 48
Convertible top, care 208
Convertible top, cargo area partition 50 Seite 217Everything from A to ZReference217
Online Edition for Part no. 01 40 2 959 664 - II/15

Engine start during malfunc‐tion 35
Engine start, jump-start‐ ing 202
Engine start, refer to Starting the engine 70
Engine stop 70
Engine temperature 88
Entering/exiting vehicle, as‐ sistance, steering wheel 65
Entering a car wash 206
Equipment, interior 150
Error displays, see Check Control 85
ESP Electronic Stability Pro‐ gram, refer to DSC 130
Exchanging wheels/tires 182
Exhaust system 165
Exterior mirror, automatic dimming feature 64
Exterior mirrors 63
External start 202
External temperature dis‐ play 89
External temperature warn‐ ing 89
Eyes for securing cargo 169
F
Failure message, see Check Control 85
False alarm, refer to Uninten‐ tional alarm 45
Fan, refer to Air flow 146
Filler neck for engine oil 190
Fine wood, care 209
First aid kit 201
Fitting for towing, see Tow fit‐ ting 204
Flat tire, changing wheels 197
Flat Tire Monitor FTM 112
Flat tire, repairing 183
Flat tire, Tire Pressure Moni‐ tor TPM 110 Flat tire, warning
lamp 111, 113
Flooding 166
Floor carpet, care 209
Floor mats, care 209
Fold-out position, wiper 77
Foot brake 166
Front airbags 106
Front center armrest 157
Front-end collision warning with City Braking func‐
tion 115
Front lights 195
front-seat passenger airbags, automatic deactivation 108
Front-seat passenger airbags, indicator lamp 108
Front seats 56
FTM Flat Tire Monitor 112
Fuel 176
Fuel consumption, refer to Average fuel consump‐
tion 95
Fuel filler flap 174
Fuel gauge 88
Fuel lid 174
Fuel quality 176
Fuel recommendation 176
Fuel, tank capacity 215
Fuse 199
G
Garage door opener, refer to Universal Integrated Remote
Control 150
Gasoline 176
Gear change 80
Gear shift indicator 92
General driving notes 165
Glare shield 152
Glove compartment 156
Gross vehicle weight, ap‐ proved 214
Ground clearance 167 H
Handbrake, refer to Parking brake 73
Hand-held transmitter, alter‐ nating code 151
Hazard warning flashers 200
Headlight control, auto‐ matic 102
Headlight courtesy delay fea‐ ture 101
Headlight courtesy delay fea‐ ture via remote control 39
Headlight flasher 75
Headlight glass 196
Headlights 195
Headlights, care 207
Headlight washer system 75
Head restraints 56
Head restraints, front 60
Head-up Display 98
Head-up Display, care 210
Head-up display, M view 99
Head-up display, standard view 99
Heavy cargo, stowing 169
Height, seats 56
Height, vehicle 214
High-beam Assistant 103
High beams 75
High beams/low beams, refer to High-beam Assistant 103
Higher speed range 167
Hills 166
Hill start assistant, refer to Drive-off assistant 128
Hints 6
Holder for beverages 158
Homepage 6
Hood 187
Horn 14
Hotel function, trunk lid 41
Hot exhaust system 165
HUD Head-up Display 98
Hydroplaning 165 Seite 219Everything from A to ZReference219
Online Edition for Part no. 01 40 2 959 664 - II/15

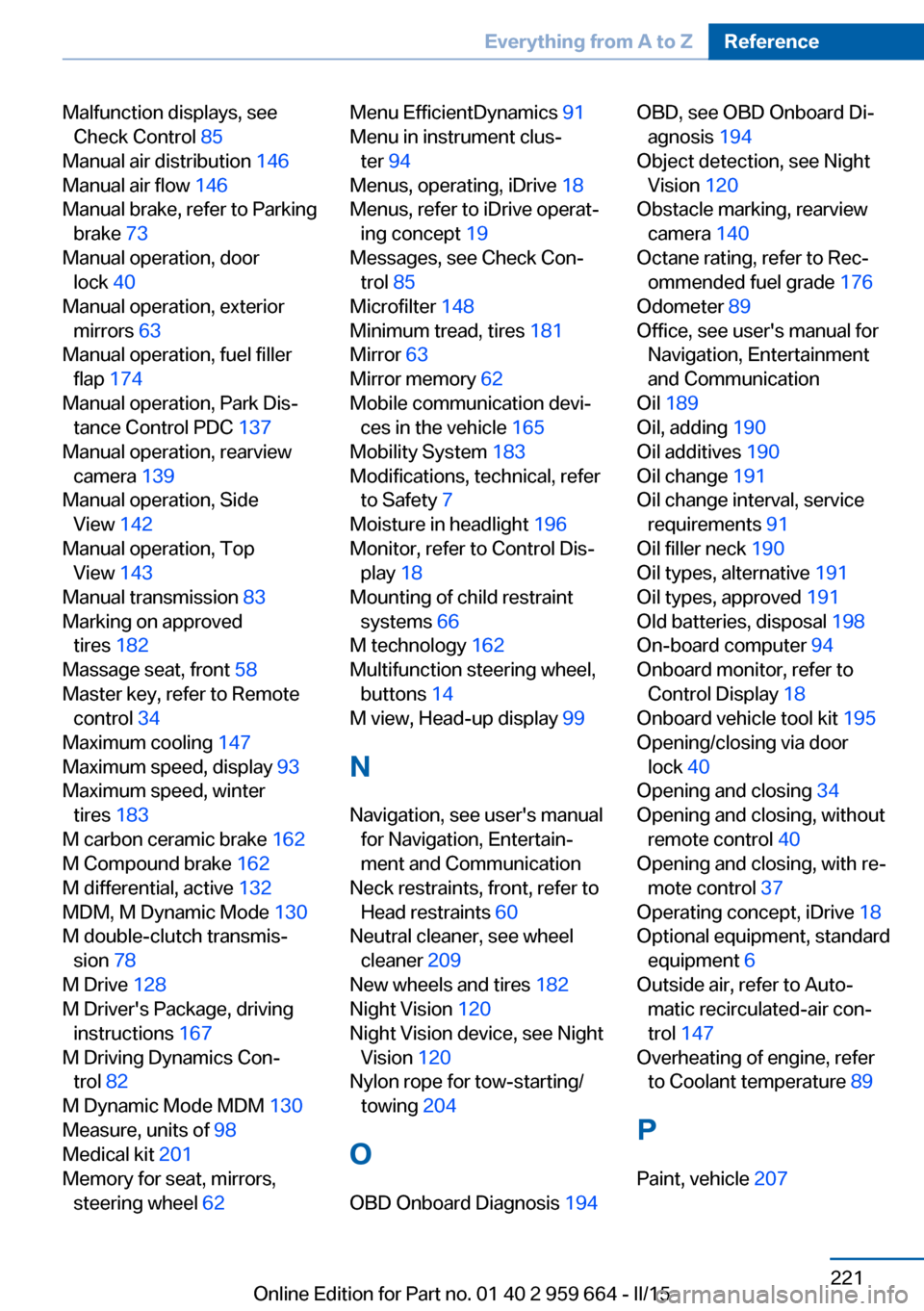

Malfunction displays, seeCheck Control 85
Manual air distribution 146
Manual air flow 146
Manual brake, refer to Parking brake 73
Manual operation, door lock 40
Manual operation, exterior mirrors 63
Manual operation, fuel filler flap 174
Manual operation, Park Dis‐ tance Control PDC 137
Manual operation, rearview camera 139
Manual operation, Side View 142
Manual operation, Top View 143
Manual transmission 83
Marking on approved tires 182
Massage seat, front 58
Master key, refer to Remote control 34
Maximum cooling 147
Maximum speed, display 93
Maximum speed, winter tires 183
M carbon ceramic brake 162
M Compound brake 162
M differential, active 132
MDM, M Dynamic Mode 130
M double-clutch transmis‐ sion 78
M Drive 128
M Driver's Package, driving instructions 167
M Driving Dynamics Con‐ trol 82
M Dynamic Mode MDM 130
Measure, units of 98
Medical kit 201
Memory for seat, mirrors, steering wheel 62 Menu EfficientDynamics 91
Menu in instrument clus‐ ter 94
Menus, operating, iDrive 18
Menus, refer to iDrive operat‐ ing concept 19
Messages, see Check Con‐ trol 85
Microfilter 148
Minimum tread, tires 181
Mirror 63
Mirror memory 62
Mobile communication devi‐ ces in the vehicle 165
Mobility System 183
Modifications, technical, refer to Safety 7
Moisture in headlight 196
Monitor, refer to Control Dis‐ play 18
Mounting of child restraint systems 66
M technology 162
Multifunction steering wheel, buttons 14
M view, Head-up display 99
N
Navigation, see user's manual for Navigation, Entertain‐
ment and Communication
Neck restraints, front, refer to Head restraints 60
Neutral cleaner, see wheel cleaner 209
New wheels and tires 182
Night Vision 120
Night Vision device, see Night Vision 120
Nylon rope for tow-starting/ towing 204
O OBD Onboard Diagnosis 194 OBD, see OBD Onboard Di‐
agnosis 194
Object detection, see Night Vision 120
Obstacle marking, rearview camera 140
Octane rating, refer to Rec‐ ommended fuel grade 176
Odometer 89
Office, see user's manual for Navigation, Entertainment
and Communication
Oil 189
Oil, adding 190
Oil additives 190
Oil change 191
Oil change interval, service requirements 91
Oil filler neck 190
Oil types, alternative 191
Oil types, approved 191
Old batteries, disposal 198
On-board computer 94
Onboard monitor, refer to Control Display 18
Onboard vehicle tool kit 195
Opening/closing via door lock 40
Opening and closing 34
Opening and closing, without remote control 40
Opening and closing, with re‐ mote control 37
Operating concept, iDrive 18
Optional equipment, standard equipment 6
Outside air, refer to Auto‐ matic recirculated-air con‐
trol 147
Overheating of engine, refer to Coolant temperature 89
P Paint, vehicle 207 Seite 221Everything from A to ZReference221
Online Edition for Part no. 01 40 2 959 664 - II/15

Tow truck 203
TPM Tire Pressure Moni‐ tor 110
Transmission, manual trans‐ mission 83
Transporting children safely 66
Tread, tires 181
Trip computer 96
Triple turn signal activa‐ tion 75
Trip odometer 89
Truck for tow-starting/ towing 203
Trunk, cargo area partition 50
Trunk lid closing 41
Trunk lid, emergency unlock‐ ing 42
Trunk lid, hotel function 41
Trunk lid opening 41
Trunk lid via remote con‐ trol 39
Turning circle 214
Turning circle lines, rearview camera 140
Turn signals, operation 75
Turn signals, rear, bulb re‐ placement 197
U
Unintentional alarm 45
Units of measure 98
Universal remote control 150
Unlocking/locking via door lock 40
Unlocking/locking with re‐ mote control 37
Unlocking, settings 43
Updates made after the edito‐ rial deadline 7
Upholstery care 208
USB interface 156 V
V8 high-performance engine, High-performance engine
V8 162
Vanity mirror 152
Vehicle battery 198
Vehicle battery, replac‐ ing 198
Vehicle, break-in 164
Vehicle care 207
Vehicle features and op‐ tions 6
Vehicle identification num‐ ber 9
Vehicle jack 198
Vehicle paint 207
Vehicle storage 210
Vehicle wash 206
Ventilation 149
Ventilation, refer to Parked- car ventilation 149
Venting, see ventilation 149
Vent, see ventilation 149
VIN, see vehicle identification number 9
Voice activation system 26
W Warning and indicator lamps, see Check Control 85
Warning displays, see Check Control 85
Warning messages, see Check Control 85
Warning triangle 201
Warranty 7
Washer fluid 77
Washer nozzles, wind‐ shield 77
Washer system 75
Washing, vehicle 206
Water on roads 166
Weights 214 Welcome lamps during un‐
locking 37
Welcome lights 101
Wheel base, vehicle 214
Wheel cleaner 209
Wheels, changing 182
Wheels, everything on wheels and tires 178
Wheels, Flat Tire Monitor FTM 112
Wheels, Tire Pressure Moni‐ tor TPM 110
Width, vehicle 214
Wind deflector 54
Window defroster, rear 147
Windows, powered 46
Windshield, climate con‐ trol 165
Windshield washer fluid 77
Windshield washer noz‐ zles 77
Windshield washer sys‐ tem 75
Windshield wiper 75
Winter storage, care 210
Winter tires, suitable tires 183
Winter tires, tread 181
Wiper 75
Wiper blades, replacing 195
Wiper fluid 77
Wiper, fold-out position 77
Wiper system 75
Wood, care 209
Word match concept, naviga‐ tion 24
Wrench, see Onboard vehicle tool kit 195 Seite 224ReferenceEverything from A to Z224
Online Edition for Part no. 01 40 2 959 664 - II/15
